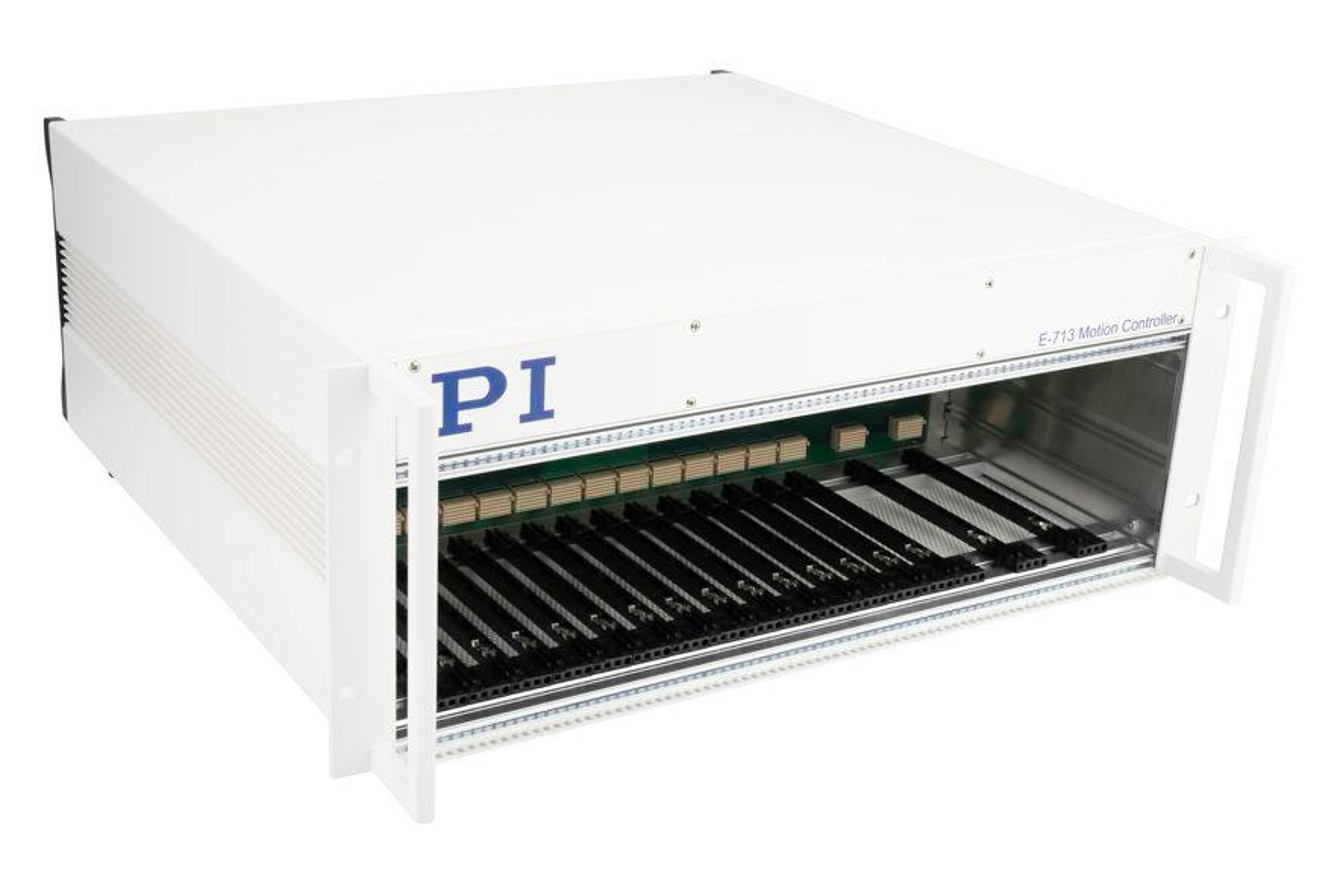

E-713.R Housings for E-713 Motion Controller

Maximum flexibility for nanopositioning systems from PI

Housing for a main module and up to 16 further modules. Supports flexible configuration of interface modules and modules for controlling multi-axis nanopositioning systems with different drive and sensor types.

Selectable output voltage ranges

To enable provision of the suitable output voltage ranges for all combinations of amplifier modules, housing variants with various combinations of the integrated power supplies are available.

Low-noise components for maximum precision

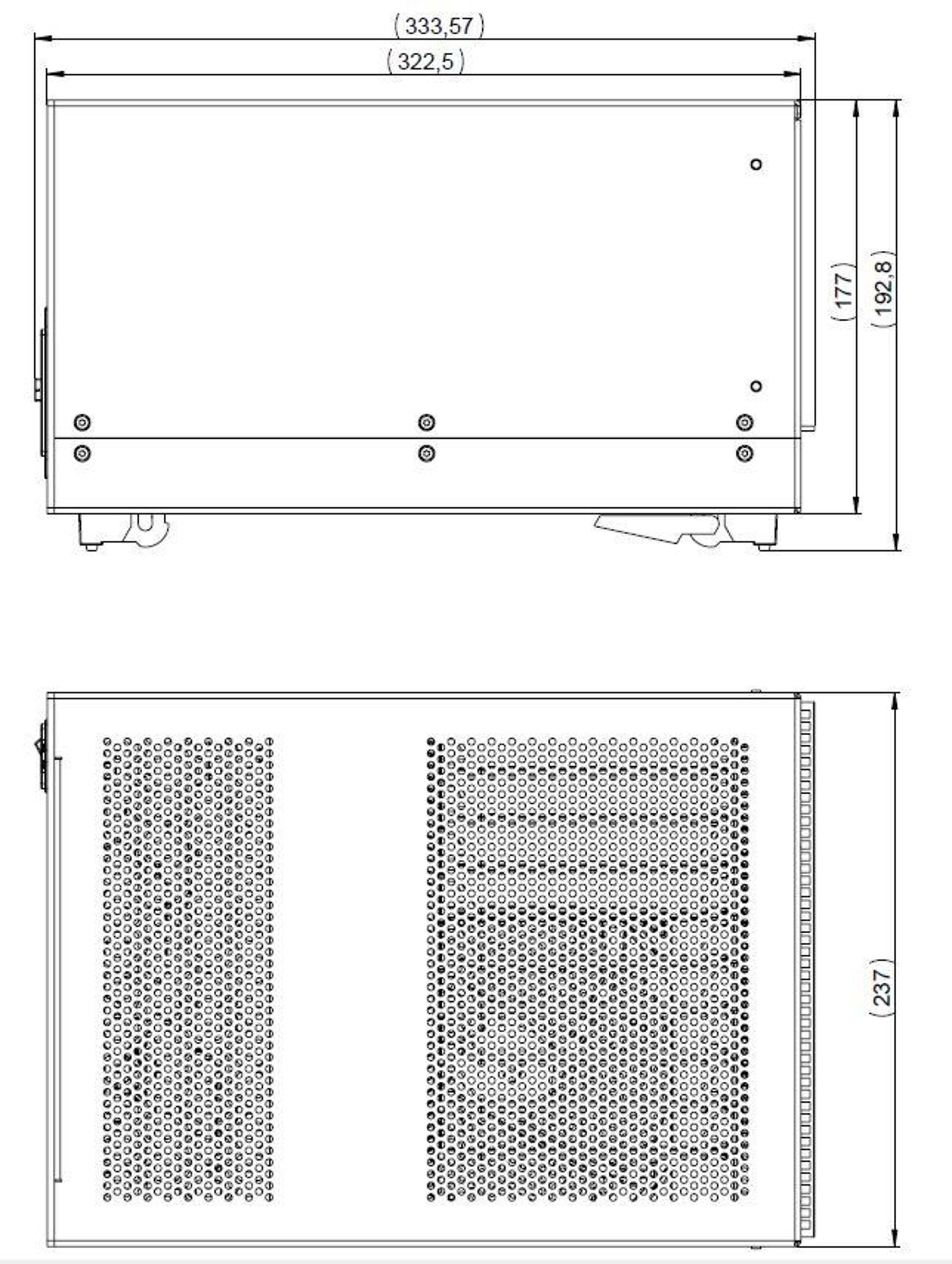

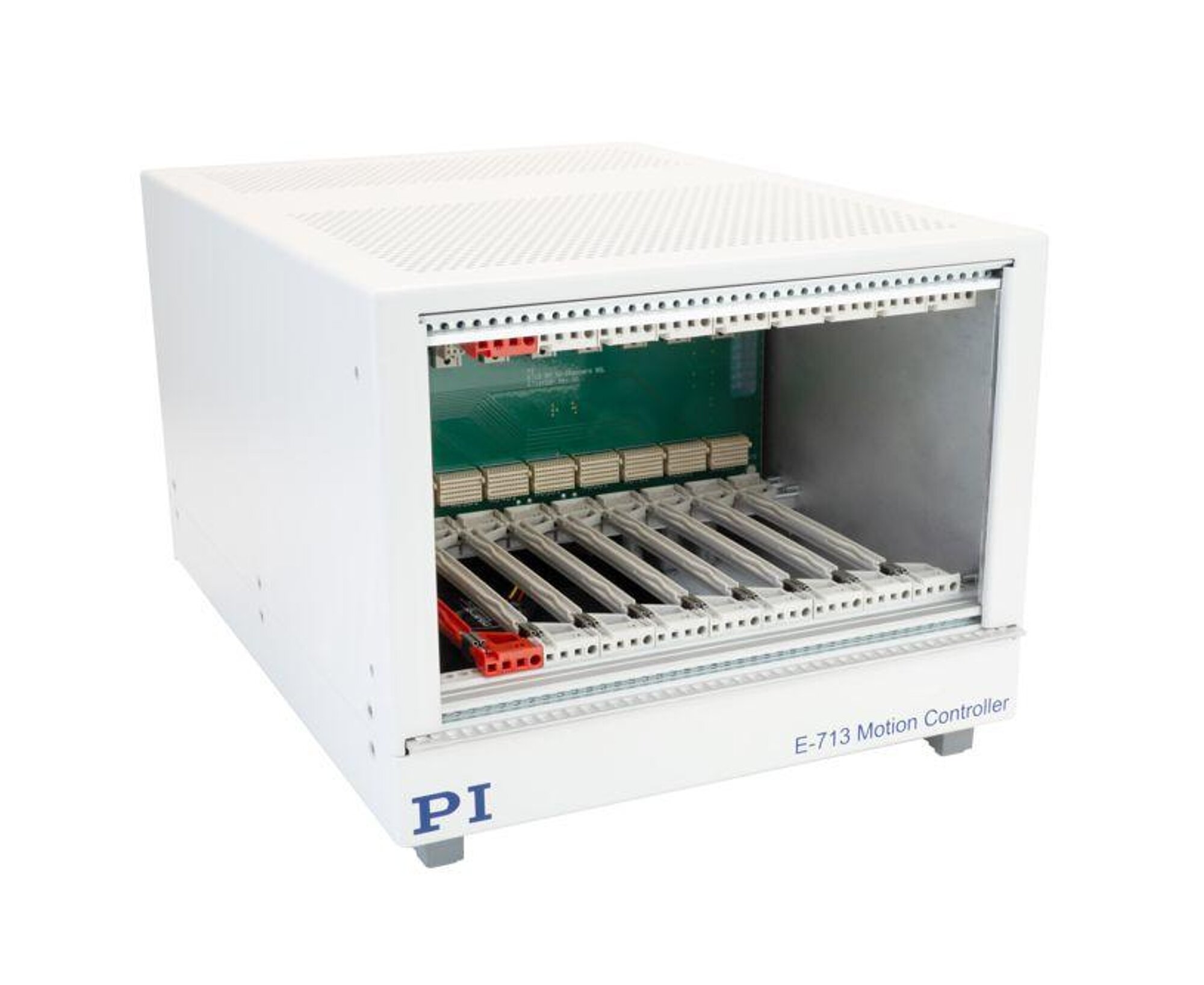

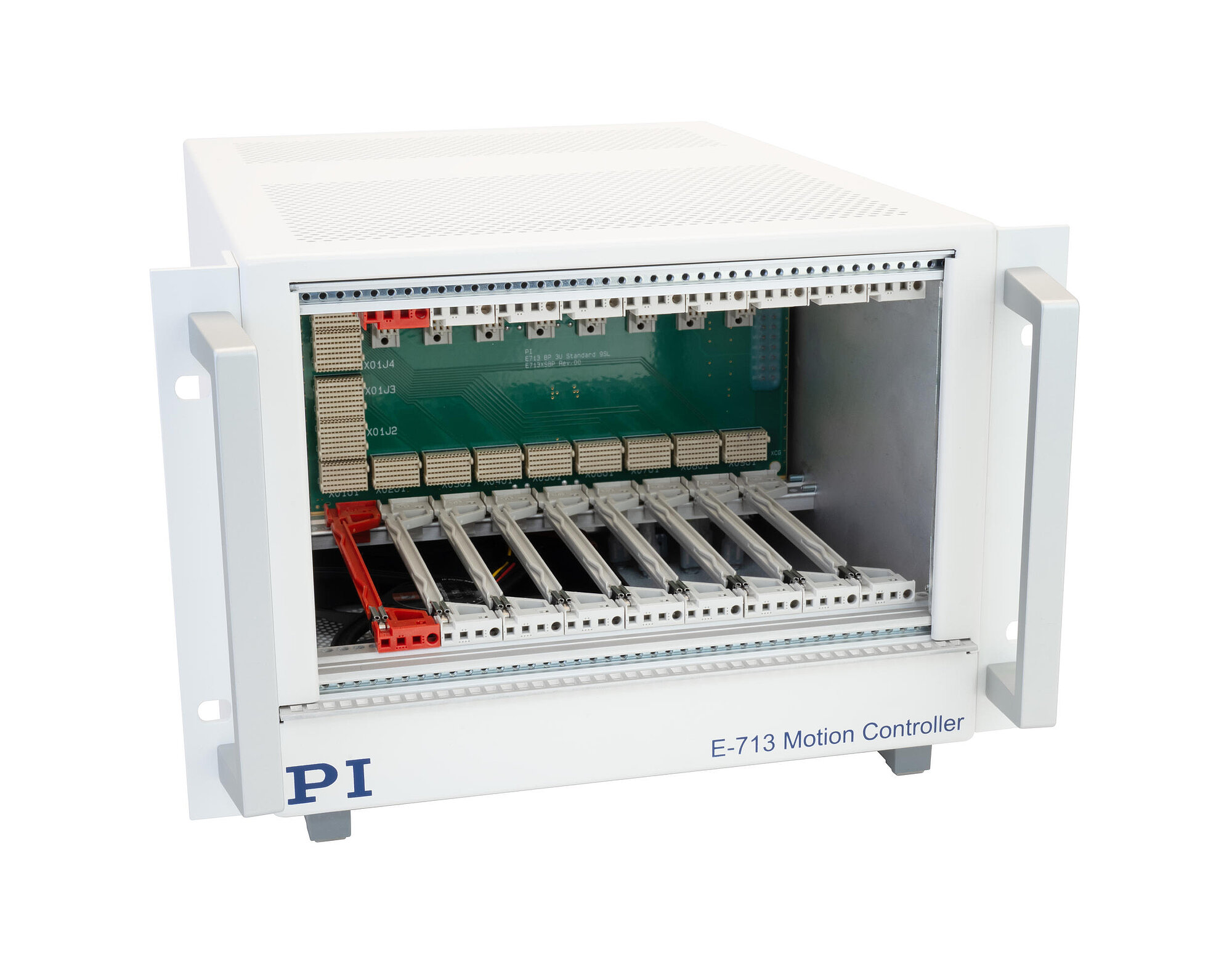

Because the integrated power supplies produce minimal voltage ripple, the E-713 Motion Controller is ideally suited for low-noise applications. The active cooling system of the E-713.R4 model was also designed to generate a very low level of noise.

PCI Express 3.0 for fast data transfer

The internal connection of the main module via a PCI Express (PCIe) 3.0 interface ensures fast data transfer between the components of the E-713 Motion Controller.

Modular design

Thanks to the modular design, E-713 Motion Controllers can be configured precisely according to customer requirements. E-713 Motion Controllers coordinate up to 16 axes with a wide range of drive types. This involves the use of state-of-the-art control and linearization algorithms. Optional digital and analog interfaces support motion automation.
