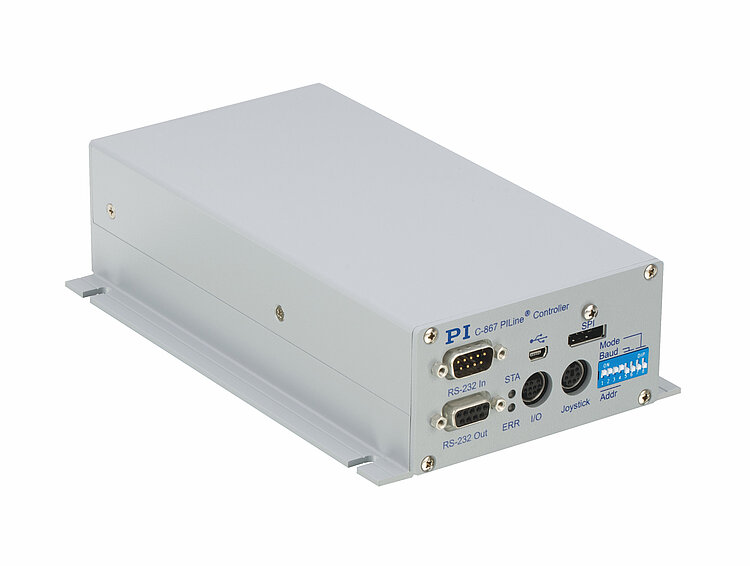

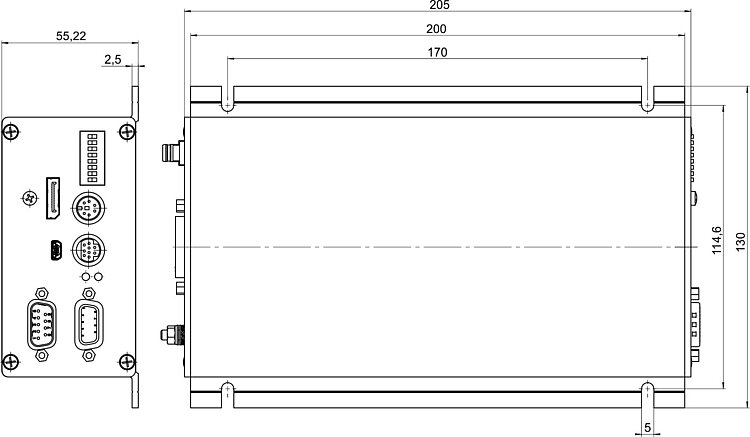

C-867.1U PILine® Motion Controller

For Single-Axis Positioning Stages with PILine® Ultrasonic Piezo Motor

C-867.1U PILine® Motion Controller
ダウンロード画面へ 仕様 ダウンロード 見積 / 発注
  • Integrated power amplifier with dynamic frequency control
  • Multifunctional encoder input: A/B, sin/cos, BiSS
  • Macro programmable for stand-alone functionality
  • Integrated Interfaces: USB, RS-232, SPI, I/O, joystick
  • Daisy chain networking

Servo controller and power amplifier

Single-axis benchtop device with special PID controller for PILine® ultrasonic piezo motors. Network capable with up to 16 units on a single interface. Power amplifier for PILine® ultrasonic piezo motors and positioners with performance class 1 and 2 piezo motors. Dynamic frequency control for optimum control.

Motion profiles

Point-to-point, trapezoidal velocity profile. User-definable trajectories (e.g., circles, sine curves) from externally fed points.

Interfaces and communication, encoder input

USB-, RS-232-, SPI interface for commanding. I/O lines for automation. Interface for analog joystick. Differentially transmitted A/B signals (TTL) or sin/cos signals (1 Vss). BiSS interface for absolute encoders. Inputs for TTL signals from limit and reference point switches.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Fields of application

  • Micromanipulation
  • Automation
  • Biotechnology
  • Sample manipulation
  • Sample positioning
  • Optical Metrology
