F-712.PM1 Optical Power Meter

F-712.PM1 Optical Power Meter
製品について 仕様 ダウンロード 見積 / 発注
  • Large signal bandwidth of 20 kHz
  • High dynamic range

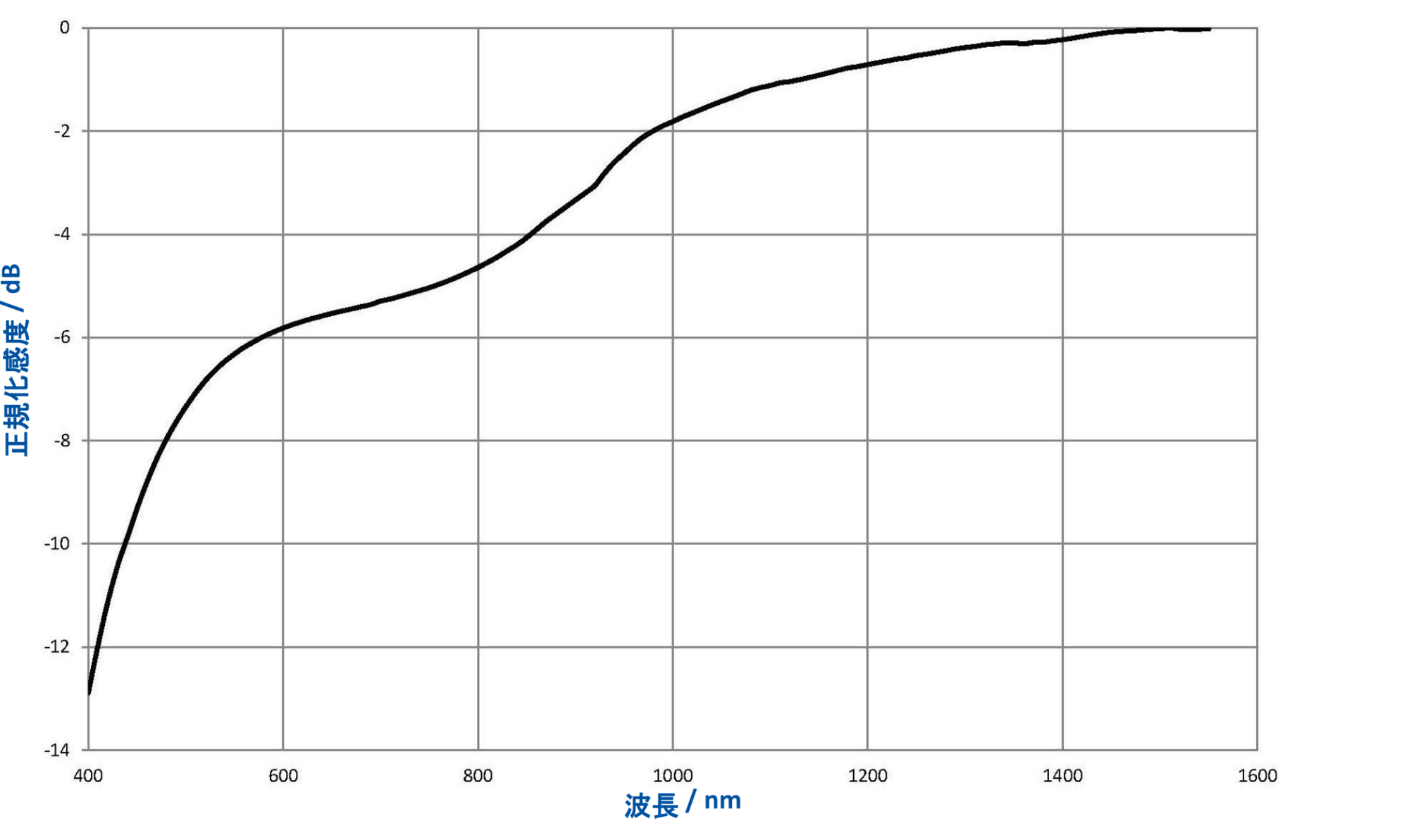

  • Wavelength range 400 to 1550 nm
  • Current input range to 1 mA
  • Logarithmic output

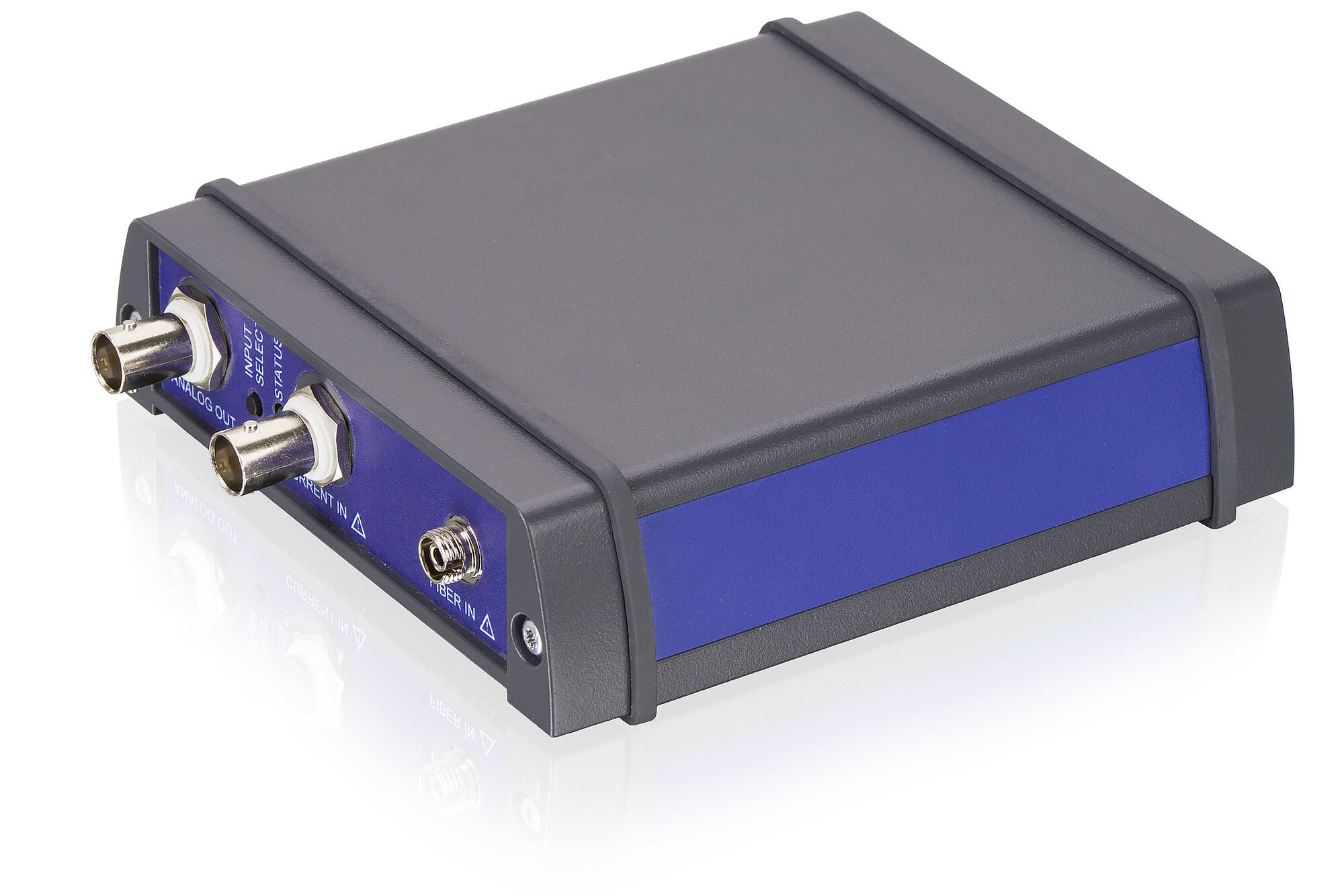

Product overview

This optical power meter can convert an optical signal into a voltage signal in high resolution and with an extremely high bandwidth. The design of the optical input enables measuring of the optical signal independent of the position of the optical fiber in the connector.

The device also has a current input. For example, a photodiode can be connected to this input and the diode current converted into a logarithmic voltage signal. Switching between the inputs is done via a button and an LED lights up when the current input is activated. The large wavelength range of the optical power meter enables working in both the visible and infrared range without switching. The precise, logarithmical output signal is ideal for optical alignment systems. The optical power meter is therefore suitable for the fastest fully automatic alignment systems available on the market.

Specifications

Datasheet F-712.PM1

バージョン/日付
2017-11-06
バージョン/日付
2017-11-06
バージョン/日付
2018-07-12
ドキュメントの言語

Downloads

データシート

Datasheet F-712.PM1

バージョン/日付
2017-11-06
バージョン/日付
2017-11-06
バージョン/日付
2018-07-12
ドキュメントの言語

ドキュメント

User Manual MP165

F-712.PM1 Optical Power Meter, 400-1550 nm Wavelength Range, Logarithmic Output ±5 V
バージョン/日付
2018-04-03
バージョン/日付
2018-04-03
ドキュメントの言語

3D モデル

F-712.PM1 STEP

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

F-712.PM1 NEW!
Optical power meter, 400-1550 nm wavelength range, to 1 mA input current, 20 kHz signal bandwidth, logarithmic output ±5 V, benchtop device, including power adapter
