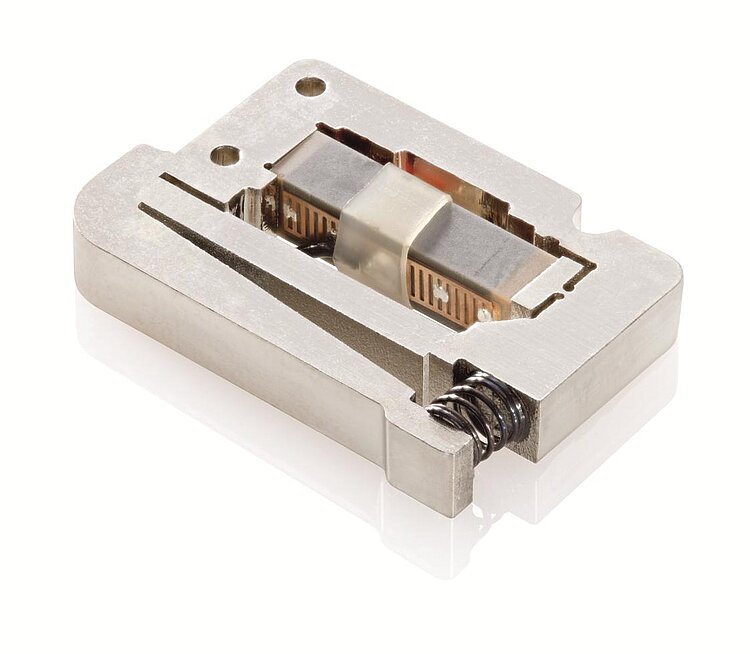

P-604 Compact PiezoMove Linear Actuator

Inexpensive, with 300 µm Travel Range

Light and compact: 4 g and <13 mm × 20 mm surface
Travel range 300 µm
Optimized design for manufacturing in large quantities
Customer-specific adaptations can be provided
Outstanding lifetime due to PICMA^® piezo actuators
Ideal for OEM applications in optics, medical technology, biotechnology, and microfluidics

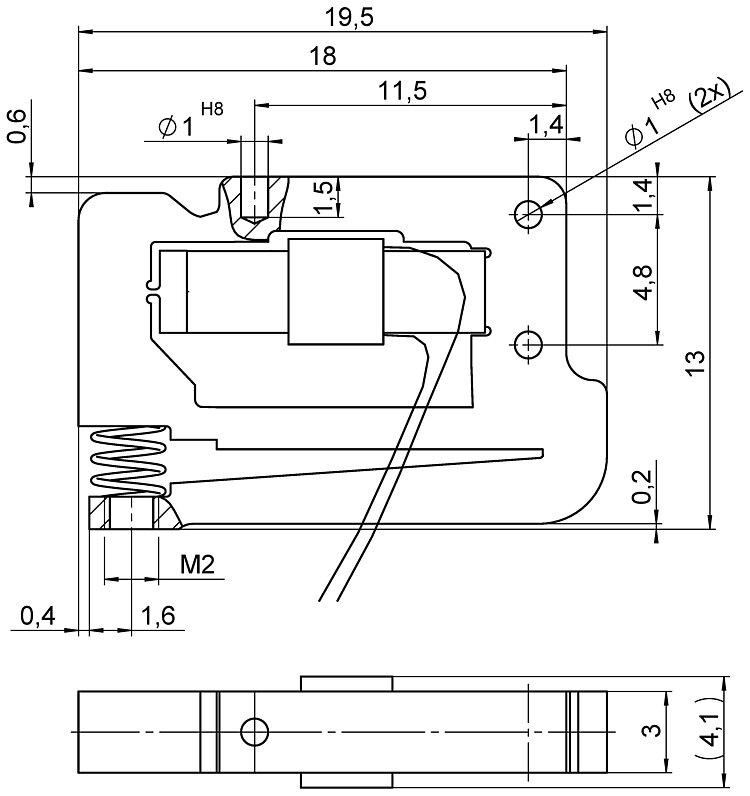

P-604, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Fields of application

Nanopositioning
High-speed switching
Patch clamp
Microdispensing
Adaptive systems technology / automation
Photonics / integrated optics
Biotechnology

Outstanding lifetime thanks to PICMA^® piezo actuators

The PICMA^® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA^® actuators offer an up to ten times longer lifetime than conventional polymerinsulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100% vacuum compatible and work in a wide temperature range.

データシートのダウンロード画面へ仕様へ

データシート

日付 / バージョン

2023-12-11

pdf - 412 KB

日付 / バージョン

2023-12-11

pdf - 415 KB

日付 / バージョン

2018-06-20

pdf - 627 KB

ダウンロード

Motion	P-604.300	Tolerance
Active axes	Z
Travel range in Z, open loop, at -20 to 120 V	300 µm	+20 / -0 %
Positioning	P-604.300	Tolerance
Resolution in Z, open loop	0.5 nm	typ.
Drive Properties	P-604.300	Tolerance
Drive type	PICMA®
Electrical capacitance	0,27 µF	±20 %
Mechanical Properties	P-604.300	Tolerance
Stiffness in Z	0.01 N/µm	±20 %
Resonant frequency in Z, unloaded	900 Hz	±20 %
Permissible push force in Z	2 N	max.
Permissible pull force in Z	1.5 N	max.
Guide	Flexure guide with lever amplification
Overall mass	4 g	±10 %
Material	Steel
Miscellaneous	P-604.300	Tolerance
Operating temperature range	-20 to 80 °C
Connector	Bare wire strands
Cable length	0.1 m	±10 mm
Recommended controllers / drivers	E-610.00 amplifier, E-625, E-831 OEM amplifier module

The resolution of the system is only limited by the noise of the amplifier and measuring technology because PI piezo actuators are free of friction.

Ask about customized versions.

データシートのダウンロード画面へダウンロード画面へ

データシート

日付 / バージョン

2023-12-11

pdf - 412 KB

日付 / バージョン

2023-12-11

pdf - 415 KB

日付 / バージョン

2018-06-20

pdf - 627 KB

ダウンロード

ドキュメント

PiezoMove® Linear Actuators: P-60x

日付 / バージョン

1.1.0 2023-10-10

pdf - 633 KB

日付 / バージョン

1.1.0 2023-10-10

pdf - 640 KB

ダウンロード

ドキュメント

P-604.300 Compact PiezoMove Linear Actuator

日付 / バージョン

2018-02-20

pdf - 3 MB

日付 / バージョン

2018-02-20

pdf - 3 MB

３D モデル

zip - 25 KB

見積/発注へ

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-604.300

Compact PiezoMove linear actuator; PICMA^® piezo actuator drive; 300 µm travel range (open loop); push force capacity 2 N; pull force capacity 1.5 N; bare wire strands; 0.1 m cable length
