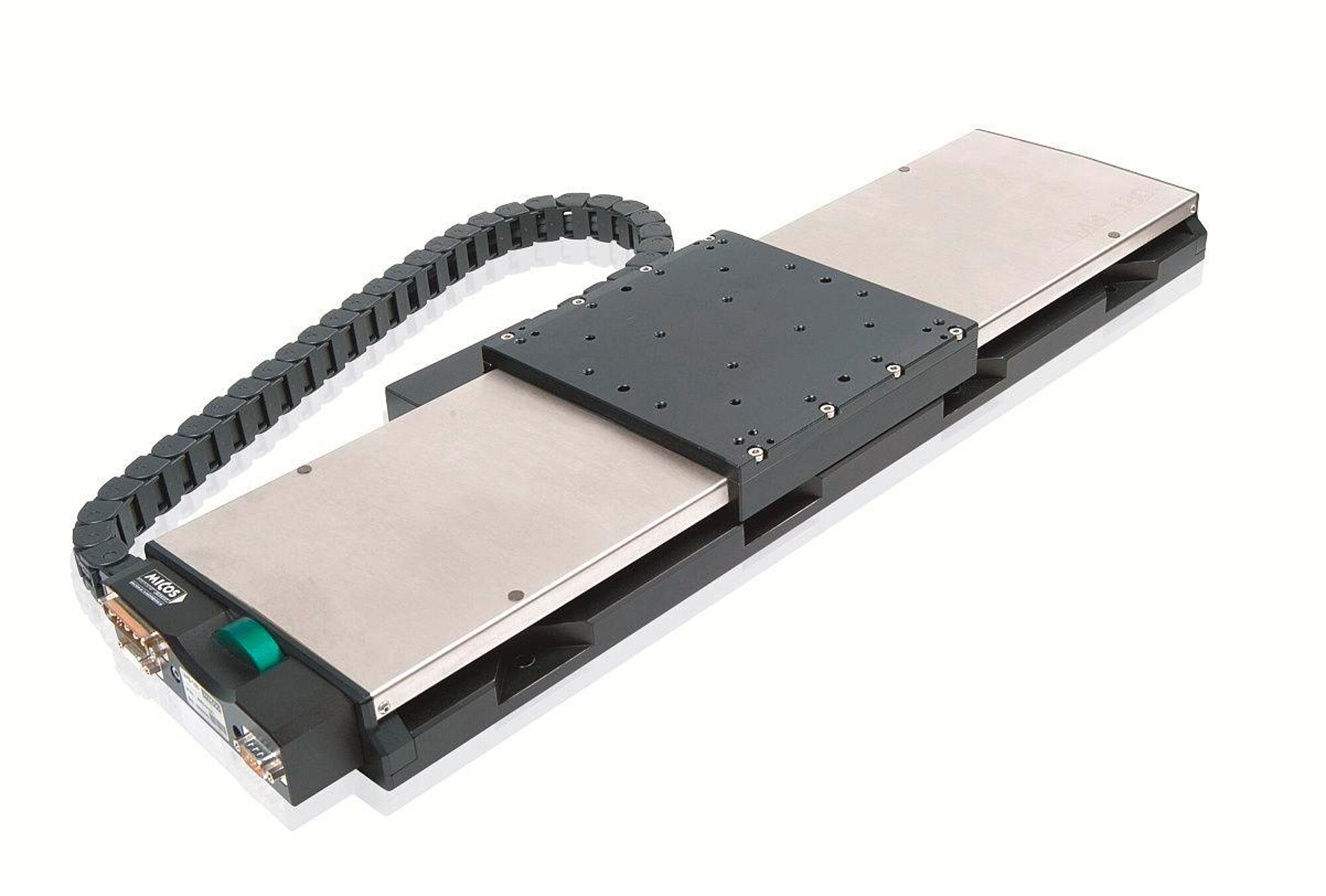

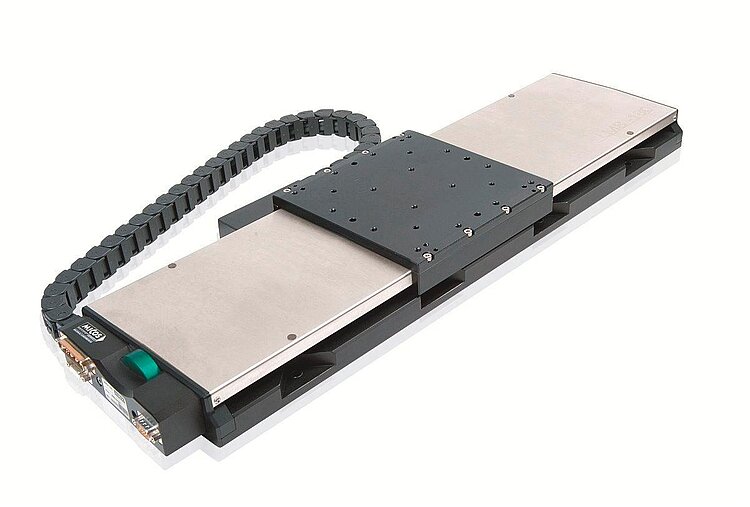

LMS-180 Precision Linear Stage

High Dynamics due to Magnetic Direct Drive, Excellent Travel Accuracy

  • Travel ranges to 508 mm (20")
  • Velocity to 500 mm/s
  • Incremental encoder with 15 nm resolution
LMS-180 Precision Linear Stage
製品の解説 仕様 ダウンロード 見積 / 発注
At the moment only a limited selection of product variants is available.

Please note that at the moment only a limited selelction of variants of this product family is available. This selection can be found here on the web page. The complete list of products can be found in the PDF datasheet that is available for download.

If you require further information contact us via info@pi.ws.



Reference-class linear stage

High travel accuracy with recirculating ball bearings. Inductive limit switches. High position resolution due to incremental encoder with analog signal transmission (sin/cos, 1 Vpp). Multi-axis combinations with the directly driven rotation stages of the UPR series. Models with DC servo or stepper motors are available with the same footprint.

Magnetic direct drive

Ironless magnetic direct drive for high velocity and acceleration. High position resolution.

Application fields

Industry and research. Metrology, precision scanning in semiconductor or electronics manufacturing.

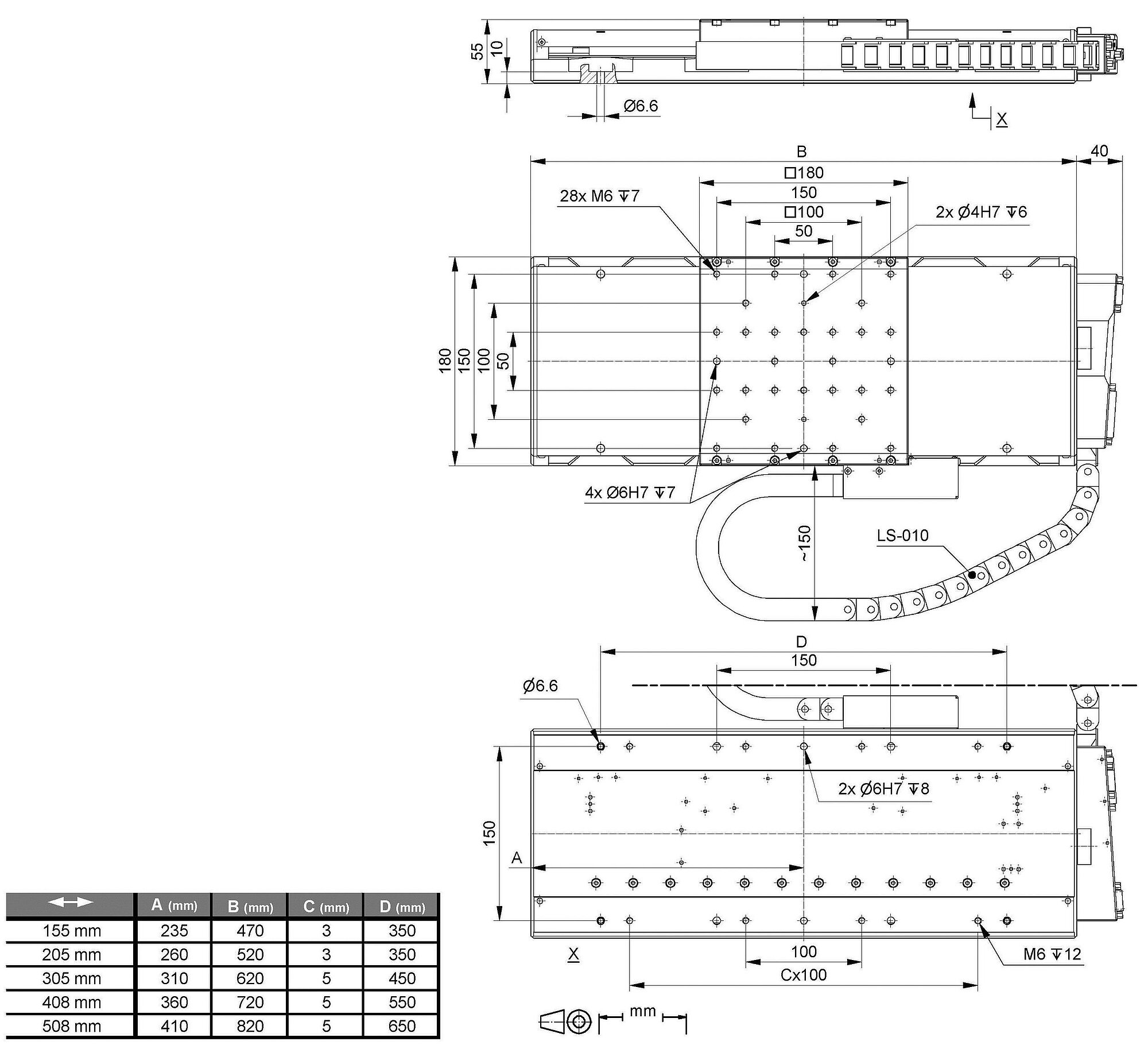

Specifications

データシート

Datasheet LMS-180

日付 / バージョン
2024-03-19
pdf - 540 KB
日付 / バージョン
2024-03-19
pdf - 538 KB
日付 / バージョン
2017-08-08
pdf - 737 KB

Downloads

製品についての注意事項

製品についての注意事項

Product Change Notification Motor Driven Products

日付 / バージョン
2021-04-19
pdf - 917 KB

データシート

データシート

Datasheet LMS-180

日付 / バージョン
2024-03-19
pdf - 540 KB
日付 / バージョン
2024-03-19
pdf - 538 KB
日付 / バージョン
2017-08-08
pdf - 737 KB

ドキュメント

ドキュメント

User Manual LMS-180

Precision Linear Stage

日付 / バージョン
2017-04-21
pdf - 925 KB
日付 / バージョン
2017-04-21
pdf - 930 KB

3D モデル

3D モデル

LMS-180 3-D model

zip - 11 MB
At the moment only a limited selection of product variants is available.

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

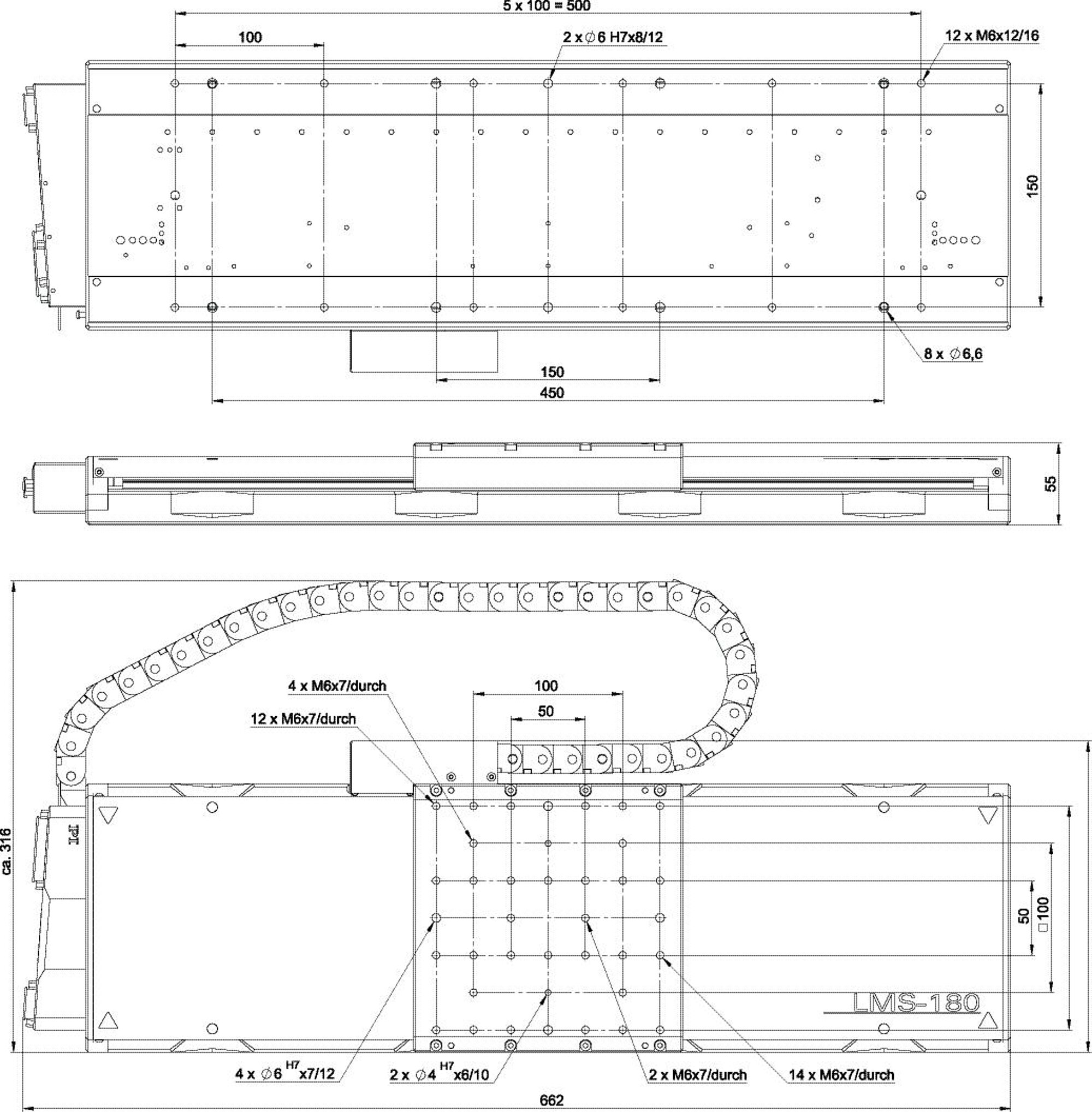

68509131

Precision linear stage; ironless 3-phase linear motor; 305 mm travel range; 250 N load capacity; 500 mm/s maximum velocity; incremental linear encoder, 15 nm sensor resolution, sin/cos, 1 V peak-peak
