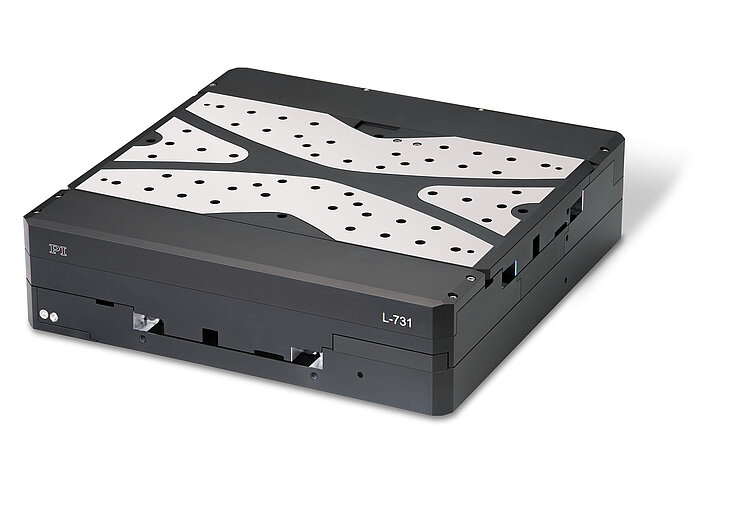

L-731 Precision XY Stage

High Travel Accuracy and Stability

  • Travel range 205 mm × 205 mm (8")
  • Unidirectional repeatability to 0.025 µm
  • Velocity to 90 mm/s
  • 2-phase stepper motor or DC motors
  • Incremental linear encoder with 1 nm resolution
  • Rotary encoder with 20000 impulses/revolution
L-731 Precision XY Stage
製品の解説 仕様 ダウンロード 見積 / 発注

Highly accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement. Optical limit and reference switches. More travel ranges on request.

Kreuzrollenführung

With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages prevent cage creep.

Drive types

  • 2-phase stepper motor for high torque even at low velocities and higher resolution
  • DC motor for high velocity constancy, low vibration, and high velocities

Application fields

Medical industry. Laser cutting. Biotechnology. Measuring technology. Laser inscription.

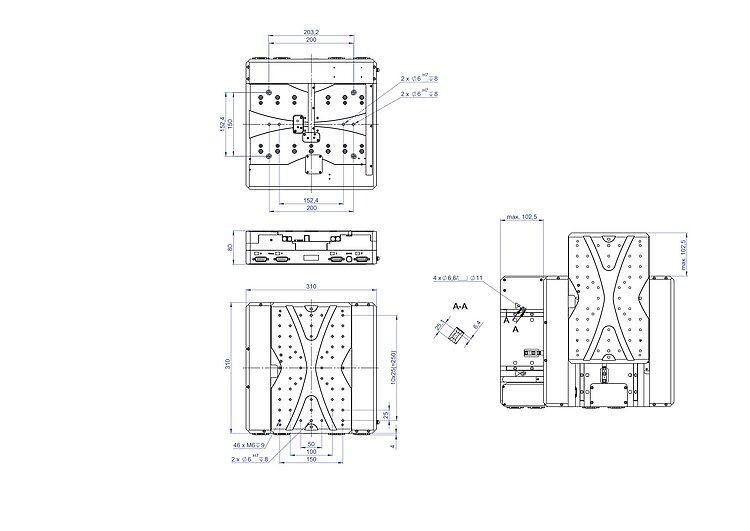

Specifications

データシート

Datasheet L-731 (英語)

日付 / バージョン
2024-02-14
pdf - 1 MB
日付 / バージョン
2024-02-14
pdf - 1 MB
日付 / バージョン
2021-01-18
pdf - 485 KB

Downloads

製品についての注意事項

製品についての注意事項

Product Change Notification Motor Driven Products

日付 / バージョン
2021-04-19
pdf - 917 KB

データシート

データシート

Datasheet L-731 (英語)

日付 / バージョン
2024-02-14
pdf - 1 MB
日付 / バージョン
2024-02-14
pdf - 1 MB
日付 / バージョン
2021-01-18
pdf - 485 KB

ドキュメント

ドキュメント

User Manual MP158

L-731 / V-731 Precision XY Stage

日付 / バージョン
1.2.0 2024-01-18
pdf - 2 MB
日付 / バージョン
1.2.0 2024-01-18
pdf - 2 MB
ドキュメント

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

日付 / バージョン
3.0.0 2024-01-15
pdf - 261 KB
日付 / バージョン
3.0.0 2024-01-15
pdf - 295 KB

3D モデル

3D モデル

L-731 3-D model

zip - 9 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-731.093111

Precision XY stage; DC motor; 205 mm × 205 mm travel range (X × Y); 200 N load capacity; 50 mm/s × 50 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-731.093112

Precision XY stage; DC motor; 205 mm x 205 mm travel range (X × Y); 200 N load capacity; 50 mm/s × 50 mm/s maximum velocity; ball screw; incremental linear encoder, A/B quadrature, RS-422

L-731.093132

Precision XY stage; DC motor; 205 mm × 205 mm travel range (X × Y); 200 N load capacity; 90 mm/s × 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-731.44SD

Precision XY stage; 2-phase stepper motor; 205 mm x 205 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw; incremental linear encoder, A/B quadrature, RS-422

L-731.4ASD

Precision XY stage; 2-phase stepper motor; 205 mm × 205 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
