A-351 MGS basic configuration
Mechanical XY gantry system, recirculating ball bearing guides, 3-phase linear motors, absolute linear encoder, travel range to 500 mm × 1000 mm (please specify in the request)
A-351 MGS Gantry System with Linear Motors
Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.
- Overhead moving XY gantry
- Precision recirculating ball bearing guides
- Absolute encoder
- High-performance ironless linear motors
- Various travel ranges. Options and customized adaptations
- Flexible modular platform

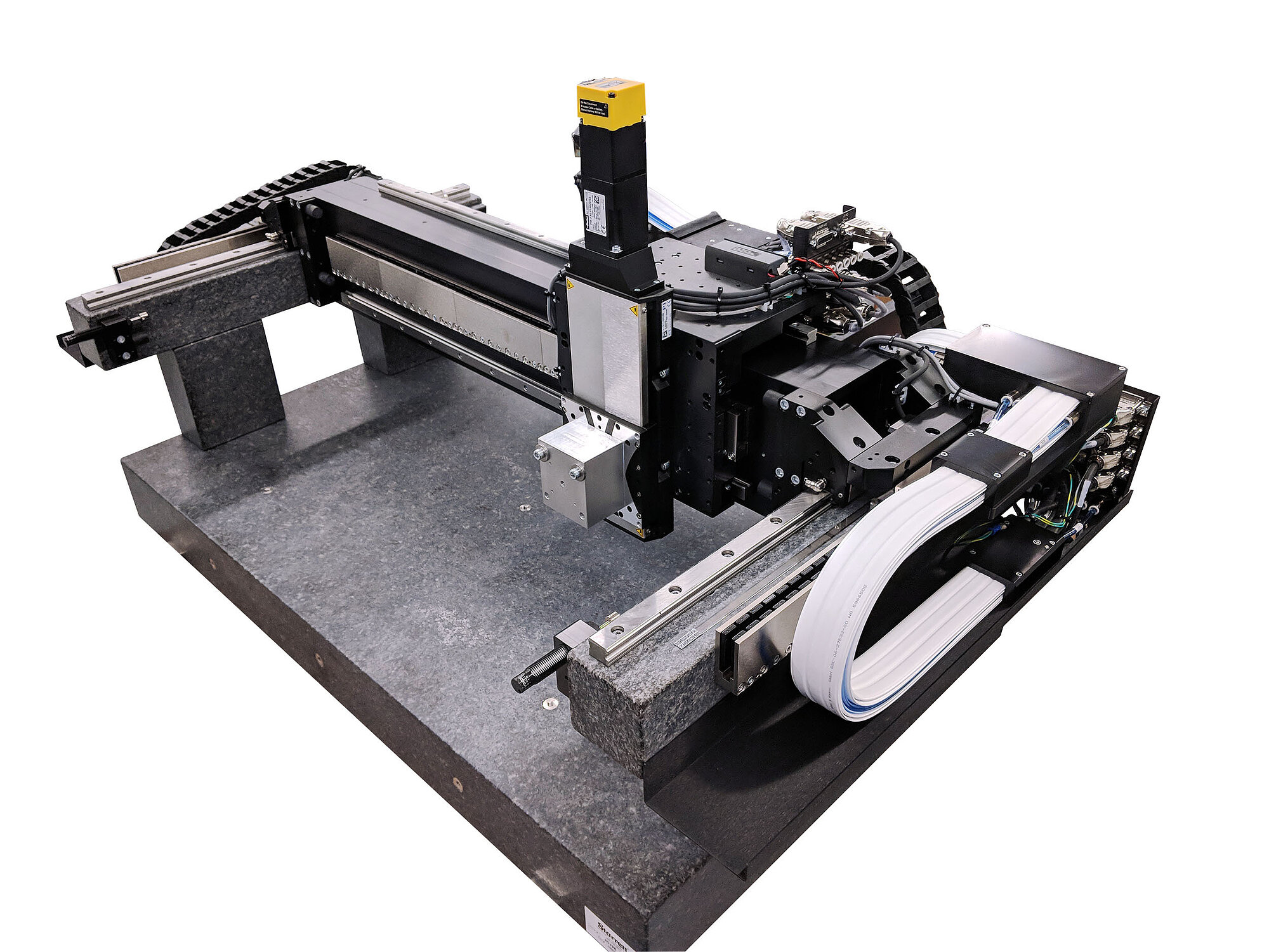

A-351 MGS gantry system

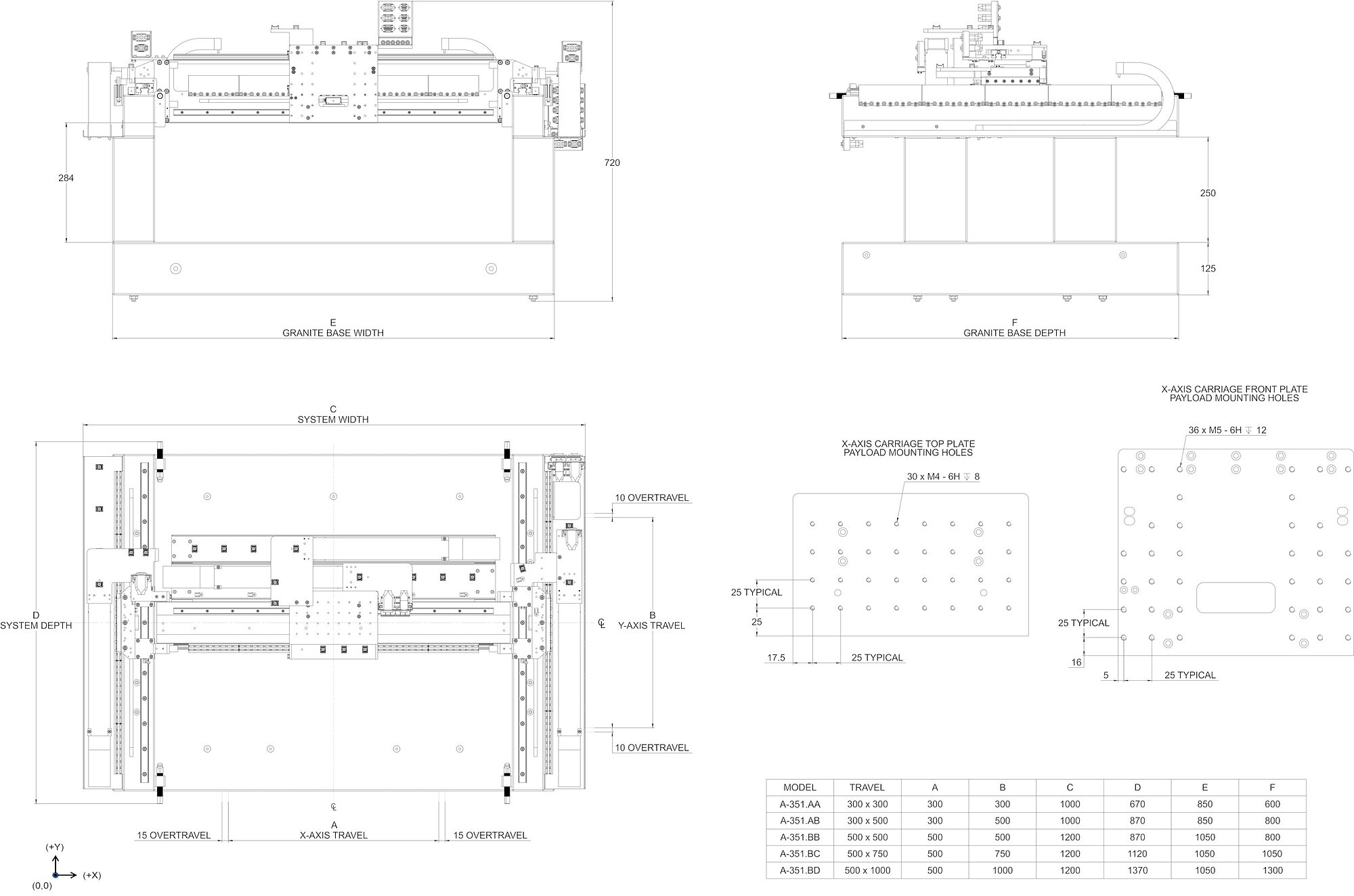

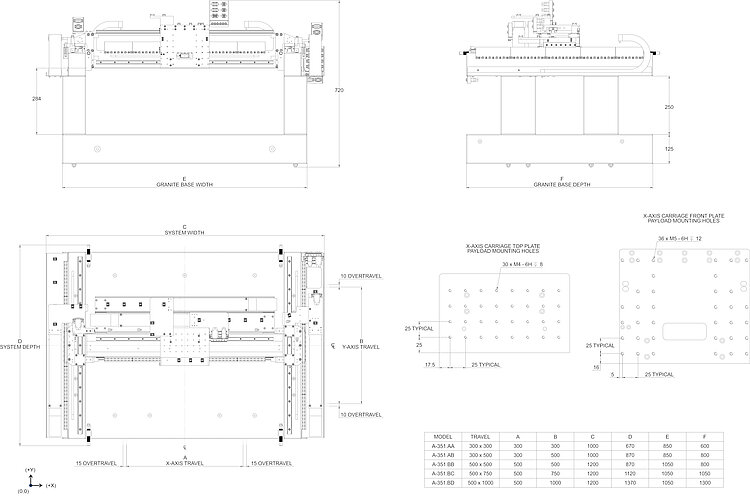

A-351 gantry system, dimensions in mm
A-351 MGS Gantry System with Linear Motors
製品の解説
仕様
ダウンロード
見積 / 発注
Overview
The MGS gantry system has been designed to maximize throughput for applications requiring overhead motion. This stage is ideal for 3D printing, assembly, pick-and-place, alignment, inspection, and industrial automation applications.
The MGS uses preloaded linear mechanical bearings which are designed to provide optimized stiffness and precision. Optional stainless steel guide rails can be delivered.
The gantry axis incorporates dual linear motors and dual linear encoders. Ironless linear motors provide smooth motion and no cogging or attractive forces. The linear motor and linear encoders are noncontact devices, so there is no backlash, wear, or maintenance concerns.
The A-351 is coupled with industry-leading controllers and drive modules from ACS that offer superior servo performance, advanced control algorithms to improve dynamic performance and error compensation, and a wide suite of software development tools.
Options and customized adaptations
- Base made of granite or aluminum
- Adjustable work height
- Systems for reducing vibration
- Additional drag chains
- Performance of the linear motors
- Liquid cooling of the linear motors
Application fields
Scanning, Digital printing, Electronics assembly and inspection, AOI (Automatic Optical Inspection), Automation.
Specifications
Specifications
Motion | Unit | Bridge axis | Gantry axis |
|---|---|---|---|
Travel range | mm | 300 500 | 300 500 750 1000 |
Guide | Recirculating ball bearing guide | ||
Drive | 1 × Ironless 3-phase linear motor | 2 × Ironless 3-phase linear motor | |
Measuring system | Absolute linear encoder, 1 nm sensor resolution, BiSS-C, steel measuring scale | 2 × Absolute linear encoder, 1 nm sensor resolution, BiSS-C, steel measuring scale | |
Load capacity | 20 kg | ||
Positioning accuracy, calibrated (1) | µm | ±1 | |
Bidirectional repeatability | µm | ±0.5 | |
XY orthogonality | µrad | 25 | |
Max. velocity, unloaded (2) | m/s | 2 | 1 |
Moved mass | kg | 4.5 | Depending on the travel range of the bridge axis: 300 mm: 25 kg 500 mm: 30 kg |
(1) Accuracy values assume short time duration and do not consider the long-term effects of thermal drift on the stage.
(2) Depends on the motor selected, controller performance, duty cycle, load, and other application-specific parameters.
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
A-351 factory option: L-511 as Z axis
Modified L-511 linear stage with synchronous servo motor and holding brake, 50 to 150 mm travel range
A-351 factory option: V-408 as Z axis
Modified V-408 linear stage with 3-phase linear motor, holding brake, and pneumatic weight force compensation, 50 mm travel range
A-351 factory option: Additional drag chains
The A-351 can be equipped with addition drag chains to accommodate additional cables and hoses of the customer's setup.
A-351 factory option: Motor cooling
For applications with a high duty cycle and high accelerations can be equipped with liquid-cooled linear motors. Individual liquid cooling is also possible for the linear motor of the bridge axis. An external cooler is necessary.
A-351 factory option: Base materials
The base plate and the base structure of the gantry axis can be either granite or aluminum. Customized hole patterns are possible.
