E-651 • E-614 Piezo Amplifier / Servo Controller

For Closed-Loop Multilayer Bending Actuators

For closed-loop multilayer piezo bending actuators
Benchtop and OEM board versions
One- and two-channel versions
Position control for strain gauge sensors
Overheat protection

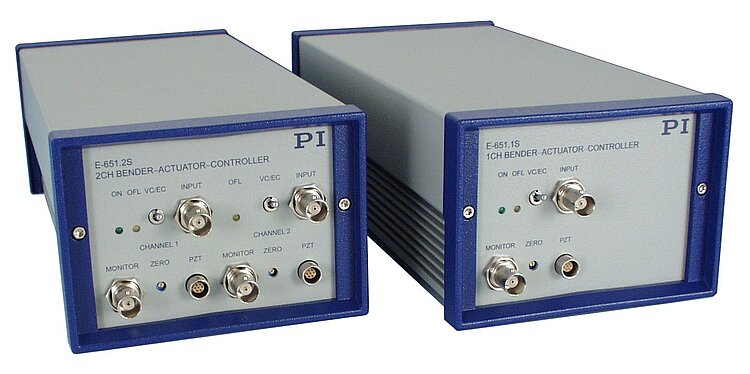

The E-651 is a benchtop device, especially designed for P-871 multilayer bending actuators equipped with strain gauge sensors. One- and two-channel versions are available. The compact E-614.2BS OEM board provides the same functionality as the 2-channel model.

The control signal specifies the piezo position in the servo loop. The servo controller is set so that maximum displacement is achieved at an input control voltage of +/- 5 V. The E-651 can also be operated as a pure voltage amplifier. The analog input signal in a range of -5 to +5 V then controls the output voltage ranging up to 60 V.

データシートのダウンロード画面へ仕様へ見積 / 発注

データシート

日付 / バージョン

2019-10-24

pdf - 137 KB

日付 / バージョン

2019-10-24

pdf - 138 KB

日付 / バージョン

2021-01-19

pdf - 238 KB

日付 / バージョン

2019-07-18

pdf - 524 KB

ダウンロード

	E-651.1S	E-651.2S / E-614.2BS
Function	Piezo amplifier and position controller for multilayer bending actuators, benchtop device	Piezo amplifier and position controller for multilayer bending actuators E-651.2S: benchtop device E-614.2BS: OEM module
Channels	1	2

Sensor	E-651.1S	E-651.2S / E-614.2BS
Controller type	P-I (analog)	P-I (analog)
Sensor type	SGS	SGS
Sensor bandwidth	Low-pass filter frequency: 300 Hz / 1 kHz / 3 kHz selectable	Low-pass filter frequency: 300 Hz / 1 kHz / 3 kHz selectable

Amplifier	E-651.1S	E-651.2S / E-614.2BS
Input voltage range	-5 to 5 V	-5 to 5 V
Min. output voltage	0 to 60 V, additional fixed voltage of 60 V	0 to 60 V, additional fixed voltage of 60 V
Max. output power (<5 ms)	1 W	1 W / channel
Average output power	0.5 W	0.5 W / channel
Peak current (<5 ms)	36 mA	36 mA / channel
Average output current	18 mA	18 mA / channel
Current limitation	Short-circuit proof	Short-circuit proof
Voltage gain	6	6
Input impedance	100 kΩ	100 kΩ

Interfaces and operation	E-651.1S	E-651.2S	E-614.2BS
Piezo / sensor connector	LEMO EPG.0B.307.HLN	LEMO EPG.0B.307.HLN	Separate pin headers for piezo output and sensor
Analog input / control input socket	BNC	BNC	Pin header
Sensor monitor output	0 to 10 V for nominal displacement	0 to 10 V for nominal displacement	0 to 10 V for nominal displacement
Sensor monitor socket	BNC	BNC	Pin header

Miscellaneous	E-651.1S	E-651.2S	E-614.2BS
Operating temperature range	5 to 50 °C	5 to 50 °C	5 to 50 °C
Overheat protection	Deactivation at 75 °C	Deactivation at 75 °C	Deactivation at 75 °C
Dimensions	125 mm × 90 mm × 265 mm	125 mm × 90 mm × 265 mm	100 mm × 40 mm × 200 mm
Mass	1.36 kg	1.45 kg	0.3 kg
Operating voltage	14 to 16 V DC (power adapter in the scope of delivery)	14 to 16 V DC (power adapter in the scope of delivery)	14 to 16 V DC
