Product overview
High-resolution high-load linear actuator. Stepper motor for high torque. Highly dynamic, closed-loop DC and BLDC motors for high velocities. Robust design for industrial environments.
High-quality components
Application fields
Research. Automation. Optical alignment.
| Motion | L-239.033232 | L-239.035232 | L-239.50AD | L-239.50SD | Tolerance |
|---|---|---|---|---|---|
| Active axes | X | X | X | X | |
| Travel range in X | 52 mm | 52 mm | 52 mm | 52 mm | |
| Maximum velocity in X, unloaded | 50 mm/s | 50 mm/s | 50 mm/s | 25 mm/s | |
| Positioning | L-239.033232 | L-239.035232 | L-239.50AD | L-239.50SD | Tolerance |
| Minimum incremental motion in X | 0.2 µm | 0.2 µm | 0.2 µm | 0.1 µm | typ. |
| Unidirectional repeatability in X | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | ± 0.05 µm | typ. |
| Bidirectional repeatability in X | 2 µm | 2 µm | 2 µm | 2 µm | typ. |
| Reference switch | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, TTL | Hall effect, N/C contact, 5 V, NPN | |
| Limit switches | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, TTL | Hall effect, N/C contact, 5 V, NPN | |
| Integrated sensor | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | — | |
| Sensor signal | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | — | |
| Sensor resolution | 20000 Cts./rev. | 20000 Cts./rev. | 20000 Cts./rev. | — | |
| Drive Properties | L-239.033232 | L-239.035232 | L-239.50AD | L-239.50SD | Tolerance |
| Drive type | DC motor | Brushless DC motor | DC motor with ActiveDrive | 2-phase stepper motor | |
| Nominal voltage | 24 V | 24 V | 24 V | 24 V | |
| Motor resolution | — | — | — | 200 Full steps/rev. | |
| Drive force in positive direction of motion in X | 300 N | 300 N | 300 N | 300 N | typ. |
| Drive force in negative direction of motion in X | 300 N | 300 N | 300 N | 300 N | typ. |
| Mechanical Properties | L-239.033232 | L-239.035232 | L-239.50AD | L-239.50SD | Tolerance |
| Permissible push force in Y | 10 N | 10 N | 10 N | 10 N | max. |
| Holding force in X, passive | 40 N | 40 N | 40 N | 80 N | |
| Moved mass in X, unloaded | 155 g | 155 g | 155 g | 155 g | |
| Drive screw type | Ball screw | Ball screw | Ball screw | Ball screw | |
| Drive screw pitch | 1 mm | 1 mm | 1 mm | 1 mm | |
| Guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | |
| Overall mass | 1750 g | 1750 g | 1720 g | 1650 g | |
| Material | Aluminum, stainless steel | Aluminum, stainless steel | Aluminum, stainless steel | Aluminum, stainless steel | |
| Miscellaneous | L-239.033232 | L-239.035232 | L-239.50AD | L-239.50SD | Tolerance |
| Operating temperature range | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | |
| Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | D-sub 15 (m) | HD D-sub 26 (m) | |
| Connector for supply voltage | — | — | M8 4-pole (m) | — | |
| Recommended controllers/drivers | C-863 C-885 with C-863.20C885 C-884 Modular ACS controller | C-891 C-885 with C-891.11C885 Modular ACS controller | C-863 C-885 with C-863.20C885 C-884 | C-663.12 C-885 with C-663.12C885 Modular ACS controller |
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
High-load linear actuator; DC motor; 52 mm travel range; 300 N feed force; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev. sensor resolution, A/B quadrature, RS-422; limit switches: Hall effect, opener, 5 V, NPN
High-load linear actuator; brushless DC motor; 52 mm travel range; 300 N feed force; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev. sensor resolution, A/B quadrature, RS-422; limit switches: Hall effect, opener, 5 V, NPN

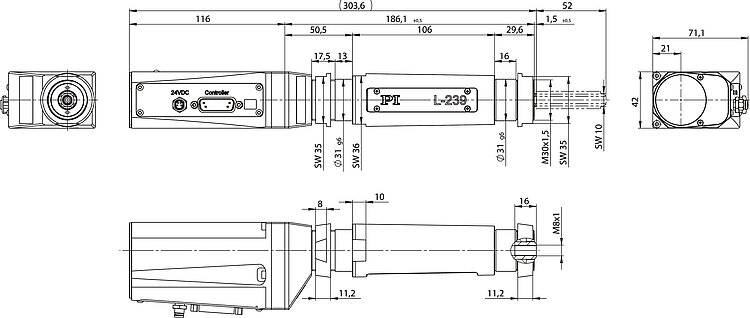

High-load linear actuator; DC motor with ActiveDrive; 52 mm travel range; 300 N feed force; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev. sensor resolution, A/B quadrature, RS-422; limit switches: Hall effect, opener, 5 V, TTL

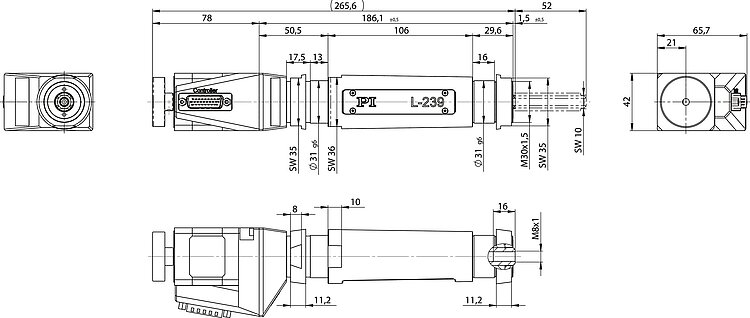

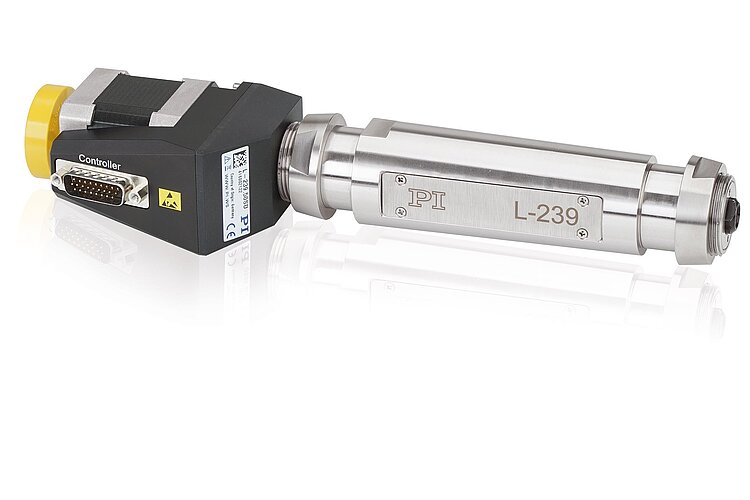

High-load linear actuator; 2-phase stepper motor; 52 mm travel range; 300 N feed force; 25 mm/s maximum velocity; ball screw; limit switches: Hall effect, opener, 5 V, NPN
