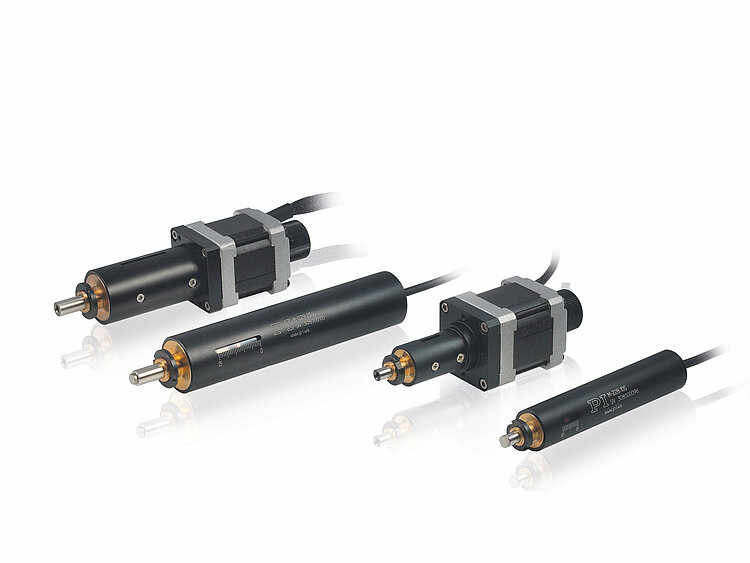

M-228 • M-229 High-Resolution Linear Actuator with Stepper Motor

Compact and Particularly Inexpensive

  • Travel ranges 10 and 25 mm
  • High load capacity 80 N
  • Resolution 0.36 nm with gearhead version
  • Velocity to 4 mm/s

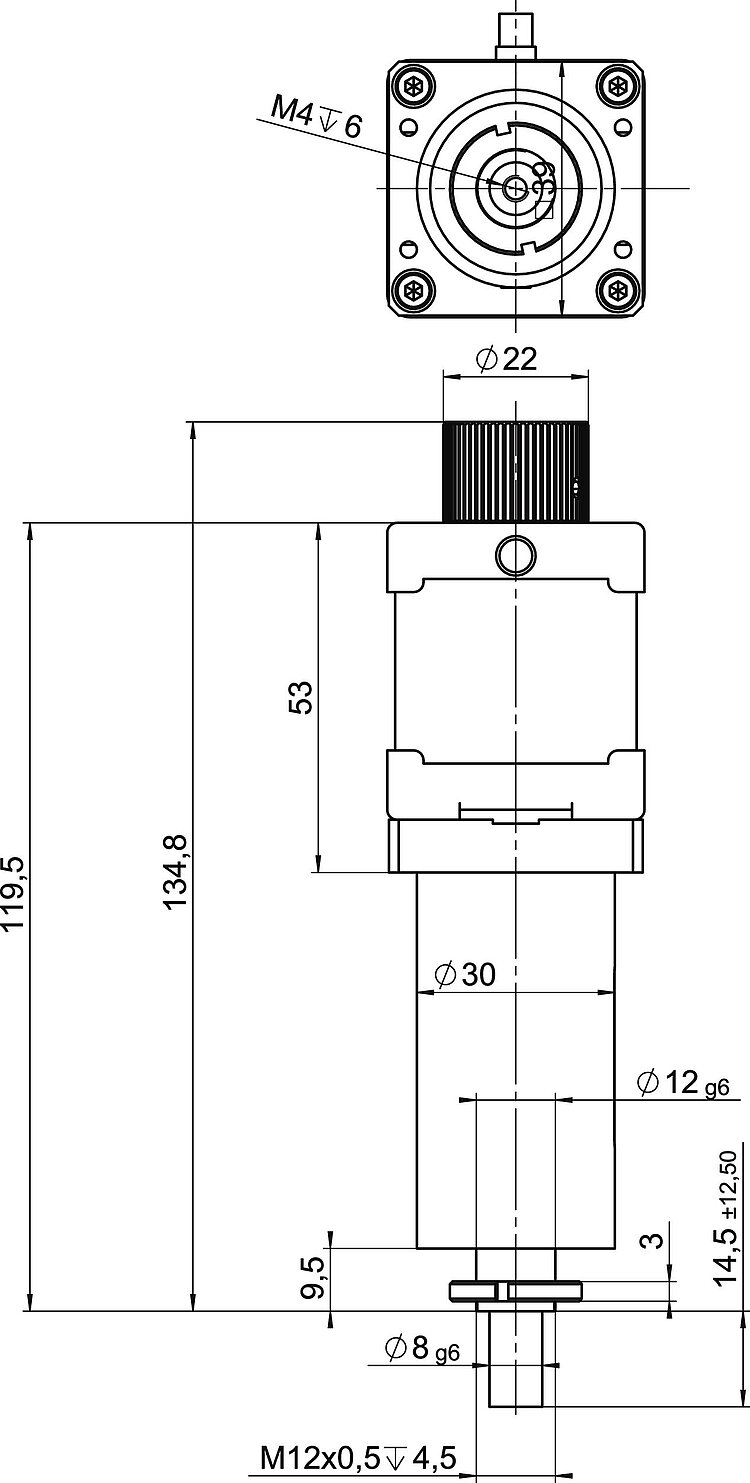

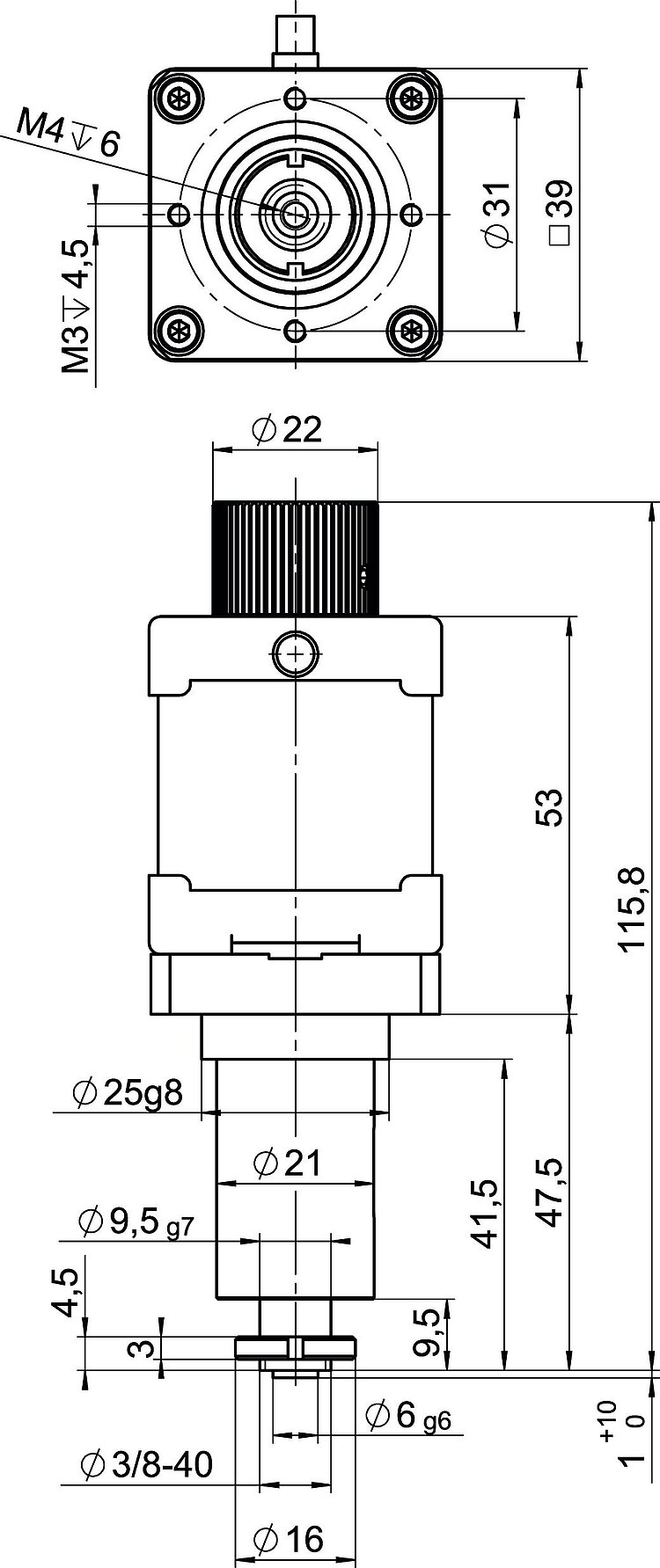

  • Direct drive versions include handwheel
  • Noncontact limit and reference switches
M-228 • M-229 High-Resolution Linear Actuator with Stepper Motor
製品の解説 仕様 ダウンロード 見積 / 発注

Compact standard-class linear drive

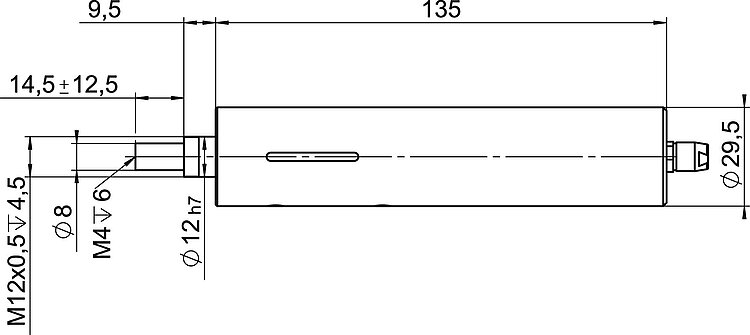

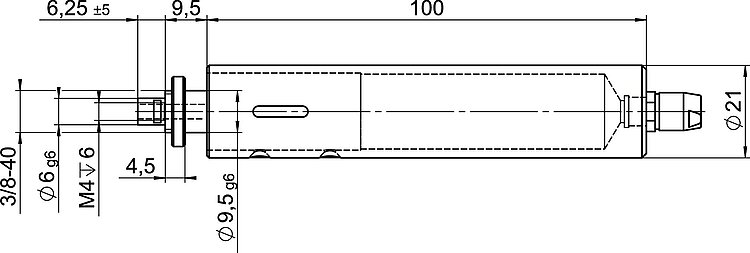

Stepper mike with 2-phase stepper motor as powerful direct drive, or slim design version with gearhead motors.

High-quality components

Nonrotating end piece for uniform motion prevents wobble, torque, and wear at the point of contact. Noncontact limit switches protect the mechanical system. A direction-sensing reference switch supports automation applications. Integrated position indicator. Versions with direct drive include handwheel for manual adjustment.

Inexpensive system solution

In conjunction with the networkable C-663.12 Mercury Step single-channel controller, the linear actuators offer good performance at an economically attractive system price for single-axis and multi-axis configurations.

Specifications

Datasheet

Datasheet M-228 • M-229

日付 / バージョン
2020-06-29
pdf - 855 KB
日付 / バージョン
2020-06-29
pdf - 857 KB

Downloads

Datasheet

Datasheet

Datasheet M-228 • M-229

日付 / バージョン
2020-06-29
pdf - 855 KB
日付 / バージョン
2020-06-29
pdf - 857 KB

Documentation

Documentation

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x

日付 / バージョン
5.0.0 10/2020
pdf - 812 KB
日付 / バージョン
5.0.0 10/2020
pdf - 824 KB
Documentation

User Manual MP86

M-228, M-229 Linear Actuators with Stepper Motor

日付 / バージョン
2.0.0 2021-01-22
pdf - 2 MB
日付 / バージョン
2.0.0 2021-01-22
pdf - 2 MB

3-D Models

3-D Models

M-22x 3-D model

zip - 631 KB
Separate connection cable required for motor and sensor connection respectively.
