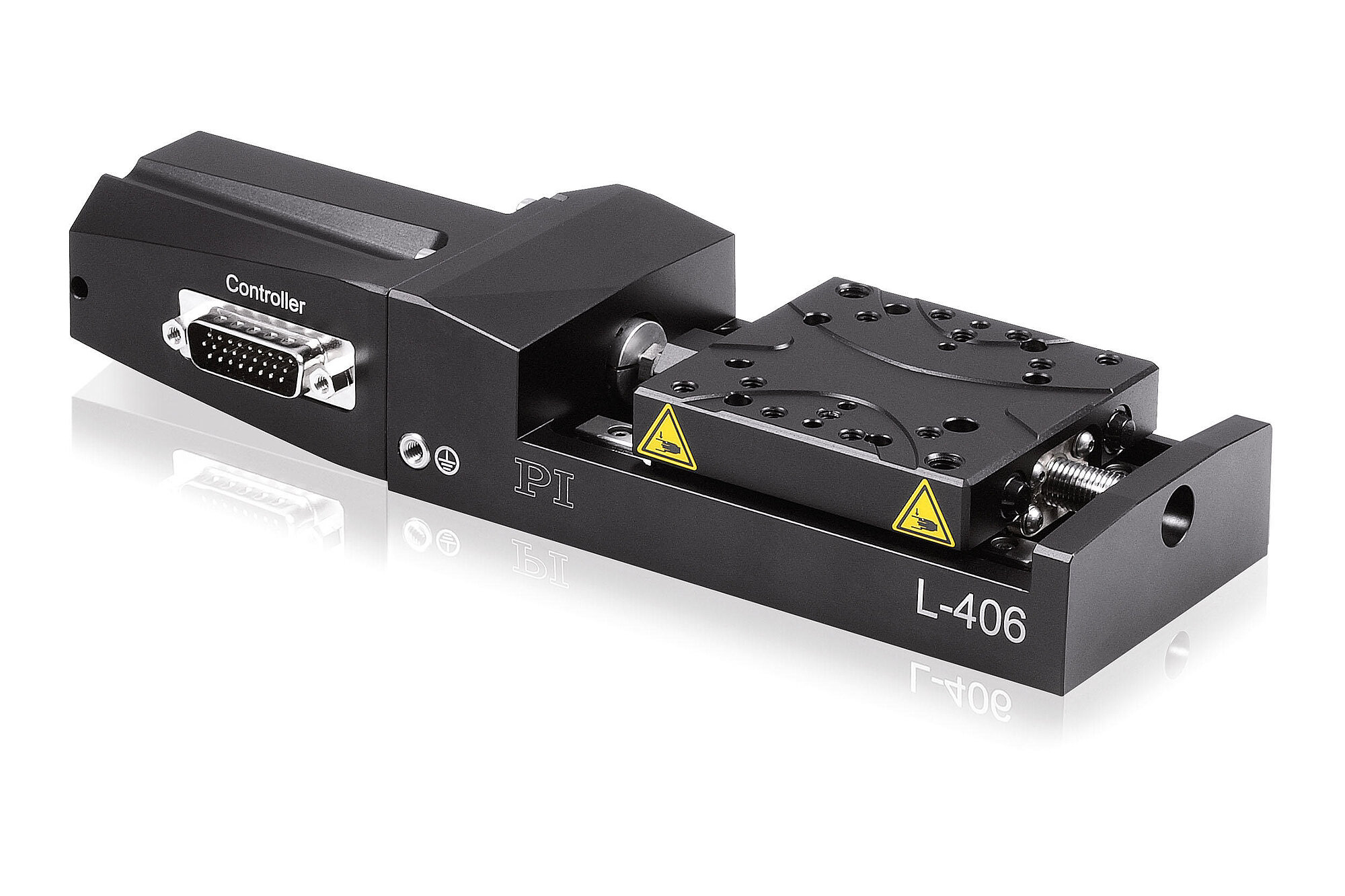

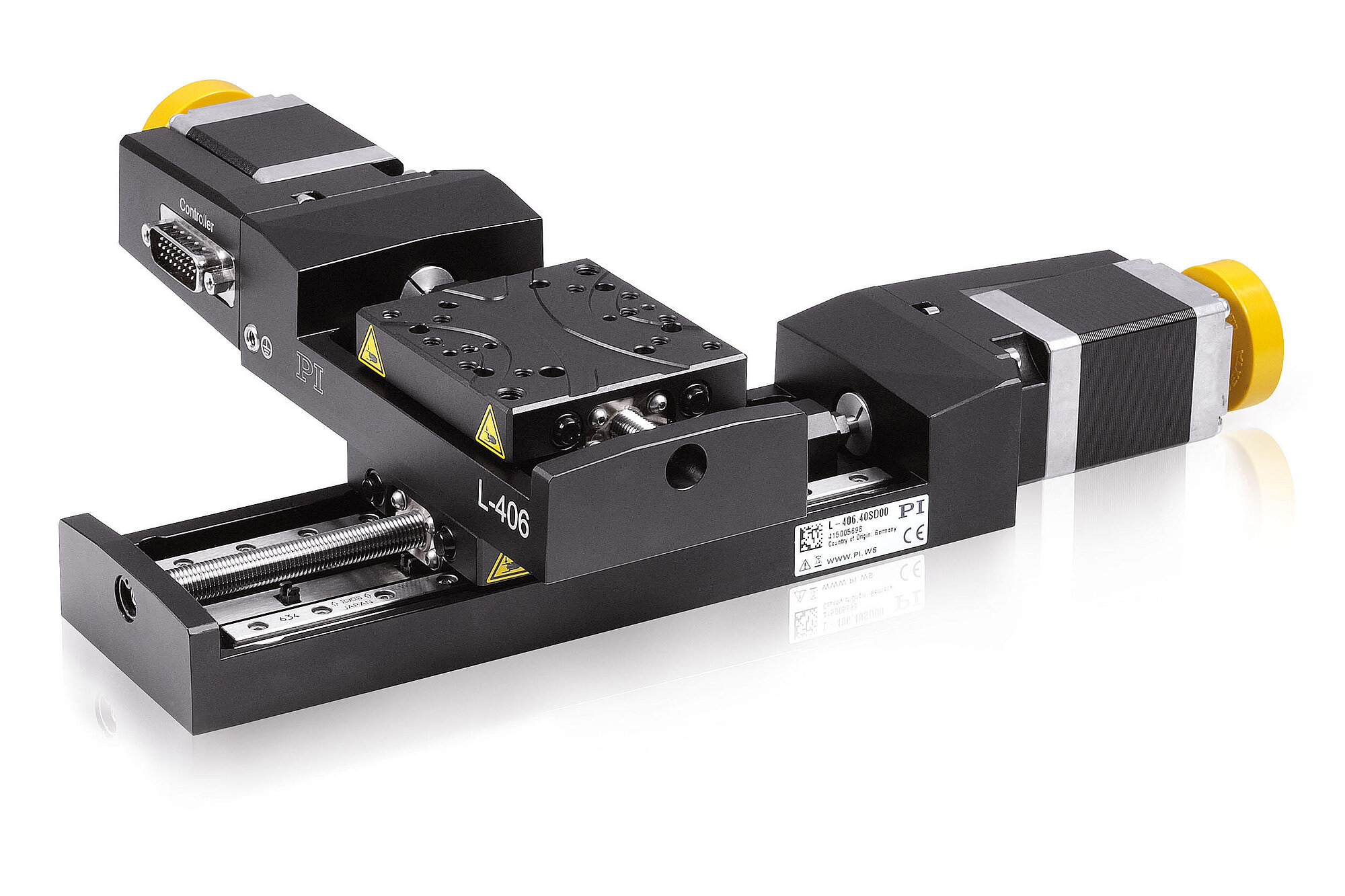

L-406 Compact Linear Stage

For Loads to 10 kg

  • Travel ranges from 26 mm to 102 mm (1" to 4")
  • Stepper motor or DC servo motor with and without gearhead
  • Direction-sensing reference switch
  • Integrated optical limit switches
L-406 Compact Linear Stage
製品の解説 仕様 ダウンロード 見積 / 発注

Precision-class linear stage

The linear stage has a ground precision leadscrew that ensures smooth running. The combination of recirculating ball bearing and the stress-relieved aluminum base ensures good performance data.

Drive types

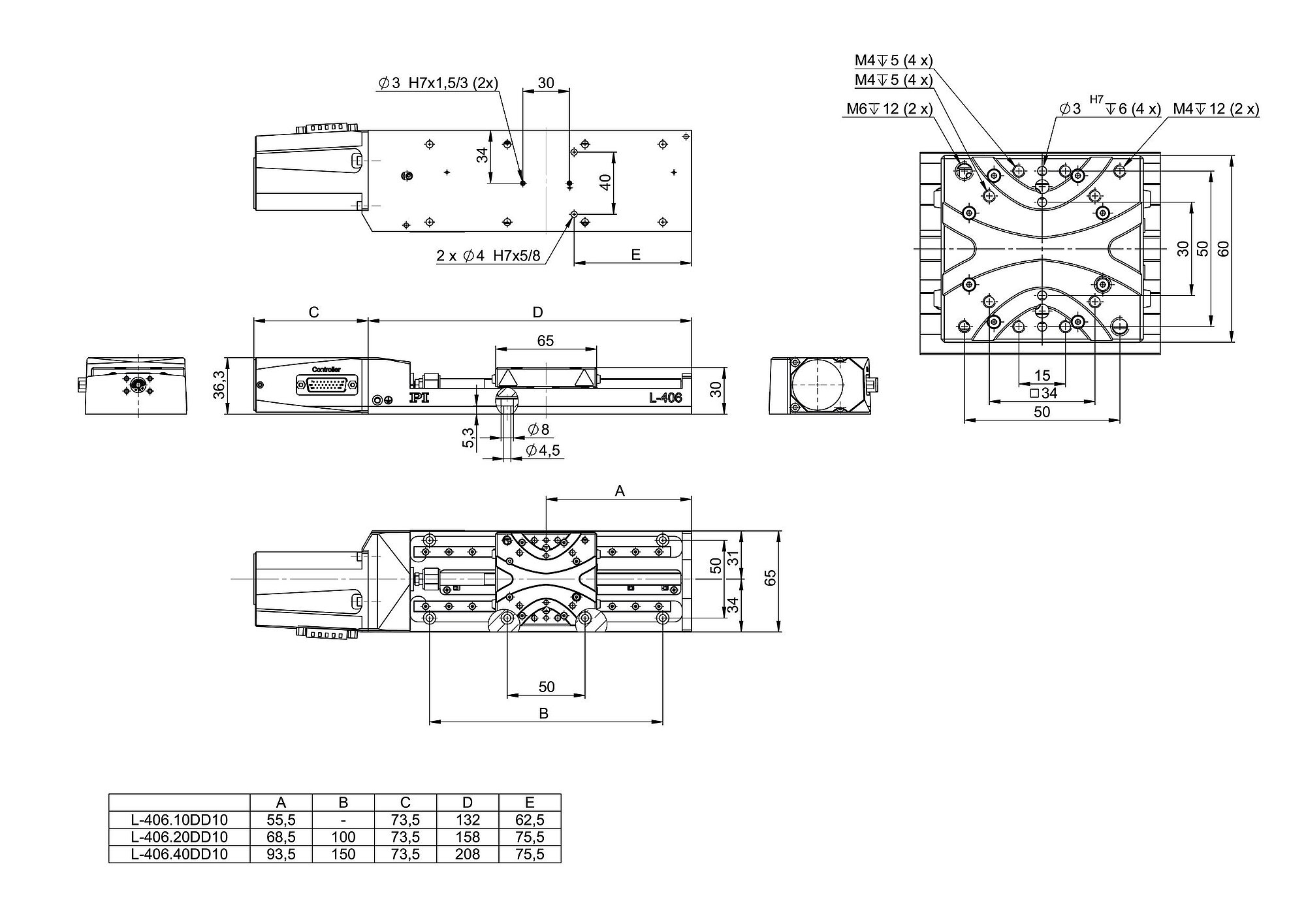

  • .xxDD variant: DC servo motor for an average velocity up to 20 mm/s
  • .xxDG variant: DC servo motor with gearhead for high torques and resolution at low motor power

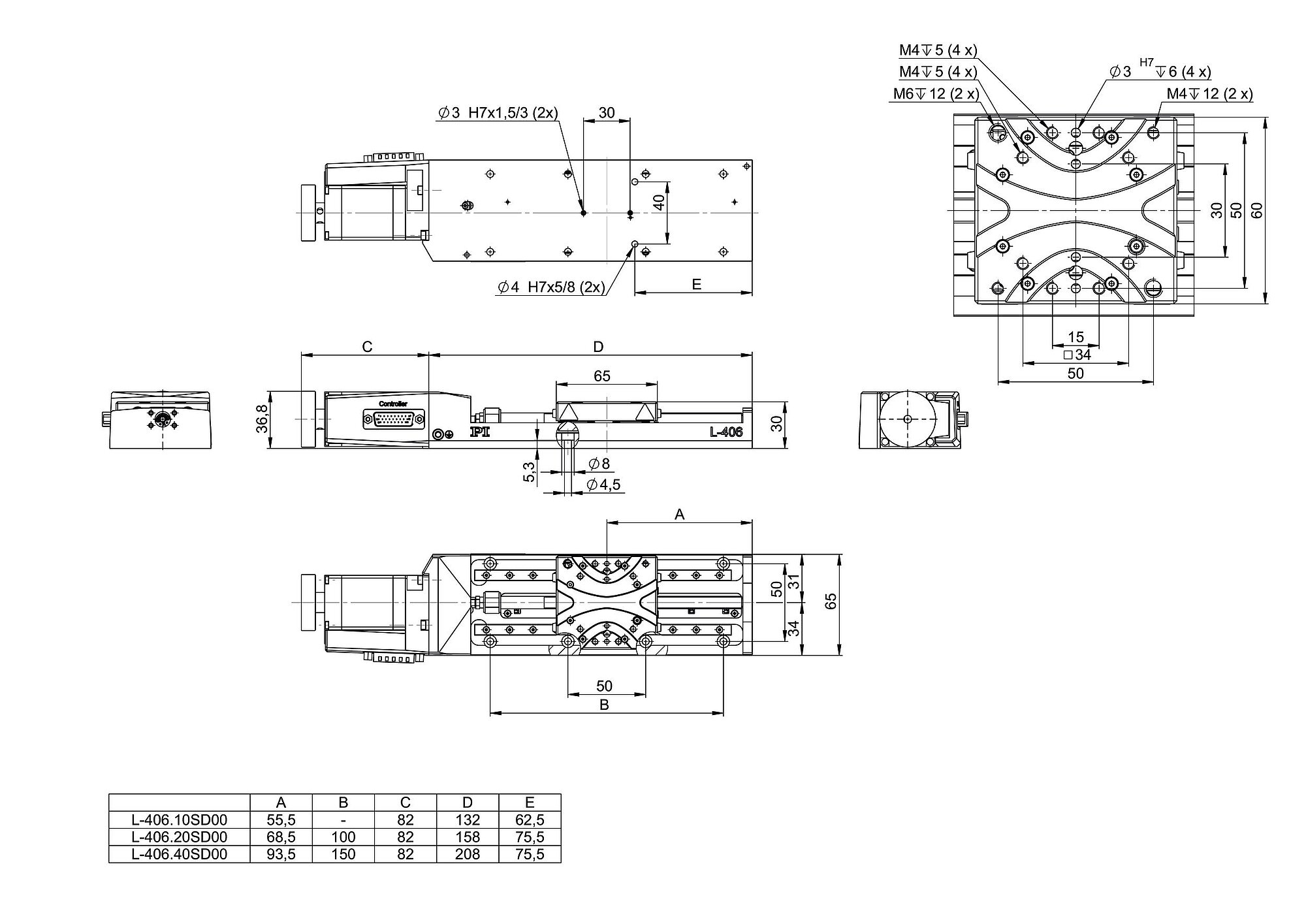

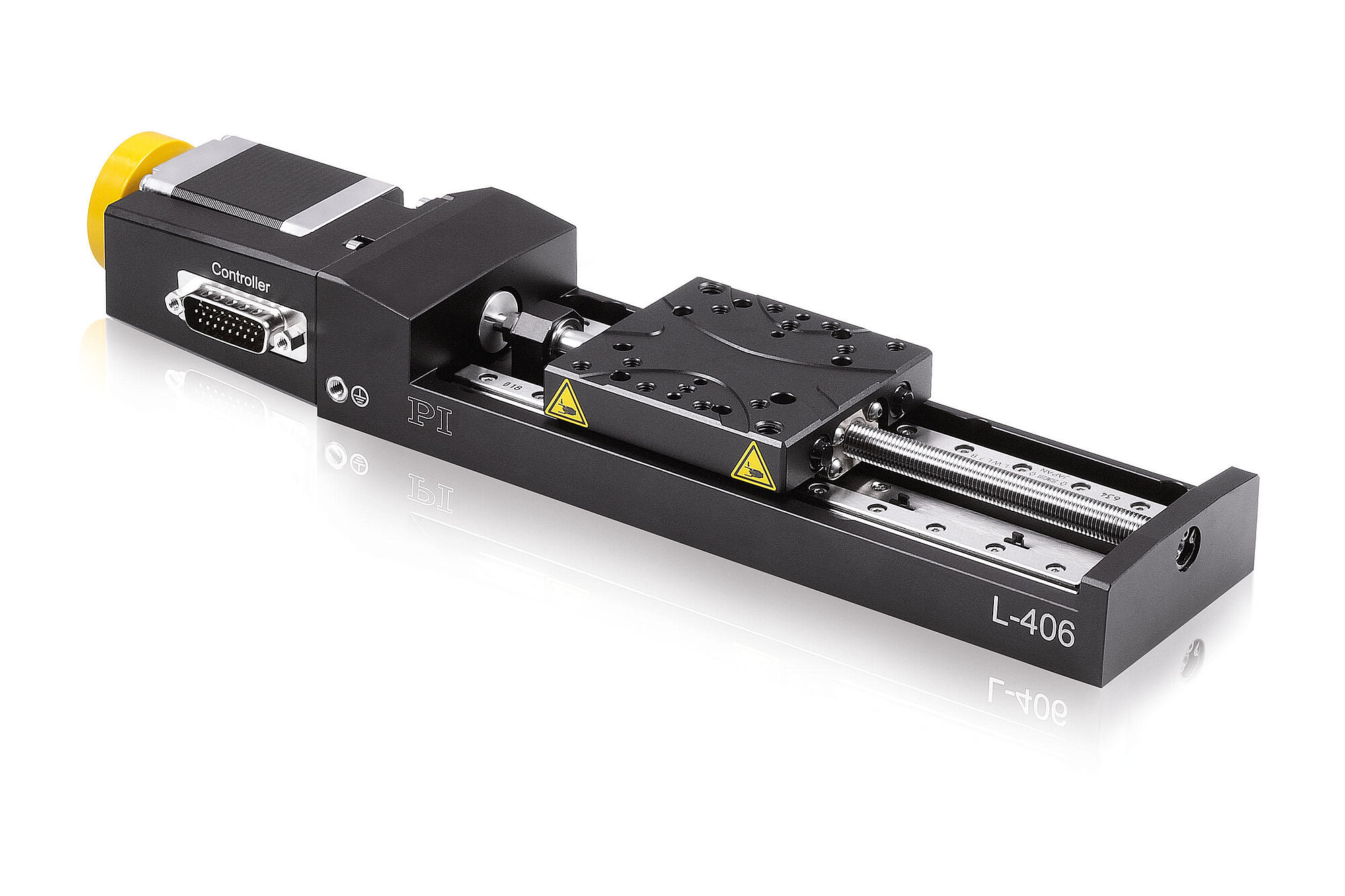

  • .xxSD variant: 2-phase stepper motor, low cost for minimum incremental motion with microsteps

Noncontact optical limit switches. Noncontact optical reference switch with direction sensing in the middle of the travel range. Integrated rotary encoder on the motor shaft (variants with DC servo motor).

Recirculating ball bearings

When carefully assembled, recirculating ball bearings are distinguished by a beneficial combination of high load capacity, lifetime, maintenance-free operation, and guiding accuracy. The moving part of the stages is supported by four preloaded linear ball bearing units which run on two guide rails. Each bearing unit is made up of two independent rows of circulating ball bearings.

Application fields

Precision microassembly. Research. Automation.

Specifications

Datasheet

Datasheet L-406

日付 / バージョン
2020-06-25
pdf - 2 MB
日付 / バージョン
2020-06-25
pdf - 2 MB
日付 / バージョン
2021-01-19
pdf - 784 KB

Downloads

Datasheet

Datasheet

Datasheet L-406

日付 / バージョン
2020-06-25
pdf - 2 MB
日付 / バージョン
2020-06-25
pdf - 2 MB
日付 / バージョン
2021-01-19
pdf - 784 KB

Documentation

Documentation

User Manual MP150

L-406 Compact Linear Stage

日付 / バージョン
2017-02-16
pdf - 3 MB
日付 / バージョン
2017-02-16
pdf - 3 MB
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

日付 / バージョン
2.0.0 01/2020
pdf - 736 KB
日付 / バージョン
2.0.0 01/2020
pdf - 749 KB

3-D Models

3-D Models

L-406 3-D model

日付 / バージョン
2020-06-15
zip - 14 MB
英語
Separate connection cable required for motor and sensor connection respectively.
