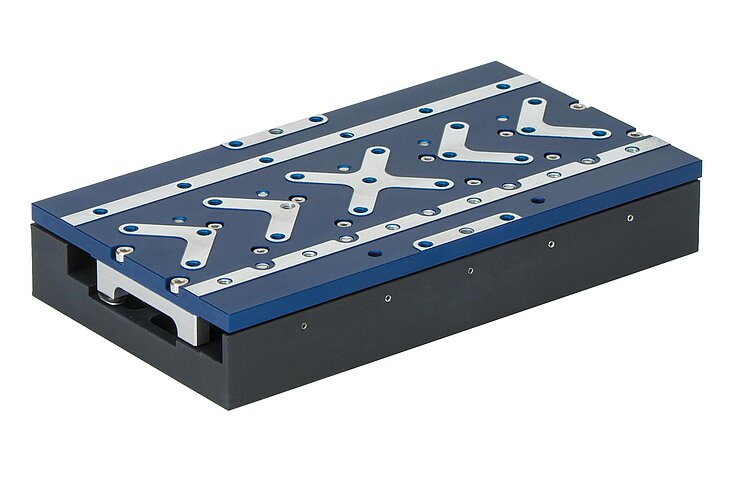

V-508 PIMag® Precision Linear Stage

Versatile options for adapting to requirements

V-508 PIMag® Precision Linear Stage
製品の解説 仕様 ダウンロード 見積 / 発注
  • Travel ranges 80, 170, and 250 mm
  • Ironless or iron core linear motor
  • Incremental or absolute linear encoder, various resolutions
  • Compact cross section: 80 mm × 25 mm
  • Crossed roller guides for high load capacity

Flexible adaption

The construction allows flexible adaption to the requirements. Technically sophisticated and cost-critical applications can be equally served with different travel ranges, drives, and measuring systems. XY assemblies are also possible

PIMag® magnetic direct drive

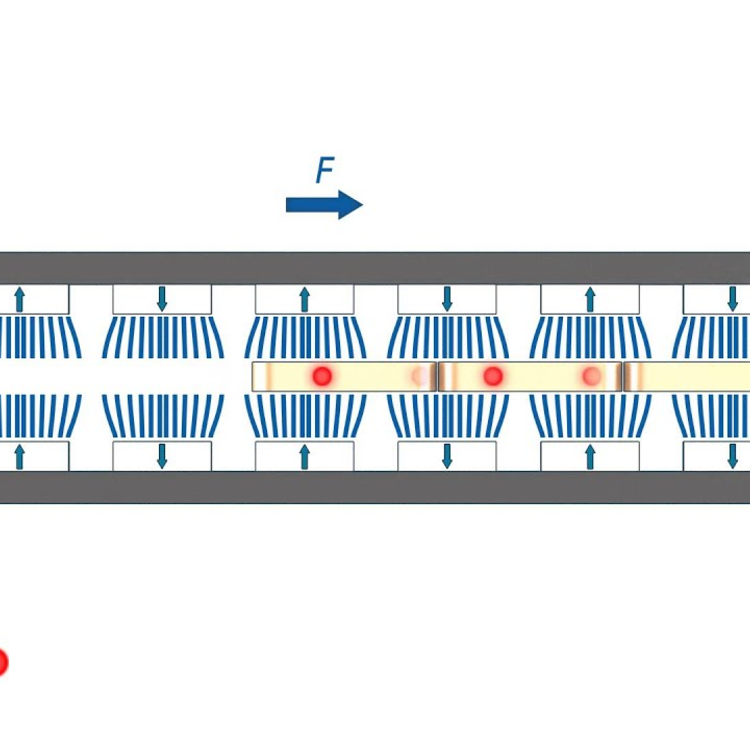

3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations.

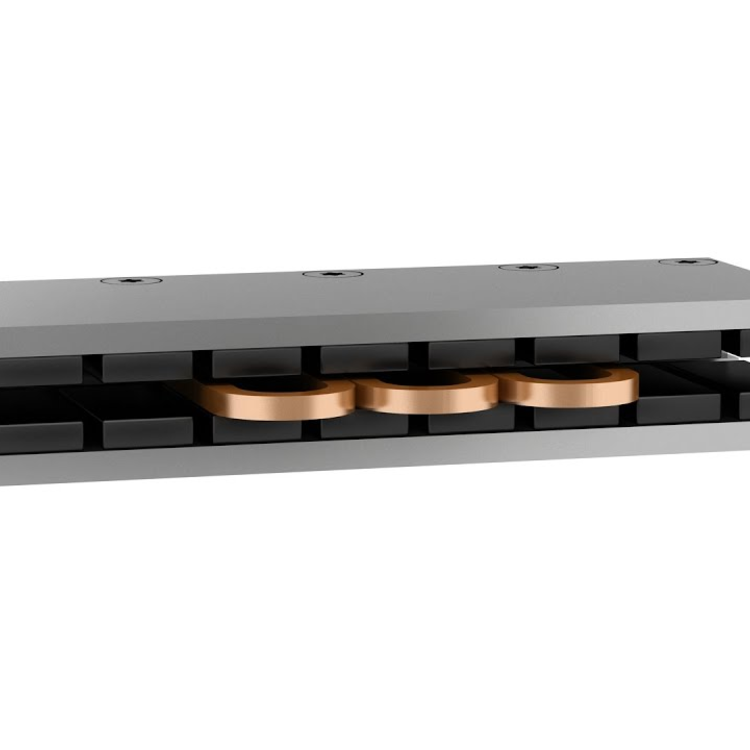

Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

Iron core motors are used when forces and accelerations need to be achieved in a limited installation space. The design with iron cores maximizes the magnetic forces and ensures high thermal stability of the drive.

Crossed roller guide

With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages prevent cage creep.

Direct position measurement

Position measuring takes place directly at the motion platform with the highest accuracy so that nonlinearity, mechanical play or elastic deformation have no influence on position measuring.

Application fields

Industry and research. Measuring technology, photonics and precision scanning in semiconductor or medicine technology

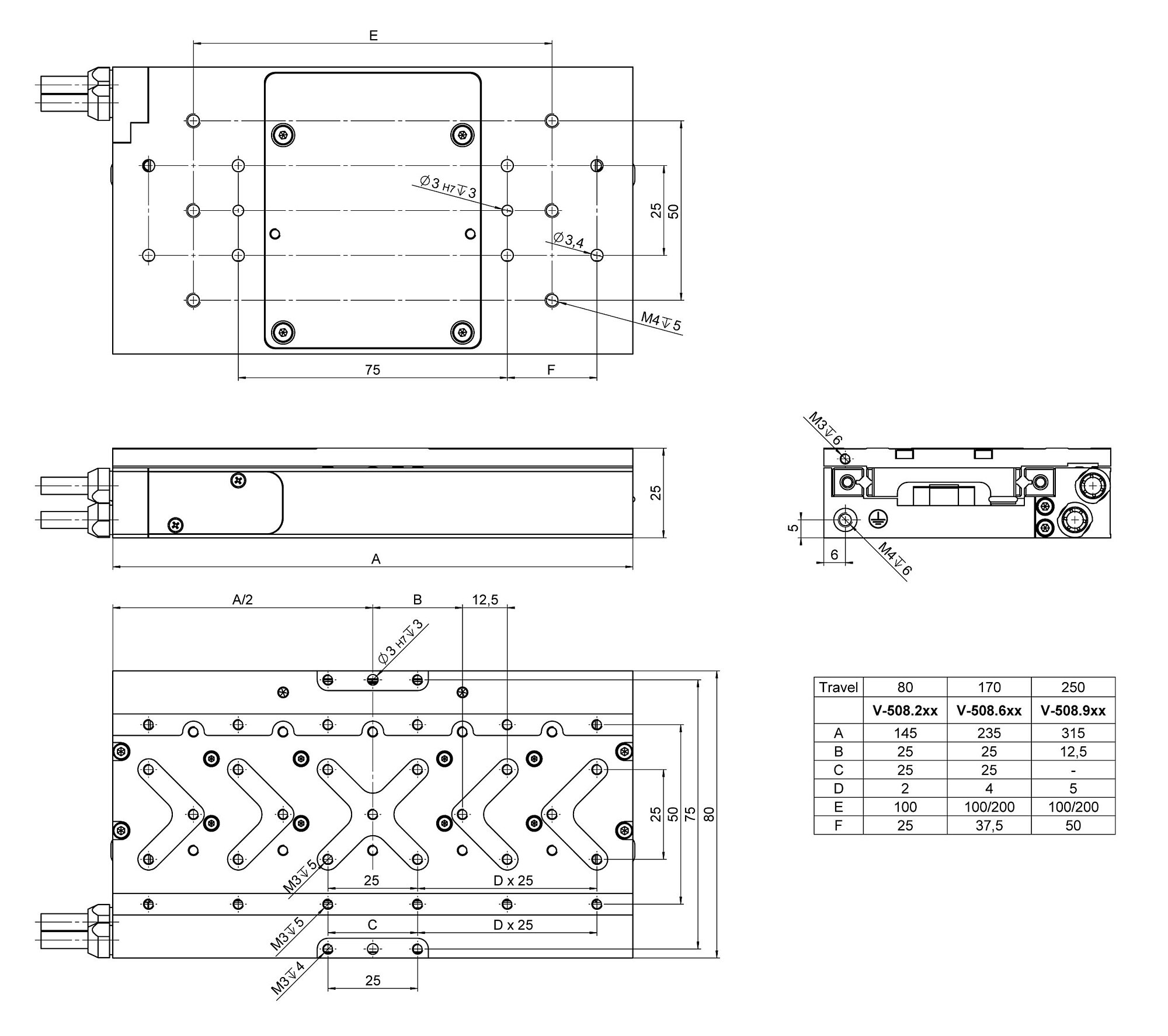

Specifications

Datasheet

Datasheet V-508

日付 / バージョン
2019-08-19
日付 / バージョン
2019-08-19
日付 / バージョン
2019-03-19
ドキュメントの言語

Downloads

Datasheet

Datasheet

Datasheet V-508

日付 / バージョン
2019-08-19
日付 / バージョン
2019-08-19
日付 / バージョン
2019-03-19
ドキュメントの言語

Documentation

Documentation

User Manual MP169E

PIMag® precision linear stage
日付 / バージョン
2019-08-19
ドキュメントの言語 英語
Documentation

Short Instructions MP163EK

Positioners with PIMag® Drive: V-408 / V-508 / V-52x / V-551
日付 / バージョン
3.0.0 03/2019
ドキュメントの言語 英語

3-D Models

3-D Models

V-508 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

80 mm

V-508.231020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 80 mm travel range, 100 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, ironless 3-phase linear motor, 48 V
V-508.232020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 80 mm travel range, 100 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.251020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 80 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, ironless 3-phase linear motor, 48 V
V-508.252020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 80 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.2B1020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 80 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, ironless 3-phase linear motor, 48 V
V-508.2B2020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 80 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, iron core 3-phase linear motor, 48 V

170 mm

V-508.631020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 170 mm travel range, 100 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, ironless 3-phase linear motor, 48 V
V-508.632020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 170 mm travel range, 100 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.651020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 170 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, ironless 3-phase linear motor, 48 V
V-508.652020
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 170 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.6B1020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 170 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, ironless 3-phase linear motor, 48 V
V-508.6B2020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 170 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, iron core 3-phase linear motor, 48 V

250 mm

V-508.931020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 250 mm travel range, 100 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, ironless 3-phase linear motor, 48 V
V-508.932020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 250 mm travel range, 100 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.951020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 250 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, ironless 3-phase linear motor, 48 V
V-508.952020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 250 mm travel range, 100 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-508.9B1020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 250 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, ironless 3-phase linear motor, 48 V
V-508.9B2020 新製品!
PIMag® precision Linear stage, 80 mm × 25 mm cross section, 250 mm travel range, 100 N load capacity, absolute encoder, 78 nm sensor resolution, iron core 3-phase linear motor, 48 V
