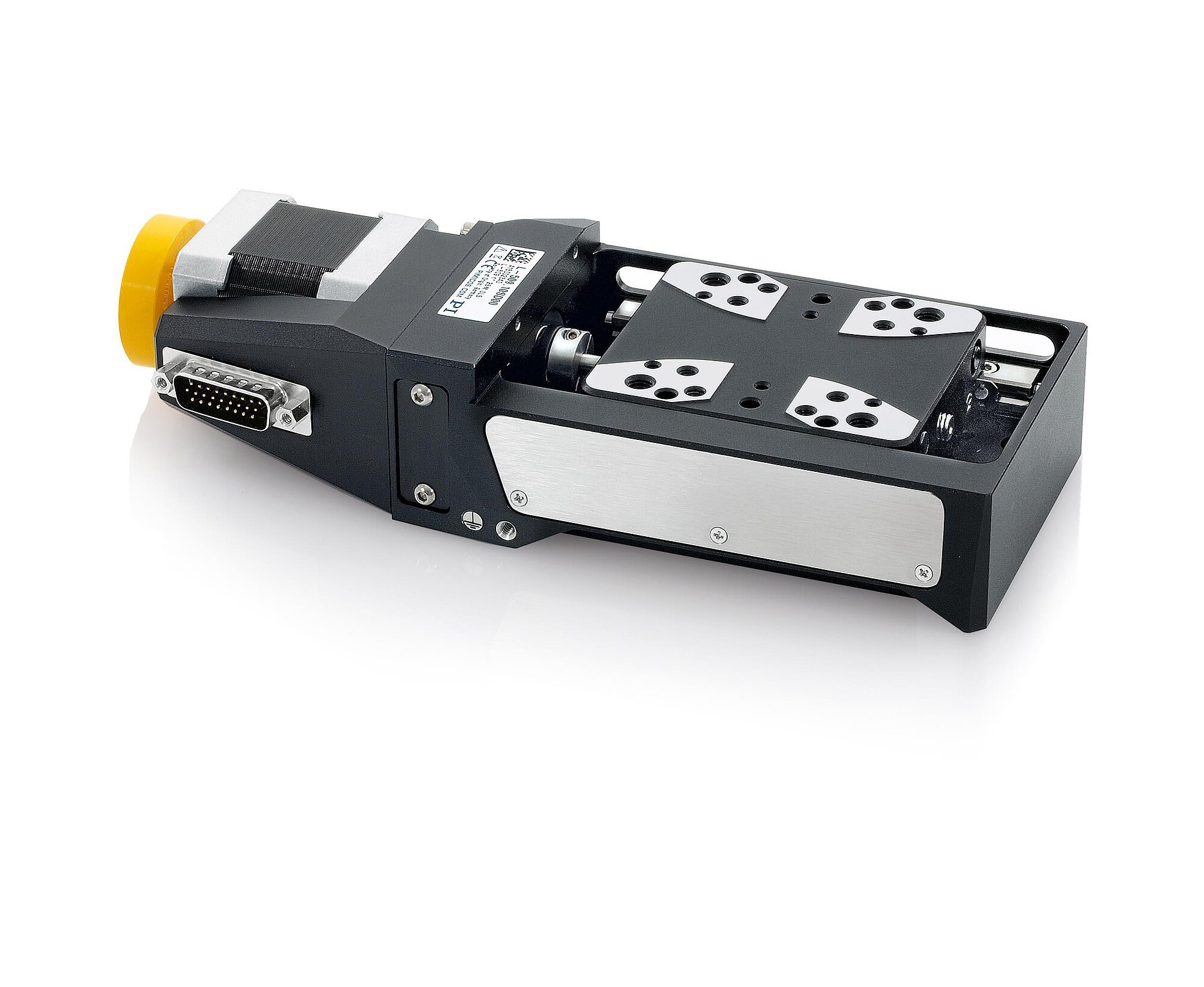

L-509 Precision Linear Stage
Compact Design, for Loads to 10 kg
- High accuracy and load capacity thanks to cross roller bearings with forced cage guidance
- Repeatability to 0.15 µm
- Base profile made of stress-relieved aluminum for high stability
- Noncontact optical linear encoders measure the position with maximum accuracy directly on the platform
- Different motor and encoder variants enable individual application options
Direction of the axes and torques for linear stages

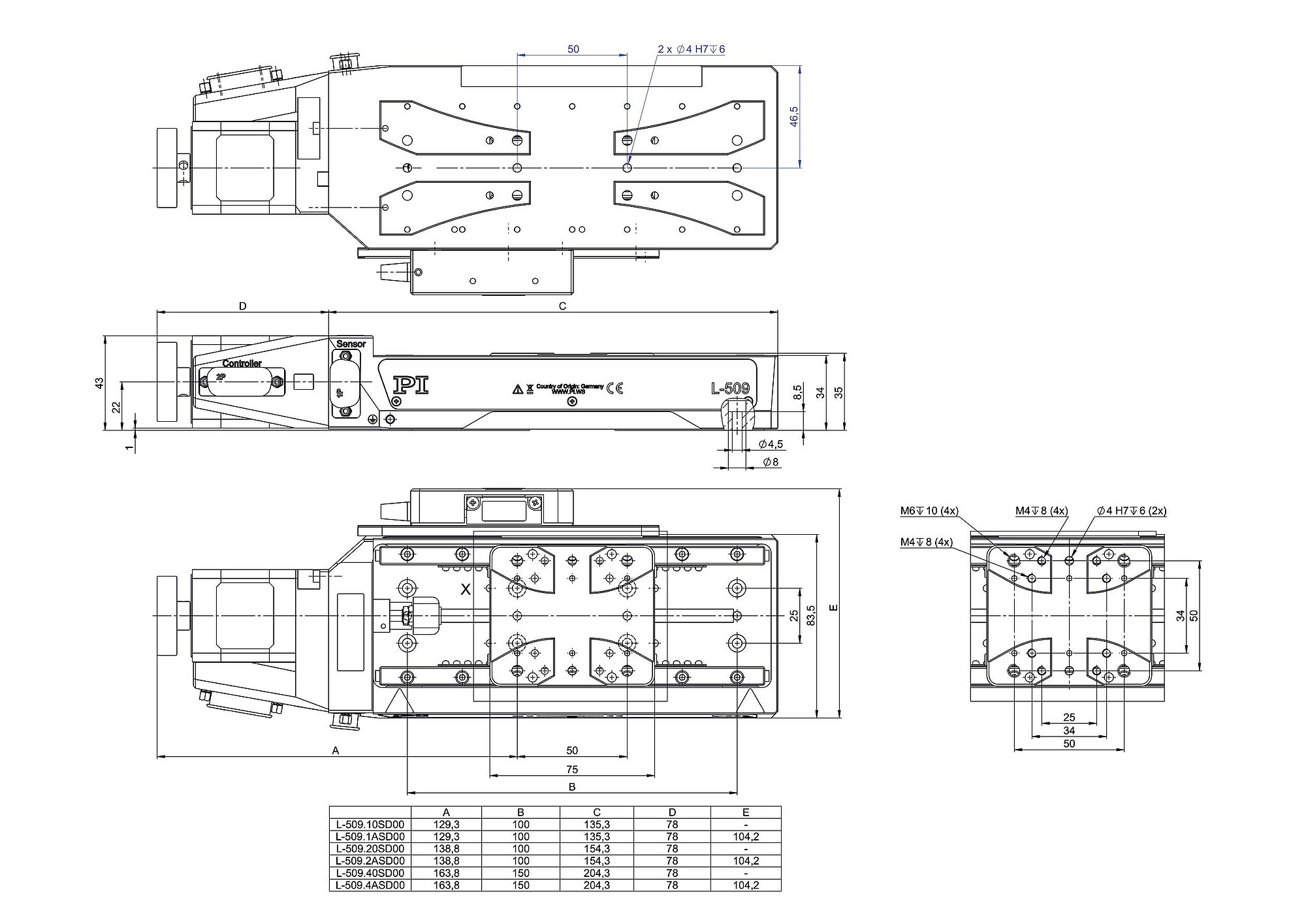

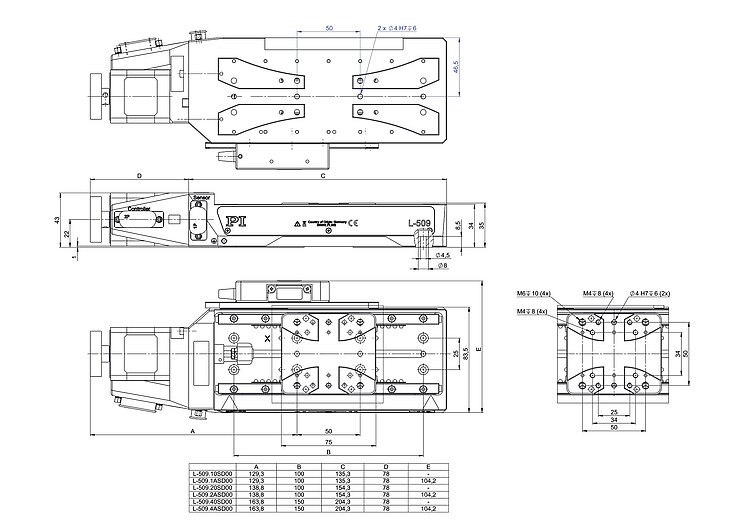

L-509 models with stepper motor, dimensions in mm

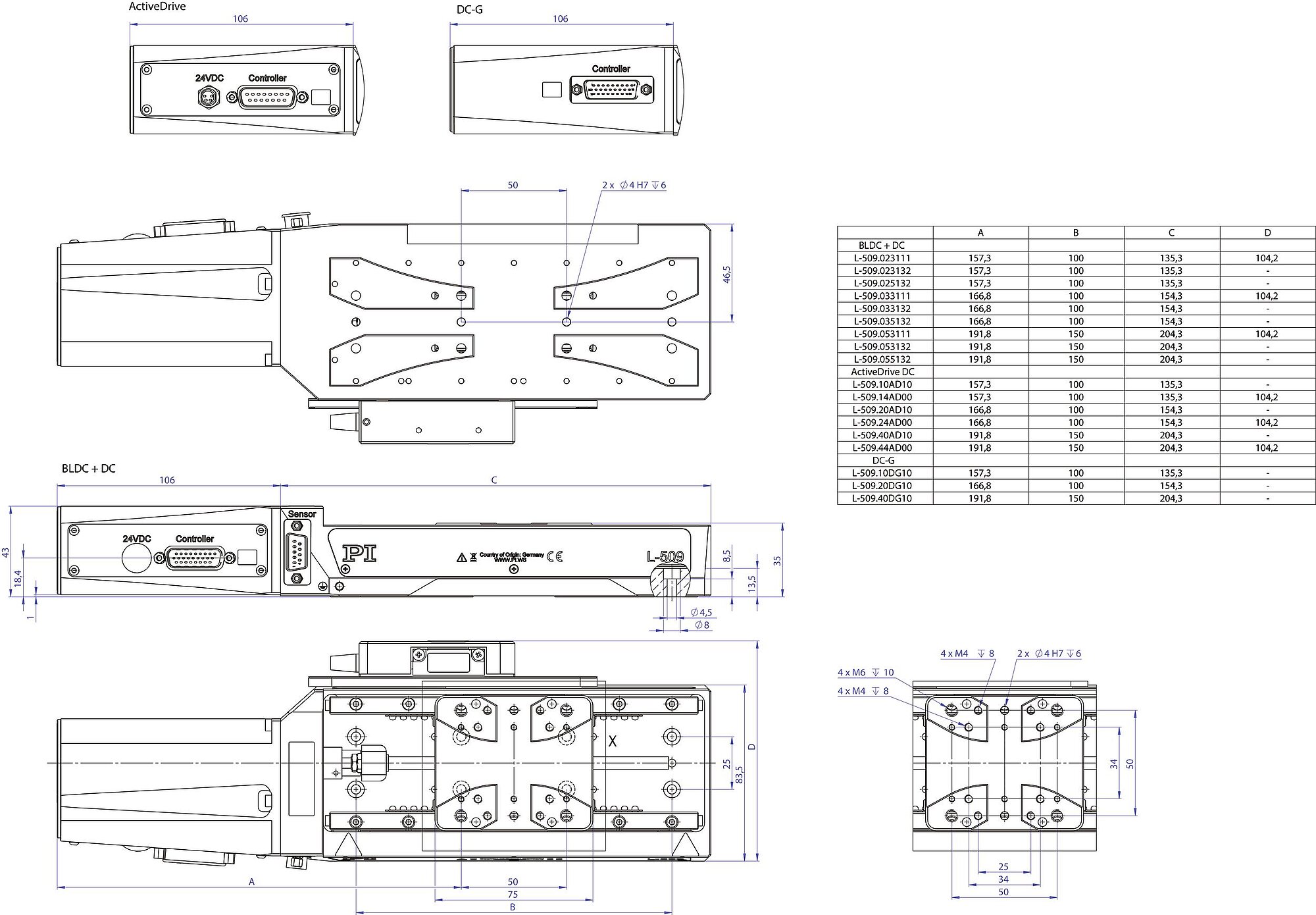

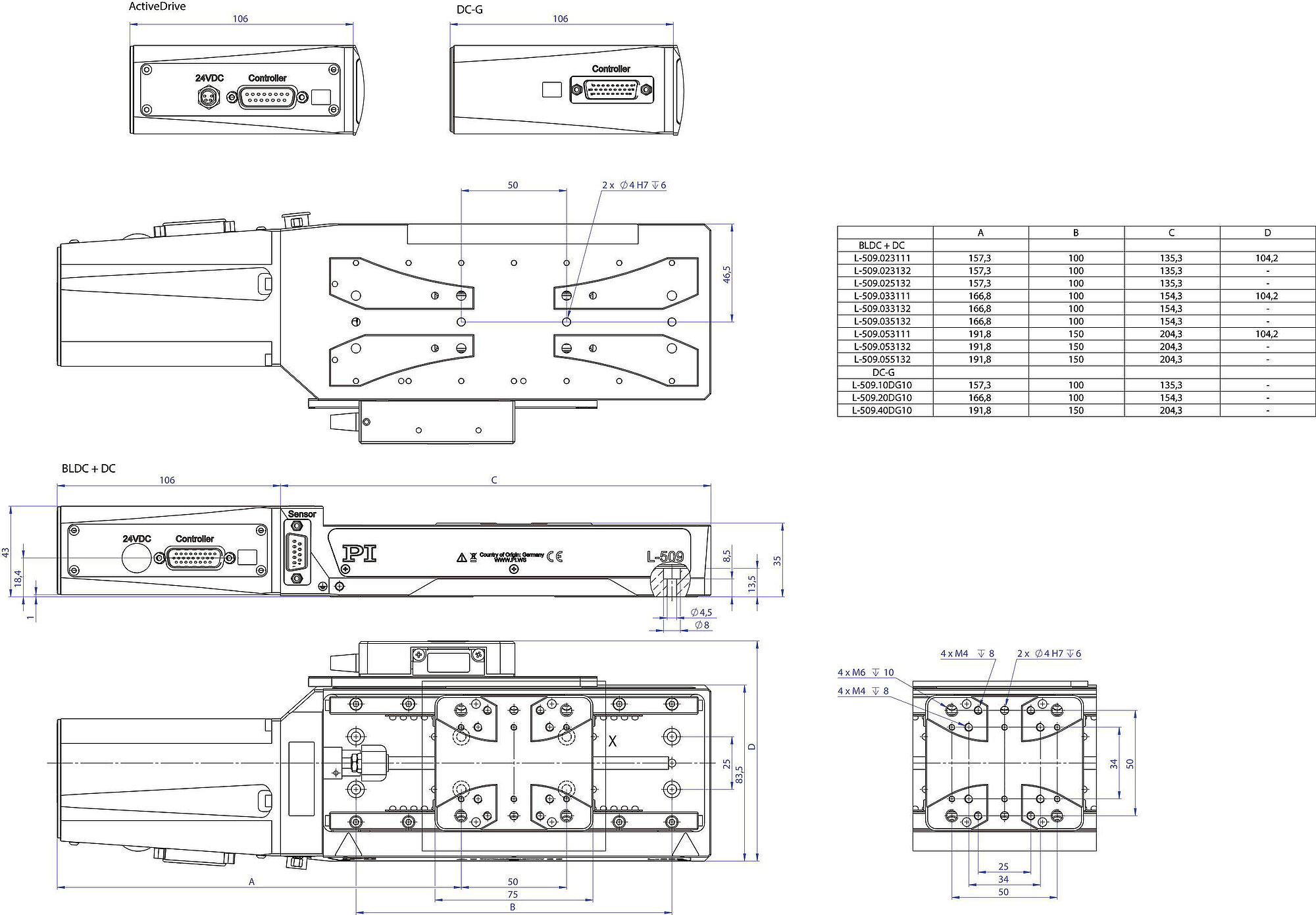

L-509 models with BLDC, DC, and DC gearhead motors, dimensions in mm

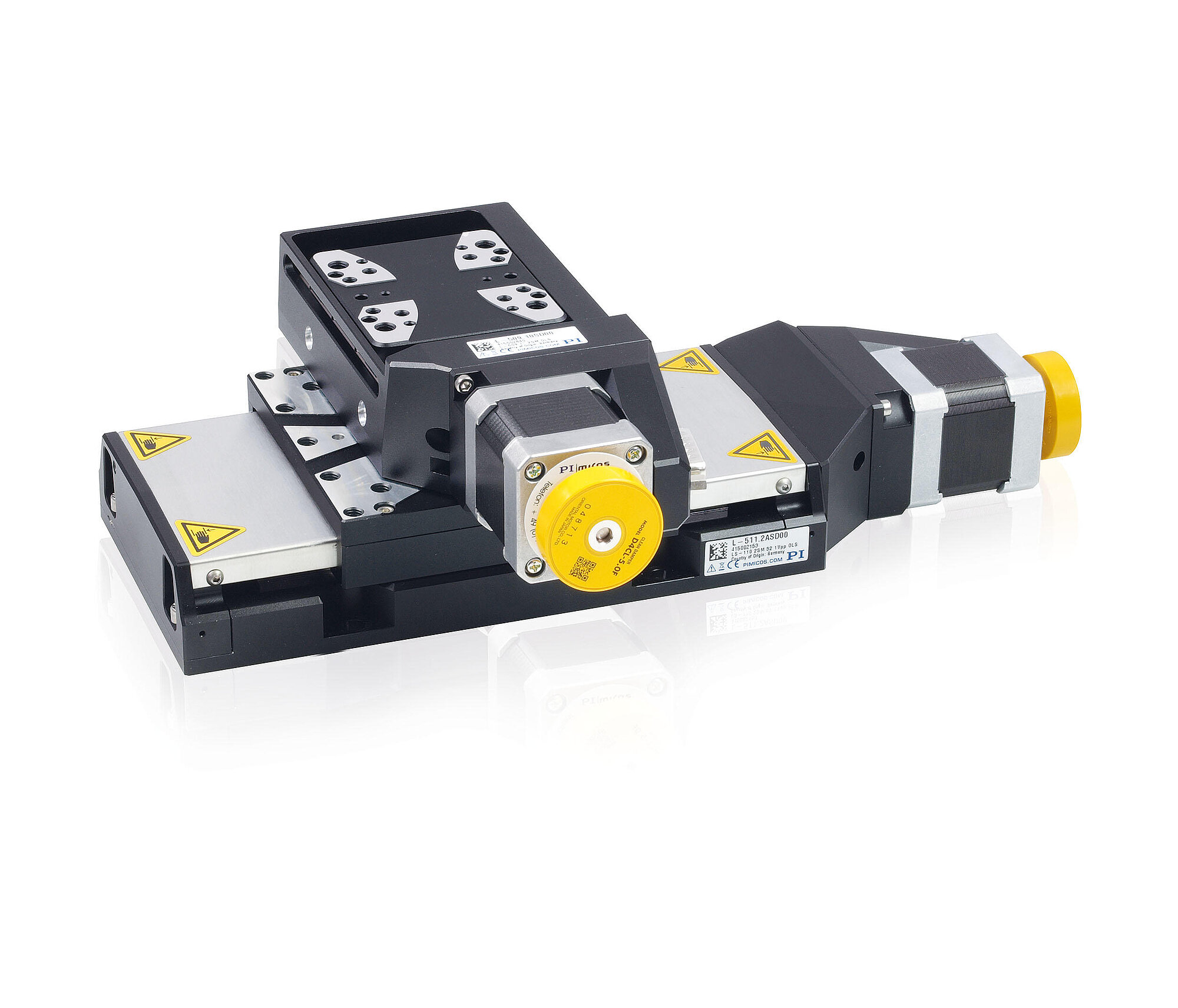

L-511 and L-509 precision stages can be combined without adapter plate for multi-axis positioning

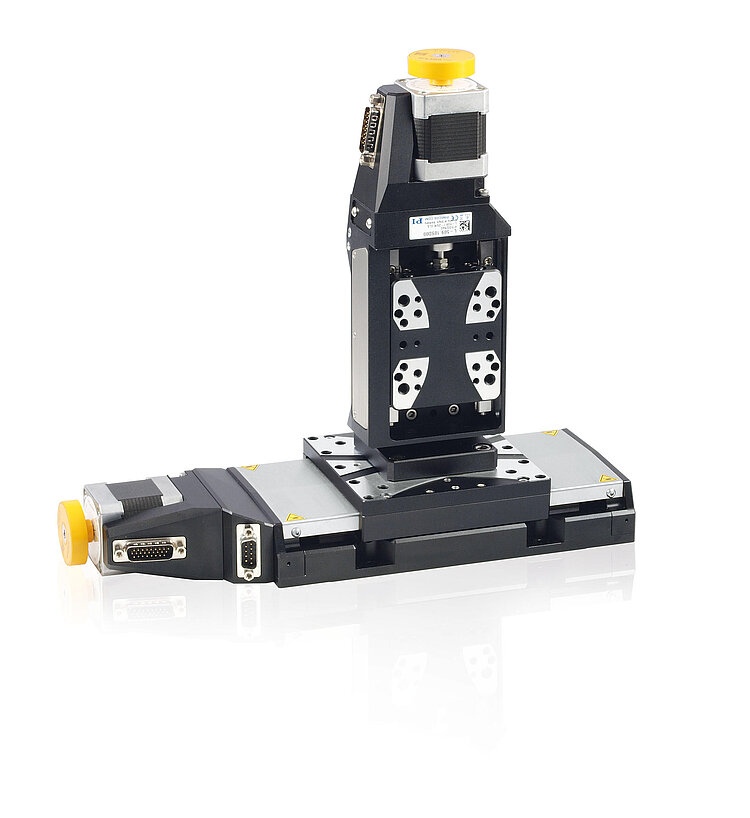

Multi-axis setup with L-511 (horizontal) and L-509 (vertical) precision stages
L-509 Precision Linear Stage
製品の解説
仕様
ダウンロード
見積 / 発注
Product overview
High travel accuracy and load capacity due to crossed roller guides with anti-creep system. Precision ball screw with 1 mm pitch. Compact design. Stress-relieved aluminum base for high stability. Noncontact optical limit switches. Noncontact optical reference switch with direction sensing in the middle of the travel range. Travel ranges from 26 to 102 mm (1" to 4"), variants suitable for vacuum available.
Motor types available
- DC motor
- DC servo motor with gearhead for high torques and resolution at low motor power
- 2-phase stepper motor for low velocity and high resolution
- Brushless DC motor: For applications with a high duty cycle. Use a controller with sine commutation for an exceptionally smooth synchronous motion and low vibrations even at a very low velocity.
Types of position measuring
- Without encoder (open loop)
- Integrated rotary encoder on the motor shaft
- Incremental linear encoder
Highly accurate position measuring with incremental linear encoder
Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.
Application fields
Autofocus. Laser cutting. Research. Biotechnology. Automation. Optical alignment.
Specifications
Specifications
Select a travel range:
| Motion | L-509.023111 | L-509.033111 | L-509.053111 | L-509.023132 | L-509.033132 | L-509.053132 | L-509.025132 | L-509.035132 | L-509.055132 | L-509.10DG10 | L-509.20DG10 | L-509.40DG10 | L-509.10SD00 | L-509.20SD00 | L-509.40SD00 | L-509.1ASD00 | L-509.2ASD00 | L-509.4ASD00 | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Active axes | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | |
| Travel range in X | 26 mm | 52 mm | 102 mm | 26 mm | 52 mm | 102 mm | 26 mm | 52 mm | 102 mm | 26 mm | 52 mm | 102 mm | 26 mm | 52 mm | 102 mm | 26 mm | 52 mm | 102 mm | |
| Maximum velocity in X, unloaded | 50 mm/s | 50 mm/s | 50 mm/s | 50 mm/s | 50 mm/s | 50 mm/s | 50 mm/s | 50 mm/s | 50 mm/s | 3 mm/s | 3 mm/s | 3 mm/s | 20 mm/s | 20 mm/s | 20 mm/s | 20 mm/s | 20 mm/s | 20 mm/s | |
| Straightness error in Y (straightness) | ± 1 µm | ± 2 µm | ± 4 µm | ± 1 µm | ± 2 µm | ± 4 µm | ± 1 µm | ± 2 µm | ± 4 µm | ± 1 µm | ± 2 µm | ± 4 µm | ± 1 µm | ± 2 µm | ± 4 µm | ± 1 µm | ± 2 µm | ± 4 µm | typ. |
| Straightness error in Z (flatness) | ± 1 µm | ± 2 µm | ± 4 µm | ± 1 µm | ± 2 µm | ± 4 µm | ± 1 µm | ± 2 µm | ± 4 µm | ± 1 µm | ± 2 µm | ± 4 µm | ± 1 µm | ± 2 µm | ± 4 µm | ± 1 µm | ± 2 µm | ± 4 µm | typ. |
| Angular error around Y (pitch) | ± 40 µrad | ± 65 µrad | ± 90 µrad | ± 40 µrad | ± 65 µrad | ± 90 µrad | ± 40 µrad | ± 65 µrad | ± 90 µrad | ± 40 µrad | ± 65 µrad | ± 90 µrad | ± 40 µrad | ± 65 µrad | ± 90 µrad | ± 40 µrad | ± 65 µrad | ± 90 µrad | max. |
| Angular error around Z (yaw) | ± 60 µrad | ± 90 µrad | ± 120 µrad | ± 60 µrad | ± 90 µrad | ± 120 µrad | ± 60 µrad | ± 90 µrad | ± 120 µrad | ± 60 µrad | ± 90 µrad | ± 120 µrad | ± 60 µrad | ± 90 µrad | ± 120 µrad | ± 60 µrad | ± 90 µrad | ± 120 µrad | max. |
| Positioning | L-509.023111 | L-509.033111 | L-509.053111 | L-509.023132 | L-509.033132 | L-509.053132 | L-509.025132 | L-509.035132 | L-509.055132 | L-509.10DG10 | L-509.20DG10 | L-509.40DG10 | L-509.10SD00 | L-509.20SD00 | L-509.40SD00 | L-509.1ASD00 | L-509.2ASD00 | L-509.4ASD00 | Tolerance |
| Minimum incremental motion in X | 0.1 µm | 0.1 µm | 0.1 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.1 µm | 0.1 µm | 0.1 µm | 0.1 µm | 0.1 µm | 0.1 µm | 0.02 µm | 0.02 µm | 0.02 µm | typ. |
| Positioning accuracy in X, uncalibrated | ± 7 µm | ± 8 µm | ± 10 µm | ± 9 µm | ± 14 µm | ± 19 µm | ± 9 µm | ± 14 µm | ± 19 µm | ± 9 µm | ± 14 µm | ± 19 µm | ± 10 µm | ± 15 µm | ± 20 µm | ± 7 µm | ± 8 µm | ± 10 µm | max. |
| Unidirectional repeatability in X | ± 0.15 µm | ± 0.15 µm | ± 0.15 µm | ± 0.2 µm | ± 0.2 µm | ± 0.2 µm | ± 0.2 µm | ± 0.2 µm | ± 0.2 µm | ± 0.25 µm | ± 0.25 µm | ± 0.25 µm | ± 0.25 µm | ± 0.25 µm | ± 0.25 µm | ± 0.15 µm | ± 0.15 µm | ± 0.15 µm | max. |
| Bidirectional repeatability in X | 0.8 µm | 0.8 µm | 0.8 µm | 1.25 µm | 1.25 µm | 1.25 µm | 1.25 µm | 1.25 µm | 1.25 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 0.8 µm | 0.8 µm | 0.8 µm | max. |
| Reference switch | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | |
| Limit switches | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | Optical | |
| Integrated sensor | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | — | — | — | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder | |
| Sensor signal | Sin/cos, 1 V peak-peak | Sin/cos, 1 V peak-peak | Sin/cos, 1 V peak-peak | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | — | — | — | Sin/cos, 1 V peak-peak | Sin/cos, 1 V peak-peak | Sin/cos, 1 V peak-peak | |
| Sensor signal period | 20 µm | 20 µm | 20 µm | — | — | — | — | — | — | — | — | — | — | — | — | 20 µm | 20 µm | 20 µm | |
| Drive Properties | L-509.023111 | L-509.033111 | L-509.053111 | L-509.023132 | L-509.033132 | L-509.053132 | L-509.025132 | L-509.035132 | L-509.055132 | L-509.10DG10 | L-509.20DG10 | L-509.40DG10 | L-509.10SD00 | L-509.20SD00 | L-509.40SD00 | L-509.1ASD00 | L-509.2ASD00 | L-509.4ASD00 | Tolerance |
| Drive type | DC motor | DC motor | DC motor | DC motor | DC motor | DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | DC gear motor | DC gear motor | DC gear motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | |
| Nominal voltage | 24 V | 24 V | 24 V | 24 V | 24 V | 24 V | 24 V | 24 V | 24 V | 12 V | 12 V | 12 V | 24 V | 24 V | 24 V | 24 V | 24 V | 24 V | |
| Maximum power consumption | — | — | — | — | — | — | — | — | — | 8.5 W | 8.5 W | 8.5 W | 10 W | 10 W | 10 W | 10 W | 10 W | 10 W | |
| Motor resolution | — | — | — | — | — | — | — | — | — | — | — | — | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | |
| Drive force in positive direction of motion in X | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | typ. |
| Drive force in negative direction of motion in X | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | 60 N | typ. |
| Resistance phase-phase | — | — | — | — | — | — | 0.81 Ω | 0.81 Ω | 0.81 Ω | 4.09 Ω | 4.09 Ω | 4.09 Ω | 3.3 Ω | 3.3 Ω | 3.3 Ω | 3.3 Ω | 3.3 Ω | 3.3 Ω | typ. |
| Inductance phase-phase | — | — | — | — | — | — | 0.64 mH | 0.64 mH | 0.64 mH | 0.18 mH | 0.18 mH | 0.18 mH | 2.8 mH | 2.8 mH | 2.8 mH | 2.8 mH | 2.8 mH | 2.8 mH | |
| Back EMF, phase-phase, rotational | — | — | — | — | — | — | 3.3 V/kRPM | 3.3 V/kRPM | 3.3 V/kRPM | 1.68 V/kRPM | 1.68 V/kRPM | 1.68 V/kRPM | — | — | — | — | — | — | max. |
| Number of pole pairs | — | — | — | — | — | — | 7 | 7 | 7 | — | — | — | — | — | — | — | — | — | |
| Mechanical Properties | L-509.023111 | L-509.033111 | L-509.053111 | L-509.023132 | L-509.033132 | L-509.053132 | L-509.025132 | L-509.035132 | L-509.055132 | L-509.10DG10 | L-509.20DG10 | L-509.40DG10 | L-509.10SD00 | L-509.20SD00 | L-509.40SD00 | L-509.1ASD00 | L-509.2ASD00 | L-509.4ASD00 | Tolerance |
| Permissible push force in Y | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | max. |
| Permissible push force in Z | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | max. |
| Permissible torque in θX | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | 30 N·m | max. |
| Permissible torque in θY | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | 25 N·m | max. |
| Permissible torque in θZ | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | 20 N·m | max. |
| Holding force in X, passive | — | — | — | — | — | — | — | — | — | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | |
| Moved mass in X, unloaded | 240 g | 240 g | 250 g | 220 g | 220 g | 220 g | 220 g | 220 g | 220 g | 220 g | 220 g | 220 g | 220 g | 220 g | 220 g | 240 g | 240 g | 250 g | |
| Drive screw type | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | |
| Drive screw pitch | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | |
| Gear ratio i | — | — | — | — | — | — | — | — | — | 2401 : 81 | 2401 : 81 | 2401 : 81 | — | — | — | — | — | — | |
| Guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | |
| Overall mass | 1200 g | 1300 g | 1500 g | 1200 g | 1300 g | 1500 g | 1400 g | 1500 g | 1700 g | 1400 g | 1600 g | 1900 g | 1400 g | 1500 g | 1700 g | 1400 g | 1600 g | 1800 g | |
| Material | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | |
| Miscellaneous | L-509.023111 | L-509.033111 | L-509.053111 | L-509.023132 | L-509.033132 | L-509.053132 | L-509.025132 | L-509.035132 | L-509.055132 | L-509.10DG10 | L-509.20DG10 | L-509.40DG10 | L-509.10SD00 | L-509.20SD00 | L-509.40SD00 | L-509.1ASD00 | L-509.2ASD00 | L-509.4ASD00 | Tolerance |
| Operating temperature range | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | |
| Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | |
| Sensor connector | D-sub 9 (m) | D-sub 9 (m) | D-sub 9 (m) | — | — | — | — | — | — | — | — | — | — | — | — | D-sub 9 (m) | D-sub 9 (m) | D-sub 9 (m) | |
| Recommended controllers/drivers | C-863 C-885 with C-863.20C885 C-884 G-901 G-910 | C-863 C-885 with C-863.20C885 C-884 G-901 G-910 | C-863 C-885 with C-863.20C885 C-884 G-901 G-910 | C-863 C-885 with C-863.20C885 C-884 G-901 G-910 | C-863 C-885 with C-863.20C885 C-884 G-901 G-910 | C-863 C-885 with C-863.20C885 C-884 G-901 G-910 | C-891 C-885 with C-891.11C885 G-901 G-910 | C-891 C-885 with C-891.11C885 G-901 G-910 | C-891 C-885 with C-891.11C885 G-901 G-910 | C-863 C-885 with C-863.20C885 C-884 G-901 G-910 | C-863 C-885 with C-863.20C885 C-884 G-901 G-910 | C-863 C-885 with C-863.20C885 C-884 G-901 G-910 | C-663.12 C-885 with C-663.12C885 G-901 G-910 | C-663.12 C-885 with C-663.12C885 G-901 G-910 | C-663.12 C-885 with C-663.12C885 G-901 G-910 | C-663.12 C-885 with C-663.12C885 G-901 G-910 | C-663.12 C-885 with C-663.12C885 G-901 G-910 | C-663.12 C-885 with C-663.12C885 G-901 G-910 |
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
