P-007 – P-056 PICA Stack Piezo Actuators

High Forces, High Displacement, Flexible Production

  • Travel ranges to 300 µm
  • High load capacity
  • Force generation up to 80 kN
  • Extreme reliability: >109 cycles
P-007 – P-056 PICA Stack Piezo Actuators
製品の解説 仕様 ダウンロード 見積 / 発注

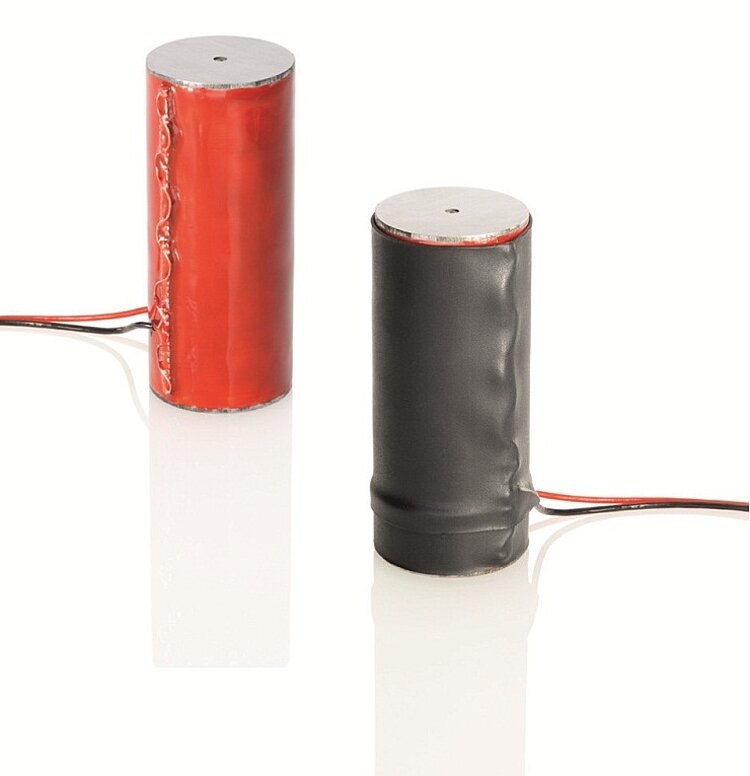

Stacked piezo linear actuator

Operating voltage 0 to 1000 V. Long lifetime without derating. High specific displacement. High forces. Sub-nanometer resolution, µs response. Operating temperature range -20 to 85 °C



Available options

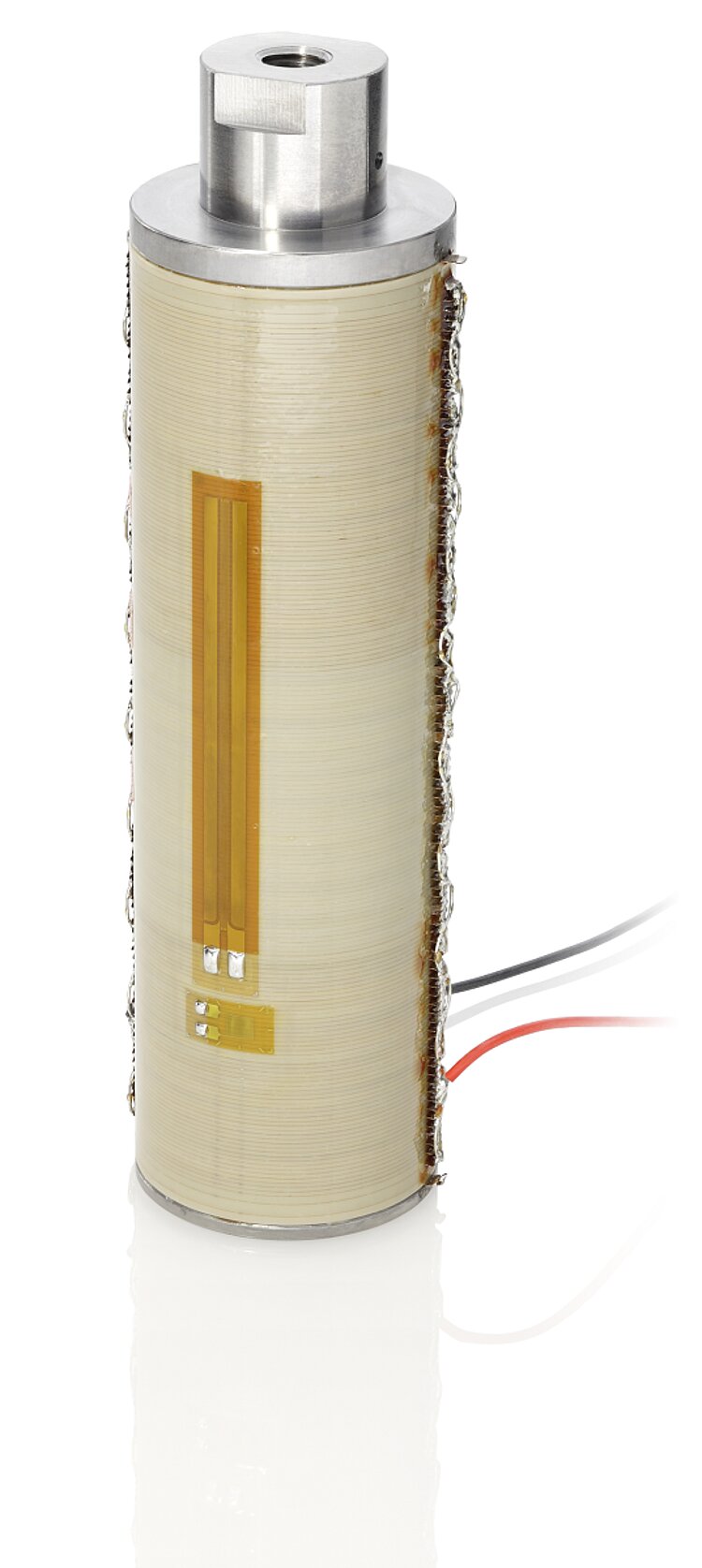

  • SGS sensors for positional stability
  • PZT ceramic material
  • Operating voltage range, displacement, layer thickness
  • Load capacity, force generation
  • Geometric shapes: round, rectangular
  • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
  • Integrated piezoelectric detector layers
  • Special high / low temperature versions, temperature sensor
  • Vacuum-compatible and non-magnetic versions
  • Extra-tight length tolerances



Fields of application

Industry and research. For high-load positioning, precision mechanics / -machining, switches

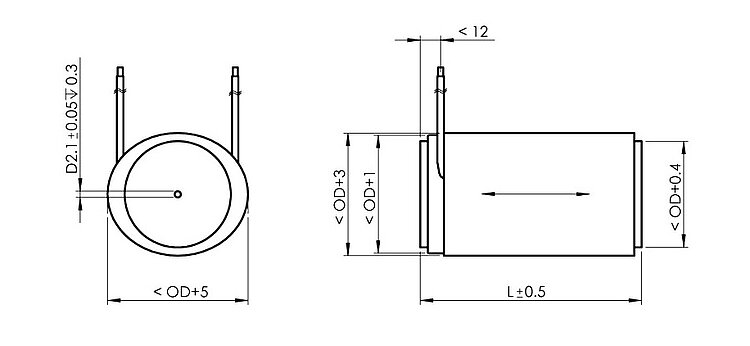

Specifications

Datasheet

Datasheet P-007 - P-056

日付 / バージョン
2015-02-02
pdf - 879 KB
日付 / バージョン
2015-02-02
pdf - 865 KB

Downloads

Datasheet

Datasheet

Datasheet P-007 - P-056

日付 / バージョン
2015-02-02
pdf - 879 KB
日付 / バージョン
2015-02-02
pdf - 865 KB

Documentation

Documentation

User Manual PZ138

PICA Piezo Actuators: P-007, P-010, P-016, P-025, P-035, P-045, P-050, P-056 PICA Stack/Power/Thru Customized Products

日付 / バージョン
2014-12-10
pdf - 922 KB
日付 / バージョン
2014-12-10
pdf - 923 KB
Documentation

Short Instructions PZ257EK

PICA Piezo Actuators up to 1000 V: P-0xx, P-1xx, P-405, PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®

日付 / バージョン
3.0.0 04/2021
pdf - 812 KB
日付 / バージョン
3.0.0 04/2021
pdf - 826 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Custom designs or different specifications on request.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
