PT230 PT Piezo Scanner Tubes

High-Dynamics Operation with Low Loads

PT230 PT Piezo Scanner Tubes
製品の解説 仕様 ダウンロード 見積 / 発注
  • Radial and axial displacement
  • Subnanometer resolution
  • Ideal for OEM applications
  • Large choice of designs
  • UHV-compatible to 10-9 hPa

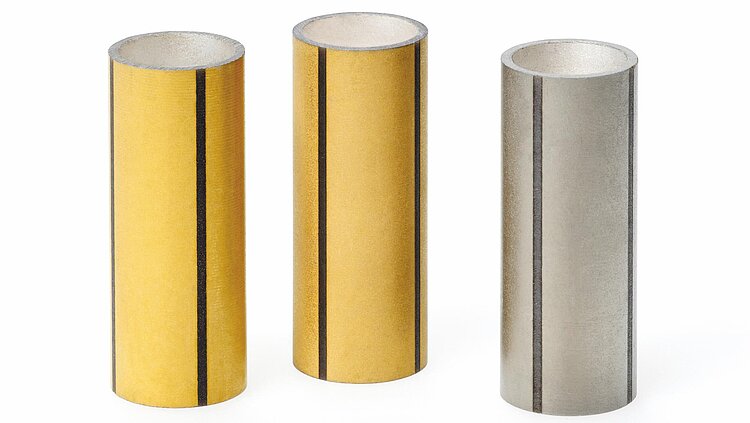

Piezo actuator / scanner tube

Bipolar operating voltage up to ±250 V. Fourfold segmented electrodes for axial and XY displacement. Monolithic piezoceramic actuator with minimal geometric tolerances. UHV-compatible to 10-9 hPa. Short lead times





Custom designs with modified specifications

  • Materials
  • Operating voltage range, displacement
  • Tolerances
  • Applied sensors
  • Special high / low temperature versions

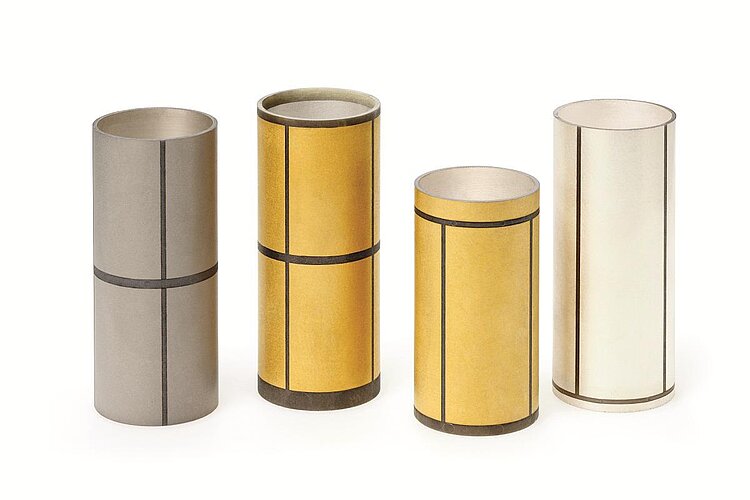

  • Segmentation of the electrodes, wrap-around electrodes, circumferential insulating borders
  • Non-magnetic



Possible dimensions

  • Length L max. 70 mm
  • Outer diameter OD 2 to 80 mm
  • Inner diameter ID 0.8 to 74 mm
  • Min. wall thickness 0.30 mm



Fields of application

Industry and research, UHV environment up to 10-9 hPa. For microdosing, micromanipulation, scanning microscopy (AFM, STM, etc.), fiber stretching
