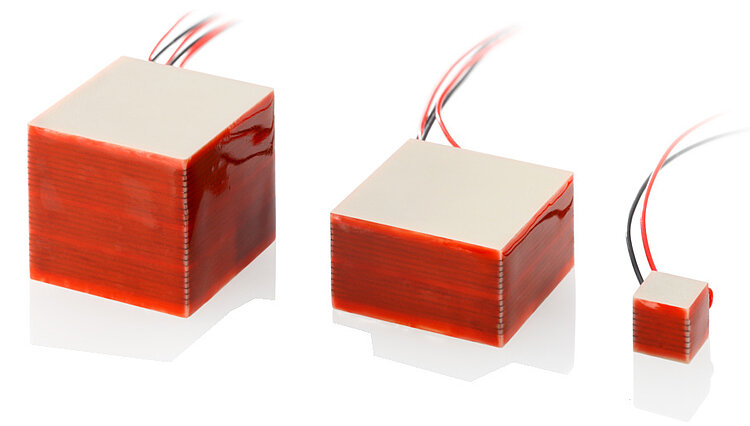

P-111 – P-153 PICA Shear Actuators

Compact Multi-Axis Actuators

  • Single and multi-axis versions
  • Travel ranges to 10 × 10 × 10 µm
  • Extreme reliability: >109 cycles
  • Picometer resolution
  • Short lead times
P-111 – P-153 PICA Shear Actuators
製品の解説 仕様 ダウンロード 見積 / 発注

Piezo shear actuators

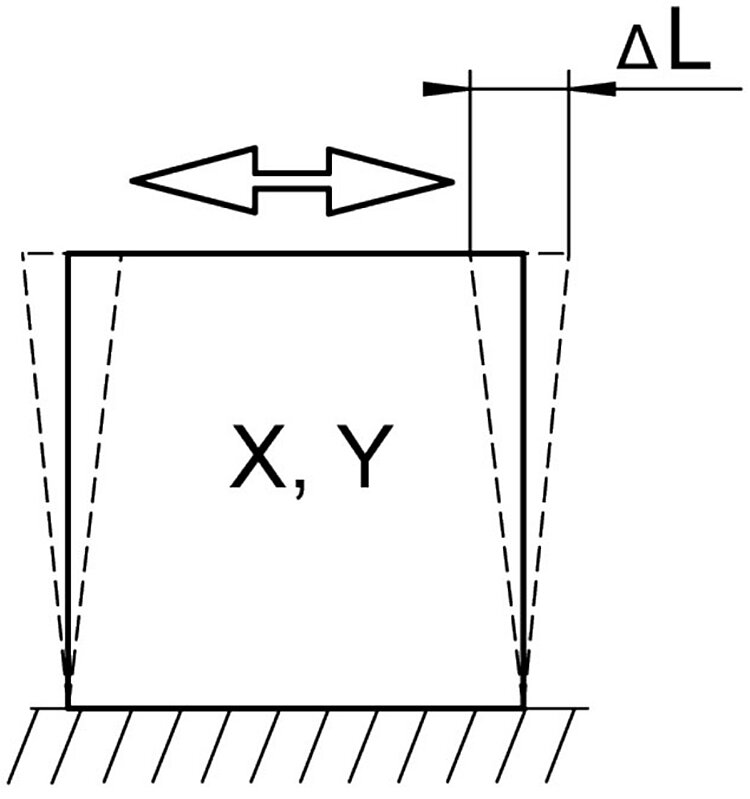

Operating voltage -250 to 250 V. Lateral displacement is based on the piezoelectric shear effect. Excellent dynamics with minimum electric power requirement.

Variants with inner hole or for use in cryogenic and UHV environments to 10-9 hPa.

Possible modifications

  • Piezo ceramic material
  • Nonmagnetic versions
  • Operating voltage range, displacement, layer thickness, cross-sectional dimension
  • Load capacity, force generation
  • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
  • Extra-tight length tolerances

Fields of application

  • Industry and research
  • Scanning applications
  • Microscopy
  • Precision mechanics
  • Switching applications



Specifications

Datasheet

Datasheet P-111 - P-153

日付 / バージョン
2018-04-25
pdf - 948 KB
日付 / バージョン
2018-04-25
pdf - 950 KB
日付 / バージョン
2018-04-25
pdf - 777 KB

Downloads

Datasheet

Datasheet

Datasheet P-111 - P-153

日付 / バージョン
2018-04-25
pdf - 948 KB
日付 / バージョン
2018-04-25
pdf - 950 KB
日付 / バージョン
2018-04-25
pdf - 777 KB

Documentation

Documentation

Short Instructions PZ257EK

PICA Piezo Actuators up to 1000 V: P-0xx, P-1xx, P-405, PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®

日付 / バージョン
3.0.0 04/2021
pdf - 812 KB
日付 / バージョン
3.0.0 04/2021
pdf - 826 KB
Documentation

User Manual PZ252

PICA Shear Piezo Actuators: P-111, P-112, P-121, P-122, P-123, P-141, P-142, P-143, P-151, P-152, P-153, PICA Shear Customized Products

日付 / バージョン
1.3.0 2018-12-19
pdf - 2 MB
日付 / バージョン
1.3.0 2018-12-19
pdf - 2 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

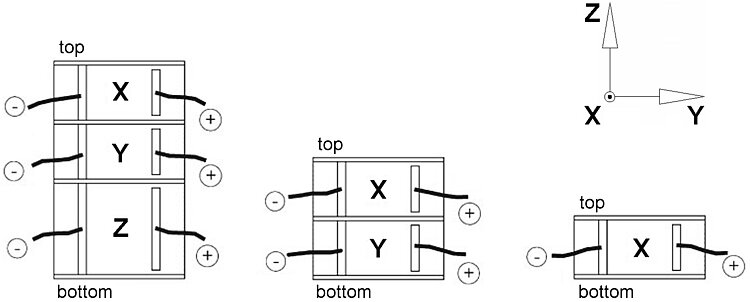

Active axes X

Active axes XY

Active axes XYZ

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
