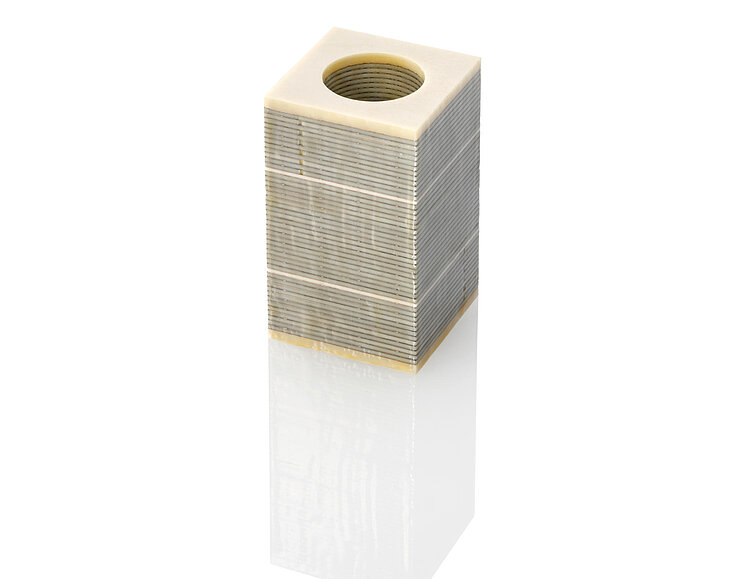

P-15x.xxH PICA Shear Actuators

Compact Multi-Axis Actuators with Inner Hole

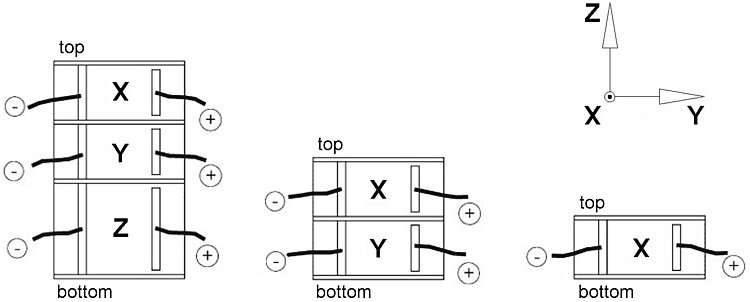

  • Single and multi-axis versions
  • Travel ranges to 10 µm × 10 µm × 10 µm
  • Extreme reliability: >109 cycles
  • Picometer resolution
  • Short lead times
P-15x.xxH PICA Shear Actuators
製品の解説 仕様 ダウンロード 見積 / 発注

Piezo shear actuators with inner hole

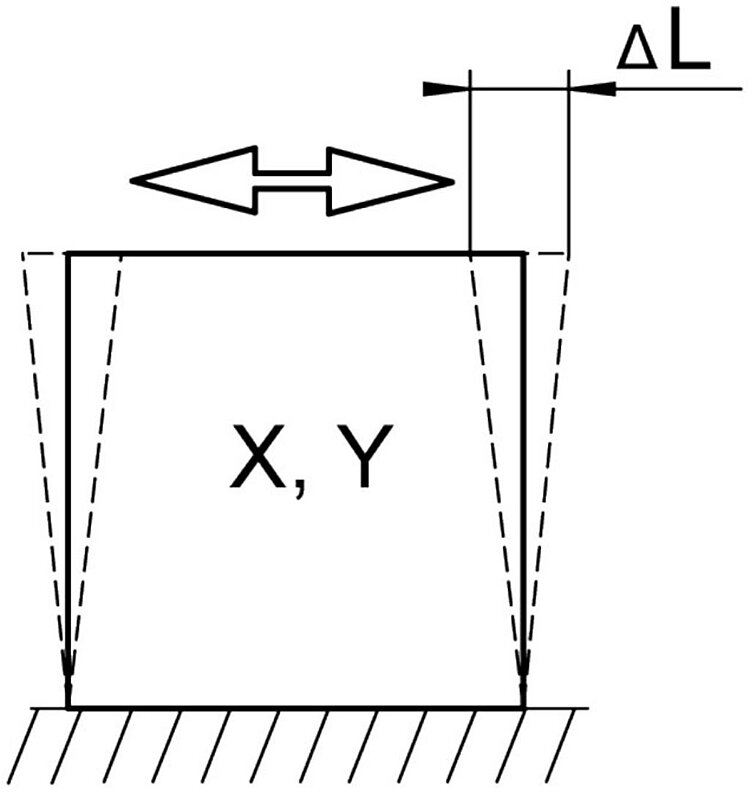

Operating voltage -250 to 250 V. Lateral displacement is based on the piezoelectric shear effect. Excellent dynamics with minimum electric power requirement.

Variants without inner hole or for use in cryogenic and UHV environments to 10-9 hPa.

Possible modifications

  • Piezo ceramic material
  • Nonmagnetic versions
  • Operating voltage range, displacement, layer thickness, cross-sectional dimension
  • Load capacity, force generation
  • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
  • Extra-tight length tolerances

Application fields

  • Industry and research
  • Low temperature / vacuum versions to 10-9 hPa
  • Scanning applications
  • Microscopy
  • Precision mechanics
  • Switching applications

Specifications

データシート

Datasheet P-15x.xxH (英語)

日付 / バージョン
2023-12-13
pdf - 423 KB
日付 / バージョン
2023-12-13
pdf - 426 KB
日付 / バージョン
2018-05-14
pdf - 721 KB

Downloads

データシート

データシート

Datasheet P-15x.xxH (英語)

日付 / バージョン
2023-12-13
pdf - 423 KB
日付 / バージョン
2023-12-13
pdf - 426 KB
日付 / バージョン
2018-05-14
pdf - 721 KB

ドキュメント

ドキュメント

Short Instructions PZ257EK (英語)

PICA Piezo Actuators up to 1000 V: P-0xx, P-1xx, P-405, PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®

日付 / バージョン
3.0.0 04/2021
pdf - 812 KB
日付 / バージョン
3.0.0 04/2021
pdf - 826 KB
ドキュメント

User Manual PZ252 (英語)

PICA Shear Piezo Actuators: P-111, P-112, P-121, P-122, P-123, P-141, P-142, P-143, P-151, P-152, P-153, PICA Shear Customized Products

日付 / バージョン
1.3.0 2018-12-19
pdf - 2 MB
日付 / バージョン
1.3.0 2018-12-19
pdf - 2 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

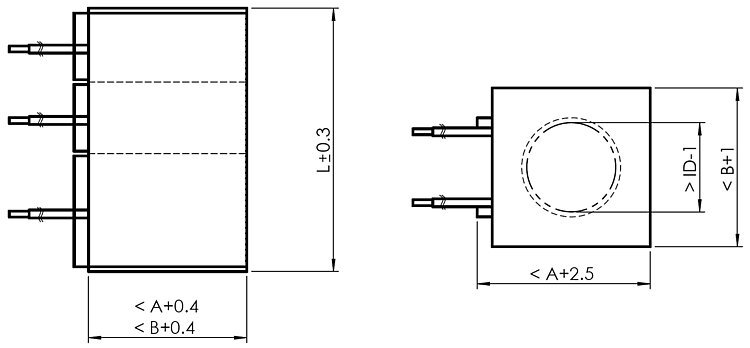

P-151.03H

PICA Shear X piezo actuator; PICA Shear piezo actuator drive; 3 µm travel range (open loop); 16 mm × 16 mm surface; 5.5 mm length; 10 mm inner diameter; connecting wires; 0.1 m cable length

P-151.05H

PICA Shear X piezo actuator; PICA Shear piezo actuator drive; 5 µm travel range (open loop); 16 mm × 16 mm surface; 7.5 mm length; 10 mm inner diameter; connecting wires; 0.1 m cable length

P-151.10H

PICA Shear X piezo actuator; PICA Shear piezo actuator drive; 10 µm travel range (open loop); 16 mm × 16 mm surface; 12 mm length; 10 mm inner diameter; connecting wires; 0.1 m cable length

P-153.10H

PICA Shear XYZ piezo actuator; PICA Shear piezo actuator drive; 10 µm × 10 µm × 10 µm travel range (open loop) (X × Y × Z); 16 mm × 16 mm surface; 40 mm length; 10 mm inner diameter; connecting wires; 0.1 m cable length
