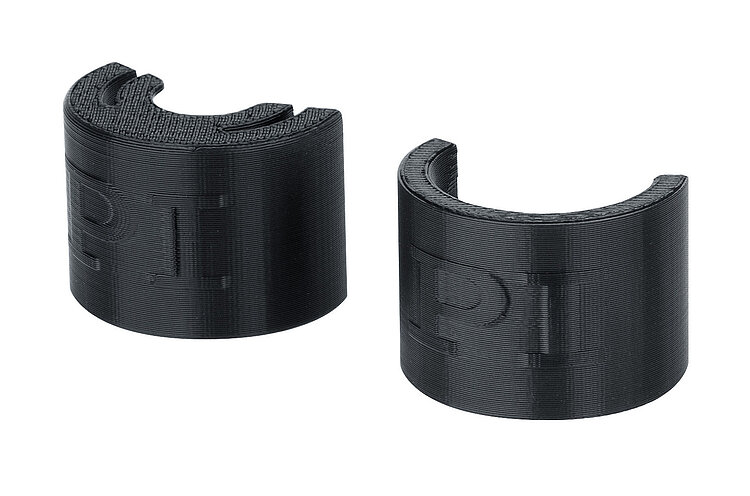

S-330.Xx Mirror Centering Aids for the S-330 and S-331

3-D Printed PI Equipment for Gluing Mirrors Yourself

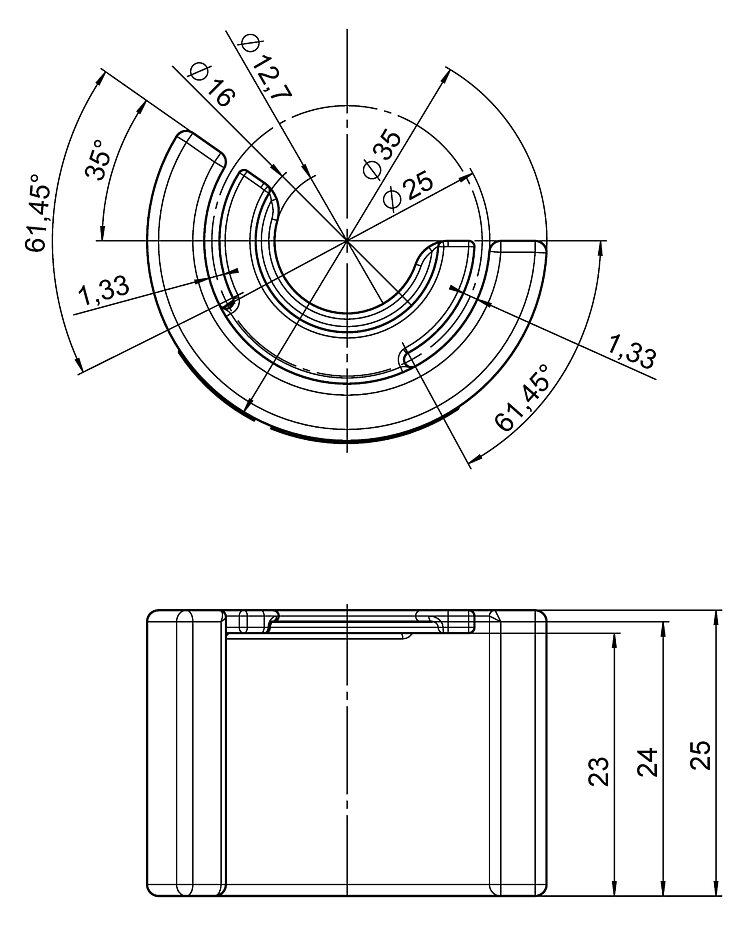

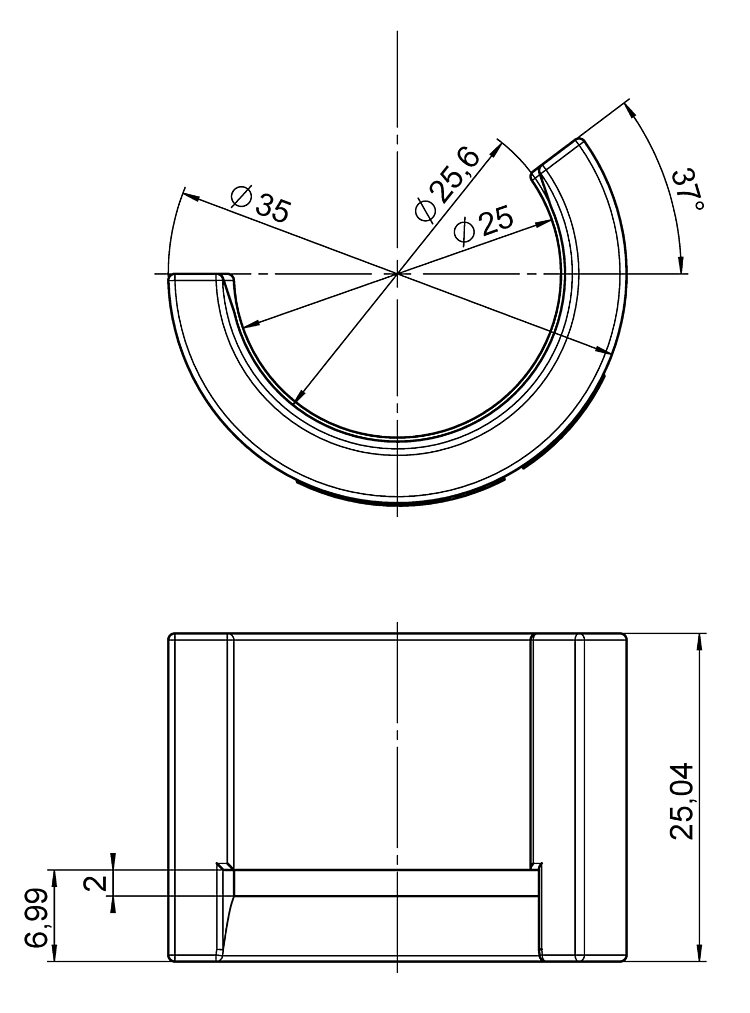

  • Center 0.5" mirrors and 1.0" mirrors reliably
  • 3-D printed component, made of thermoplastic resin (ABS)
  • Inexpensive and also easy to use
S-330.Xx Mirror Centering Aids for the S-330 and S-331
製品の解説 ダウンロード 見積 / 発注

Accessory for S-330 and S-331 piezo tip/tilt platforms

Centering aids can be used for gluing a mirror onto models from the S-330 and S-331 series supplied without mirrors. The centering aid holds the mirror at the desired position during gluing.

Downloads

Datasheet

Datasheet

Datasheet S-330.Xx

日付 / バージョン
2018-05-14
pdf - 162 KB
日付 / バージョン
2018-05-14
pdf - 163 KB
日付 / バージョン
2021-01-18
pdf - 330 KB

Documentation

Documentation

Technical Note S330T0024

S330T0024, valid for S-330.X1, S-330.X2, S-335.X1, S-335.X2

pdf - 332 KB
英語

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Products
