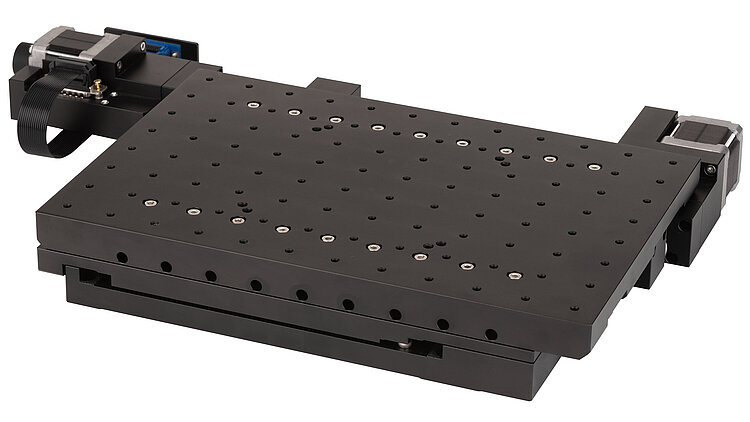

M-971 Motorized OEM XY Stage

Low Price with High Quantities

M-971 Motorized OEM XY Stage
製品の解説 仕様 ダウンロード 見積 / 発注
  • XY stage for the price-sensitive applications
  • Precise stepper motors
  • Crossed roller guides
  • Limit and reference point switches (Hall effect)

XY stage for the price-sensitive OEM market

The M-971 is integrated into systems for inspection, lithography, or biomedical engineering and is optimized for optical microscopy. It was specially developed to meet the requirements of price-sensitive OEM markets. Proven and cost-optimized components form its basis:

  • The design of the guides which includes several short crossed roller guides distributes the load evenly over a large surface and ensures high stiffness and good travel accuracy.
  • The drivetrain is based on a widely used linear stage from PI. Its reliability and long lifetime have been proven in use for years.
  • By using stepper motors, encoders can be dispensed with and a simple stepper motor controller can be used. The XY stage is equipped with limit and reference switches to ensure fast and precise referencing and safety during operation.

Specifications

Datasheet

Datasheet M-971

日付 / バージョン
2019-04-26
日付 / バージョン
2019-04-26
ドキュメントの言語

Downloads

Datasheet

Datasheet

Datasheet M-971

日付 / バージョン
2019-04-26
日付 / バージョン
2019-04-26
ドキュメントの言語

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Please note, this product is only available in quantities of 100 or more. For customer-specific adaptations, please contact PI.
