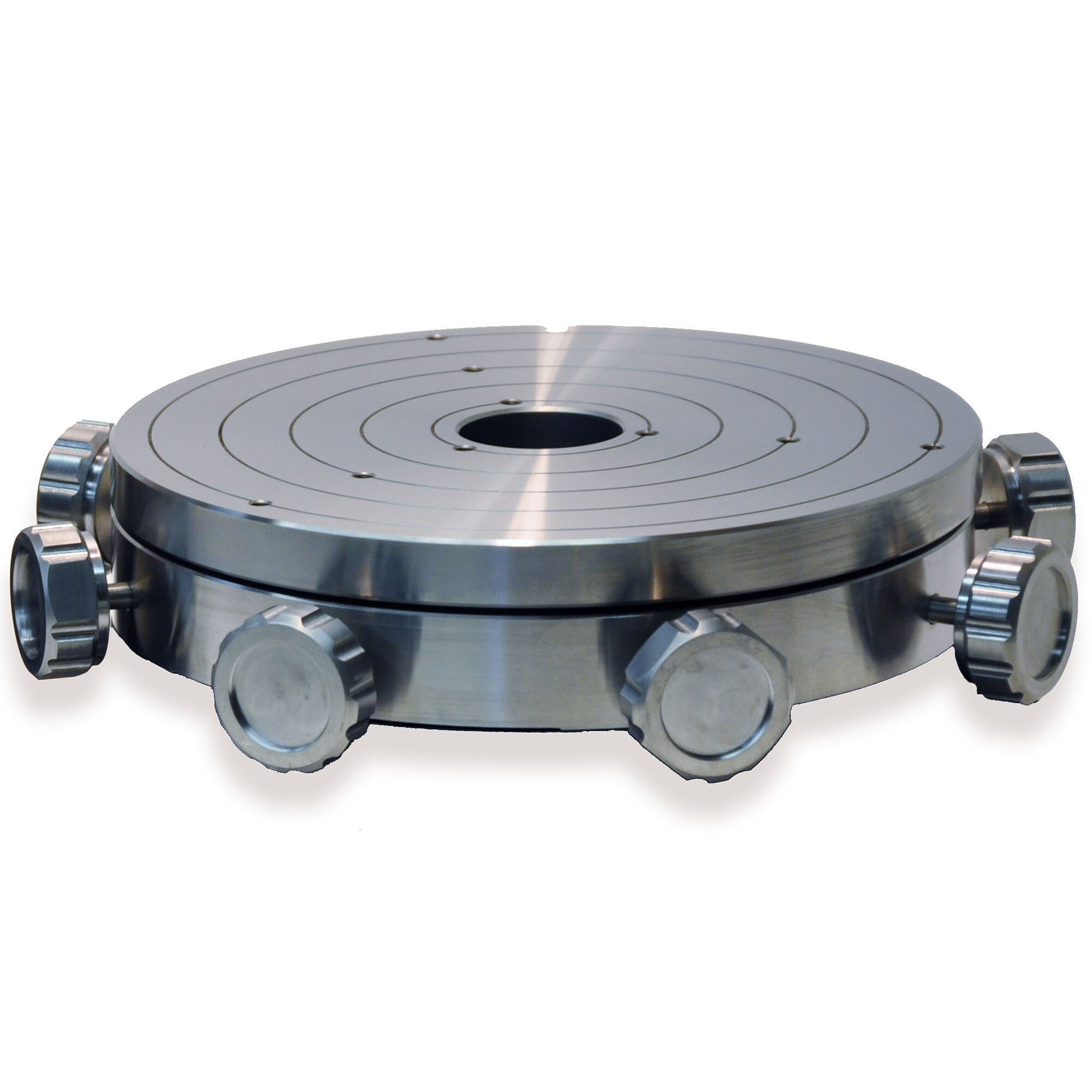

A-60x.MTT PIglide Manual XY Tip/Tilt Platform

Motion platform diameter

75

100

150

200

300

mm

Typ.

Travel range X,Y

±1.5

±1.5

±1.5

±3

±3

mm

Max.

Travel range θX, θY

±1.25

±1.25

±1.25

±1.25

±1.25

°

Max.

Resolution X,Y

0.25

0.25

0.32

0.32

0.32

mm / 1 rotation of the knob

Typ.

Resolution θX, θY

0.18

0.21

0.15

0.09

0.07

° / 1 rotation of the knob

Typ.

Overall mass

0.8

1.5

4

8.6

25

kg

Typ.

Moment of inertia

620

2090

12900

52100

319000

kg·mm²

Typ.

Load capacity, axial

299

536

1206

2144

4244

N

Max.

Load torque M_X,Y

0.32

0.45

5.6

10

25

Nm

Max.

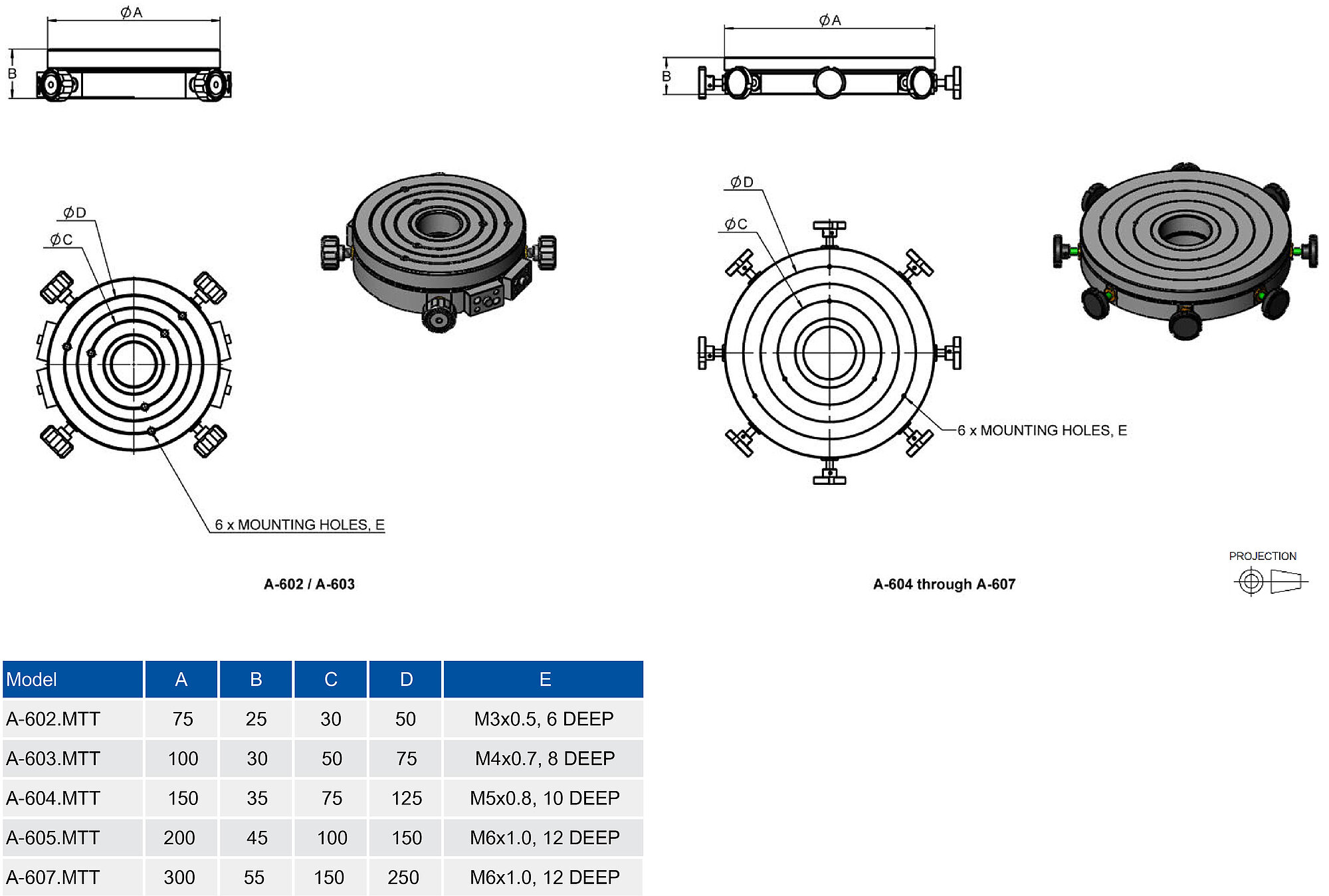

A-602.MTT

75

A-602.xxx

A-603.MTT

100

A-603.xxx

A-623.xxx

A-604.MTT

150

A-604.xxx

A-624.xxx

A-605.MTT

200

A-605.xxx

A-625.xxx

A-607.MTT

300

A-607.xxx

A-627.xxx
