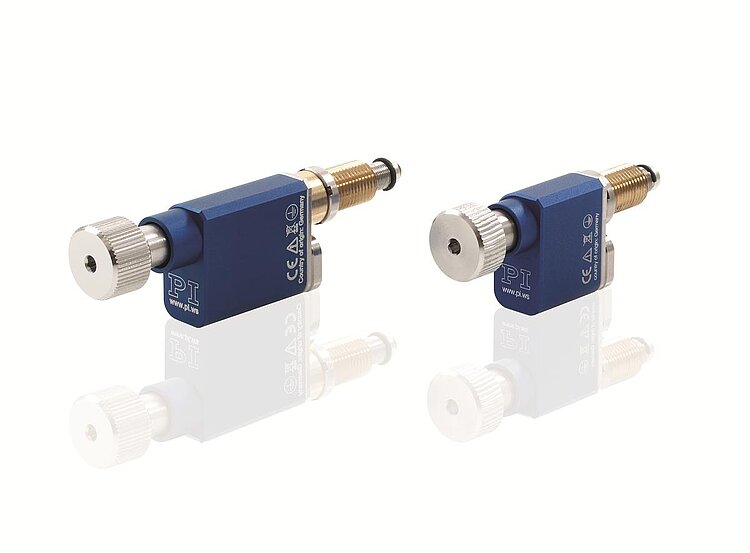

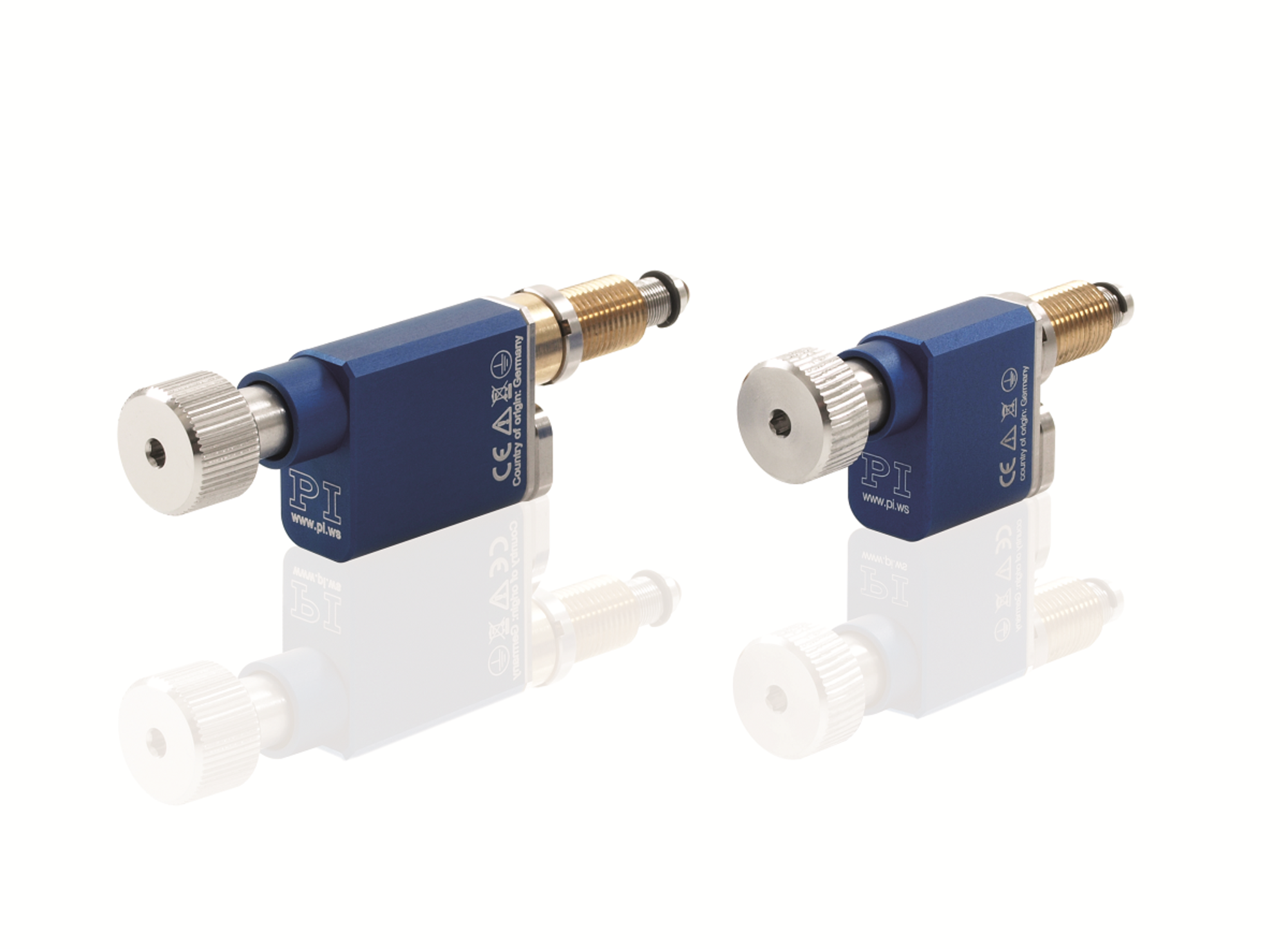

N-472 PiezoMike Linear Actuator

With Position Sensor for Closed-Loop Operation

  • High stability and holding force 100 N
  • Self-locking at rest even when closed-loop control is switched off
  • Compact design with integrated incremental encoder
  • Feed force 22 N
  • Lifetime >1,000,000,000 steps at ambient conditions and >50,000,000 steps under vacuum conditions
N-472 PiezoMike Linear Actuator
製品の解説 仕様 ダウンロード 見積 / 発注

Inertia drive

Compact, inexpensive inertia drive principle (stick-slip). At rest, the drive is self-locking, requires no current, and does not generate any heat. It holds the position with maximum force.

Integrated position sensor

An incremental encoder measures the relative motion to a freely definable reference position.

Alignment of mechanical and optomechanical components

Stable alignment of optical paths. Long-term positioning stability: High stability at target position, reliable startup even after longer downtimes. High holding force and resolution by combining piezo actuators with mechanical thread translation. Vacuum-compatible versions to 10-6 hPa available.

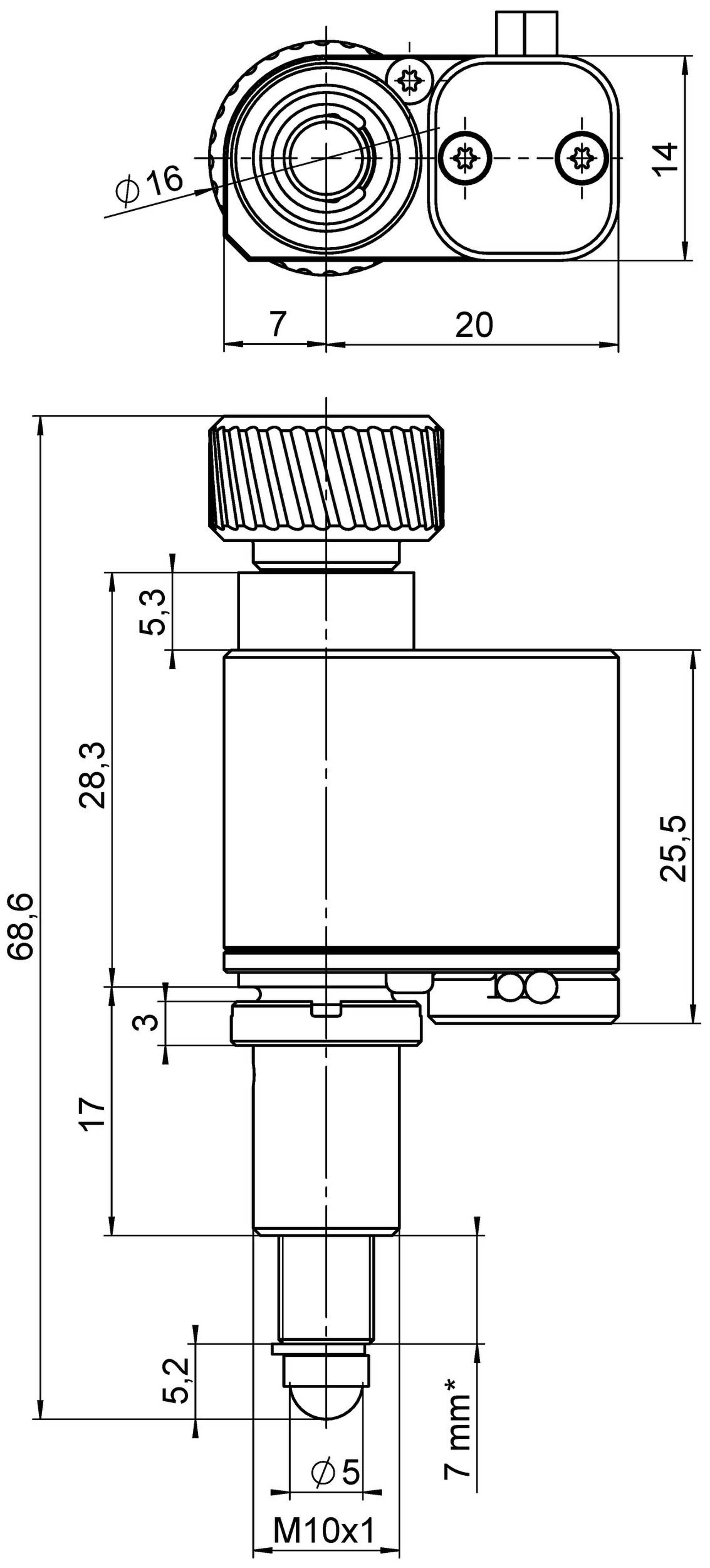

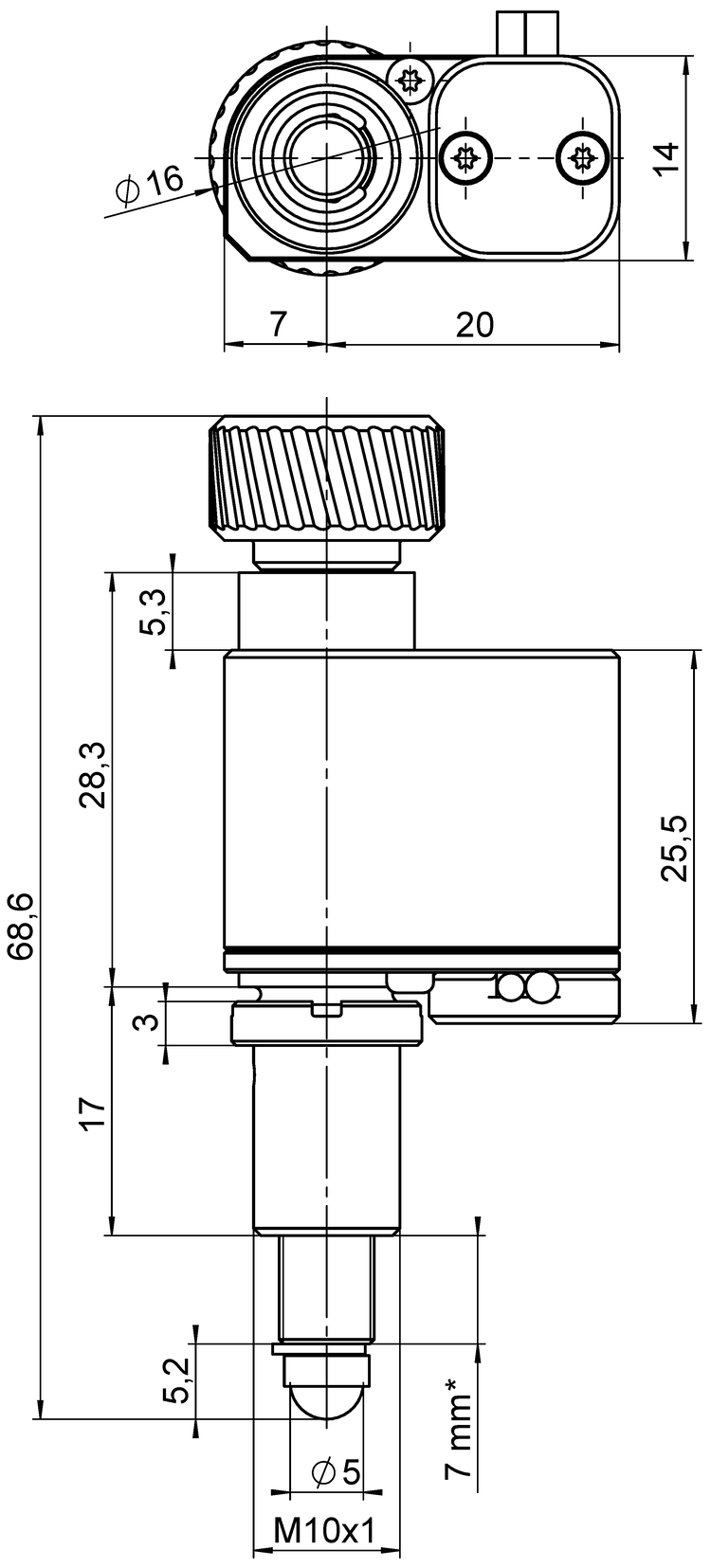

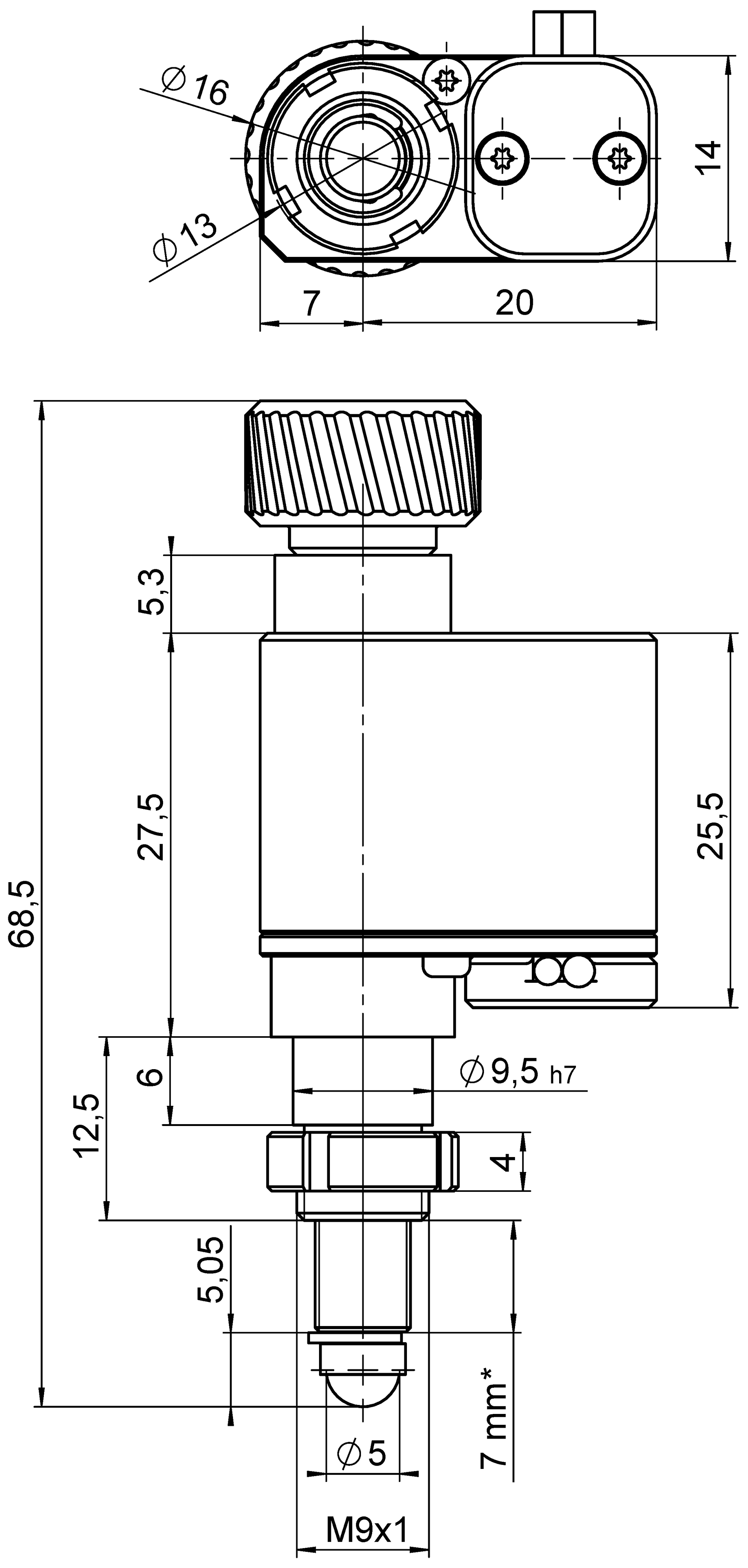

Specifications

Datasheet

Datasheet N-472

日付 / バージョン
2022-01-24
pdf - 536 KB
日付 / バージョン
2022-01-24
pdf - 537 KB

Downloads

Product Note

Product Note

Product Change Notification N-47x.xxx

日付 / バージョン
2020-05-20
pdf - 225 KB

Datasheet

Datasheet

Datasheet N-472

日付 / バージョン
2022-01-24
pdf - 536 KB
日付 / バージョン
2022-01-24
pdf - 537 KB

Documentation

Documentation

Short Instructions MP171EK

PiezoMike Linear Actuators: N-45x / N-47x / N-48x

日付 / バージョン
1.1.0 03/2020
pdf - 1 MB
日付 / バージョン
1.1.0 03/2020
pdf - 1 MB
Documentation

User Manual MP144

N-472 Closed-loop PiezoMike Linear Actuator

日付 / バージョン
1.4.0 2021-10-08
pdf - 2 MB
日付 / バージョン
1.4.0 2021-10-08
pdf - 2 MB

3-D Models

3-D Models

N-472 3-D model

日付 / バージョン
2022-01-19
zip - 3 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly
