ステージと磁気ダイレクトドライブ リニアモータステージ

イレクトドライブによって、ハイダイナミクスステージを実現できます。また、モータースピンドル方式のステージと比較した場合、磁気ダイレクトドライブは機構要素の数が少ないため摩擦やバックラッシュが減り、高精度を得ることができます。

PIのPIglideステージは、磁気ダイレクトドライブと高精度のプリロードエアベアリングを組み合わせ、さらに優れたパフォーマンスを実現します。

機械的ベアリング内蔵

新製品

V-308 Voice Coil PIFOC Focus Drive for Objectives

High-dynamics positioner for microscope objectives
新製品

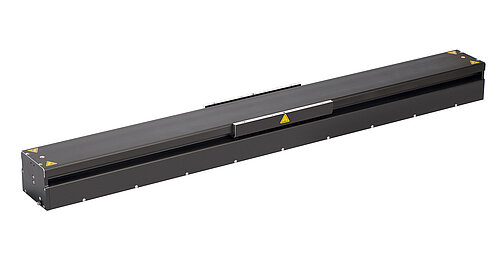

V-857 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor
新製品

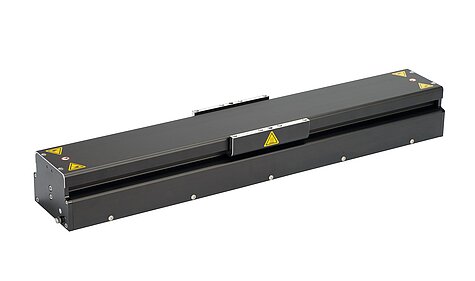

V-855 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor
新製品

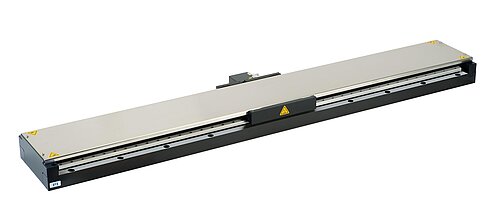

V-817 High-Load Linear Stage

High Performance • Linear Motor • Cost Effective • Fast Delivery

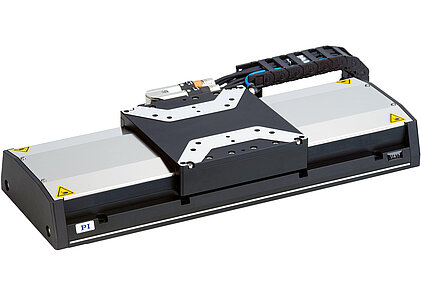

V-417 High-Load Linear Stage

High Performance, Linear Motor

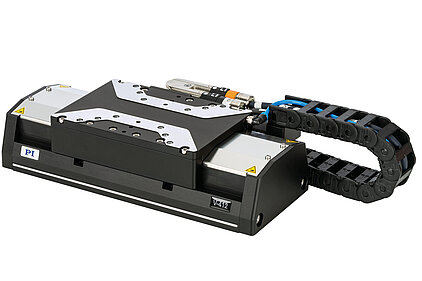

V-412 High-Load Linear Stage

High Performance, Linear Motor

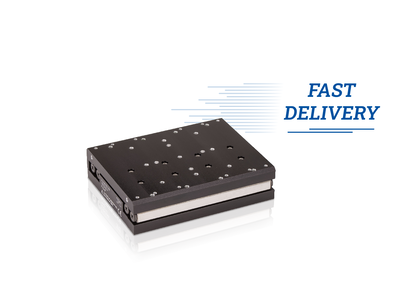

V-408 PIMag® Linear Stage

Inexpensive, with Linear Motor

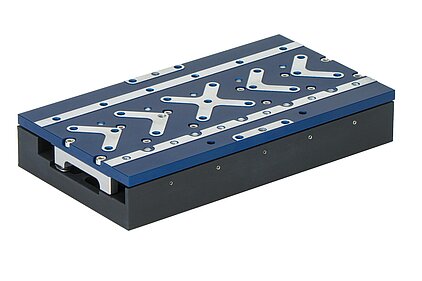

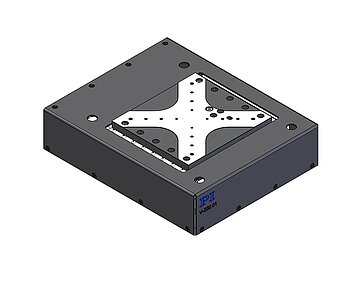

V-508 High-Precision, Low-Profile Linear Motor Translation Stage

Nanopositioning Performance and High Speed in a Compact, Affordable Stage Design

V-522 • V-524 • V-528 PIMag® High Dynamics Linear Stage

Voice Coil Direct Drive with Direct Position Measuring

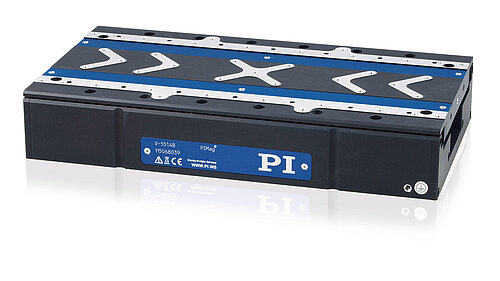

V-551 Precision Linear Stage

High Velocity and Precision due to Magnetic Direct Drive

LMS-270 Precision Linear Stage

High Dynamics due to the Magnetic Direct Drive, High Stability

LMS-180 Precision Linear Stage

High Dynamics due to Magnetic Direct Drive, Excellent Travel Accuracy

PIMag

PI社には、磁気ダイレクトドライブを搭載した多くの標準および顧客固有の位置決めソリューションがあります。またガイド、センサー、制御技術、ソフトウェアなどの必要なシステムコンポーネントの設計、構築、製造においても長年の経験を持っています。PI社は、例えば、高い力密度やコンパクトな設計を実現するために、現在市販されている駆動コンポーネントを使用しても到達できない特定の性能特性を位置決めシステムが必要とする場合、独自の磁気モータを開発できます。自社開発されたこれら>>の独自のモーターは、PIMag®ブランド名で識別されます。


エアベアリング内蔵

A-142 Miniature Air Bearing Linear Stage
新製品

A-142 PIglide Voice Coil Linear Stage with Air Bearings

High Performance • Cleanroom-Compatible • Option for Vertical Mounting
  • High performance
  • Possible vertical mounting
  • Motion platform 75mm × 80mm
  • Travel ranges up to 10mm
  • Acceleration up to 20 m/s

A-131 PIglide VC Voice Coil Linear Stage with Air Bearings

High-Performance Miniature Nanopositioning System
  • Miniature nanopositioning system
  • Clean room compatible
  • Travel ranges up to 25mm
  • Load capacity up to 30N
  • Acceleration up to 40m/s

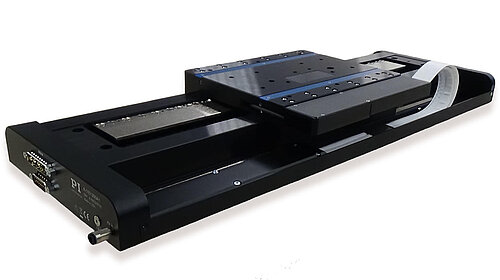

A-110 PIglide LC Linear Stage with Air Bearings

Inexpensive High Performance Nanopositioning Stage
  • High precision positioning
  • Inexpensive &amp
  • clean room compatible
  • Motion platform 160mm × 200mm
  • Travel ranges up to 400mm
  • Load capacity up to 100N

A-141 PIglide MB Miniature Linear Stage with Air Bearings

High Performance, Cleanroom Compatible, Customizable
  • High performance
  • Clean room compatible
  • Motion platform 57mm × 93mm
  • Travel ranges up to 35mm
  • Acceleration up to 3,5m/s

A-123 PIglide AT3 Linear Stage with Air Bearings

High Performance Nanopositioning Stage
  • High performance nanopositioning stage
  • Clean room compatible
  • Motion platform 210mm × 210mm
  • Travel ranges 50mm to 750mm
  • Resolution up to 1 nm

A-121 PIglide AT1 Linear Stage with Air Bearings

High Performance Small Footprint Nanopositioning Stage
  • High performance nanopositioning stage
  • small design
  • Motion platform 115mm × 115mm
  • Travel ranges up to 350mm
  • Resolution up to 1nm
