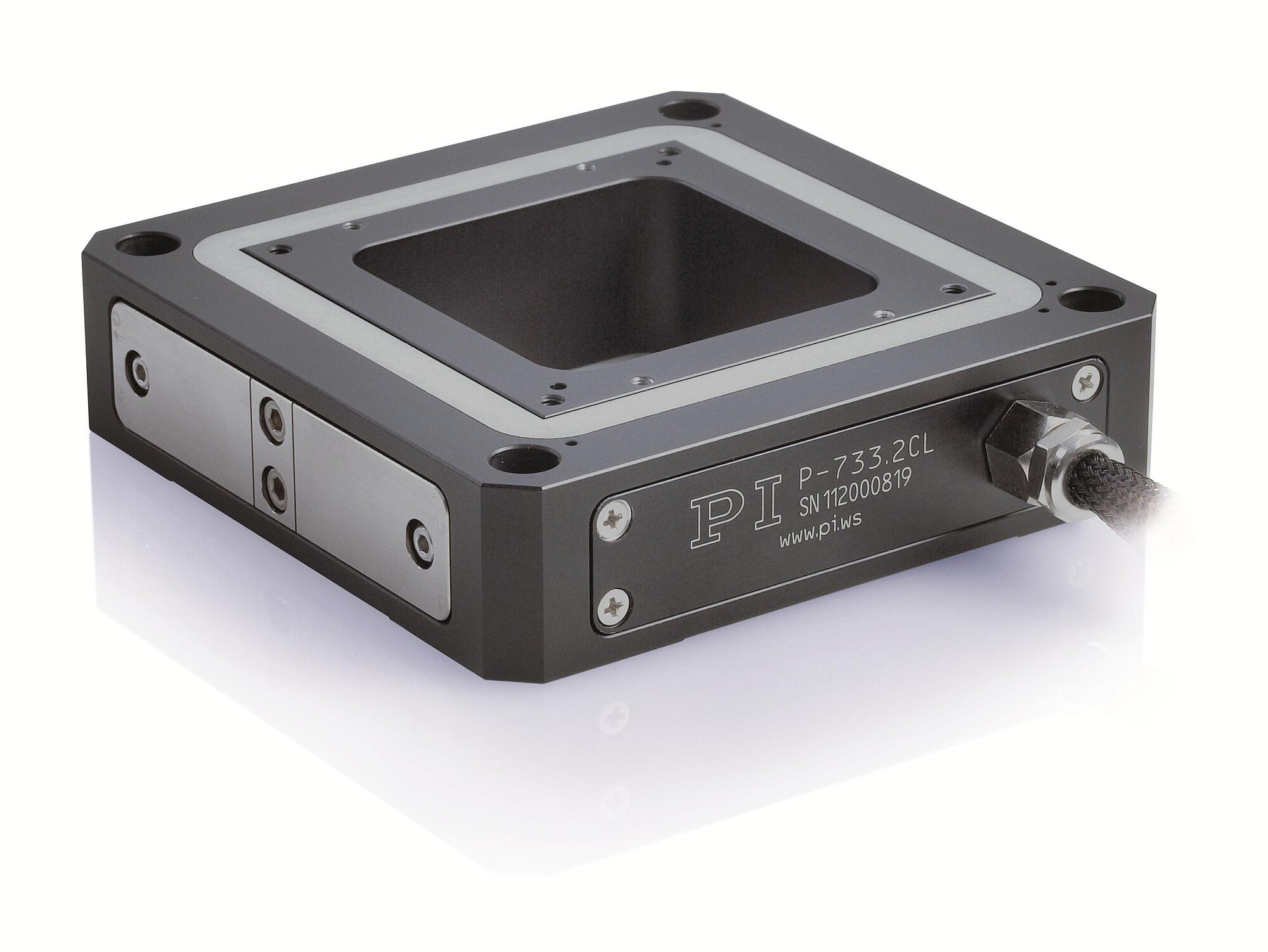

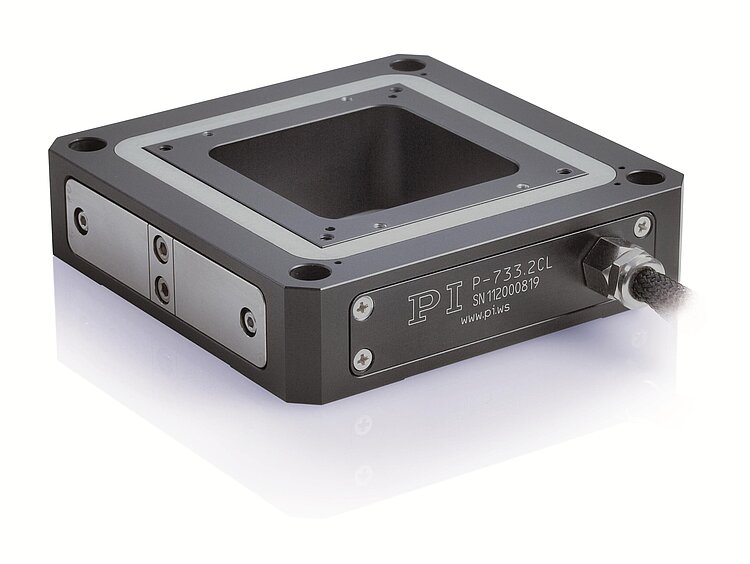

P-733.2 XY Piezo Nanopositioner

High-Precision XY Scanner with Aperture

Travel ranges to 100 µm × 100 µm in X and Y
Resolution to 0.1 nm due to capacitive sensors
High velocity versions with direct drive
Vacuum-compatible and nonmagnetic versions on request
Parallel kinematics for higher accuracy and dynamics
Parallel metrology for active compensation of guiding errors
Zero-play, high-precision flexure guide system
Clear aperture 50 mm × 50 mm for transmitted-light applications

見積 / 発注

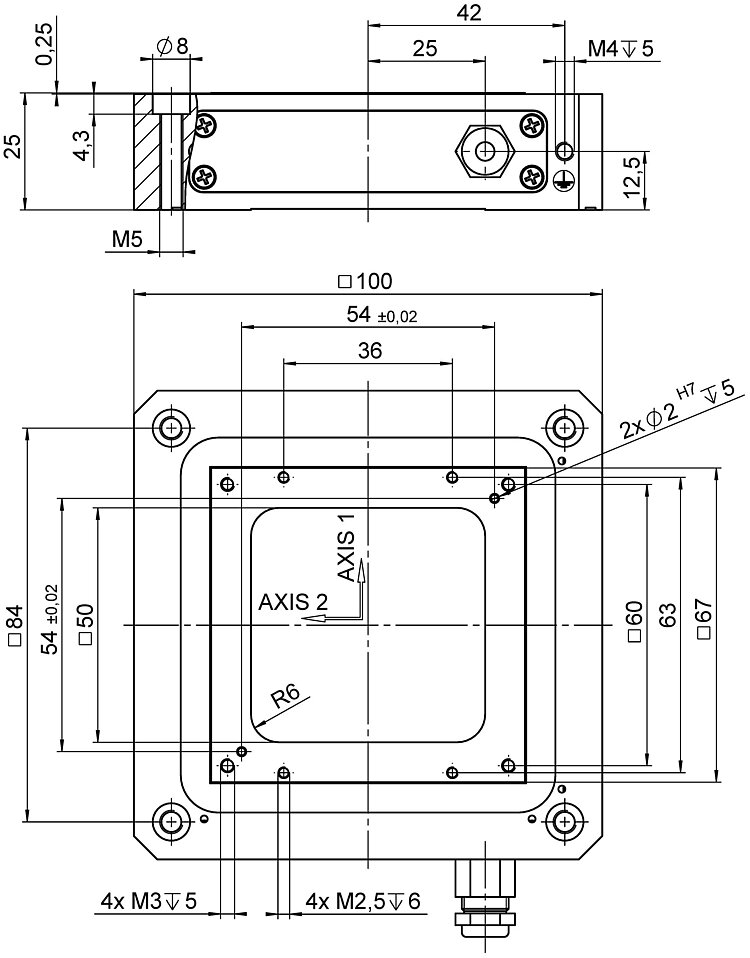

P-733.2CD / .2CL, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

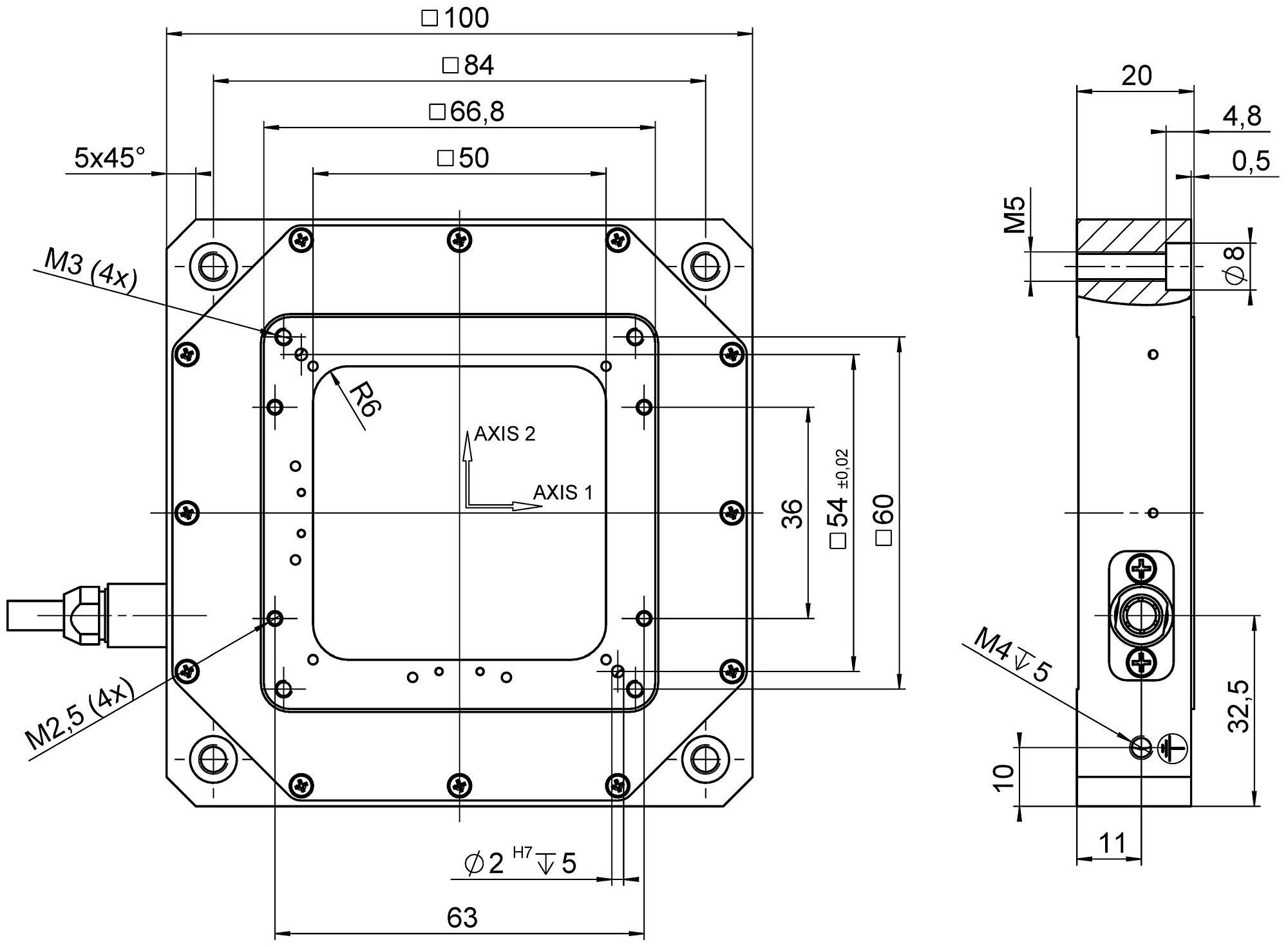

P-733.2DD, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Application fields

Scanning microscopy
Confocal microscopy
Mask/wafer positioning
Surface measuring technology
Nanoimprinting
Micromanipulation
Image processing / stabilization
Nanopositioning with high flatness and straightness of motion

Outstanding lifetime thanks to PICMA^® piezo actuators

The PICMA^® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA^® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.

Automatic configuration and fast component exchange

Mechanics and controllers can be combined as required and exchanged quickly. All servo and linearization parameters are stored in the ID chip of the D-sub connector of the mechanics. The autocalibration function of the digital controllers uses this data each time the controller is switched on.

Maximum accuracy due to direct position measuring

Motion is measured directly at the motion platform without any influence from the drive or guide elements. This allows optimum repeatability, outstanding stability, and stiff, fast-responding control.

High dynamics multi-axis operation due to parallel kinematics

In a parallel-kinematic multi-axis system, all actuators act on a common platform. The minimum mass inertia and the identical design of all axes allow fast, dynamic, and nevertheless precision motion.

データシートのダウンロード画面へ仕様へ見積 / 発注

データシート

日付 / バージョン

2024-04-08

pdf - 769 KB

日付 / バージョン

2024-04-08

pdf - 781 KB

日付 / バージョン

2018-06-14

pdf - 728 KB

日付 / バージョン

2018-07-11

pdf - 809 KB

ダウンロード

Select a travel range:

Motion	P-733.2CD	P-733.2CL	P-733.2DD	Tolerance
Active axes	X ǀ Y	X ǀ Y	X ǀ Y
Travel range in X	100 µm	100 µm	30 µm
Travel range in Y	100 µm	100 µm	30 µm
Travel range in X, open loop, at -20 to 120 V	115 µm	115 µm	33 µm	+20 / -0 %
Travel range in Y, open loop, at -20 to +120 V	115 µm	115 µm	33 µm	+20 / -0 %
Linearity error in X	0.03 %	0.03 %	0.03 %	typ.
Linearity error in Y	0.03 %	0.03 %	0.03 %	typ.
Pitch (Rotational crosstalk in θX with motion in Y)	± 3 µrad	± 3 µrad	± 5 µrad	typ.
Pitch (Rotational crosstalk in θY with motion in X)	± 3 µrad	± 3 µrad	± 5 µrad	typ.
Yaw (Rotational crosstalk in θZ with motion in X)	± 10 µrad	± 10 µrad	± 10 µrad	typ.
Yaw (Rotational crosstalk in θZ with motion in Y)	± 10 µrad	± 10 µrad	± 10 µrad	typ.
Positioning	P-733.2CD	P-733.2CL	P-733.2DD	Tolerance
Unidirectional repeatability in X	± 2 nm	± 2 nm	± 2 nm	typ.
Unidirectional repeatability in Y	± 2 nm	± 2 nm	± 2 nm	typ.
Resolution in X, open loop	0.2 nm	0.2 nm	0.1 nm	typ.
Resolution in Y, open loop	0.2 nm	0.2 nm	0.1 nm	typ.
Integrated sensor	Capacitive, indirect position measuring	Capacitive, indirect position measuring	Capacitive, indirect position measuring
System resolution in X	0.3 nm	0.3 nm	0.1 nm	typ.
System resolution in Y	0.3 nm	0.3 nm	0.1 nm	typ.
Drive Properties	P-733.2CD	P-733.2CL	P-733.2DD	Tolerance
Drive type	PICMA®	PICMA®	PICMA®
Electrical capacitance in X	6 µF	6 µF	6.2 µF	±20 %
Electrical capacitance in Y	6 µF	6 µF	6.2 µF	±20 %
Mechanical Properties	P-733.2CD	P-733.2CL	P-733.2DD	Tolerance
Stiffness in X	1.5 N/µm	1.5 N/µm	20 N/µm	±20 %
Stiffness in Y	1.5 N/µm	1.5 N/µm	20 N/µm	±20 %
Resonant frequency in X, unloaded	500 Hz	500 Hz	2230 Hz	±20 %
Resonant frequency in X, under load with 120 g	370 Hz	370 Hz	—	±20 %
Resonant frequency in X, under load with 200 g	340 Hz	340 Hz	1550 Hz	±20 %
Resonant frequency in Y, unloaded	500 Hz	500 Hz	2230 Hz	±20 %
Resonant frequency in Y, under load with 120 g	370 Hz	370 Hz	—	±20 %
Resonant frequency in Y, under load with 200 g	340 Hz	340 Hz	1550 Hz	±20 %
Permissible push force in X	50 N	50 N	50 N	max.
Permissible push force in Y	50 N	50 N	50 N	max.
Permissible push force in Z	50 N	50 N	50 N	max.
Permissible pull force in X	20 N	20 N	20 N	max.
Permissible pull force in Y	20 N	20 N	20 N	max.
Permissible pull force in Z	20 N	20 N	20 N	max.
Overall mass	580 g	580 g	580 g	±5 %
Material	Aluminum	Aluminum	Aluminum
Miscellaneous	P-733.2CD	P-733.2CL	P-733.2DD	Tolerance
Operating temperature range	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C
Connector	D-sub 25W3 (m)	LEMO FFS.00.250.CTCE24	D-sub 25W3 (m)
Cable length	1.5 m	1.5 m	1.5 m	±10 mm
Recommended controllers / drivers	E-503, E-505, E-610, E-621, E-625, E-712, E-727	E-503, E-505, E-610, E-621, E-625, E-712, E-727	E-503, E-505, E-610, E-621, E-625, E-712, E-727
Sensor connector	—	LEMO FFA.00.250.CTLC31	—

P-733.2DD: Linearity error with digital controller. With analog controllers, the typical linearity error for direct drive positioners can be up to 0.1 %.

The resolution of the system is limited only by the noise of the amplifier and the measuring technology because PI piezo nanopositioning systems are free of friction.
