This product has been replaced by the following new product: C-891.130300 PIMag® Motion Controller for Magnetic Direct Drives

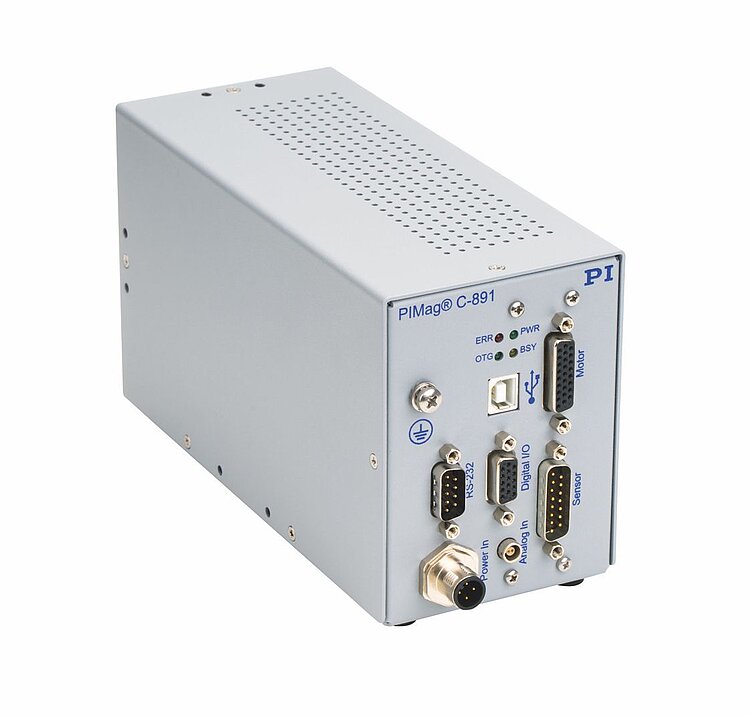

C-891 PIMag® Motion Controller for Magnetic Direct Drives

1 Axis, for 3-Phase Linear Motors

C-891 PIMag® Motion Controller for Magnetic Direct Drives
製品の解説 仕様 ダウンロード 見積 / 発注
  • Maximum current consumption 3 A
  • 20-kHz control bandwidth
  • Protection against overload, overcurrent, overtemperature
  • Digital inputs and outputs for trigger and stop function
  • USB interface for commanding and configuration

Digital motion controller for PIMag® linear motors

1 motor channel, 1 sensor channel. For three-phase linear motors with a maximum current consumption of 3 A (rms) per phase. Sine-commutated operation, field-oriented current control. Automatic phase correction. PID controller for position and velocity.

Encoder inputs

Differential signal transmission for digital (A/B) or analog (sin/cos) encoder signals. BiSS interface support for absolute encoders. TTL inputs for limit and reference point switches.

Extensive functionality

Protection for motor and motor driver due to protective shutdown and current limitation. Motor stop via external switch. Data recorder, wave generator, macros. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.


USB and RS-232 for commanding. Digital inputs and outputs for automation. Analog input for recording an external sensor signal.


This content is only available on tablets or desktop devices.


Product Note

Product Note

Product Change Notification C-891.120200, C-891.10C885

日付 / バージョン
ドキュメントの言語 英語

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly


PIMag® motion controller for magnetic direct drives, 1 axis, 24 V, 3 A, USB and RS-232 interface
