E-836 Compact Piezo Amplifier / OEM Module

Cost-Effective, Low-Noise Piezo Amplifiers for Dynamic Piezo Actuator Operation

  • OEM module and benchtop device
  • Peak current up to 100 mA
  • Easy integration
  • Power on/off without voltage spikes
  • 24 V operating voltage
E-836 Compact Piezo Amplifier / OEM Module
製品の解説 仕様 ダウンロード 見積 / 発注

Single-channel piezo amplifier: OEM module or benchtop device

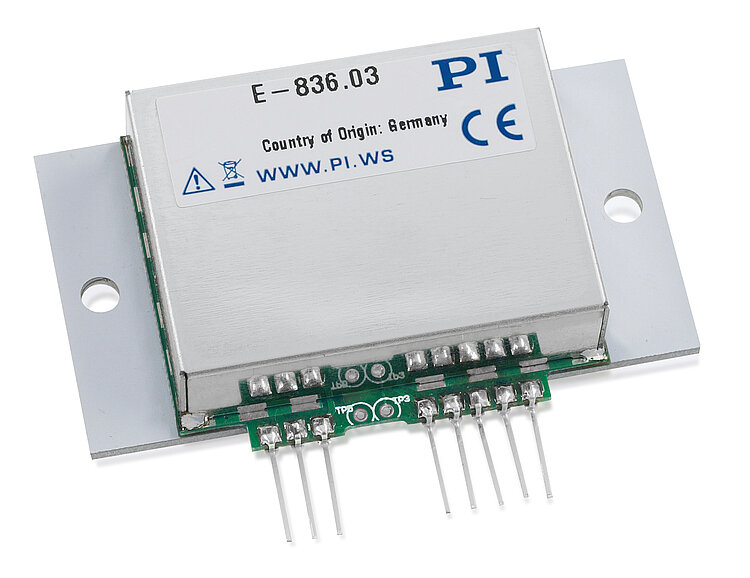

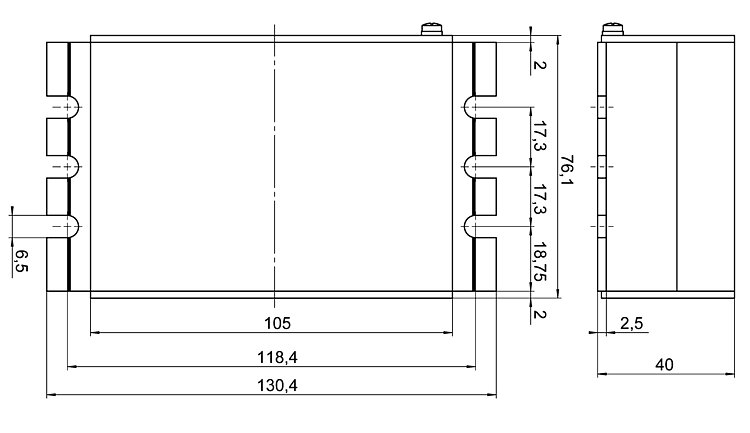

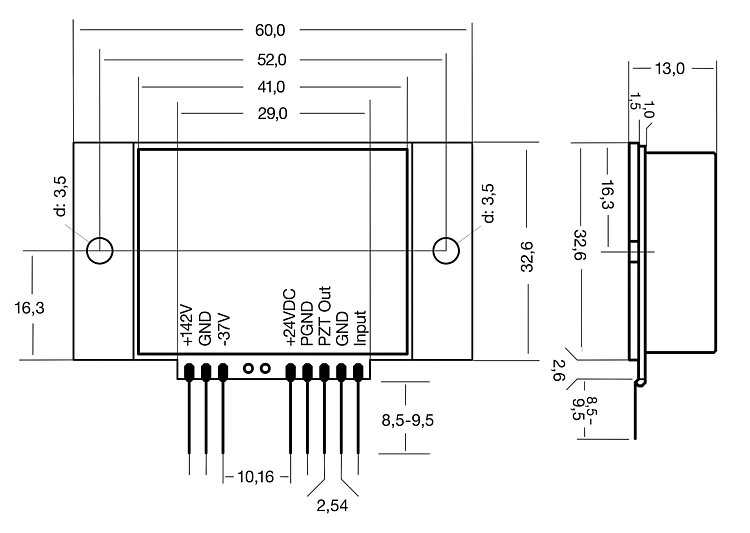

Compact OEM module in shielded metal housing; easy integration with soldering pins for mounting on boards; ideally suited for assembling multi-channel solutions. Benchtop device for laboratory applications and fast startup. 24 V operating voltage, piezo voltage and other supply voltages are generated internally.

Functions

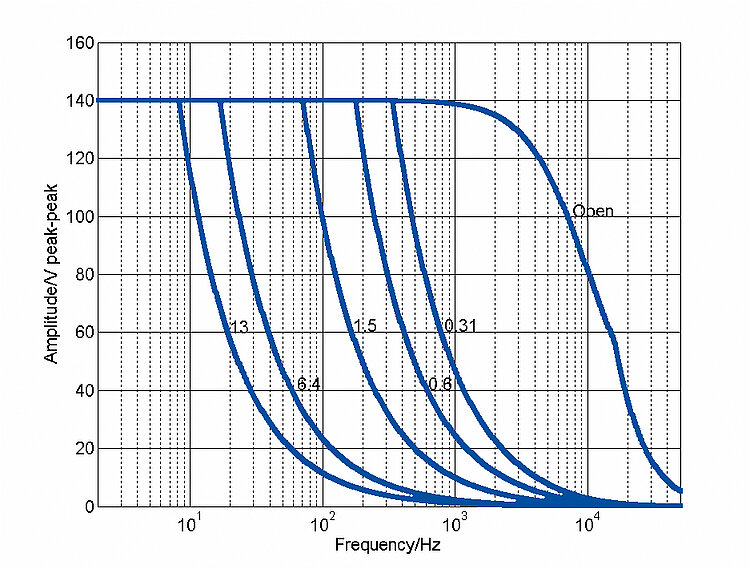

Low-noise power amplifier. Gain value 10. Output voltage range -30 to 130 V. Short-circuit proof, full overcurrent and overtemperature protection.

Fields of application

Inexpensive control of PICMA® Stack or PICMA® Chip piezo actuators in OEM applications.

Specifications

Datasheet

Datasheet E-836

日付 / バージョン
2018-04-06
pdf - 579 KB
日付 / バージョン
2018-04-06
pdf - 581 KB

Downloads

Datasheet

Datasheet

Datasheet E-836

日付 / バージョン
2018-04-06
pdf - 579 KB
日付 / バージョン
2018-04-06
pdf - 581 KB

Documentation

Documentation

Short Instruction PZ300

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

日付 / バージョン
1.1.0 04/2021
pdf - 1 MB
日付 / バージョン
1.1.0 04/2021
pdf - 1 MB
Documentation

User Manual PZ250

E-836.1G Piezo Amplifier, 1 Channel, Bench-Top, -30 to 130 V

日付 / バージョン
1.0.1 2014-03-10
pdf - 852 KB
日付 / バージョン
1.0.1 2014-03-10
pdf - 612 KB
Documentation

User Manual E836T0001

E-836.03 OEM Piezo Amplifier Module, 1 Channel, -30 to 130 V

日付 / バージョン
2014-02-03
pdf - 863 KB
英語

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Products Compatible Accessories Related Controllers
