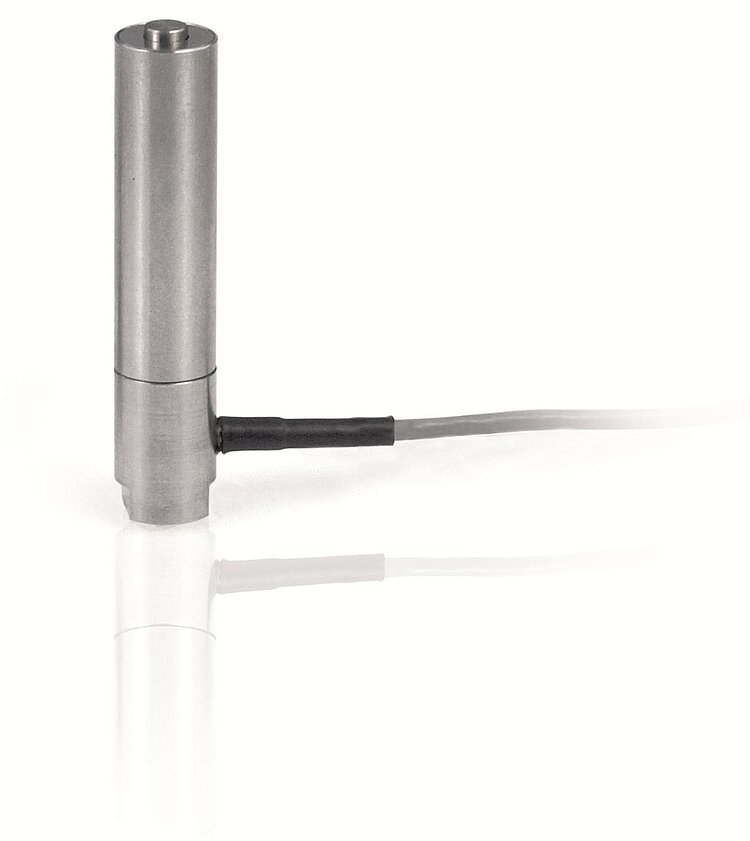

P-820 Preloaded Piezo Actuators
For Light and Medium Loads
- Outstanding lifetime due to PICMA® piezo actuators
- Travel range to 45 µm
- Push force capacity to 50 N
- Pull force capacity to 10 N
- µs response time, sub-nm resolution
- Variants with ball tip
Application fields
- Static and dynamic precision positioning
- Fiber positioning
- Laser tuning
- Nanotechnology
Outstanding lifetime thanks to PICMA® piezo actuators
The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
Specifications
Specifications
P-820.10 / P-820.1B | P-820.20 / P-820.2B | P-820.30 / P-820.3B | Unit | Tolerance | |
---|---|---|---|---|---|
Travel range at 0 to 100 V | 15 | 30 | 45 | µm | ±20 % |
Resolution* | 0.15 | 0.3 | 0.45 | nm | |
Static large-signal stiffness** | 13 | 7 | 4 | N/µm | ±20 % |
Push force capacity | 50 | 50 | 50 | N | |
Pull force capacity | 10 | 10 | 10 | N | |
Torque on tip | 0.08 | 0.08 | 0.08 | Nm | max. |
Electrical capacitance | 0.3 | 0.7 | 1.0 | µF | ±20 % |
Resonant frequency f0 (no load) | 22 | 15 | 12 | kHz | ±20 % |
Operating temperature range | -20 to +80 | -20 to +80 | -20 to +80 | °C | |
Mass | 8 | 11 | 14 | g | ±5 % |

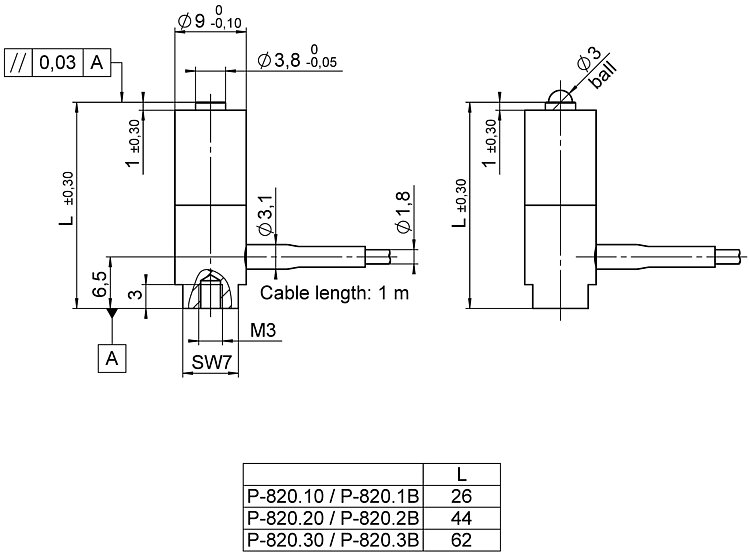

Length L | 26 | 44 | 62 | mm | ±0.3 |

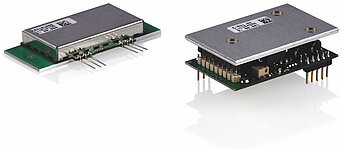

Recommended electronics | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 |
