L-511 High-Precision Linear Stage

High Travel Accuracy

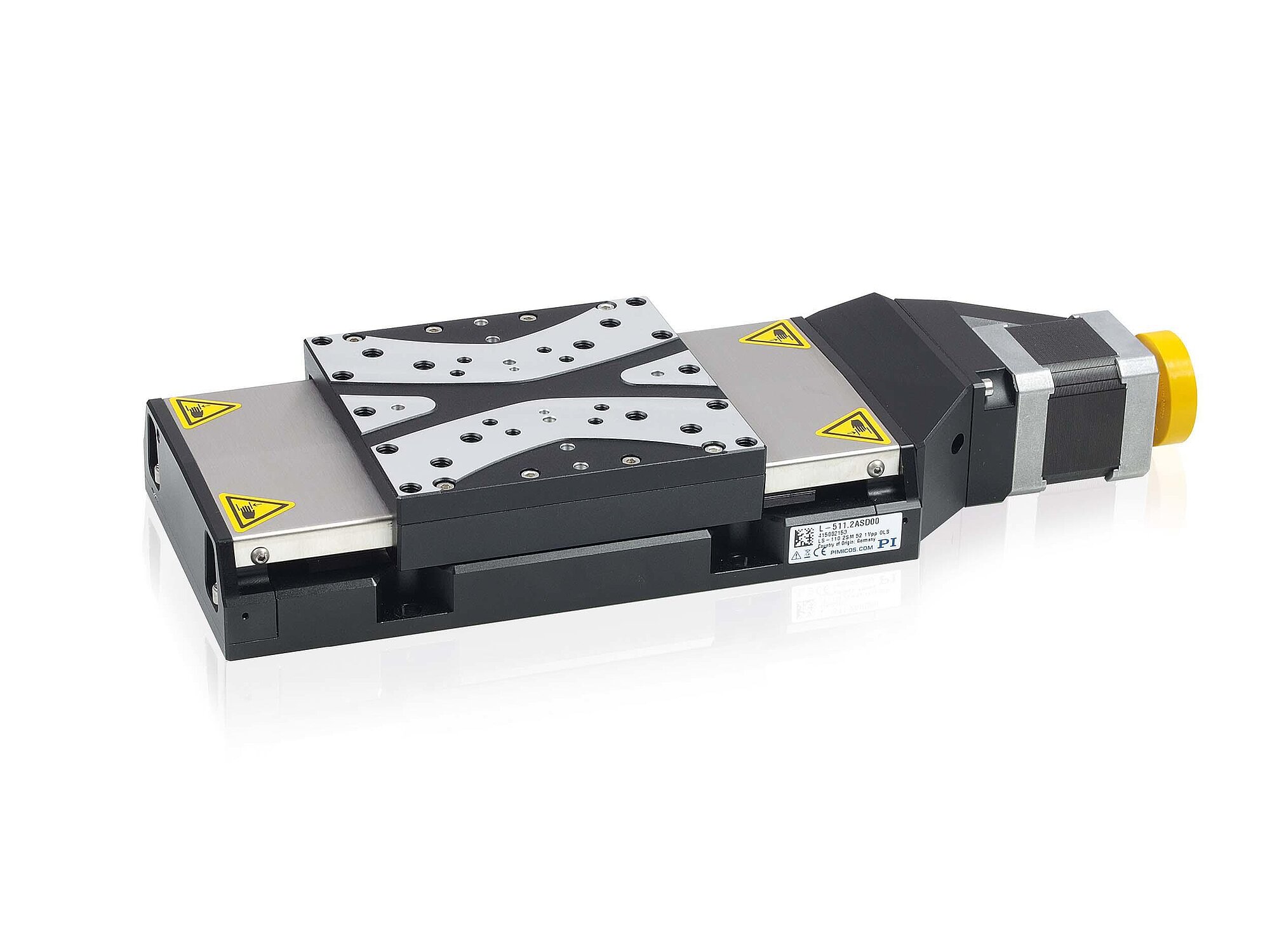

L-511 High-Precision Linear Stage
製品の解説 仕様 ダウンロード 見積 / 発注

Reference-class linear positioner

High travel accuracy and load capacity thanks to recirculating ball bearing guides. Precision ball screw with 2 mm pitch. Stress-relieved aluminum base for highest stability. Noncontact optical limit switches. Noncontact optical reference switch with direction sensing in the middle of the travel range.

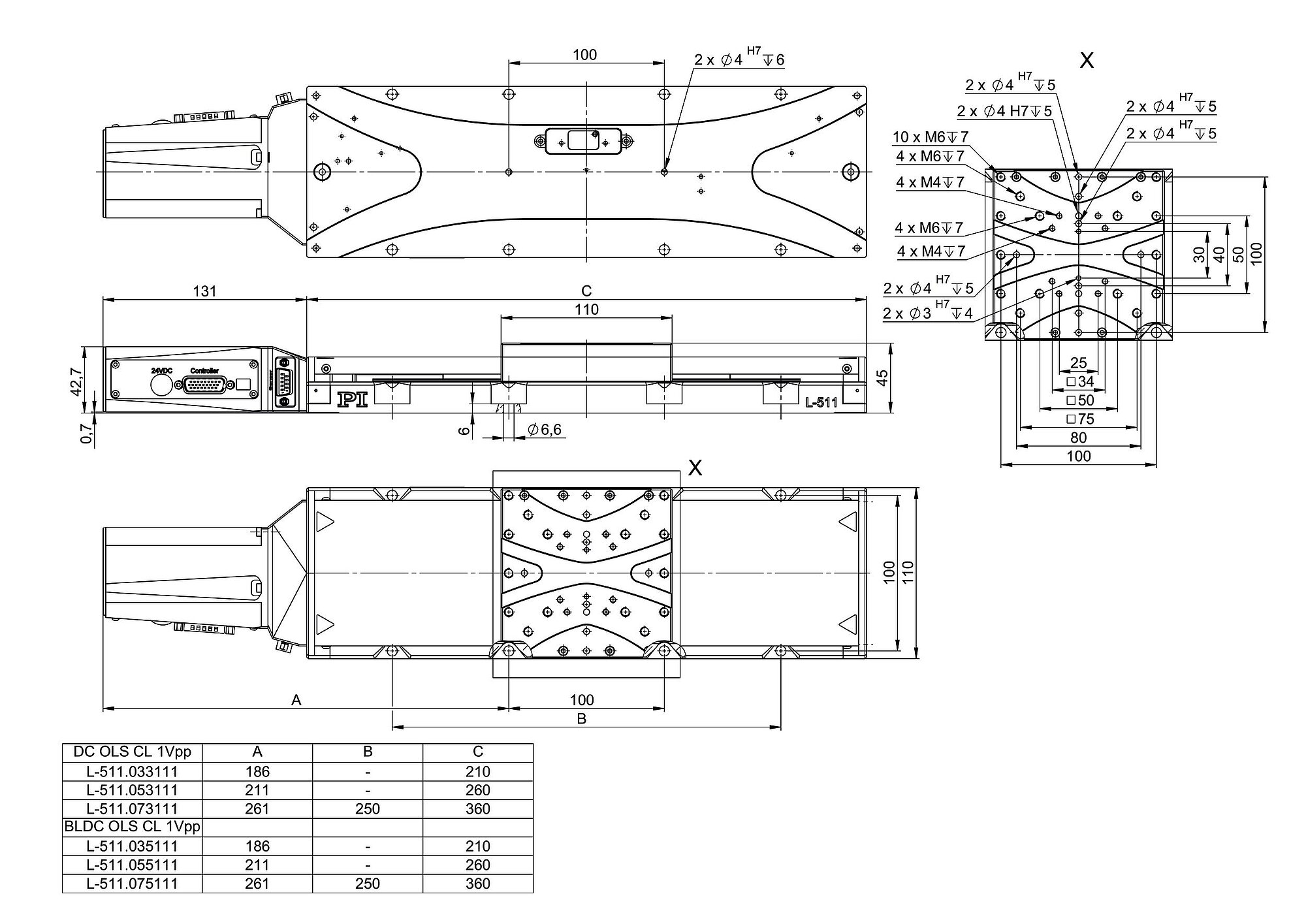

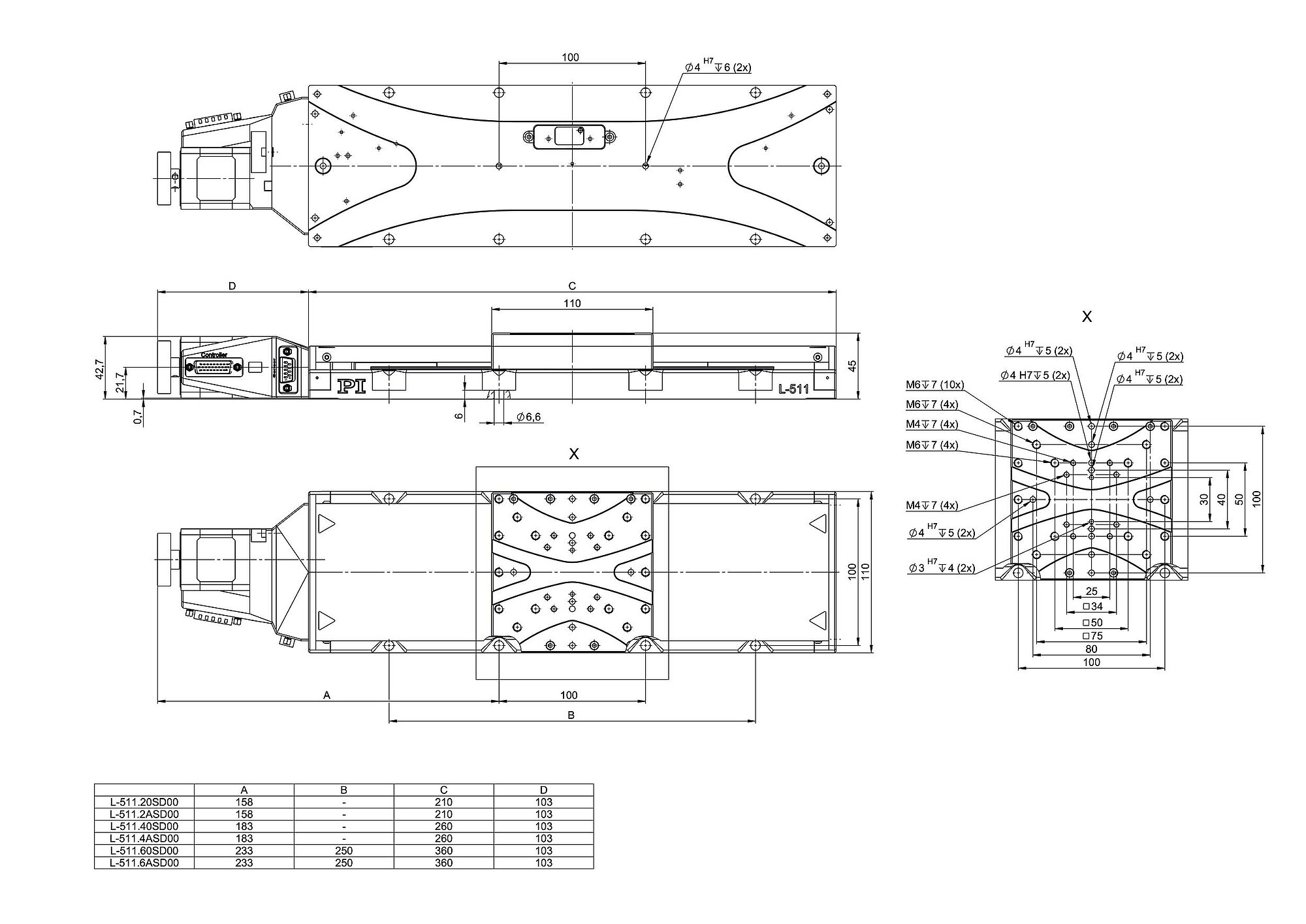

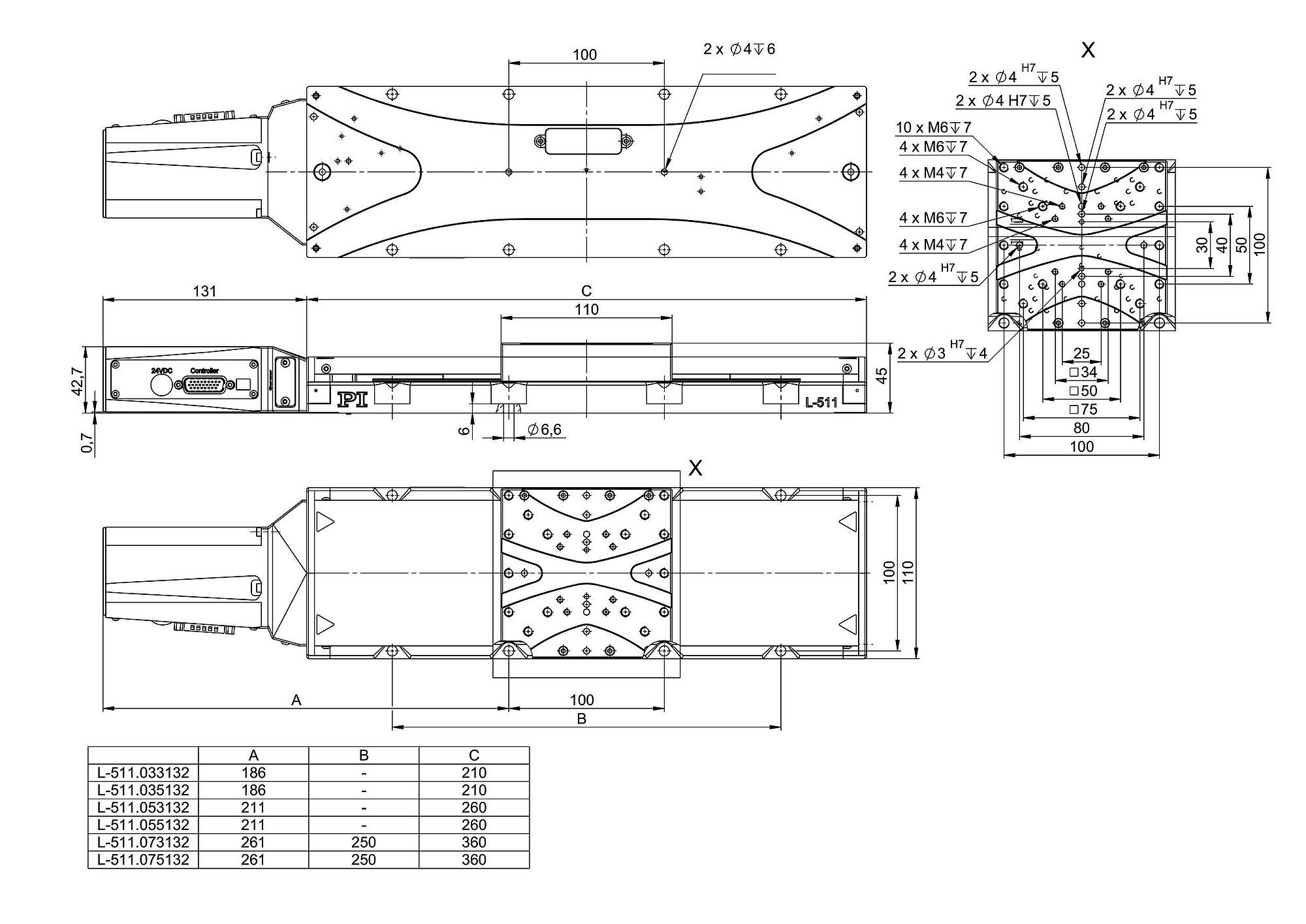

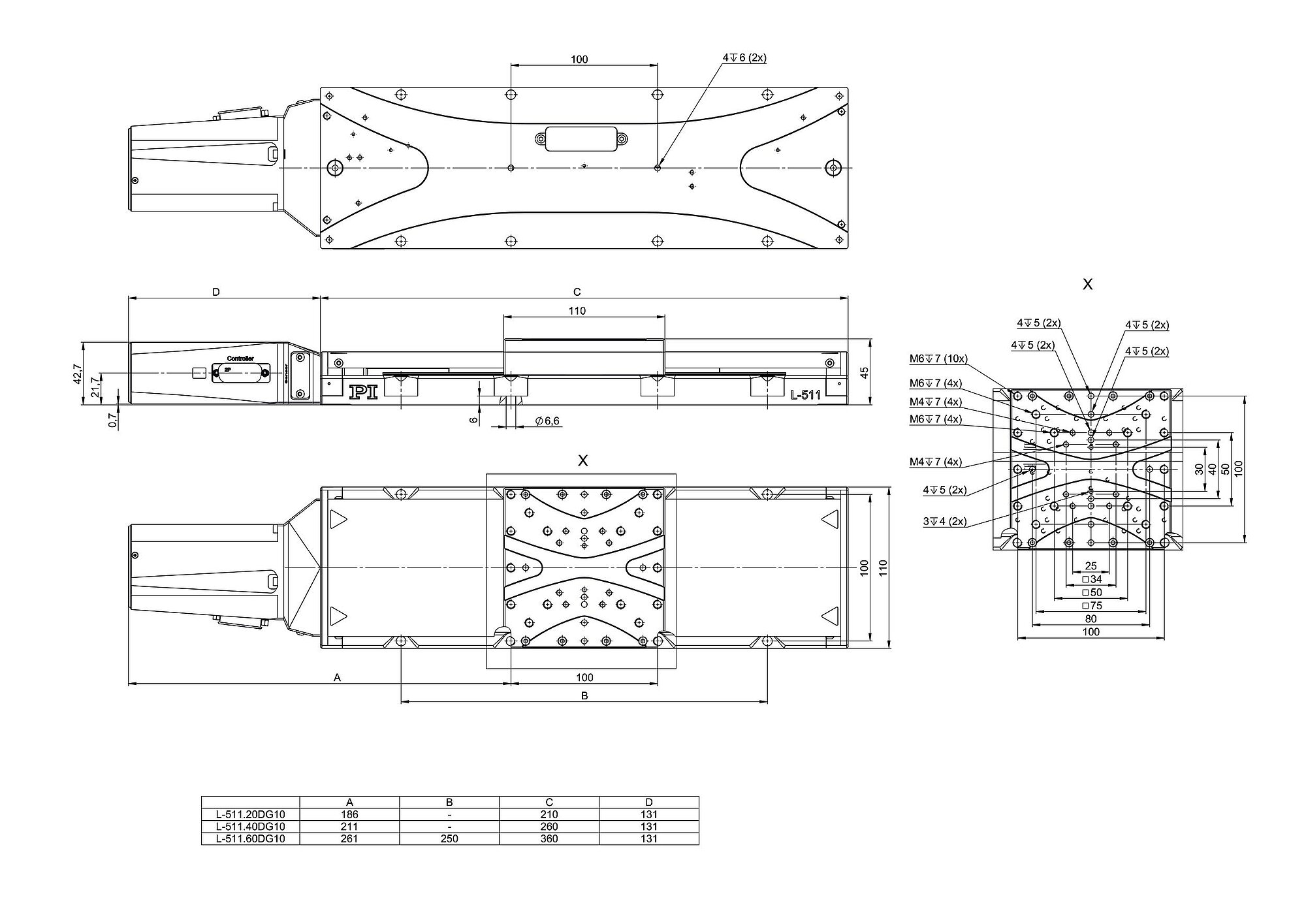

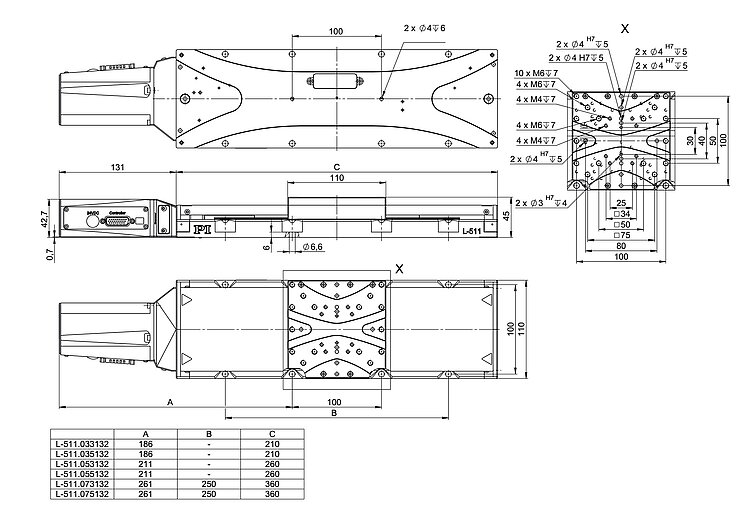

Motor types available

  • ActiveDrive DC motor for high velocity: Control via pulse-width-modulated (PWM) signals, the operating voltage is achieved via an amplifier integrated in the motor housing
  • DC servo motor with gearhead for high torques and resolution at low motor power
  • Brushless DC motor: For applications with a high duty cycle. Use a controller with sine commutation for an exceptionally smooth synchronous motion and low vibrations even at a very low velocity.
  • 2-phase stepper motor for low velocity and high resolution

Types of position measuring

  • Without encoder (open loop)
  • Rotary encoder integrated on the motor shaft
  • Incremental linear encoder

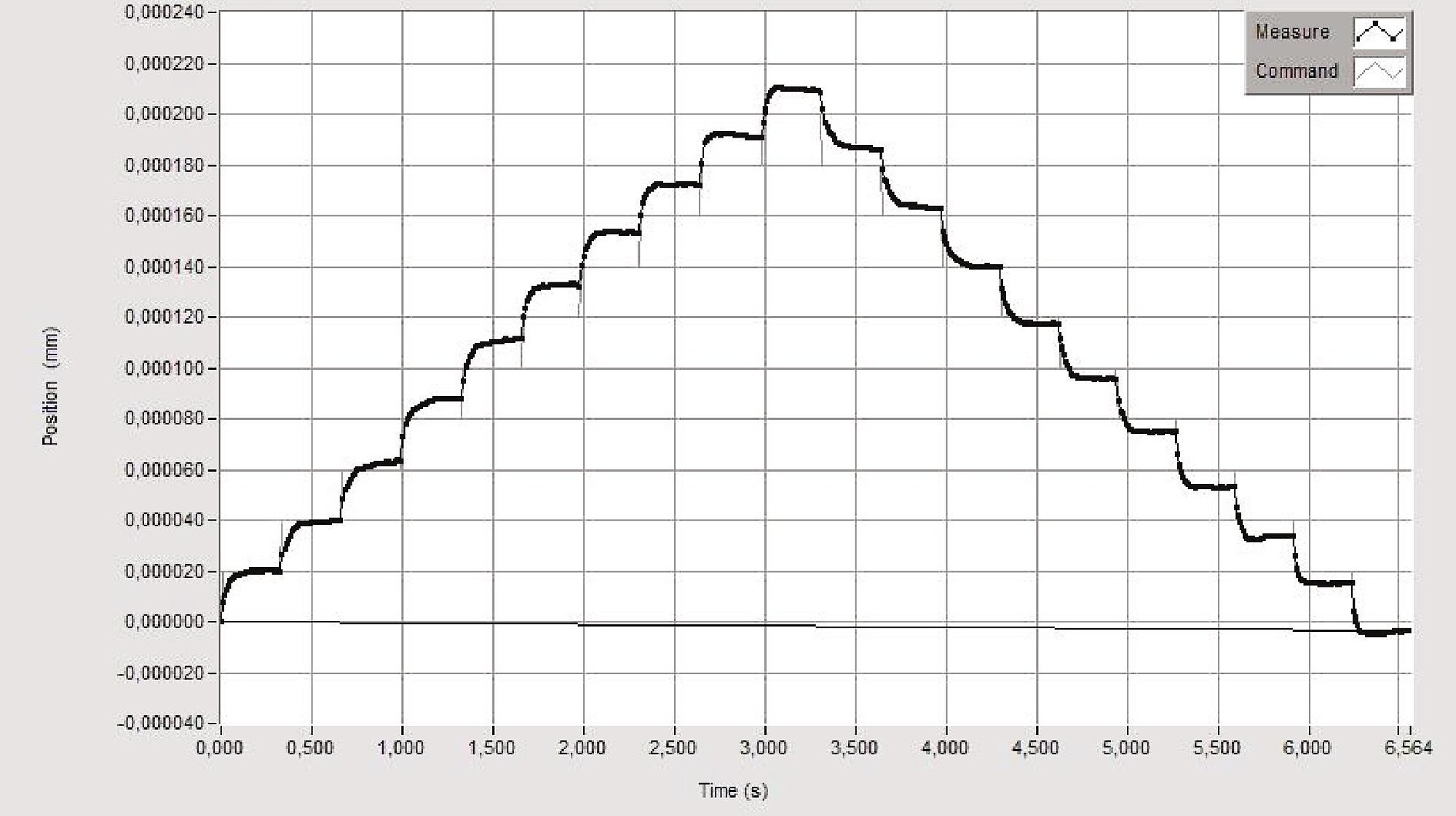

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Application fields

Autofocus. Laser cutting. Research. Biotechnology. Automation. Optical alignment.

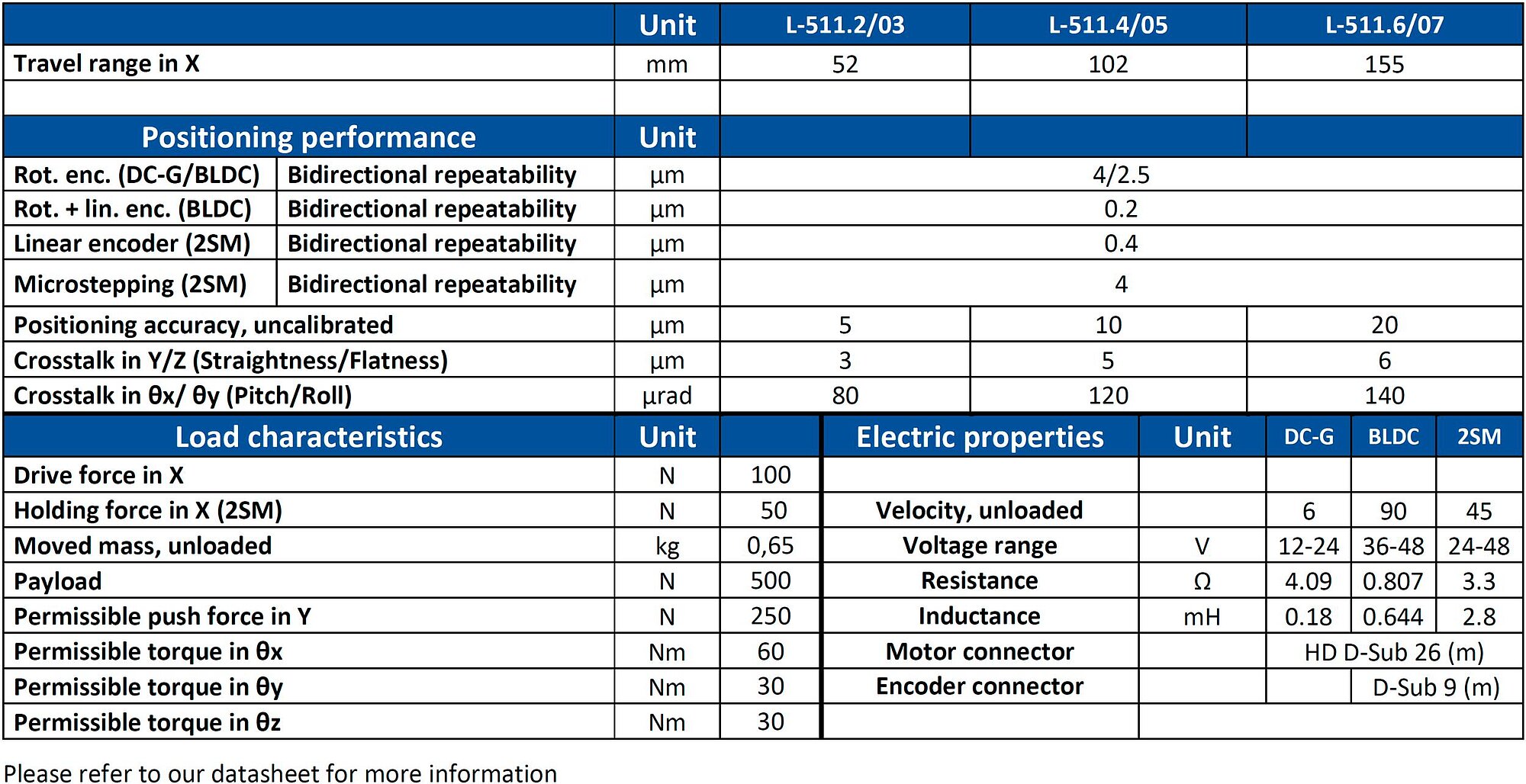

Specifications

Datasheet

Datasheet L-511

日付 / バージョン
2020-06-26
日付 / バージョン
2020-06-26
日付 / バージョン
2018-11-27
ドキュメントの言語

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

日付 / バージョン
2021-04-19
ドキュメントの言語 英語

Datasheet

Datasheet

Datasheet L-511

日付 / バージョン
2020-06-26
日付 / バージョン
2020-06-26
日付 / バージョン
2018-11-27
ドキュメントの言語

Documentation

Documentation

User Manual MP140

L-511 High-Precision Linear Stage
日付 / バージョン
1.6 2020-06-29
日付 / バージョン
1.6 2020-06-29
ドキュメントの言語
ダウンロードリクエストのリンク
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
日付 / バージョン
2.0.0 01/2020
日付 / バージョン
2.0.0 01/2020
ドキュメントの言語

3-D Models

3-D Models

3-D model L-511.24AD00

日付 / バージョン
2020-04-29
ダウンロードリクエストのリンク
3-D Models

L-511 3-D model

ドキュメントの言語 英語
ダウンロードリクエストのリンク

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Separate connection cable required for motor and sensor connection respectively.
