ND72Z2LAQ PIFOC Objective Scanning System 2000 µm

Nanometer Resolution and Fast Step-and-Settle

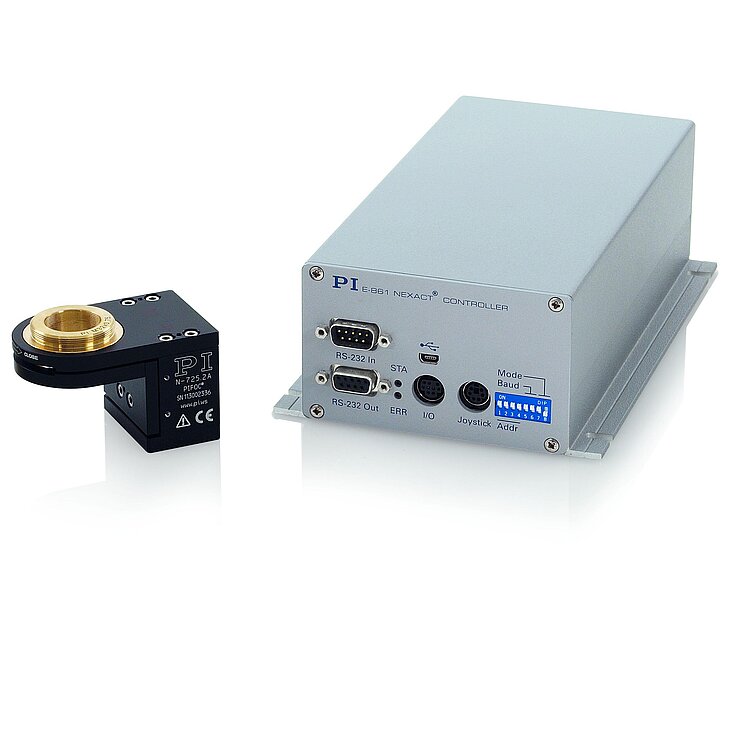

Complete system with digital controller, software, and M32 QuickLock thread adapter
USB, RS-232
Sensor resolution 0.5 nm
Highly dynamic step-and-settle for Z stacks
Further thread adapters as optional accessory
Compatible with µManager, MetaMorph, and MATLAB
Parameter changing during operation

見積 / 発注

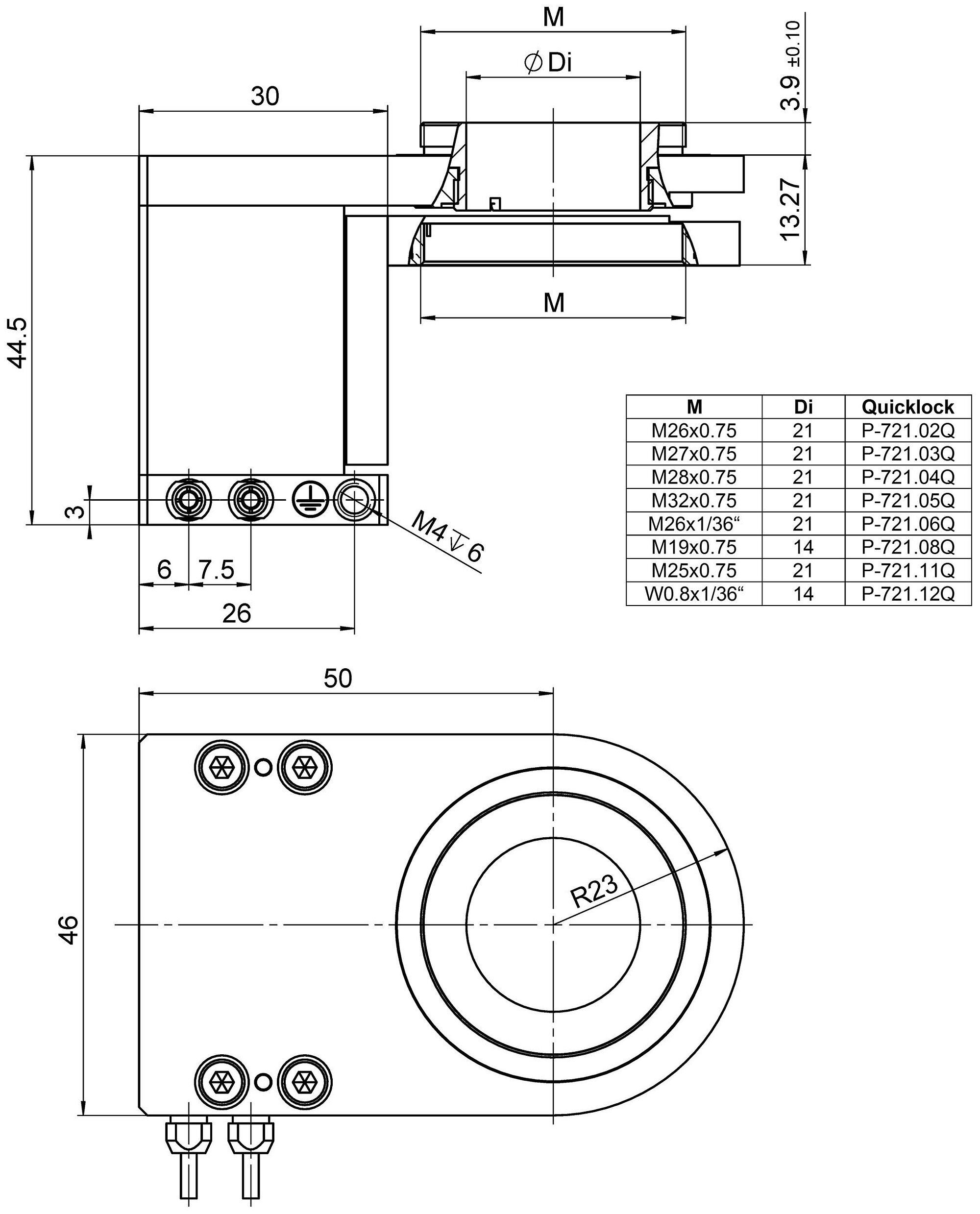

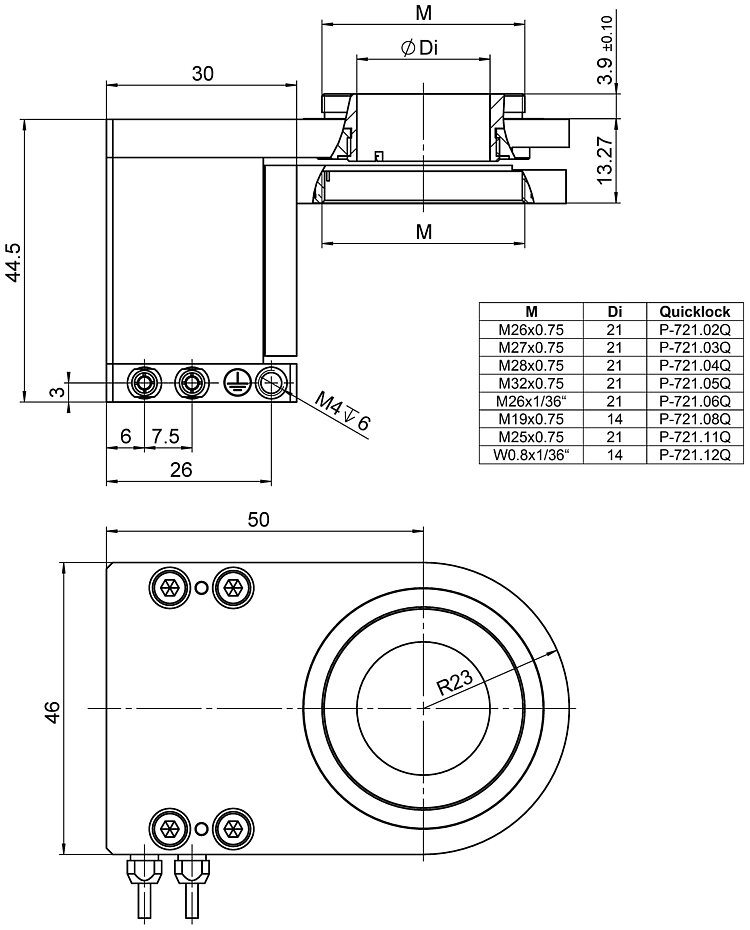

N-725.2A PIFOC objective scanner with M32 thread adapter, dimensions in mm

Application fields

Two-photon microscopy
Confocal microscopy
3-D imaging
Laser technology
Interferometry
Biotechnology
Micromanipulation
Autofocus for long travel ranges

Nanometer precision and high feed force with PiezoWalk^® walking drives

Several piezo actuators perform a walking motion in the PiezoWalk^® walking drive that leads to forward feed of a runner. Control of the actuators allows the smallest step and forward feed motion at a resolution of well under one nanometer.

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Extensive software for rapid start of productive operation

Thanks to support of MATLAB and NI LabVIEW as well as all common operating systems (Windows, Linux, and macOS), integration succeeds in virtually every environment – quickly and efficiently. Sophisticated programming examples and software tools such as PIMikroMove shorten the time to productive operation considerably.

データシートのダウンロード画面へ仕様へ見積 / 発注

データシート

日付 / バージョン

2024-12-18

pdf - 524 KB

日付 / バージョン

2024-12-18

pdf - 527 KB

日付 / バージョン

2018-06-07

pdf - 813 KB

日付 / バージョン

2018-10-24

pdf - 877 KB

ダウンロード

Motion	ND72Z2LAQ	Tolerance
Active axes	Z
Travel range in Z	2000 µm
Positioning	ND72Z2LAQ	Tolerance
Integrated sensor	Incremental linear encoder
Minimum incremental motion in Z, closed-loop, fine positioning	5 nm
Step-and-settle time for a 3 µm step at 200 g payload, 100 nm settling band	< 20 ms
Drive Properties	ND72Z2LAQ	Tolerance
Drive type	NEXACT® piezo walking drive
Mechanical Properties	ND72Z2LAQ	Tolerance
Permissible push force in Z	10 N	max.
Permissible pull force in Z	10 N	max.
Overall mass	290 g	±5 %
Material	Aluminum
Miscellaneous	ND72Z2LAQ	Tolerance
Operating temperature range	15 to 40 °C
Drive connector	HD D-sub 15 (m)
Sensor connector	HD D-sub 15 (f)
Cable length	1.5 m	+50 / -0 mm
Controller	ND72Z2LAQ	Tolerance
Controller type	E-861 (included in the scope of delivery)
Application-related functions	Makro ǀ Data recorder
Motion types	Wave generator
Communication interfaces	RS-232 ǀ USB
Command set	GCS 2.0
User software	PIMikroMove
Software - APIs	Dynamic library for PI General Command Set (GCS) ǀ C, C++, C# ǀ MATLAB ǀ NI LabView
I/O lines	4× digital input (TTL, programmable), 4× digital output (TTL, programmable)
Controller's dimensions	160 mm × 96 mm × 33 mm
Integration with third-party solutions	MetaMorph ǀ µManager

Permissible push / full force in Z: The recommended load for dynamic operation is 700 g (max.). Higher dynamics are possible with a reduced load.

Sensor connector: With N664B0001 adapter, D-sub 15 (m) to HD D-sub 15 (f) (in the scope of delivery).

The resolution of the system is limited only by the noise of the amplifier and the measuring technology because PI piezo nanopositioning systems are free of friction.

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
