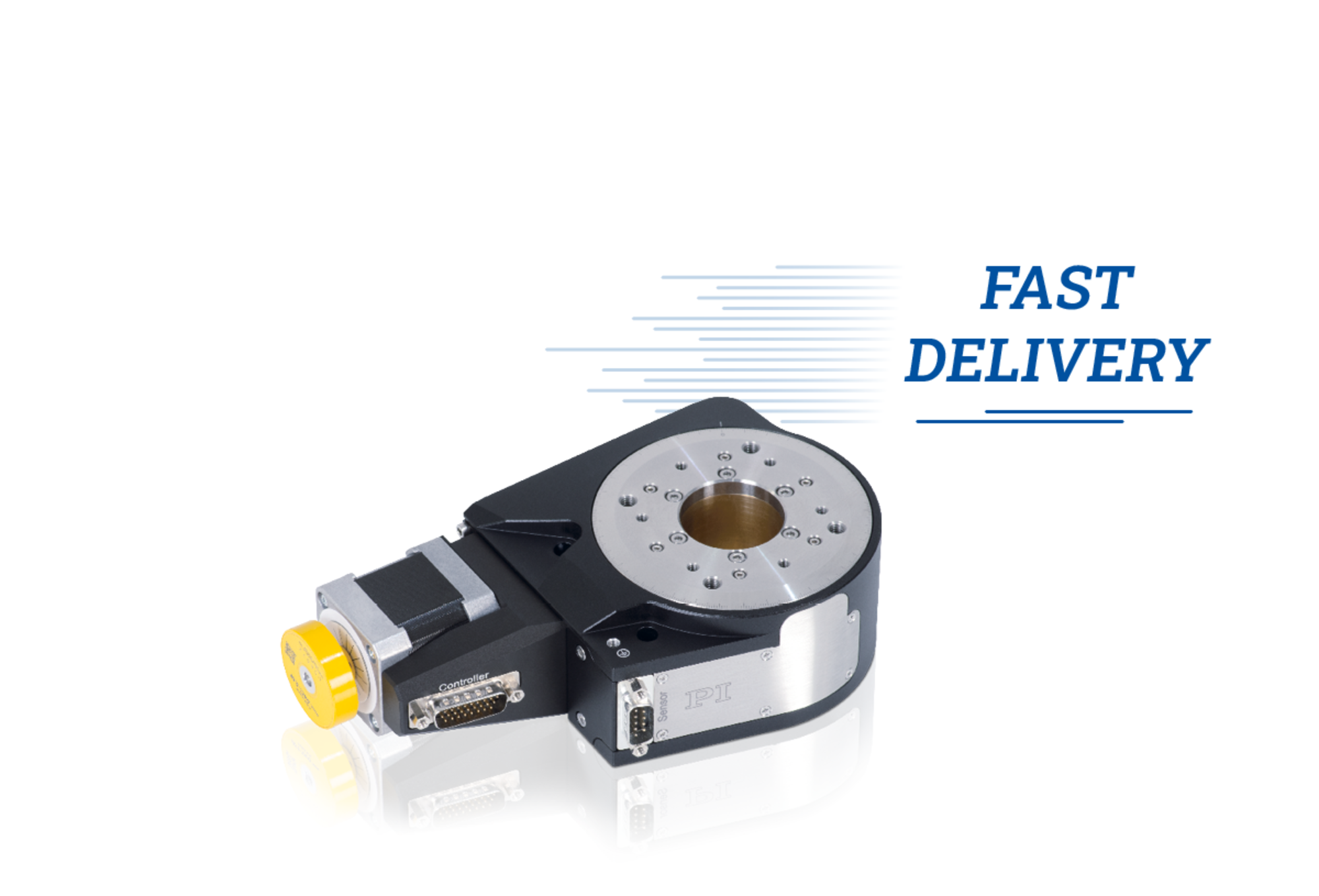

L-611 Precision Rotation Stage

High Travel Accuracy

L-611 Precision Rotation Stage
製品の解説 仕様 ダウンロード 見積 / 発注

Reference-class rotation stage

High-precision positioning due to low-play preloaded worm gear. Preloaded pivot bearings for high travel accuracy. Clear aperture with Ø 35 mm. Unlimited travel range in both directions of rotation. Noncontact reference switch. Compact multi-axis positioning systems possible with L-511 linear stages and L-310 Z stages. Vacuum-compatible product variants on request.

Versions

  • Low-vibration stepper motor
  • DC motor with ActiveDrive
  • DC servo motor
  • Brushless DC motor
  • Additional high-resolution optical angle measuring system, direct measuring

Option: Measurement of the travel accuracy and positioning accuracy

Individual measurement logs available on request for wobble, axial, and radial creep. Please specify when ordering.

Application fields

Medical industry. Sample inspection. Precision microassembly. Metrology. Photonics. Vacuum.

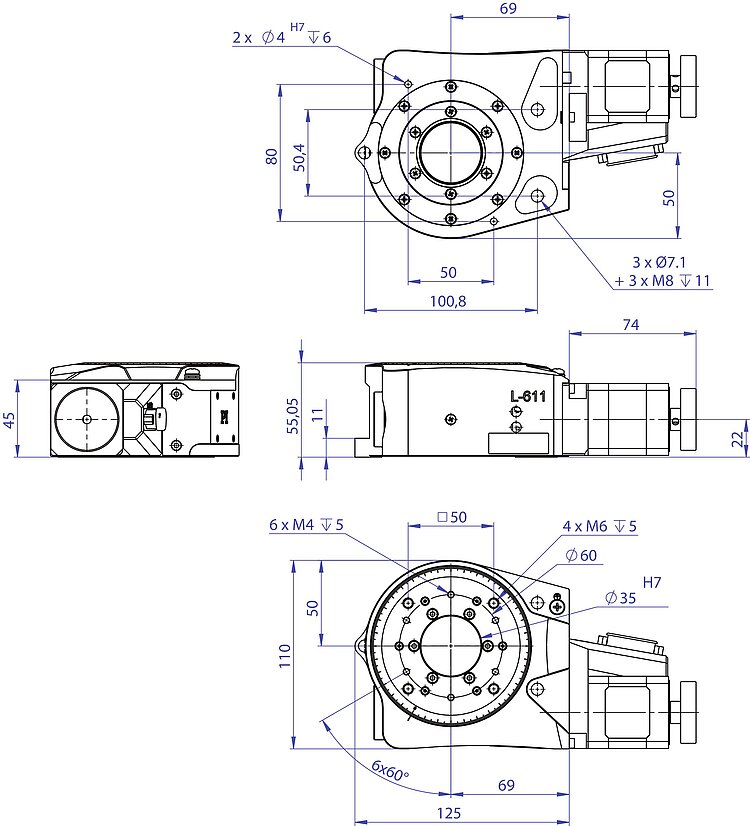

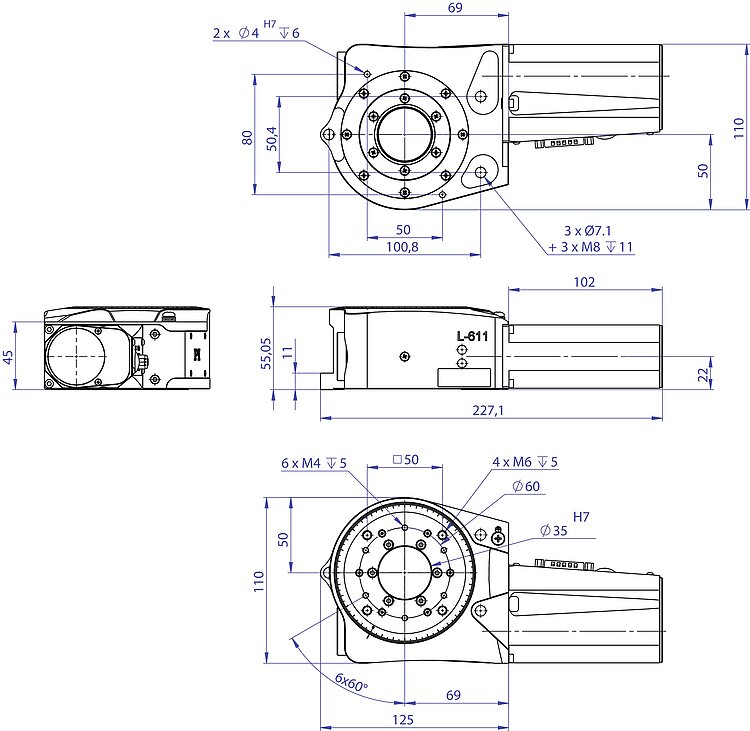

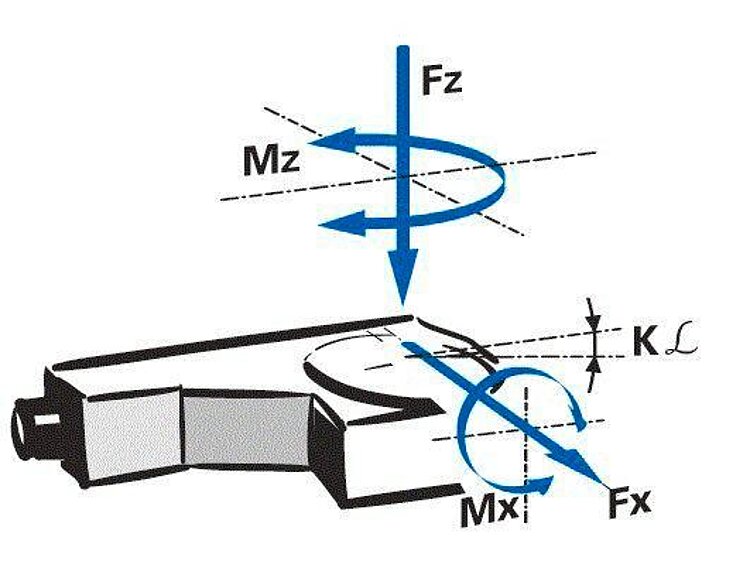

Specifications

Datasheet

Datasheet L-611

日付 / バージョン
2021-12-14
pdf - 2 MB
日付 / バージョン
2021-12-14
pdf - 2 MB
日付 / バージョン
2019-07-31
pdf - 687 KB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

日付 / バージョン
2021-04-19
pdf - 917 KB

Datasheet

Datasheet

Datasheet L-611

日付 / バージョン
2021-12-14
pdf - 2 MB
日付 / バージョン
2021-12-14
pdf - 2 MB
日付 / バージョン
2019-07-31
pdf - 687 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

日付 / バージョン
2.0.0 01/2020
pdf - 736 KB
日付 / バージョン
2.0.0 01/2020
pdf - 749 KB
Documentation

User Manual MP154

L-611 Precision Rotation Stage

日付 / バージョン
1.3 2020-06-29
pdf - 2 MB
日付 / バージョン
1.3 2020-06-29
pdf - 2 MB

3-D Models

3-D Models

L-611 3-D model

日付 / バージョン
2021-03-29
zip - 20 MB
Separate connection cable required for motor and sensor connection respectively.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

L-611.9ASD
Precision rotation stage, stepper motor, 35 mm Ø clear aperture, incremental angle measuring system with sin/cos signal transmission, 9000 lines/revolution

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
