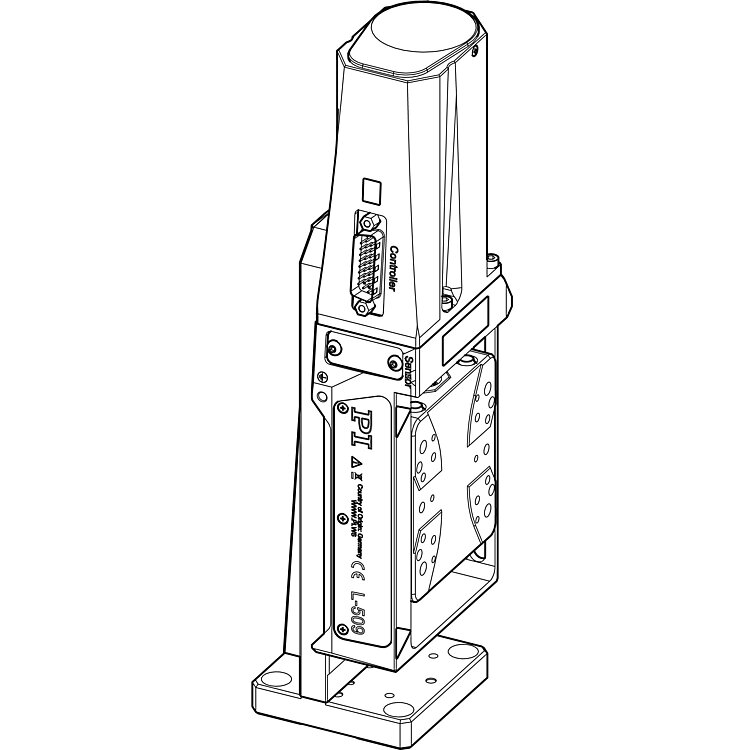

The L-509.10DG10 precision linear stage was mounted on an AB-65 XL adapter bracket (61009076) (positioner on adapter bracket).

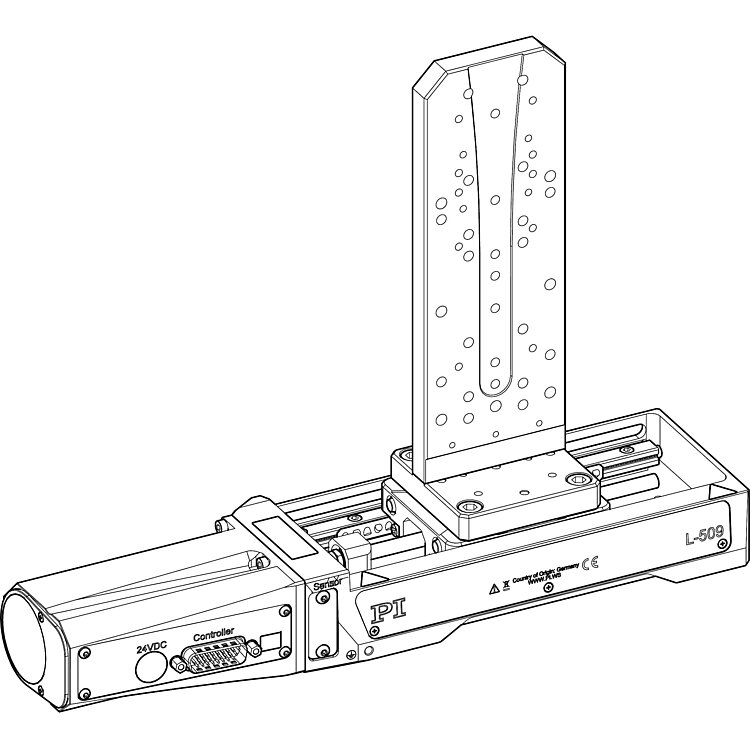

The AB-65 XL adapter bracket (61009076) was mounted on an L-509.10DG10 precision linear stage (adapter bracket on positioner)

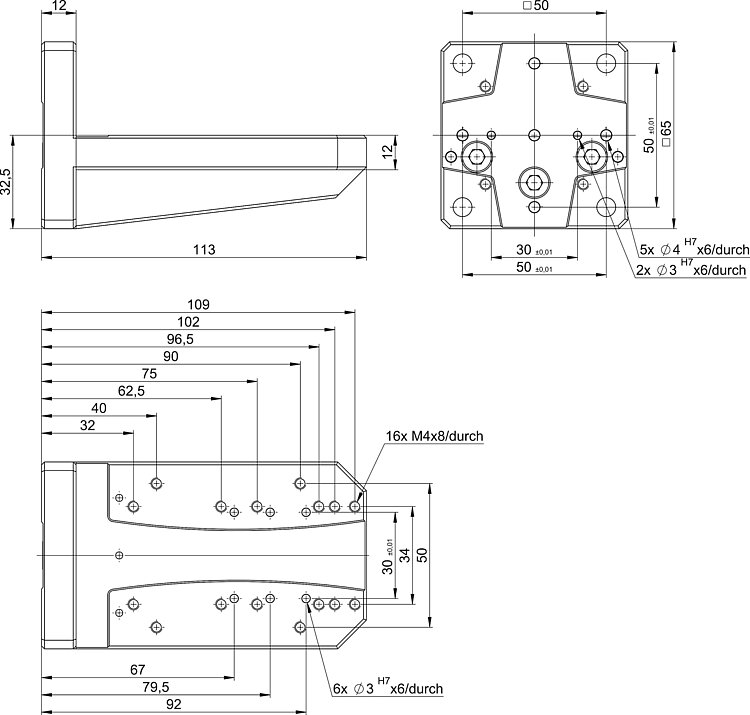

61009075: AB-65 L

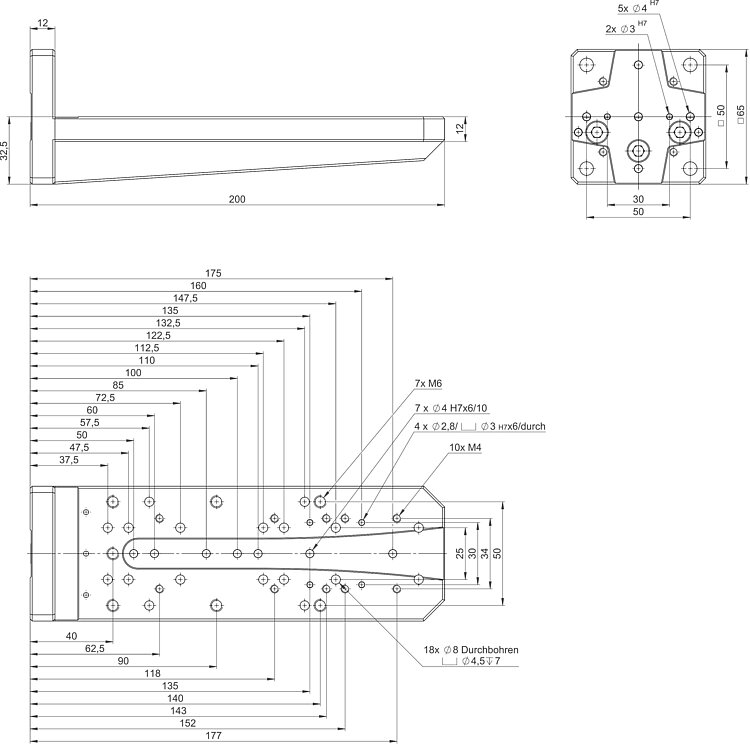

61009076: AB-65 XL

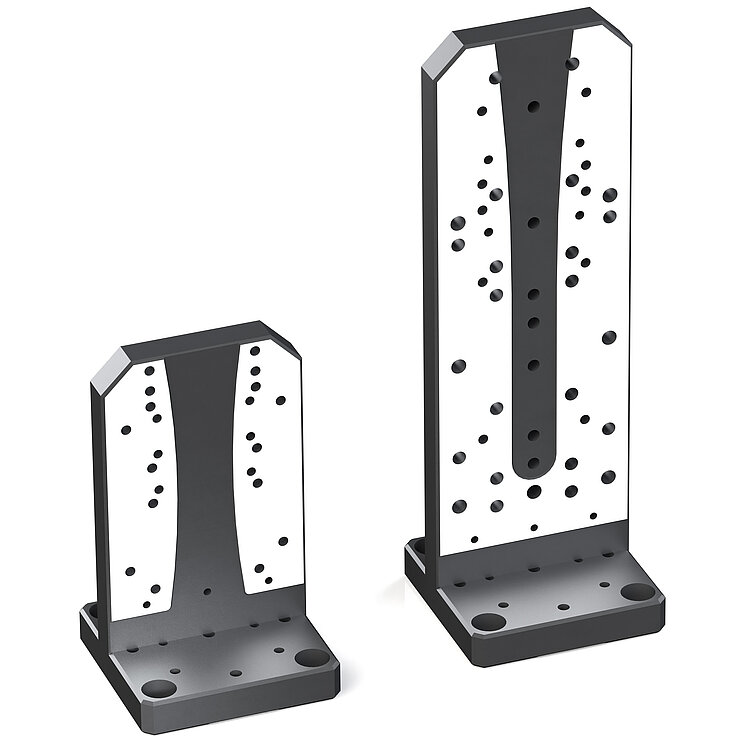

AB-65 Adapter Bracket
製品の解説
仕様
ダウンロード
見積 / 発注
Product overview
The adapter is compatible with selected linear or rotation stages as well as goniometers.
Vacuum-compatible product variants to 10-9 hPa available.
Types of mounting
Adapter bracket on positioner: The adapter bracket can be mounted on the moveable translation stage of the positioner and is then moved with the positioner accordingly.
Positioner on adapter bracket: The positioner can be mounted on the adapter bracket, the stage moves relatively to it.
