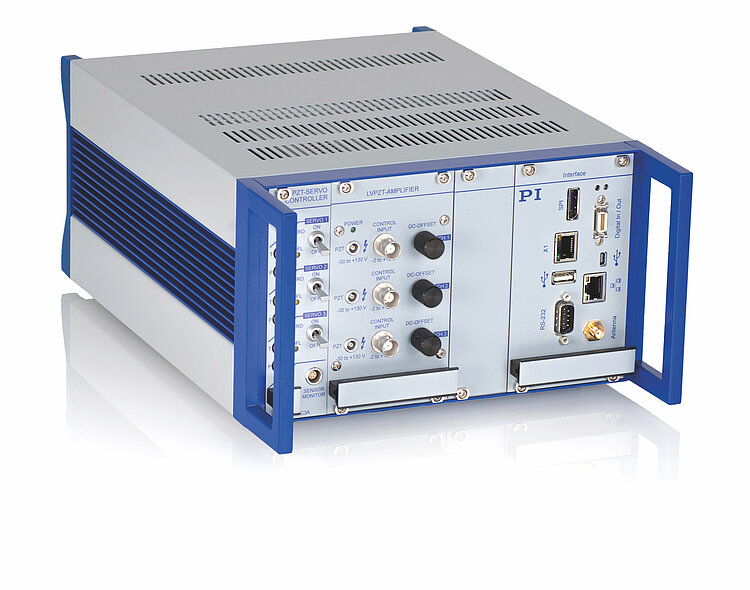

E-500 • E-501 Modular Piezo Controller

Flexible System for Piezo Actuators and Nanopositioners

  • Up to three axes; more for customized versions
  • Piezo amplifier modules for low voltage and high voltage, 14 to 400 W peak power
  • Position servo control modules for capacitive strain gauge sensors, 1 to 3 channels
  • PC interface / display modules
  • 19" and 9.5" chassis
E-500 • E-501 Modular Piezo Controller
製品の解説 仕様 ダウンロード

Modular motion control system for more flexibility

Modular configuration. Supports piezo actuators, piezo-based tip/tilt platforms, and positioning systems with up to three motion axes.

Amplifiers / power amplifiers

Amplifiers / power amplifiers for piezo actuators with up to 135 V, ±250 V or 1000 V operating voltage. Amplifiers with switchable power amplifiers are available for high dynamics. High linearity, also without position feedback, can be achieved with charge-control amplifiers. Amplifier modules are offered for one to three channels per module depending on the performance class.

Sensor modules

PI uses capacitive or strain sensors in its positioning systems according to accuracy requirements. The E-500 supports operation of up to three axes with single- to three-channel sensor modules.

The flexibility of the E-500 system allows mixed operation with different single-channel amplifier or sensor modules. Control takes place either directly at the analog inputs of the amplifiers or via the interface module with digital interfaces for control via an external host.

Specifications

データシート

Datasheet E-500 • E-501 (英語)

日付 / バージョン
2018-09-28
pdf - 405 KB
日付 / バージョン
2018-09-28
pdf - 408 KB
日付 / バージョン
2018-10-02
pdf - 472 KB
日付 / バージョン
2018-12-12
pdf - 431 KB

Downloads

データシート

データシート

Datasheet E-500 • E-501 (英語)

日付 / バージョン
2018-09-28
pdf - 405 KB
日付 / バージョン
2018-09-28
pdf - 408 KB
日付 / バージョン
2018-10-02
pdf - 472 KB
日付 / バージョン
2018-12-12
pdf - 431 KB

ドキュメント

ドキュメント

Short Instruction PZ300

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

日付 / バージョン
1.2.0 03/2024
pdf - 754 KB
日付 / バージョン
1.2.0 03/2024
pdf - 791 KB
ドキュメント

Technical Note A000T0074

Guide to Grounding and Shielding

日付 / バージョン
2018-11-22
pdf - 120 KB
日付 / バージョン
2018-11-22
pdf - 125 KB
ドキュメント

User Manual PZ62 (英語)

E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).

日付 / バージョン
2013-07-11
pdf - 2 MB
