高速マルチチャネルフォトニクスアライメントシステム

ファイバーおよび光学コンポーネントのアライメント向けのユニークで組み込みが簡単なサブシステム

ピエゾスキャナーは、耐久性、ダイナミクス、そして精度が重要である、高速で継続的なスキャンのタスクに対応します。XYZの組み合わせ、または6軸のヘキサポッドを用いることで、より大きなトラベルレンジを実現できます。高性能コントローラーでは、複数の入出力を同時に最適化するファームウェアベースのルーチンを使用してすべての軸を制御します。統合されたルーチンにより、単軸アライメントから、複雑な多軸のファイバーアレイポジショニングまでを、最短時間で実行できます。ファーストライト検出、面スキャン、光強度の勾配検索に対応した効率的なアルゴリズムにより、処理時間0.6秒未満で産業向けの高いスループットを実現します。お客様の手でアプリケーションの最適化を行い、年中無休で最高のスループットを得ることも可能です。ユーザーフレンドリーなPIMikroMove®ソフトウェアにより、コントローラーの以下の機能すべてにアクセスできます。

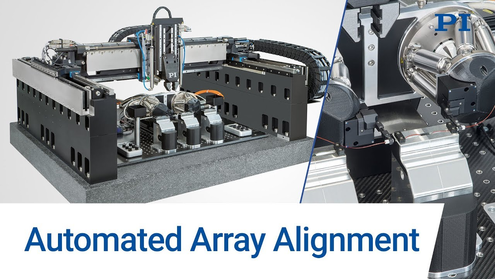

高速マルチチャネルフォトニクスアライメントシステム

PIのFast Multi-Channel Photonics Alignment(FMPA)システムは、高度に特殊化されたデジタルモーションコントローラー(E-712)とハイブリッドアクティブアライメントメカニズムに基づいており、安定性、解像度、アライメント速度を犠牲にすることなく、必要な長い移動範囲を実現します。FMPAはE-712コントローラーのモジュラーファームウェアに実装されており、複数の自由度でマルチチャネルカップリングの高速かつ同時のアライメントとトラッキングを可能にします。最初の光検出、エリアスキャン、および勾配検索のための効率的なアルゴリズムにより、24時間365日の運用で最高のスループットが保証されます。

F-712.HU1 Fast Multi-Channel Photonics Alignment System

System with 6 Degrees of Freedom for Aligning Fibers and Optical Components
  • Piezoversion
  • Very compact &amp
  • robust
  • High speed alignment
  • 5nm actuator resolution
  • Velocity to 20mm/sec

F-712.MA2 High-Precision Double-Sided Fiber Alignment System

Stacked Multi-Axis System for Aligning Fibers and Optical Components
  • Ultra-fast automatic alignment
  • Double sided
  • Automatic alignment in &lt
  • 0.5s
  • Integrated scan
  • Hybrid design

F-712.HA2 High-Precision Double-Sided Fiber Alignment System

System with 6 Degrees of Freedom for Aligning Fibers and Optical Components
  • Ultra-fast automatic alignment
  • Double sided
  • Hybrid design
  • Integrated scan routines
  • Automatic alignment in &lt
  • 0.5s

F-712.MA1 High-Precision Single-Sided Fiber Alignment System

Stacked Multi-Axis System for Aligning Fibers and Optical Components
  • Ultra-fast automatic alignment
  • Single sided
  • Automatic alignment in &lt
  • 0.2s
  • Integrated scan
  • Hybrid design

F-712.HA1 High-Precision Single-Sided Fiber Alignment System

System with 6 Degrees of Freedom for Aligning Fibers and Optical Components
  • Ultra-fast automatic alignment
  • Single sided
  • Hybrid design
  • Integrated scan routines
  • Automatic alignment in &lt
  • 0.2s

アライメント用ヘキサポッド

PIのヘキサポッドベースのフォトニクスアライメントシステムは、6自由度のモーションを提供します ヘキサポッドコントローラーには、最初の光を見つけてアライメントを最適化するコマンド用の多くの組み込みルーチンがあります。オプションのアナログ入力は、光パワーメーターで使用できます。ユーザーがプログラム可能なピボットポイントは大きな利点です。たとえば、ファイバーの先端、ビームのウエスト、SiPウェーハの表面など、任意の場所に設定できます。

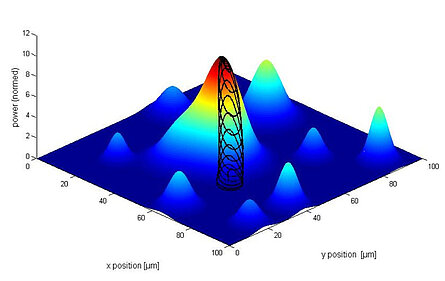

Fast, Multi-Channel Gradient Search Routines

Firmware Functionality Provides Fast Optimization in Several Axes

H-811.F2 6-Axis Miniature Hexapod

Ideal for Fiber Alignment
  • Brushless DC motor
  • Incremental Rotation encoder
  • Very compact and robust
  • MiM 0.2/0.2/0.08µm

H-811.I2 6-Axis Miniature Hexapod

Fast, Compact, and Highly Precise
  • Range ±17/±16/±6.5mm
  • Rotation range ±10/±10/±21°
  • MiM 0.2/0.2/0.08µm
  • Load capacity 5kg

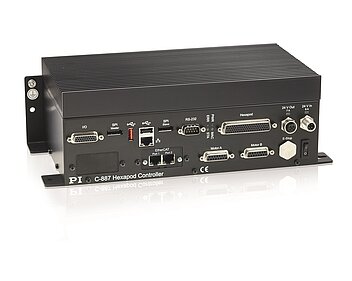

ヘキサポッド モーション コントローラ

ヘキサポッド モーション コントローラ

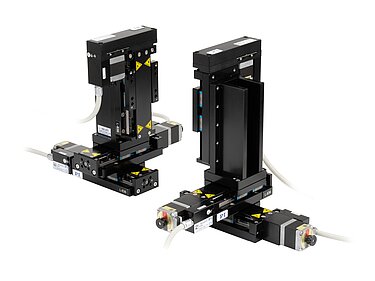

モジュラーアライメントエンジン

モジュラーアライメントエンジンは、リニアステージと回転用ゴニオメーターの組み合わせに基づいています。F-131の場合、ピエゾXYZスキャナーは、XYZモーター付きステージに取り付けられ、長距離移動します。ピエゾスキャナーは、超高速のスキャンと位置合わせ、または光学デバイスの出力特性を数分の1秒でマッピングできます。

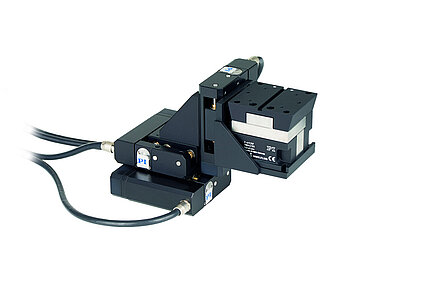

F-131 Powerful Fiber Alignment System

Ideal for Applications in Photonics
  • Ideal for Applications in Photonics
  • Long lifetime due to NanoCube®
  • Integrated sensor technology
  • Long travel ranges to 15mm
  • Inexpensive

トラッキングとアライメントに最適な高速多軸ピエゾスキャナー

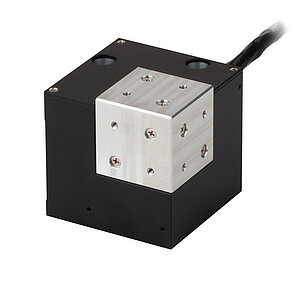

P-616 NanoCube® Nanopositioner

Compact Parallel-Kinematic Nanopositioner for Fiber Alignment and Scanning Microscopy

P-611.3 NanoCube® XYZ Nanopositioner

Compact Multi-Axis Piezo Positioner for Nanopositioning and Fiber Alignment

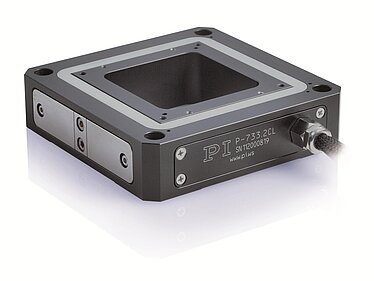

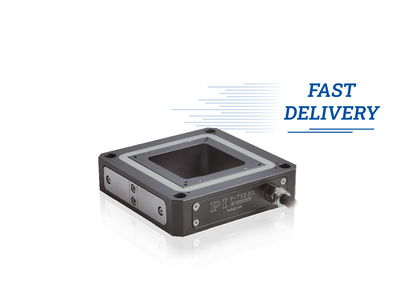

P-733.3 XYZ Piezo Nanopositioner

High-Precision XYZ Scanner with Aperture

光学パワーメータ、フォトメータ

新製品

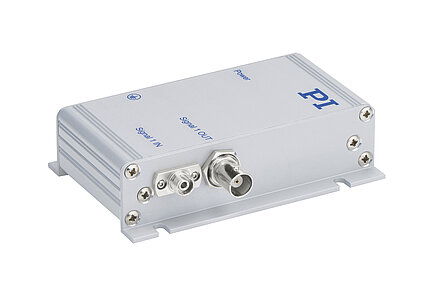

F-712.IRP High-Resolution Photometer

For Optical Power Metering in Alignment Tasks
  • Optical power metering
  • Low Cost Version
  • High dynamic range
  • 400 -1550nm Wavelength
  • Logarithmic output

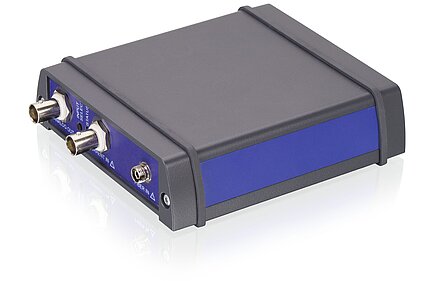

F-712.PM1 Optical Power Meter

Ideal for Applications in Silicon Photonics
  • Large signal bandwidt
  • High dynamic range
  • Wavelength range 400 to 1550nm
  • Current input range to 1mA
  • Logarithmic output

テクノロジー

応用事例

ダウンロード

ホワイトペーパー

Practical Examples of Parallel Alignment Automation

日付 / バージョン
WP4010E 2018-04
pdf - 1 MB
日付 / バージョン
WP4010CN 2018-12
pdf - 786 KB
パンフレット

Alignment for Optics and Silicon Photonics

Fast Multi-Channel Photonic System

日付 / バージョン
BRO57E 2017-10
pdf - 8 MB
日付 / バージョン
BRO57CN 2018-11
pdf - 20 MB
