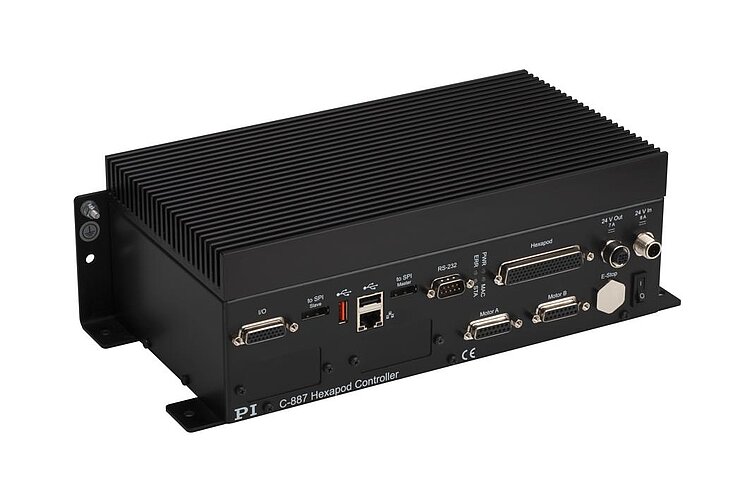

C-887.52
6-axis controller for hexapods, TCP/IP, RS-232, benchtop device, incl. control of two additional axes
C-887.52x Hexapod Motion Controller
Compact benchtop device for controlling 6-axis parallel kinematics
- Sophisticated controller using vector algorithms
- Commanding in Cartesian coordinates
- Easy customization of coordinate systems by command
- High-resolution analog inputs and motion stop as an option
- Extensive Software Package
C-887.52
C-887.5xx, dimensions in mm. Version-dependent interfaces
C-887.52x Hexapod Motion Controller
製品の解説
仕様
ダウンロード
見積 / 発注
Digital controller for 6-axis parallel kinematics
High-performance digital controller for controlling hexapods (6-axis parallel kinematics). Supports various drive types as the controller only provides the control signals, whereas the motor drivers are located in the hexapod or in a separate driver box. In addition, the motor drivers for two further single axes can be controlled.
Functions
The position is entered in Cartesian coordinates from which the controller calculates the control of the kinematics. To simplify integration of the hexapod, the coordinate systems (Work, Tool) can be changed. The pivot point can be freely defined. A data recorder can record operating data, e.g., motor control, velocity, position, or position error. The execution of macros and Python scripts on the controller enables stand-alone operation. The controller supports all currently available standard hexapods from PI and, in addition, customer-specific parallel kinematics.
Interfaces
TCP/IP for network-based control and maintenance. RS-232. USB port for manual control unit.
Additional interfaces (depending on version):
- High-resolution and extremely fast analog inputs which are ideal for fast alignment routines
- Connection for a motion stop button that activates/deactivates the 24 V output for the hexapod
Optional
- Control via manual control unit
Extensive software support
For example, PIMikroMove user software enables fast alignment routines to be depicted graphically. GCS 2.0 command set for PI positioning systems. Extensive set of drivers, e.g., for use with C, C++, C#, NI LabVIEW, MATLAB, and Python. PIHexapodEmulator for virtual startup and operation without hardware.
Scope of delivery
The scope of delivery includes the controller, a software package, and a power adapter for the power supply. It is recommended to order the hexapod mechanics and a suitable cable set together with the controller so that the components can be adapted to each other.
Specifications
Specifications
| Basics | C-887.52 | C-887.521 | C-887.522 | C-887.523 | |
|---|---|---|---|---|---|
| Axes/channels | 6 | 6 | 6 | 6 | |
| Additional axes | 2 single axes | 2 single axes | 2 single axes | 2 single axes | |
| Processor | Intel Atom dual core (1.8 GHz) | Intel Atom dual core (1.8 GHz) | Intel Atom dual core (1.8 GHz) | Intel Atom dual core (1.8 GHz) | |
| Application-related functions | Controller macros GCS ǀ Controller macros PIPython ǀ Data recorder ǀ Startup macro | Controller macros GCS ǀ Controller macros PIPython ǀ Data recorder ǀ Fast alignment ǀ Startup macro | Controller macros GCS ǀ Controller macros PIPython ǀ Data recorder ǀ Startup macro | Controller macros GCS ǀ Controller macros PIPython ǀ Data recorder ǀ Fast alignment ǀ Startup macro | |
| Protective functions | Switch-off of the servo mode in case of an error | Switch-off of the servo mode in case of an error | Switch-off via an external switch ǀ Switch-off of the servo mode in case of an error | Switch-off via an external switch ǀ Switch-off of the servo mode in case of an error | |
| Configuration management | reading the ID chip ǀ manual parameter input | reading the ID chip ǀ manual parameter input | reading the ID chip ǀ manual parameter input | reading the ID chip ǀ manual parameter input | |
| Supported ID chip | ID chip 2.0 | ID chip 2.0 | ID chip 2.0 | ID chip 2.0 | |
| Motion and Control | C-887.52 | C-887.521 | C-887.522 | C-887.523 | |
| Supported sensor signal | A/B quadrature, RS-422 ǀ BiSS-C | A/B quadrature, RS-422 ǀ BiSS-C | A/B quadrature, RS-422 ǀ BiSS-C | A/B quadrature, RS-422 ǀ BiSS-C | |
| Closed-loop values | Position | Position | Position | Position | |
| Maximum control frequency (servo cycle) | 10000 Hz | 10000 Hz | 10000 Hz | 10000 Hz | |
| Motion types | Point-to-point motion with profile generator ǀ Cyclic transfer of target positions ǀ Area scan routines ǀ Gradient search routines ǀ Wave generator | Point-to-point motion with profile generator ǀ Cyclic transfer of target positions ǀ Area scan routines ǀ Gradient search routines ǀ Wave generator | Point-to-point motion with profile generator ǀ Cyclic transfer of target positions ǀ Area scan routines ǀ Gradient search routines ǀ Wave generator | Point-to-point motion with profile generator ǀ Cyclic transfer of target positions ǀ Area scan routines ǀ Gradient search routines ǀ Wave generator | |
| Motion coordination | Coordinated multi-axis motion ǀ User-defined coordinate systems ǀ Work-and-tool coordinate systems | Coordinated multi-axis motion ǀ User-defined coordinate systems ǀ Work-and-tool coordinate systems | Coordinated multi-axis motion ǀ User-defined coordinate systems ǀ Work-and-tool coordinate systems | Coordinated multi-axis motion ǀ User-defined coordinate systems ǀ Work-and-tool coordinate systems | |
| Reference switch input | TTL | TTL | TTL | TTL | |
| Limit switch input | TTL | TTL | TTL | TTL | |
| Interfaces and Operation | C-887.52 | C-887.521 | C-887.522 | C-887.523 | |
| Communication interfaces | RS-232 ǀ TCP/IP ǀ USB (only for manual control units) | RS-232 ǀ TCP/IP ǀ USB (only for manual control units) | RS-232 ǀ TCP/IP ǀ USB (only for manual control units) | RS-232 ǀ TCP/IP ǀ USB (only for manual control units) | |
| On/off switch | Hardware switch on/off | Hardware switch on/off | Hardware switch on/off | Hardware switch on/off | |
| Display and indicators | Status LED ǀ Error LED ǀ Power LED ǀ Macro LED | Status LED ǀ Error LED ǀ Power LED ǀ Macro LED | Status LED ǀ Error LED ǀ Power LED ǀ Macro LED | Status LED ǀ Error LED ǀ Power LED ǀ Macro LED | |
| Manual control(s) | Manual control unit with USB interface | Manual control unit with USB interface | Manual control unit with USB interface | Manual control unit with USB interface | |
| Command set | GCS 2.0 | GCS 2.0 | GCS 2.0 | GCS 2.0 | |
| User software | PIMikroMove | PIMikroMove | PIMikroMove | PIMikroMove | |
| Software - APIs | C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python | C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python | C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python | C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python | |
| Analog inputs | 4 | 6 | 4 | 6 | |
| Analog input signal | 4 x -10 to 10 V, 12 bit | 2 x -5 to 5 V, 16 bit, 5 kHz bandwidth ǀ 4 x -10 to 10 V, 12 bit | 4 x -10 to 10 V, 12 bit | 2 x -5 to 5 V, 16 bit, 5 kHz bandwidth ǀ 4 x -10 to 10 V, 12 bit | |
| Digital inputs | 4 | 4 | 4 | 4 | |
| Digital input signal | TTL | TTL | TTL | TTL | |
| Digital outputs | 4 | 4 | 4 | 4 | |
| Digital output signal | TTL | TTL | TTL | TTL | |
| Electrical Properties | C-887.52 | C-887.521 | C-887.522 | C-887.523 | |
| Output voltage | 24 V | 24 V | 24 V | 24 V | |
| Peak output current | 6000 mA | 6000 mA | 6000 mA | 6000 mA | |
| Miscellaneous | C-887.52 | C-887.521 | C-887.522 | C-887.523 | |
| Connector hexapod power supply | M12 4-pole (f) | M12 4-pole (f) | M12 4-pole (f) | M12 4-pole (f) | |
| Connector hexapod data transmission | HD D-sub 78 (f) | HD D-sub 78 (f) | HD D-sub 78 (f) | HD D-sub 78 (f) | |
| Connector additional axes | D-sub 15 (f) | D-sub 15 (f) | D-sub 15 (f) | D-sub 15 (f) | |
| Connector analog input | HD D-sub 26 (f) | BNC ǀ HD D-sub 26 (f) | HD D-sub 26 (f) | BNC ǀ HD D-sub 26 (f) | |
| Connector digital input | HD D-sub 26 (f) | HD D-sub 26 (f) | HD D-sub 26 (f) | HD D-sub 26 (f) | |
| Connector digital output | HD D-sub 26 (f) | HD D-sub 26 (f) | HD D-sub 26 (f) | HD D-sub 26 (f) | |
| Connector motion stop button | — | — | M12 8-pole (f) | M12 8-pole (f) | |
| Connector TCP/IP | RJ45 socket, 8P8C | RJ45 socket, 8P8C | RJ45 socket, 8P8C | RJ45 socket, 8P8C | |
| Connector RS-232 | D-sub 9 (m) | D-sub 9 (m) | D-sub 9 (m) | D-sub 9 (m) | |
| Connector for supply voltage | M12 4-pole (m) | M12 4-pole (m) | M12 4-pole (m) | M12 4-pole (m) | |
| Operating voltage | 24 (ext. power adapter included) V | 24 (ext. power adapter included) V | 24 (ext. power adapter included) V | 24 (ext. power adapter included) V | |
| Power adapter | Included in the scope of delivery ǀ Power adapter 24 V DC | Included in the scope of delivery ǀ Power adapter 24 V DC | Included in the scope of delivery ǀ Power adapter 24 V DC | Included in the scope of delivery ǀ Power adapter 24 V DC | |
| Maximum current consumption | 8 A | 8 A | 8 A | 8 A | |
| Operating temperature range | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | |
| Overall mass | 2800 g | 2800 g | 2800 g | 2800 g |
