P-736.ZRN2S
PInano® Z piezo scanner system with clear aperture for microtiter plates; for inverted Nikon microscopes; 220 µm travel range; piezoresistive sensors; with USB digital controller
P-736 PInano® Z Microscope Scanner System for Microtiter Plates
Large Clear Aperture for Microtiter Plates, Low Profile, with Digital Controller
- Fast step & settle
- Clear aperture for well plates and low profile for easy integration
- Travel range 220 µm
- Outstanding lifetime due to PICMA® piezo actuators
- Piezoresistive sensors for lower cost
- Capacitive sensors for higher stability

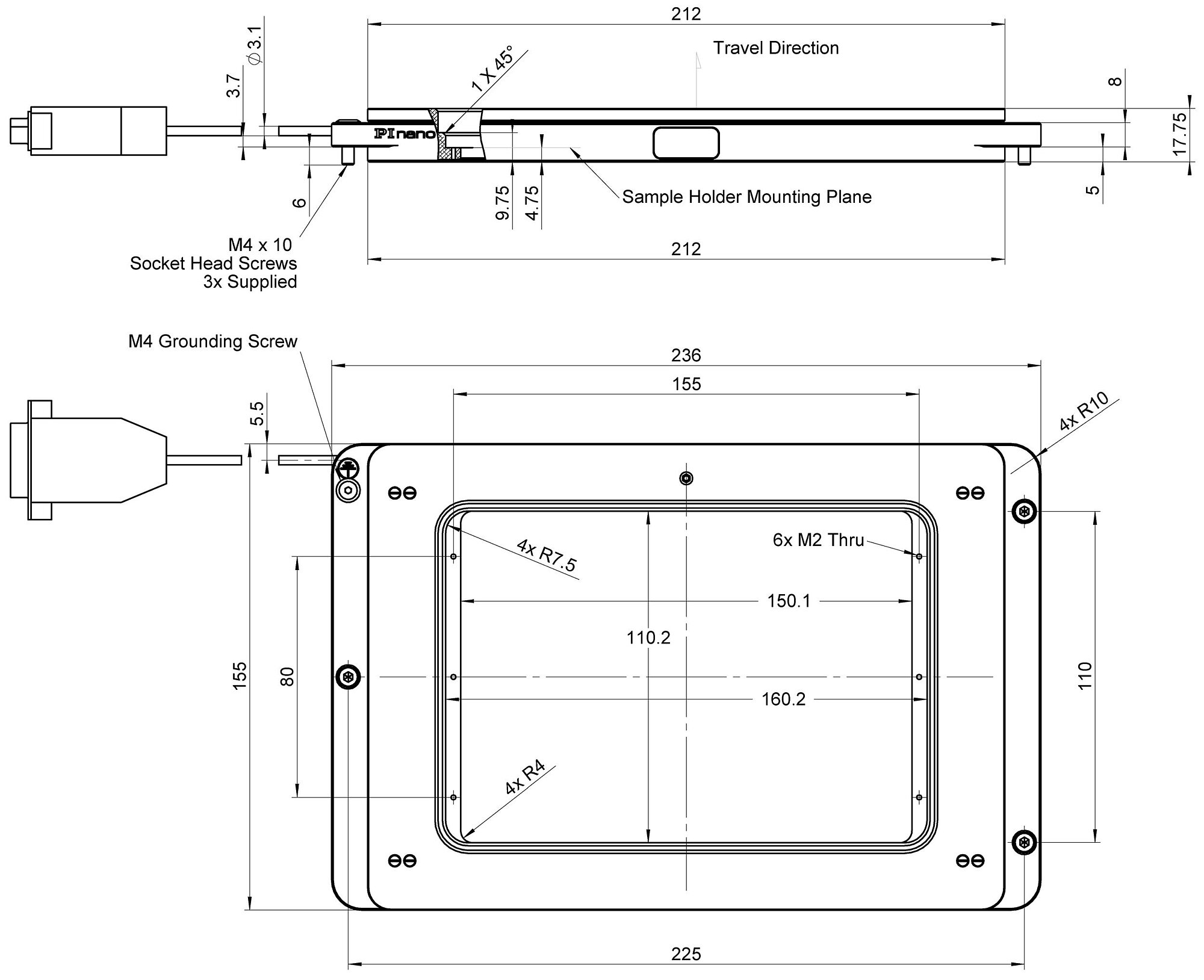

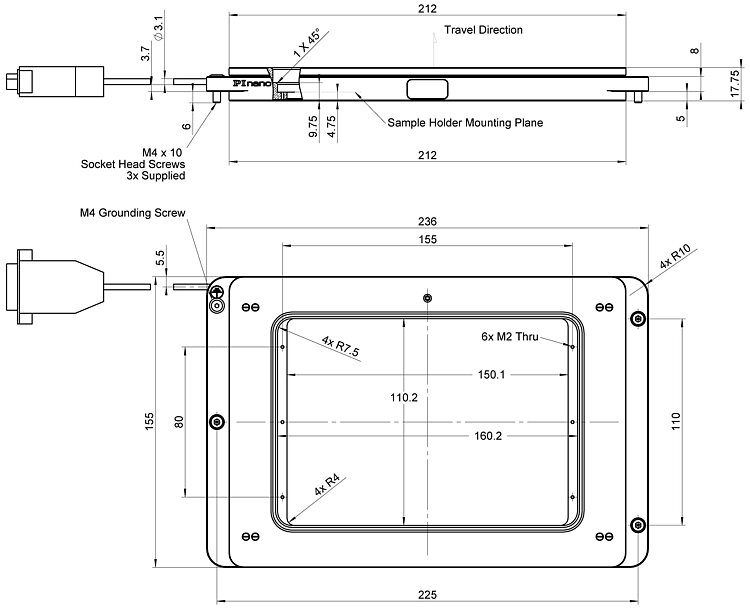

P-736.ZCN2S / P-736.ZRN2S systems: Dimensions of the P-736.ZCN2 / P-736.ZRN2 mechanics in mm.

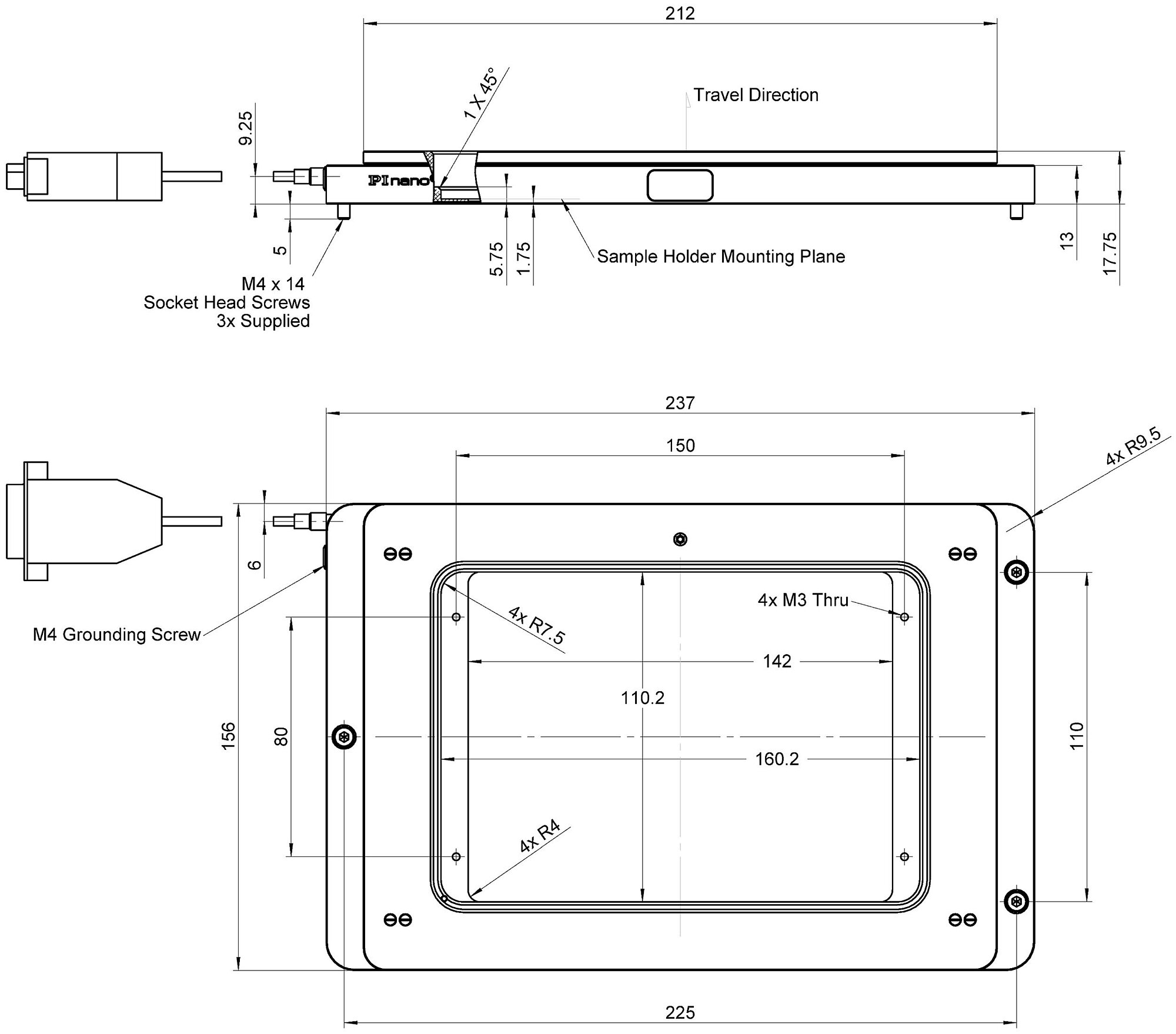

PD73Z2COW / PD73Z2ROW systems: Dimensions of the P-736.ZCO / P-736.ZRO mechanics in mm.
Customized designs are possible. The example above shows a P-736 version with particularly large aperture. The P-736 is mounted on an XY stage, which is driven by PILine® piezo motors.
P-736 PInano® Z Microscope Scanner System for Microtiter Plates
製品の解説
仕様
ダウンロード
見積 / 発注
Fields of application
Confocal microscopy
3D imaging
Laser technology
Interferometry
Metrology / measuring technology
Biotechnology
Micromanipulation
Precision-class nanopositioning system for high-resolution microscopy
Optimized for very fast step-and-settle. Exceptionally low profile of 18 mm for easy integration. Versions available for inverted microscopes from Nikon and Olympus.
PICMA® piezo actuator drive
All-ceramic insulation for maximum operating time. Significantly higher humidity resistance. Excellent guiding accuracy due to FEA-modeled flexure joints.
Choice of feedback sensors: piezoresistive or capacitive
- High-resolution piezoresistive sensors ensure stable position control
- Direct-measuring capacitive sensors for considerably improved stability and repeatability compared to piezoresistive sensors

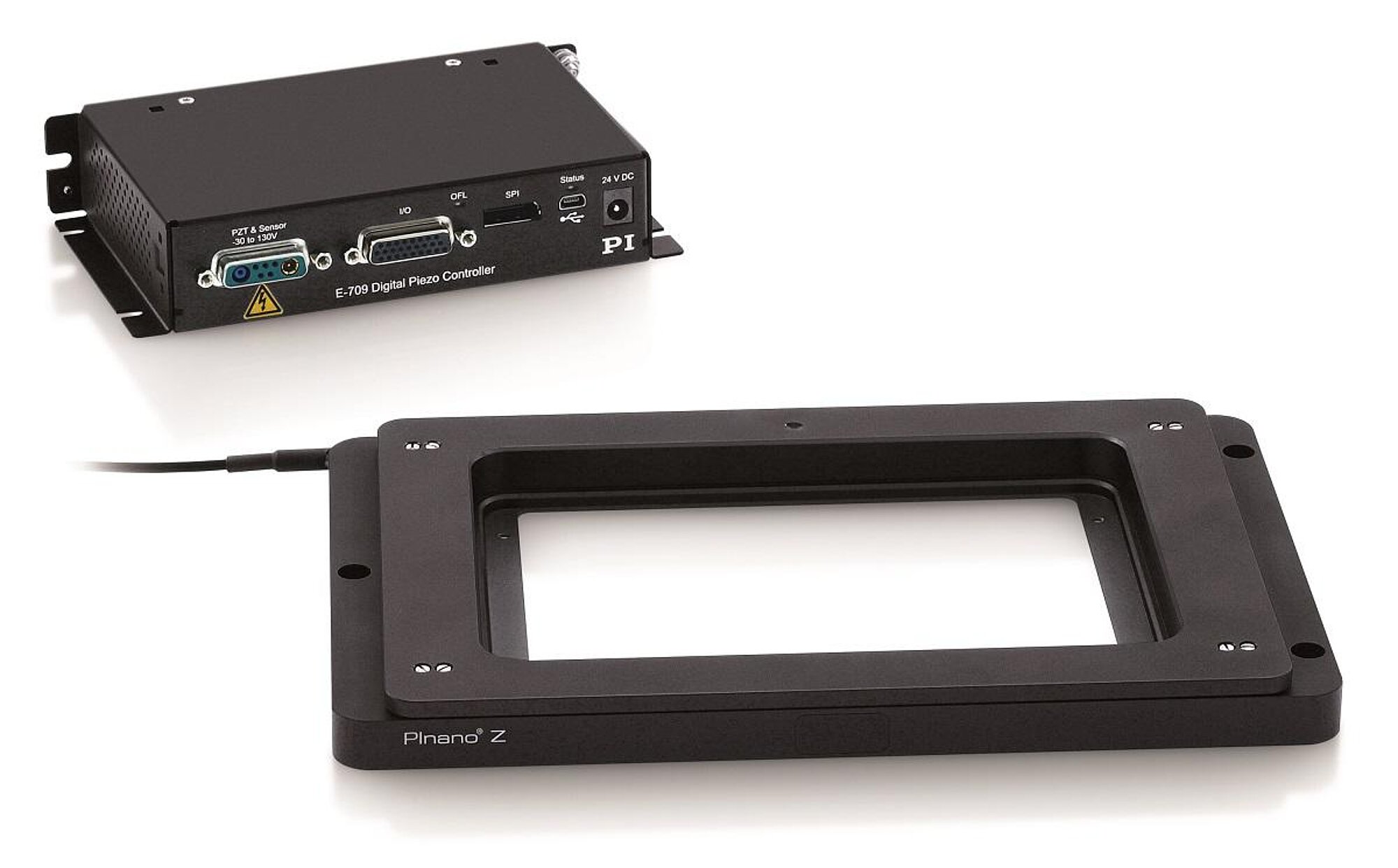

System with controller and software
The compact E-709 digital servo piezo controller is included in the delivery. Digital servos allow adaptation of all control parameters on the fly, by software. Control is possible via USB, RS-232 and a broadband analog interface. Supports PIMikroMove, NanoCapture. PI General Command Set (GCS). Drivers for LabVIEW, shared libraries for Windows and Linux. Compatible with µManager, MATLAB and Andor iQ.
Specifications
Specifications
| Motion | P-736.ZRN2S | PD73Z2ROW | P-736.ZCN2S | PD73Z2COW | Tolerance |
|---|---|---|---|---|---|
| Active axes | Z | Z | Z | Z | |
| Travel range in Z | 220 µm | 220 µm | 220 µm | 220 µm | |
| Positioning | P-736.ZRN2S | PD73Z2ROW | P-736.ZCN2S | PD73Z2COW | Tolerance |
| Integrated sensor | Piezoresistive, indirect position measuring | Piezoresistive, indirect position measuring | Capacitive, direct position measuring | Capacitive, direct position measuring | |
| System resolution in Z | 1 nm | 1 nm | 1 nm | 1 nm | |
| Drive Properties | P-736.ZRN2S | PD73Z2ROW | P-736.ZCN2S | PD73Z2COW | Tolerance |
| Drive type | PICMA® | PICMA® | PICMA® | PICMA® | |
| Mechanical Properties | P-736.ZRN2S | PD73Z2ROW | P-736.ZCN2S | PD73Z2COW | Tolerance |
| Resonant frequency in Z, under load with 100 g | 250 Hz | 250 Hz | 250 Hz | 250 Hz | ±20 % |
| Permissible push force in Z | 5 N | 5 N | 5 N | 5 N | max. |
| Guide | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | |
| Overall mass | 850 g | 850 g | 850 g | 850 g | ±5 % |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | |
| Miscellaneous | P-736.ZRN2S | PD73Z2ROW | P-736.ZCN2S | PD73Z2COW | Tolerance |
| Operating temperature range | 15 to 40 °C | 15 to 40 °C | 15 to 40 °C | 15 to 40 °C | |
| Connector | D-sub 9 (m) | D-sub 9 (m) | D-sub 7W2 (m) | D-sub 7W2 (m) | |
| Cable length | 1.7 m | 1.7 m | 1.7 m | 1.7 m | ±10 mm |
| Compatible inverted microscopes | Nikon Eclipse Ti2 ǀ Nikon Eclipse Ti | Olympus IX3 ǀ Olympus IX2 ǀ Olympus IX | Nikon Eclipse Ti2 ǀ Nikon Eclipse Ti | Olympus IX3 ǀ Olympus IX2 ǀ Olympus IX | |
| Controller | P-736.ZRN2S | PD73Z2ROW | P-736.ZCN2S | PD73Z2COW | Tolerance |
| Controller type | E-709 (included in the scope of delivery) | E-709 (included in the scope of delivery) | E-709 (included in the scope of delivery) | E-709 (included in the scope of delivery) | |
| Application-related functions | Data recorder | Data recorder | Data recorder | Data recorder | |
| Motion types | Wave generator | Wave generator | Wave generator | Wave generator | |
| Communication interfaces | RS-232 ǀ SPI ǀ USB | RS-232 ǀ SPI ǀ USB | RS-232 ǀ SPI ǀ USB | RS-232 ǀ SPI ǀ USB | |
| Command set | GCS 2.0 | GCS 2.0 | GCS 2.0 | GCS 2.0 | |
| User software | PIMikroMove | PIMikroMove | PIMikroMove | PIMikroMove | |
| Software - APIs | Dynamic library for PI General Command Set (GCS) ǀ C, C++, C# ǀ MATLAB ǀ NI LabView | Dynamic library for PI General Command Set (GCS) ǀ C, C++, C# ǀ MATLAB ǀ NI LabView | Dynamic library for PI General Command Set (GCS) ǀ C, C++, C# ǀ MATLAB ǀ NI LabView | Dynamic library for PI General Command Set (GCS) ǀ C, C++, C# ǀ MATLAB ǀ NI LabView | |
| I/O lines | 1× analog input 0 to 10 V; 1× sensor monitor 0 to 10 V; 1× digital input (LVTTL, programmable); 1× analog output; 5× digital outputs (LVTTL, 3× predefined, 2× programmable) | 1× analog input 0 to 10 V; 1× sensor monitor 0 to 10 V; 1× digital input (LVTTL, programmable); 1× analog output; 5× digital outputs (LVTTL, 3× predefined, 2× programmable) | 1× analog input 0 to 10 V; 1× sensor monitor 0 to 10 V; 1× digital input (LVTTL, programmable); 1× analog output; 5× digital outputs (LVTTL, 3× predefined, 2× programmable) | 1× analog input 0 to 10 V; 1× sensor monitor 0 to 10 V; 1× digital input (LVTTL, programmable); 1× analog output; 5× digital outputs (LVTTL, 3× predefined, 2× programmable) | |
| Controller's dimensions | 160 mm × 96 mm × 33 mm | 160 mm × 96 mm × 33 mm | 160 mm × 96 mm × 33 mm | 160 mm × 96 mm × 33 mm | |
| Drive functions | Autozero | Autozero | Autozero | Autozero | |
| Motion-dependent inputs and outputs | Digital trigger input ǀ Digital trigger output | Digital trigger input ǀ Digital trigger output | Digital trigger input ǀ Digital trigger output | Digital trigger input ǀ Digital trigger output | |
| Integration with third-party solutions | MetaMorph ǀ µManager ǀ Andor iQ | MetaMorph ǀ µManager ǀ Andor iQ | MetaMorph ǀ µManager ǀ Andor iQ | MetaMorph ǀ µManager ǀ Andor iQ |
Permissible push force in Z: The recommended load for dynamic operation is 500 g (max.). Higher dynamics are possible with a reduced load.
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
