XYステージ

PI社のXYステージ分野では、安定性、精度、およびダイナミクスが重要です。それらは高いスループット率と信頼できるオペレーションの基礎となります。

PI社は、PIMag®磁気リニアモーターとPIglideエアベアリングの分野での自社開発製品を利用しています。PI社の高荷重XYステージと平面スキャナーは、工業生産現場と品質管理に大きく貢献しています。

トポロジー測定などの顕微鏡用途向けのPIline®駆動試料ステージでは、高速で再現性に優れたスキャンと速度安定性を両立しています。本ステージはこの分野では非常に薄型であり、ピエゾフレクシャ試料ステージとの併用によりさまざまな用途に対応できます。

XY計測ステージ

A-351 MGS Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.
  • The A-351 MGS air bearing hybrid gantry system with linear motors has been designed to maximize throughput for applications that require overhead motion.

A-341 PIglide HGS Hybrid Gantry System

Hybrid Guide Design with Air Bearings and Recirculating Ball Bearing Guides for High Precision with Low Profile.
  • The A-341 gantry system with linear motors and absolute encoders maximizes throughput for applications that require overhead motion.

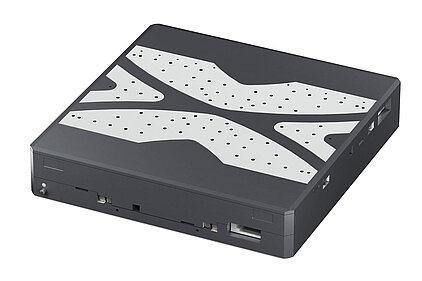

V-741 High-Precision XY Stage

High Travel Accuracy and Stability, 305 mm × 305 mm Travel Range, Linear Motors

L-741 Precision XY Stage

High Travel Accuracy and Stability, 305 × 305 mm Travel Range

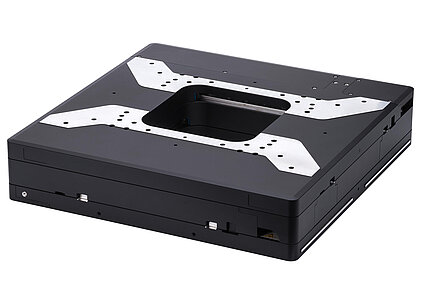

L-738 Precision XY Stage

Clear Aperture, High Travel Accuracy, and Stability

V-738 High-Precision XY Stage

Clear Aperture, High Travel Accuracy and Stability, Linear Motors

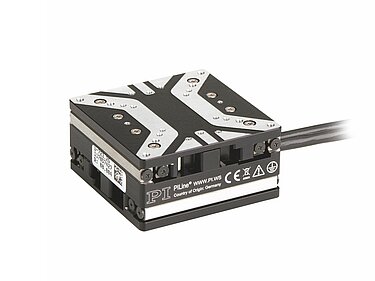

U-723 PILine® XY Stage

Compact XY Stage with Ultrasonic Piezo Motors

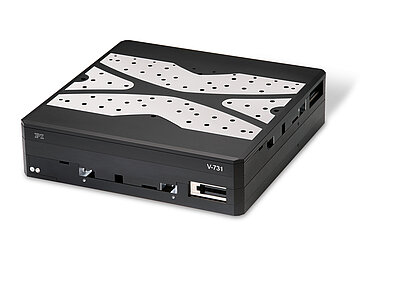

V-731 High-Precision XY Stage

High Travel Accuracy and Stability, Linear Motor

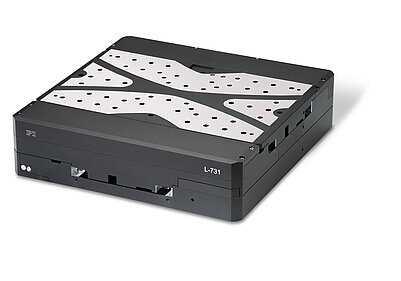

L-731 Precision XY Stage

High Travel Accuracy and Stability

A-322 PIglide HS Planar Scanner with Air Bearing

XY Positioning System with 1 nm Resolution
  • XY air bearing stage, planar, high performance, travel to 1 m, linear motors, absolute encoder, nanometer precision. For high accuracy automation &amp
  • metrology.

A-311 PIglide IS Planar Scanner with Air Bearing

High-Performance, Compact XY Nanopositioning System
  • Compact XY-nanopositioning system
  • High-precision positioning
  • Low profile
  • Travel ranges up to 300mm × 400mm
  • Load capacity up to 147N

顕微鏡用XYおよびXYZ試料ステージ

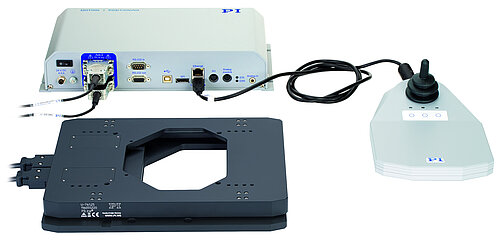

U-760 PILine® XY Stage System with Controller and Joystick

Compact, low vibration, low profile
新製品

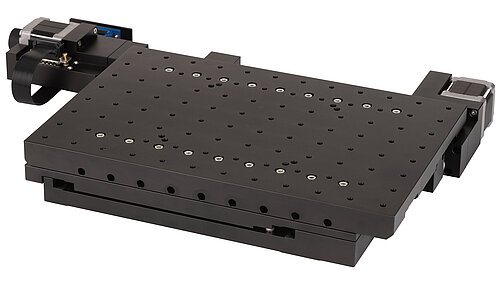

M-971 Motorized OEM XY Stage

Low Price with High Quantities

U-780 PILine® XY Stage System with Controller and Joystick

Stable, Dynamic, Low Profile

U-751.24 XY Stage with Piezomotors

Low-Profile and Fast, Direct Position Measurement

P-545.xR8S PInano® XY(Z) Piezo System

Inexpensive Nanopositioning System for High-Resolution Microscopy

P-545.xC8S PInano® Cap XY(Z) Piezo System

Capacitive Position Measuring for Super-Resolution Microscopy

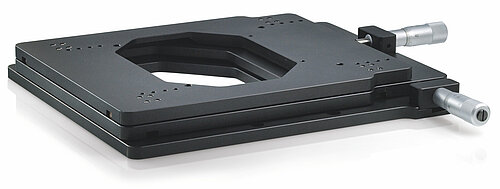

M-545 Microscope XY Stage

Compact, Stable, Long Travel Range

XYモーションシステム

新製品

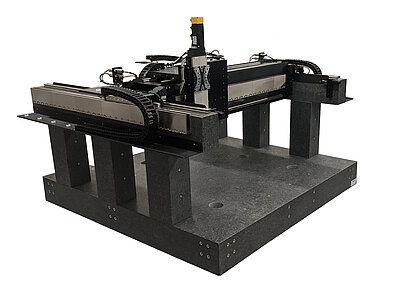

A-352 MGS Large Format Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.
新製品

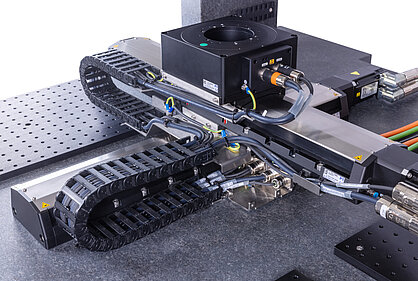

X-417 Integrated Multi-Axis System

XY(Z) Positioning System with Controller • Quickly Available
