Linear motors
Linear motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.
Kreuzrollenführung
With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages prevent cage creep.
Highly accurate position measuring with incremental linear encoder
Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement. More travel ranges on request.
Application fields
Medical industry. Laser cutting. Scanning. Biotechnology. Measuring technology. AOI (Automatic Optical Inspection). Laser inscription.
| Motion | V-731.096111 | Tolerance | |
|---|---|---|---|
| Active axes | X | Y | |
| Travel range in X | 205 mm | ||
| Travel range in Y | 205 mm | ||
| Acceleration in X, unloaded | 5 m/s² | max. | |
| Acceleration in Y, unloaded | 15 m/s² | max. | |
| Maximum velocity in X, unloaded | 200 mm/s | ||
| Maximum velocity in Y, unloaded | 200 mm/s | ||
| Orthogonality | ± 96.96 µrad | typ. | |
| Straightness (Linear crosstalk in X with motion in Y) | ± 2 µm | typ. | |
| Straightness (Linear crosstalk in Y with motion in X) | ± 2 µm | typ. | |
| Flatness (Linear crosstalk in Z with motion in X) | ± 2 µm | typ. | |
| Flatness (Linear crosstalk in Z with motion in Y) | ± 2 µm | typ. | |
| Pitch (Rotational crosstalk in θX with motion in Y) | ± 75 µrad | typ. | |
| Pitch (Rotational crosstalk in θY with motion in X) | ± 75 µrad | typ. | |
| Yaw (Rotational crosstalk in θZ with motion in X) | ± 30 µrad | typ. | |
| Yaw (Rotational crosstalk in θZ with motion in Y) | ± 30 µrad | typ. | |
| Positioning | V-731.096111 | Tolerance | |
| Minimum incremental motion in X | 0.02 µm | typ. | |
| Minimum incremental motion in Y | 0.02 µm | typ. | |
| Unidirectional repeatability in X | ± 0.05 µm | typ. | |
| Unidirectional repeatability in Y | ± 0.05 µm | typ. | |
| Bidirectional repeatability in X | 0.5 µm | typ. | |
| Bidirectional repeatability in Y | 0.5 µm | typ. | |
| Reference switch | Forked photoelectric sensor, N/C contact, 5 V, NPN | ||
| Limit switches | Forked photoelectric sensor, N/C contact, 5 V, NPN | ||
| Integrated sensor | Incremental linear encoder | ||
| Sensor signal | Sin/cos, 1 V peak-peak | ||
| Sensor signal period | 20 µm | ||
| System resolution in X | 1 nm | ||
| System resolution in Y | 1 nm | ||
| Drive Properties | V-731.096111 | Tolerance | |
| Drive type | Ironless 3-phase linear motor | ||
| Operating voltage | 48 V | ||
| Nominal current, RMS | 1.5 A | typ. | |
| Peak current, RMS | 5 A | typ. | |
| Drive force in X | 29 N | typ. | |
| Antriebskraft in X | 29 N | typ. | |
| Peak force in X | 80 N | ||
| Peak force in Y | 80 N | ||
| Force constant | 19.9 N/A | ||
| Motor constant | 4.89 N/√W | typ. | |
| Time constant | 0.4 ms | ||
| Resistance phase-phase | 11 Ω | typ. | |
| Inductance phase-phase | 3.6 mH | ||
| Back EMF phase-phase | 16 V·s/m | max. | |
| Pole pitch N-N | 30 mm | ||
| Mechanical Properties | V-731.096111 | Tolerance | |
| Permissible push force in Z | 50 N | max. | |
| Permissible torque in θX | 125 N·m | max. | |
| Permissible torque in θY | 125 N·m | max. | |
| Permissible torque in θZ | 125 N·m | max. | |
| Moved mass in X, unloaded | 15400 g | ||
| Moved mass in Y, unloaded | 5600 g | ||
| Guide | Crossed roller guide | ||
| Overall mass | 19400 g | ||
| Material | Aluminum, black anodized | ||
| Miscellaneous | V-731.096111 | Tolerance | |
| Operating temperature range | 5 to 40 °C | ||
| Connector | 2 × HD D-sub 26 (m) | ||
| Sensor connector | 2 × D-sub 15 (f) | ||
| Recommended controllers / drivers | G-901.R319 C-891.130300 C-885 with C-891.11C885 ACS modular controller |

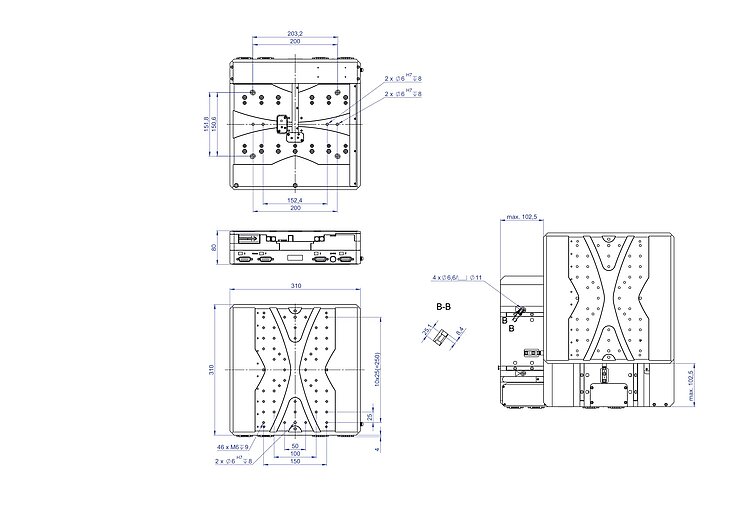

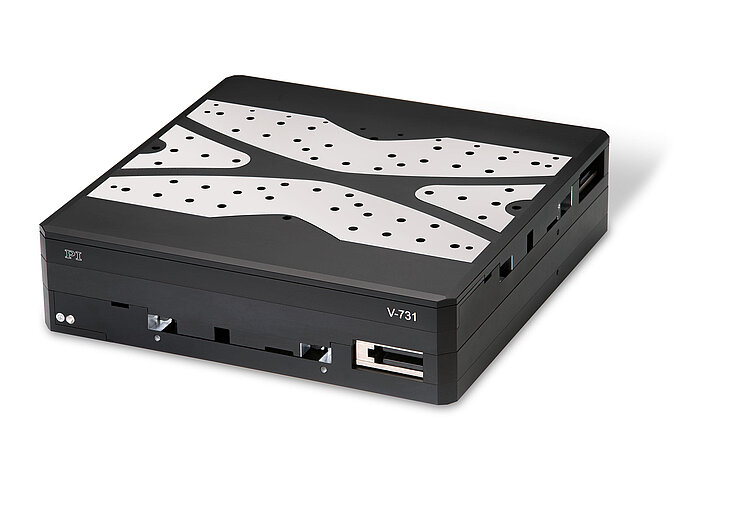

L-731 / V-731 Precision XY Stage
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
High-precision XY stage, ironless 3-phase linear motor; 205 mm x 205 mm travel range (X × Y); 50 N load capacity; 200 mm/s × 200 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
