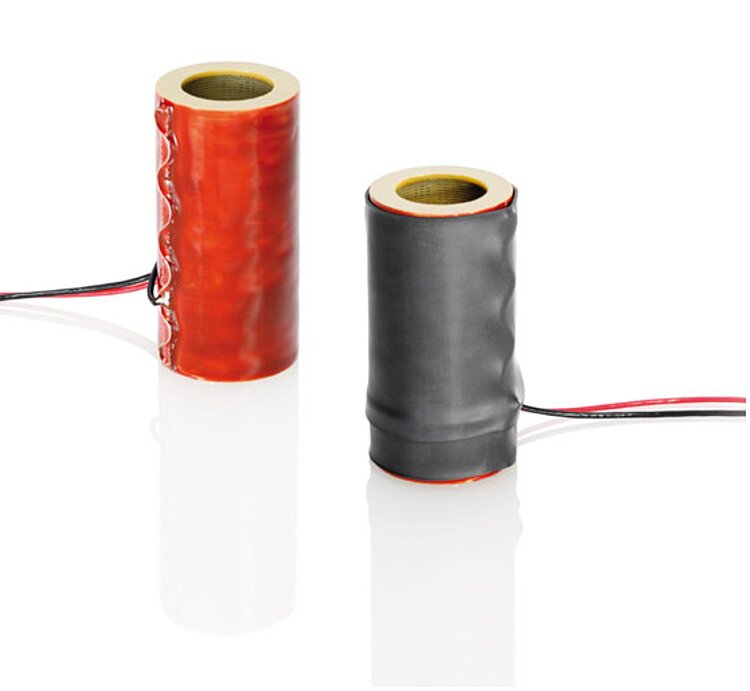

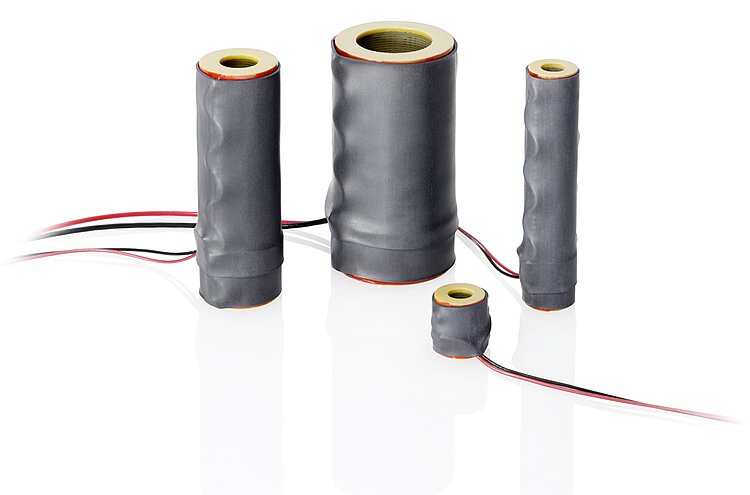

P-010.xxH – P-025.xxH PICA Thru Ring Actuators

High-Load Piezo Actuators with Inner Hole

P-010.xxH – P-025.xxH PICA Thru Ring Actuators
製品の解説 仕様 ダウンロード 見積 / 発注

Stacked piezo linear actuator

Operating voltage 0 to 1000 V. Long lifetime without derating. High specific displacement. A mechanical preload can be attached via inner holes



Available options

  • SGS sensors for positional stability
  • PZT ceramic material
  • Operating voltage range, displacement, layer thickness
  • Load capacity, force generation
  • Geometric shapes: round, rectangular, various cross sections
  • Mechanical interface: flat
  • Integrated piezoelectric detector layers
  • Special high / low temperature versions
  • UHV-compatible versions up to 10-9 hPa
  • Non-magnetic versions
  • Extra-tight length tolerances



Fields of application

Industry and research. For optics, precision mechanics and machining, laser tuning



Specifications

Datasheet

Datasheet P-010xx.H - P-025xx.H

ドキュメントの言語

Downloads

Datasheet

Datasheet

Datasheet P-010xx.H - P-025xx.H

ドキュメントの言語

Documentation

Documentation

User Manual PZ138

PICA Piezo Actuators: P-007, P-010, P-016, P-025, P-035, P-045, P-050, P-056 PICA Stack/Power/Thru Customized Products
日付 / バージョン
2014-12-10
日付 / バージョン
2014-12-10
ドキュメントの言語
Documentation

Short Instructions PZ257EK

PICA Piezo Actuators up to 1000 V P-0xx, P-1xx, P-405 PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®
日付 / バージョン
2.1.0 01/2019

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Custom designs or different specifications on request.
