Drag chain for V-412 / V-417 XY assembly; for a 52 mm (2'') travel range of the X axis
新製品
V-417.E1XYHxx Drag Chain for V-41x Positioners
Cable Management for XY Assemblies Consisting of V-412 and V-417 Linear Stages
- For XY assemblies consisting of V-412 linear stages
- For XY assemblies consisting of V-417 linear stages

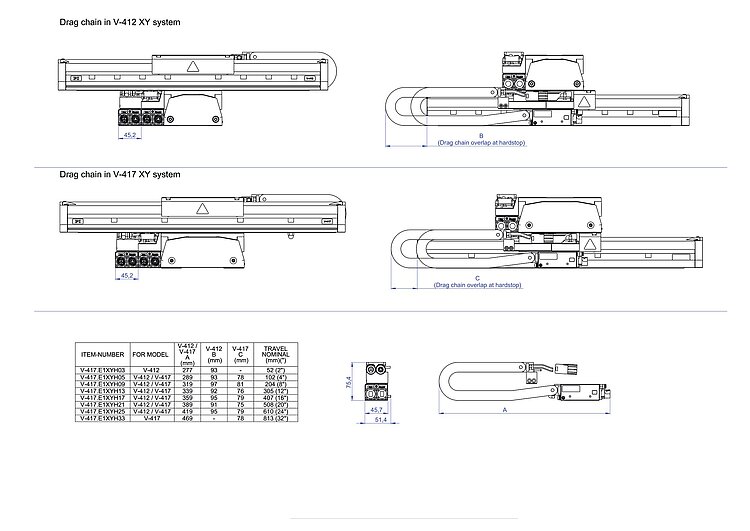

V-417.E1XYHxx, dimensions in mm

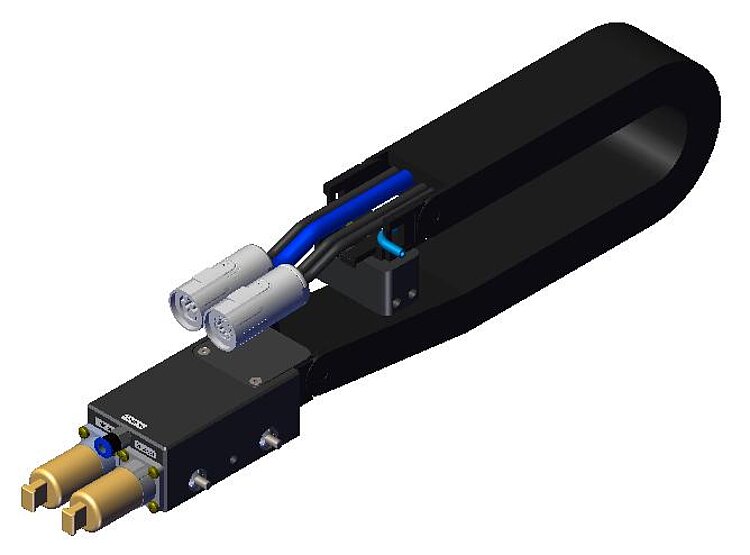

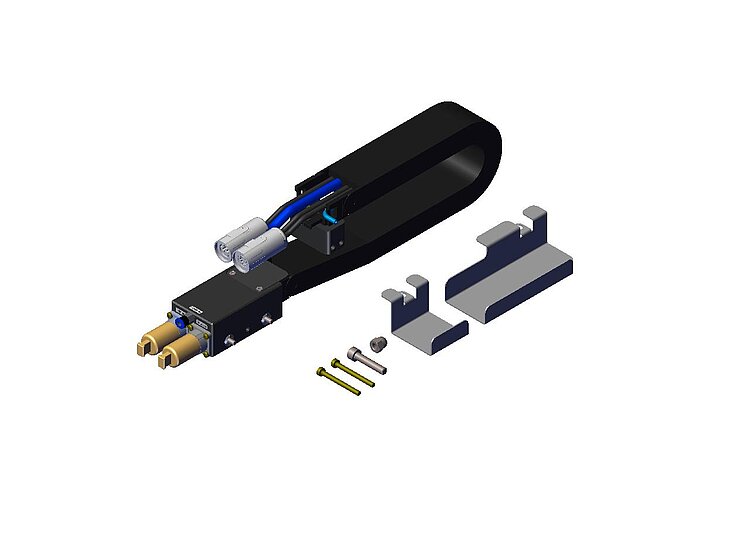

V-417.E1XYH13 with mounting material
V-417.E1XYHxx Drag Chain for V-41x Positioners
製品の解説
仕様
ダウンロード
見積 / 発注
Function of drag chain
In XY assemblies consisting of V-412 or V-417 linear stages, the V-417.E1XYHxx drag chain takes over the cable management of the Y axis in X direction. For this purpose, the drag chain is mounted on the X axis.
Drag chains for V-412 and V-417 XY assemblies
V-41x.03xxxxE1 - 52 mm travel range: V-417.E1XYH03
V-41x.05xxxxE1 - 102 mm travel range: V-417.E1XYH05
V-41x.09xxxxE1 - 204 mm travel range: V-417.E1XYH09
V-41x.13xxxxE1 - 305 mm travel range: V-417.E1XYH13
V-41x.17xxxxE1 - 407 mm travel range: V-417.E1XYH17
V-41x.21xxxxE1 - 508 mm travel range: V-417.E1XYH21
V-41x.25xxxxE1 - 610 mm travel range: V-417.E1XYH25
V-41x.33xxxxE1 - 813 mm travel range: V-417.E1XYH33
When ordering, please note the following:
Regardless of the travel range of the Y axis, the V-417.E1XYHxx drag chain must be selected for the travel range of the X axis.
Specifications
Specifications
| V-417.E1XYH03 | V-417.E1XYH05 | V-417.E1XYH09 | V-417.E1XYH13 | V-417.E1XYH17 | V-417.E1XYH21 | V-417.E1XYH25 | V-417.E1XYH33 | ||
|---|---|---|---|---|---|---|---|---|---|
| Material | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | |
| Overall mass | 450 g | 480 g | 545 g | 555 g | 585 g | 605 g | 615 g | 645 g | |
| Maximum velocity | 2 m/s | 2 m/s | 2 m/s | 2 m/s | 2 m/s | 2 m/s | 2 m/s | 2 m/s | |
| Travel range | 52 mm | 102 mm | 204 mm | 305 mm | 407 mm | 508 mm | 610 mm | 813 mm |
Note on overall mass: tolerance ± 5 %
Note on travel range: must correspond to the travel range of the X axis (lower axis)
