M-545 Microscope XY Stage

Compact, Stable, Long Travel Range

  • Stable platform for P-545 PInano® piezo nanopositioning systems
  • Low profile for easy integration: 30 mm
  • Travel range 25 mm × 25 mm
  • Manual operation with micrometer screws, optional motorization
  • For inverted microscopes from Nikon, Zeiss, Leica, and Olympus
M-545 Microscope XY Stage
製品の解説 仕様 ダウンロード 見積 / 発注

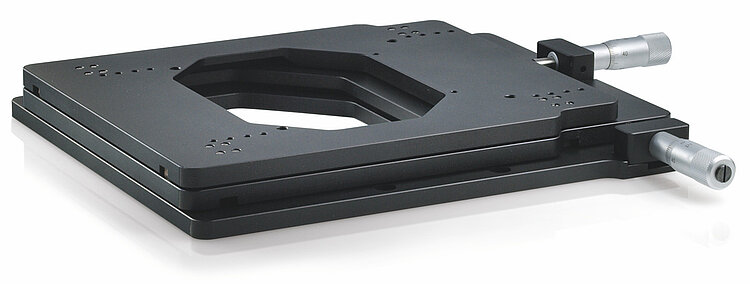

Standard-class, manual microscope XY stage

Rough adjusting for piezo nanopositioners from PI as well as manual positioning of specimen holders. Supports optimum scanning and settling behavior.

Micrometer screw or stepper motor drive

The M-545 XY stage can also be equipped with drives from the M-229 series (all models except M-545.2MZ). Complete packages with two stepper motor drives, matching controller, and joystick, are available under the product numbers M-545.USG respectively M-545.USC.

Suitable for microscopes from a large number of manufacturers

For inverted microscopes from Nikon (TI), Zeiss (Axio Observer), Leica (DMI), and Olympus (IX2, IX3). Versions for other microscopes on request.

Can be combined with numerous PI nanopositioners

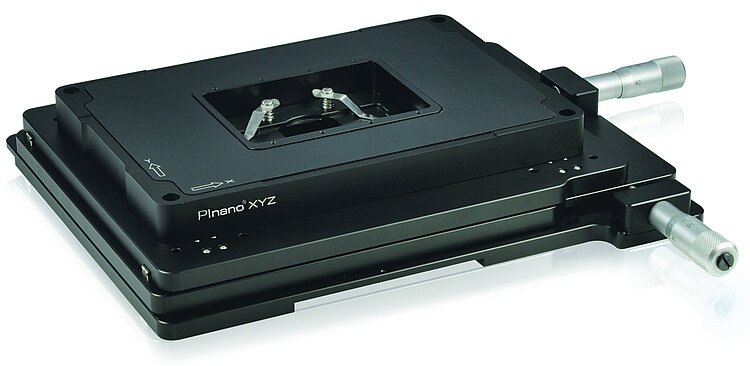

It is possible to mount piezo nanopositioners from the P-545 PInano® and P-541 / P-542 series onto the platform of the M-545. Adapter plates from PI are available for combining with other piezo nanopositioners.

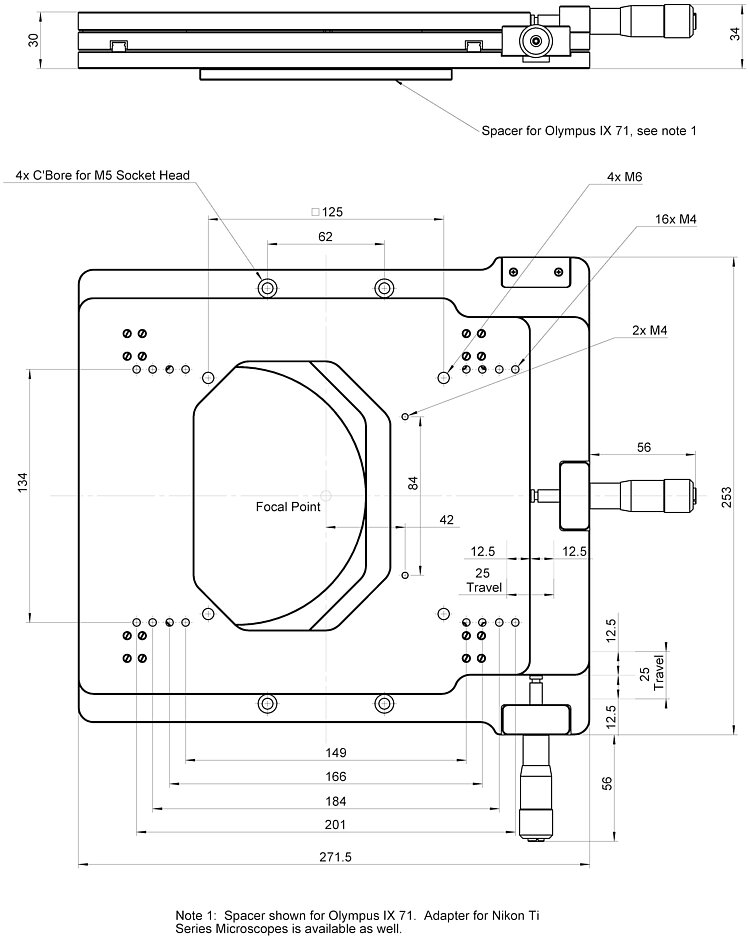

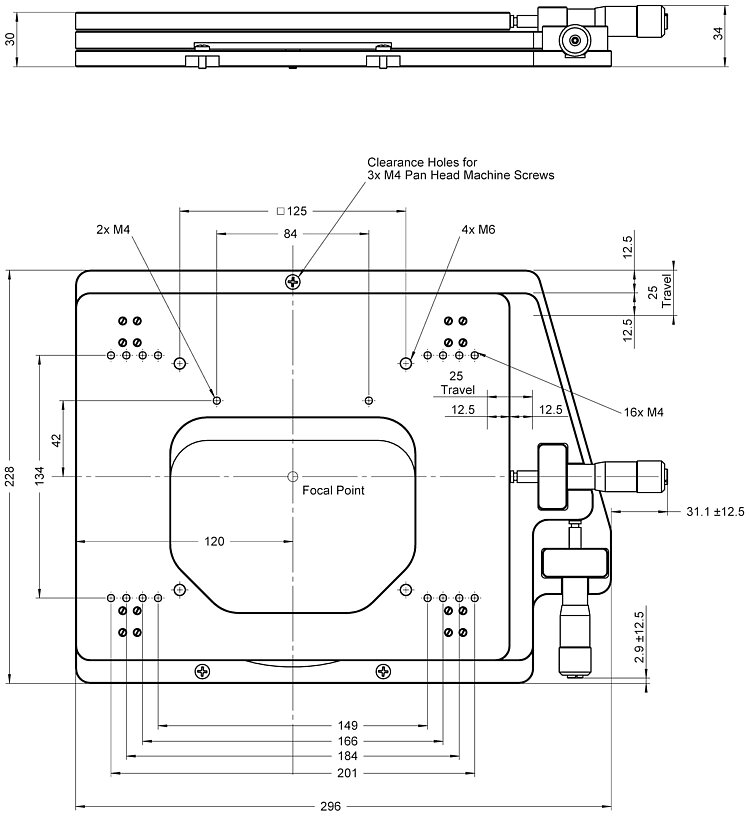

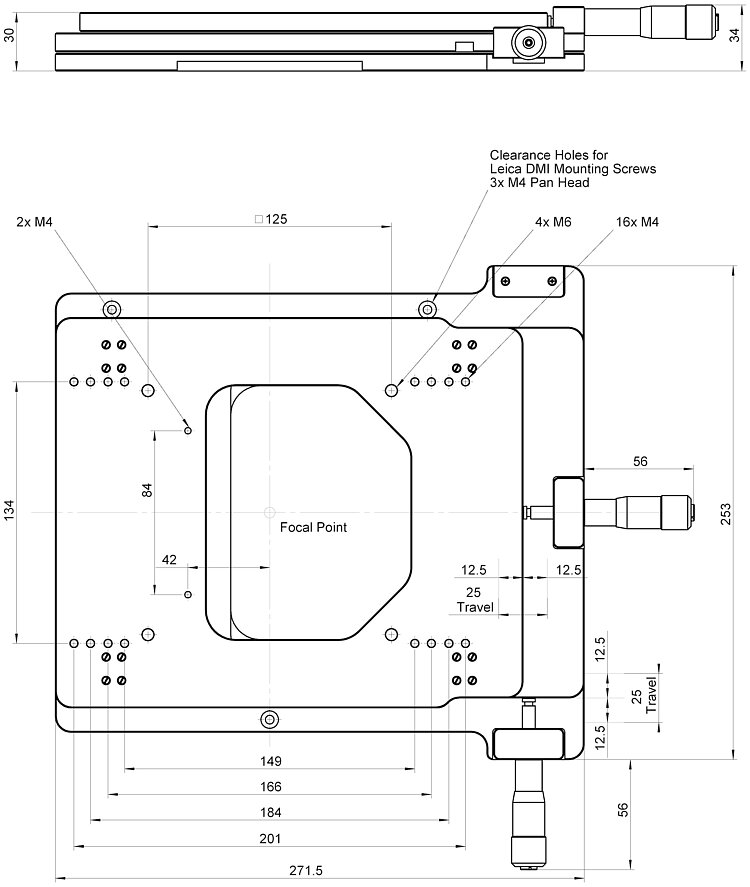

Specifications

データシート

Datasheet M-545 (英語)

日付 / バージョン
2019-02-12
pdf - 1 MB
日付 / バージョン
2019-02-12
pdf - 1 MB
日付 / バージョン
2019-09-12
pdf - 1,016 KB

Downloads

データシート

データシート

Datasheet M-545 (英語)

日付 / バージョン
2019-02-12
pdf - 1 MB
日付 / バージョン
2019-02-12
pdf - 1 MB
日付 / バージョン
2019-09-12
pdf - 1,016 KB

ドキュメント

ドキュメント

Installation Instructions M545T0001

M-545.USG / M-545.USC Drive Set for M-545 XY Stage

日付 / バージョン
2020-02-10
pdf - 642 KB
英語
ドキュメント

Short Instructions MP119EK

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx

日付 / バージョン
3.2.0 01/2021
pdf - 1 MB
日付 / バージョン
3.2.0 01/2021
pdf - 1 MB
ドキュメント

User Manual PZA02 (英語)

M-545 Series Microscope Stages

日付 / バージョン
3.2.0 2020-03-04
pdf - 3 MB
英語

3D モデル

3D モデル

M-545 3-D model

日付 / バージョン
2020-01-15
zip - 2 MB

パンフレット

パンフレット

Microscope Stage Configurator

Sample Stages and Holders for Inverted Microscopes

日付 / バージョン
BRO70E R3D
pdf - 4 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Accessories

Specimen holders

Adapter plates

Stepper motor drive sets (optional; for all models except M-545.2MZ)

お問い合わせ

担当者よりお問合せにつきまして、すぐにご連絡をさせて頂きます。

Compatible Accessories Related Products Services
