パワー超音波トランスデューサ

  • 高周波
  • 高いピーク to ピーク変位
  • 低消費電力
  • 高いQ値

ランジュバン型トランスデューサなどの電力超音波トランスデューサは、産業分野や>> ライフサイエンス分野など、さまざまな用途でご使用いただけます。 高品質な圧電式リングがトランスデューサ内で>> 超音波を生成し、それがデバイスのピークにまで増幅され、ターゲット媒体に振動を誘発します。

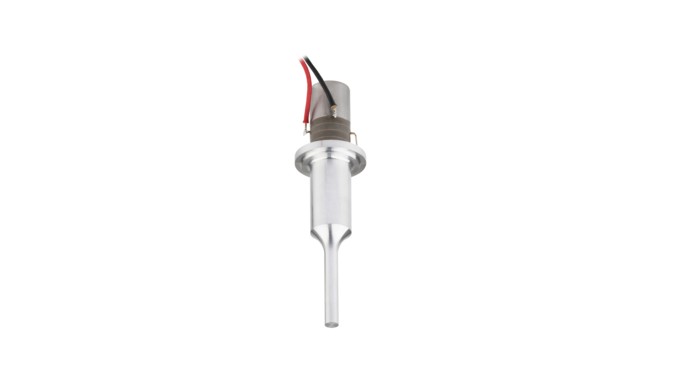

ランジュバン型トランスデューサの仕様

PI Ceramic社は、ランジュバン型トランスデューサのプロトタイプを提供しており、お客様の具体的なアプリケーション要件に合わせて、お客様と共同で開発しています。 その際、高い機械的品質と低消費電力に重点を置いています。

共振周波数 f [kHz] 35
共振インピーダンス I [Ω] <50
最大ピークツーピーク変位 APP [µm] 36
最大消費電力 P [W] 5
品質係数 Qm >2000

細胞懸濁液の混合に使用される超音波トランスデューサプロトタイプの仕様と性能

要望に応じたカスタマイズバージョンのトランスデューサも対応可能

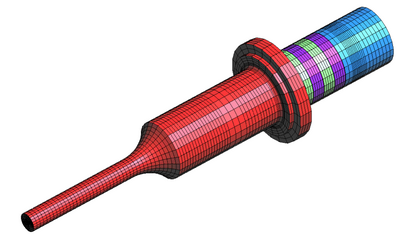

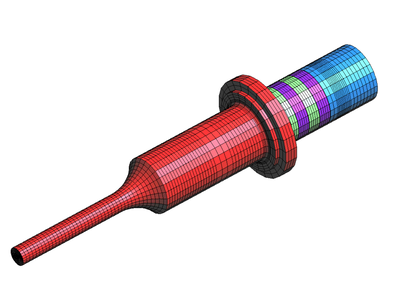

特殊な用途には、独自の要件が伴います。 PI Ceramic社は、30年以上にわたって培ってきたピエゾ(圧電素子)に関する専門知識を活かして、品質を極めたフルソリューションを提供しています。 当社のサービスは、そのアプリケーションに特化したコンサルティングから、>> 超音波トランスデューサの開発および製造、さらには適切なドライブエレクトロニクスの提供に至るまで多岐にわたります。 可能な限り最良のピエゾシステムを開発するため、PI Ceramic社では、実際にサブシステムやフルソリューションを製造する前に、バーチャル プロトタイプを提供しています。 シミュレーションにより、お客様との合意をより迅速に、より正確に、より経済的に達成することができます。

超音波スキャナーを使用する自動化された効率的なワークフローを実装するには、オーダーメイドの音響トランスデューサが不可欠です。 当社のランジュバン型トランスデューサでは、以下のパラメータを変更できます。

  • 消費電力
  • トランスデューサの材質
  • 共振周波数
  • 振幅

Power Ultrasonic Transducers with Components Made of Lead-Free Piezo Ceramics

In addition to developing and manufacturing Langevin transducers with rings made of lead zirconate titanate (PZT), PI Ceramic’s services include customized development of these power ultrasonic transducers with lead-free piezoceramics.

The rings made of potassium sodium niobate (KNN) are not suitable for replacing the rings made of PZT in all applications. The adapted transducers with lead-free ceramic components nevertheless achieve specifications that are well suited for many applications. To achieve this, PI Ceramic combines in-house expertise in the development of lead-free materials with many years of experience with developing and manufacturing power ultrasonic transducers.

Comparative results of lead-free and conventional PZT power ultrasonic transducers for use in cell lysis and for sample mixing:

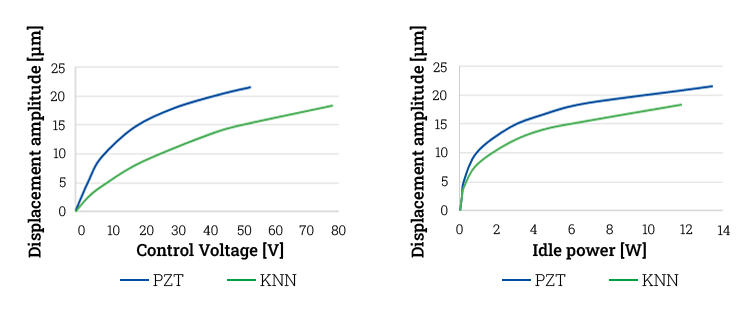

Performance data for a lead-free KNN ultrasonic transducer prototype in comparison to a 35 kHz transducer with lead containing PZT rings in unloaded state: Displacement amplitude at the tip with increasing power input (left), displacement amplitude at the tip with increasing control voltage at 35 kHz (right)

The parameters of the >> material are decisive for achieving the desired power ultrasound transducer specifications. The use of lead-free KNN rings reduces the displacement at the same power level and the same voltage. This can be compensated for with a higher control voltage.

It should be noted that the higher loss factor with lead-free materials at the same displacement amplitude at the tip of the transducer leads to greater heat generation in the rings. In addition, greater self-heating occurs due to a higher power loss.

We will be happy to partner with you in developing special power ultrasonic transducers customized to your applications, whether with lead-free KKN components or with PZT components.

当社にお問い合わせください

お客様のプロジェクトの仕様と要件について、お客様の地域のPI Ceramic社営業エンジニアにぜひご相談ください。

お問い合わせフォームはこちら

パワー超音波トランスデューサの応用分野

以下を含む医療技術用途に対応します。

以下を含む産業用用途に対応します。

超音波霧化
溶接、穴あけ、切断
超音波洗浄
