NEXLINE® OEM linear actuator; NEXLINE® piezo walking drive; 10 mm travel range; 50 N feed force; 1.5 m cable length

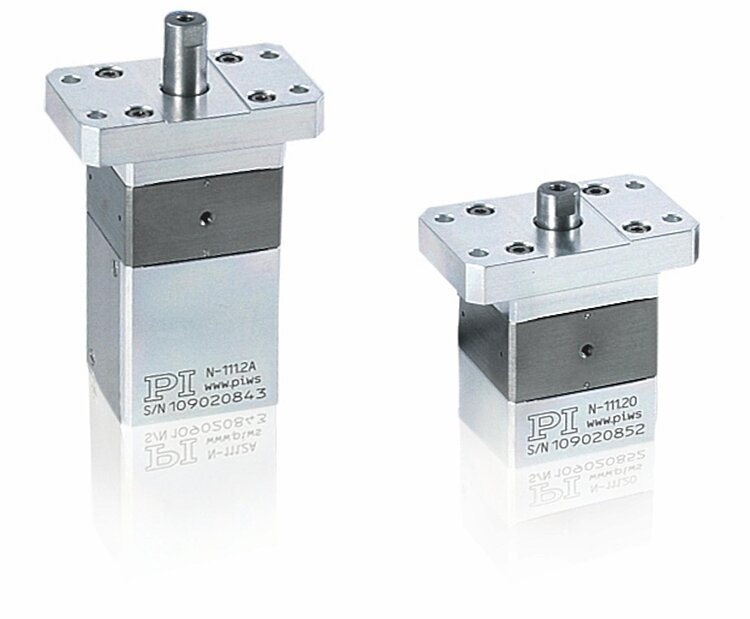

N-111 NEXLINE® OEM Linear Actuator
Nanopositioning Over Long Travel Ranges, PiezoWalk® Principle
- Travel range 10 mm
- Integrated direct-measuring linear encoder with resolution 5 nm
- Force generation to 50 N
- Holding force to 70 N
Application fields
- Industrial precision positioning
- Semiconductor technology
- Semiconductor tests
- Wafer inspection
- Lithography
- Nanoimprinting
- Nanometrology
- Motion in strong magnetic fields and in a vacuum

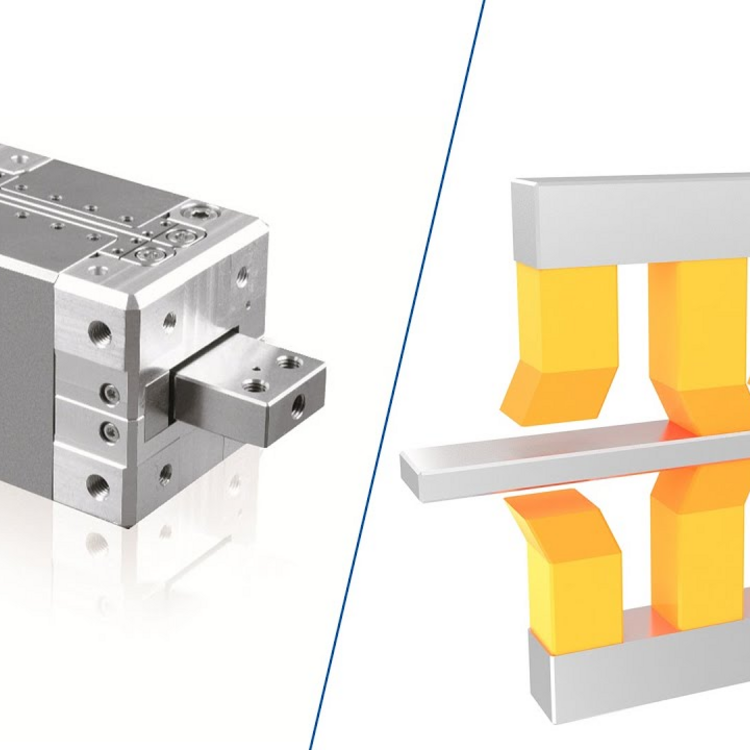

Nanometer precision and high feed force with PiezoWalk® walking drives
Several piezo actuators perform a walking motion in the PiezoWalk® walking drive that leads to forward feed of a runner. Control of the actuators allows the smallest step and forward feed motion at a resolution of well under one nanometer.
Highly accurate position measuring with incremental linear encoder
Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.
Suitable for sophisticated vacuum applications
Piezo motors from PI can be designed for use in a vacuum and are suitable for operating in strong magnetic fields. Special versions of the drives are available for this purpose. Piezo walking drives can also be used in cleanrooms or in environments with strong ultraviolet radiation.

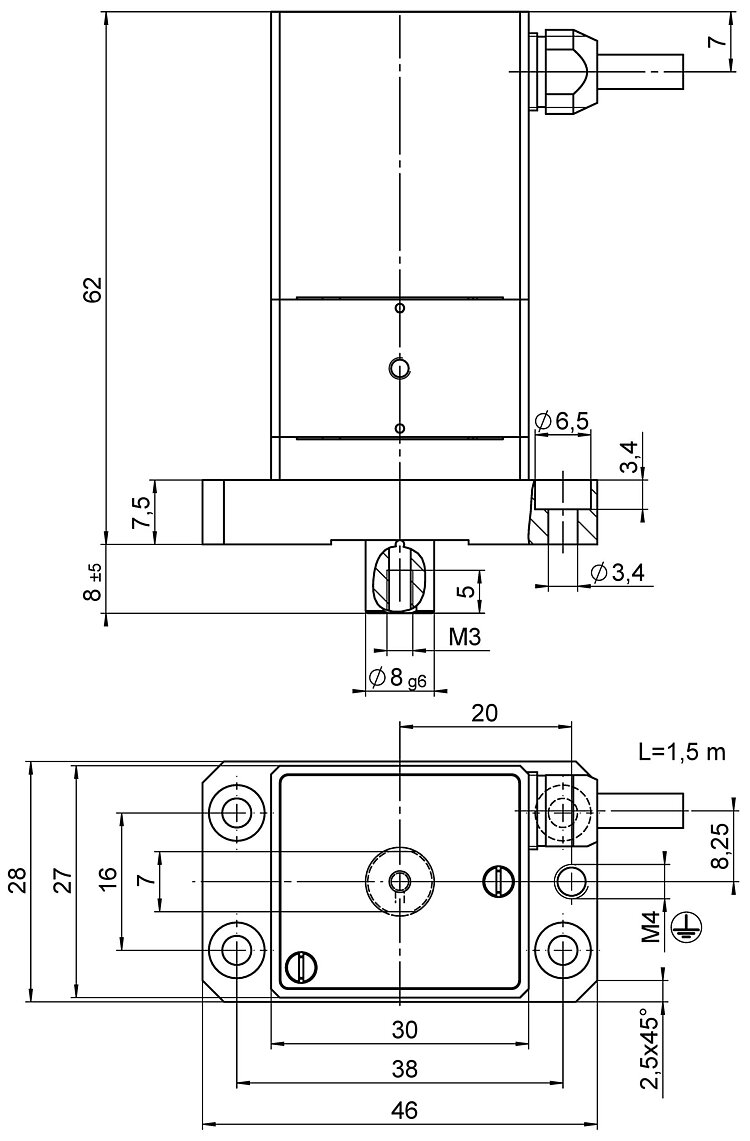

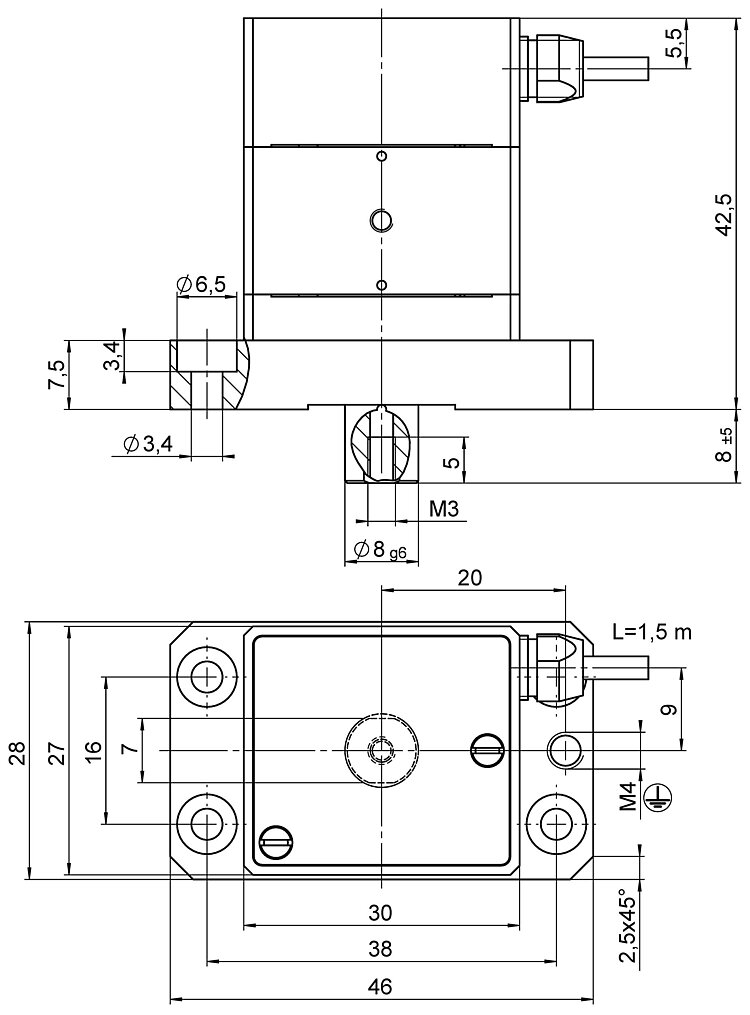

Specifications
Specifications
Motion | N-111.201 | N-111.2A1 | Tolerance |
---|---|---|---|
Active axes | X | X | |
Travel range in X | 10 mm | 10 mm | |
Travel range in X (analog mode) | ± 2 µm | ± 2 µm | |
Velocity (10% duty cycle, full-step mode) | 1 mm/s | 1 mm/s | max. |
Velocity (100% duty cycle, full-step mode) | 0.6 mm/s | 0.6 mm/s | max. |
Velocity (100% duty cycle, nanostepping mode) | 0.4 mm/s | 0.4 mm/s | max. |
Positioning | N-111.201 | N-111.2A1 | Tolerance |
Resolution in X, open loop | 0.025 nm | 0.025 nm | typ. |
Integrated sensor | Incremental linear encoder | ||
System resolution in X | 5 nm | ||
Reference switch | Optical, direction sensing (reference edge track), 5 V, TTL | ||
Drive Properties | N-111.201 | N-111.2A1 | Tolerance |
Operating voltage | -250 to +250 | -250 to +250 | |
Drive type | NEXLINE® piezo walking drive | NEXLINE® piezo walking drive | |
Drive force in X | 50 N | 50 N | max. |
Mechanical Properties | N-111.201 | N-111.2A1 | Tolerance |
Holding force in X, passive | 70 N | 70 N | min. |
Overall mass | 245 g | 325 g | |
Material | Aluminum, stainless steel, titanium | Aluminum, stainless steel, titanium | |
Miscellaneous | N-111.201 | N-111.2A1 | Tolerance |
Operating temperature range | 0 to 55 °C | 0 to 55 °C | |
Connector | D-sub 25-pin (m) | D-sub 25-pin (m) | |
Cable length | 1.5 m | 1.5 m | +50 / -0 mm |
Recommended controllers / drivers | E-712.1AM | E-712.1AM |
Velocity in full-step mode Depending on drive electronics.
Velocity in nanostepping mode: Depending on drive electronics. The maximum velocity in nanostepping mode is designed for the best possible constancy so that no velocity variations occur when executing the steps.
Drive force: Data refer to operation in full step mode.
