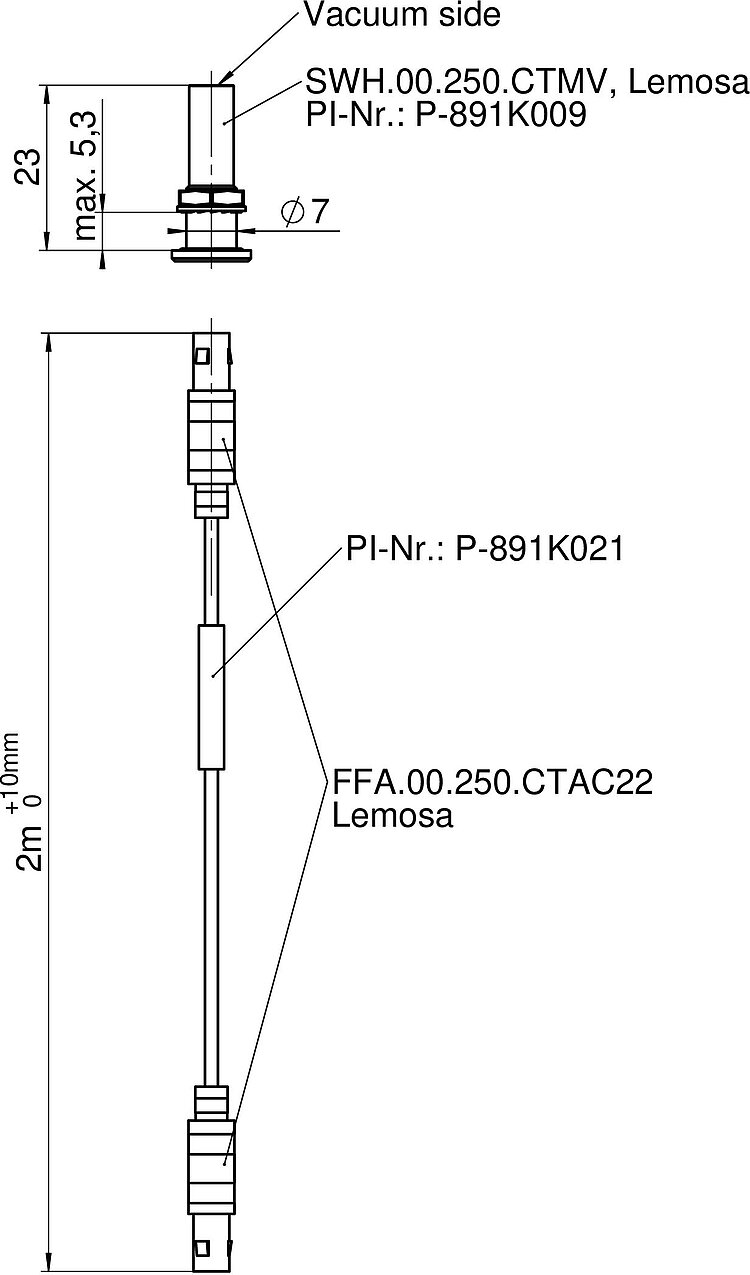

P-891.VA, dimensions in mm. Note that a comma is used in the drawing instead of a decimal point.

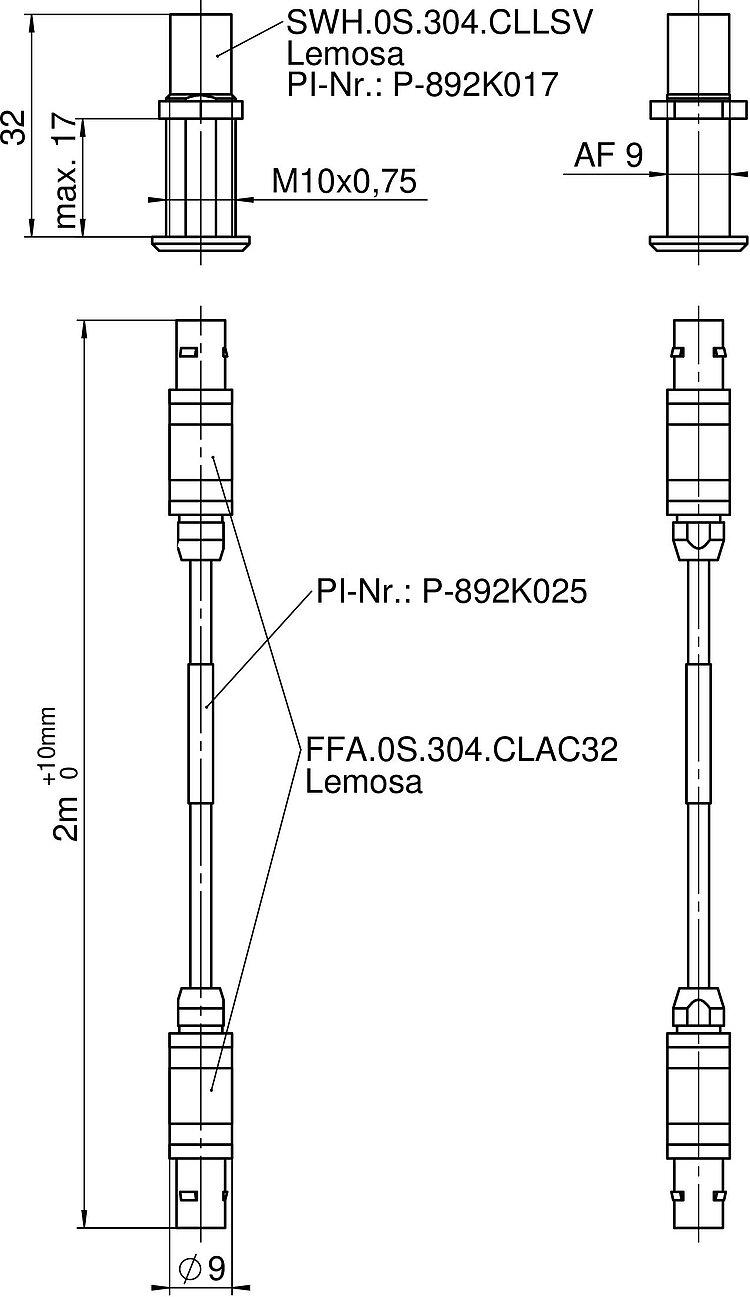

P-892.VA, dimensions in mm. Note that a comma is used in the drawing instead of a decimal point.

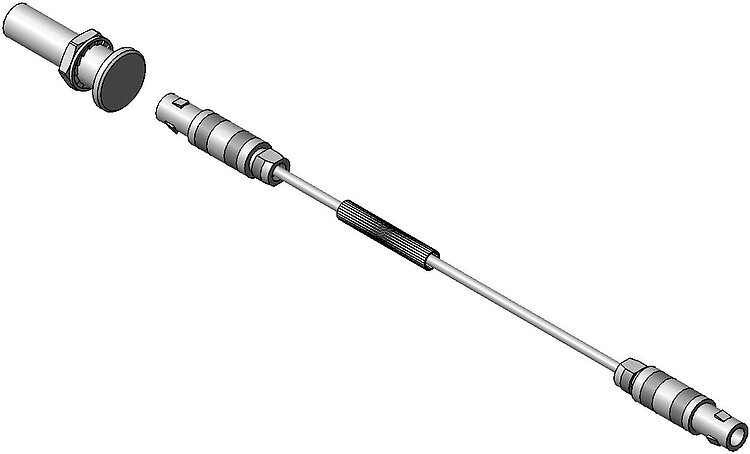

P-891.VA • P-892.VA Vacuum Feedthrough
製品の解説
仕様
ダウンロード
見積 / 発注
Connection of standard controllers to vacuum applications
Vacuum feedthroughs are the interface between the positioner within the vacuum enclosure and the controller on the air side. With their help, vacuum applications can be connected to standard controllers. The P-891.VA and P-892.VA vacuum feedthroughs are available for low-voltage piezo systems.
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
P-891.VA 新製品!
Vacuum feedthrough for piezo voltage, LEMO connector, 100 °C bakeout temperature, suitable for high vacuum (up to 10-6 hPa), including air-side cable, 2 m
Vacuum feedthrough for DMS sensor signals, LEMO connector, 100 °C bakeout temperature, suitable for high vacuum (up to 10-6 hPa), including air-side cable, 2 m
