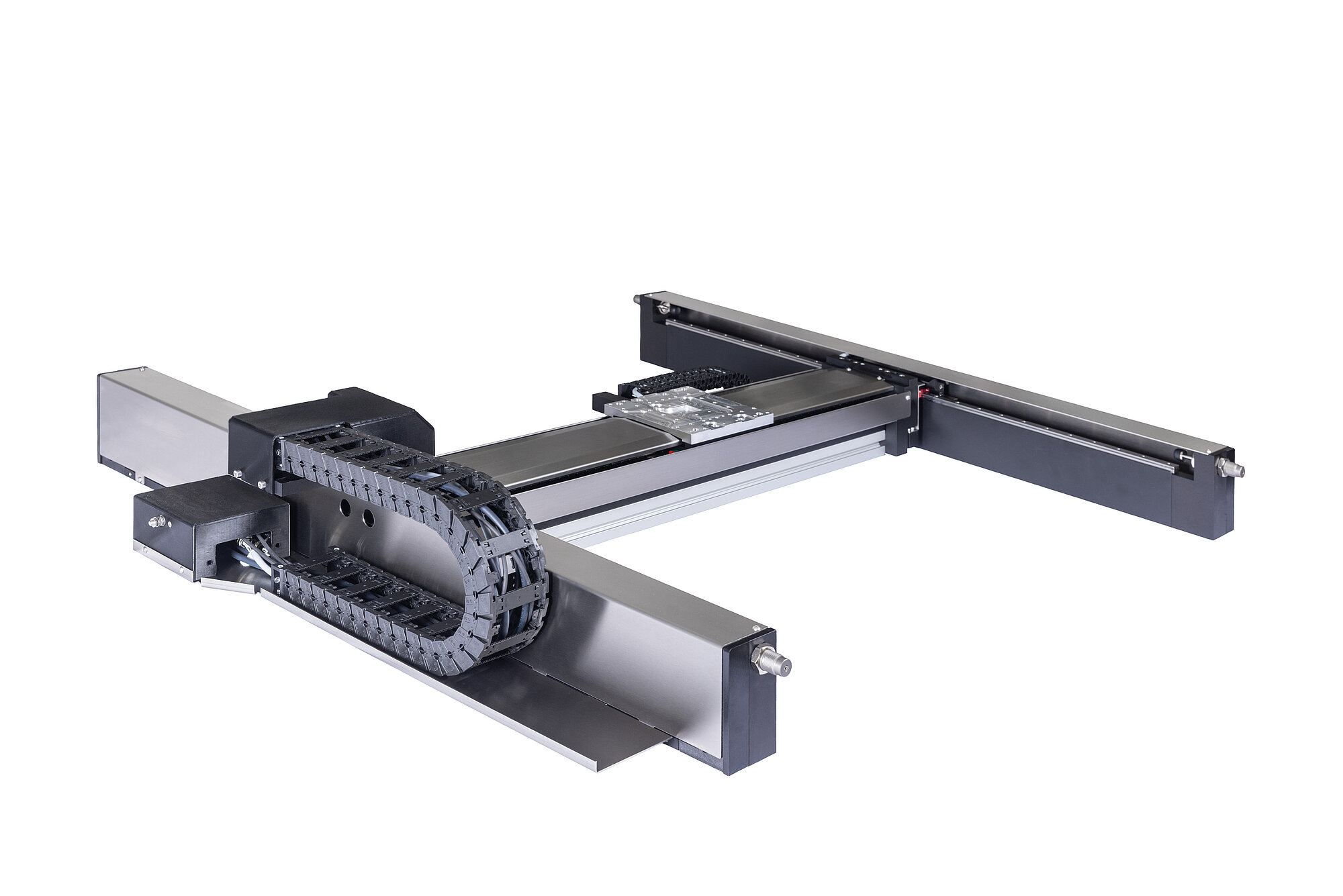

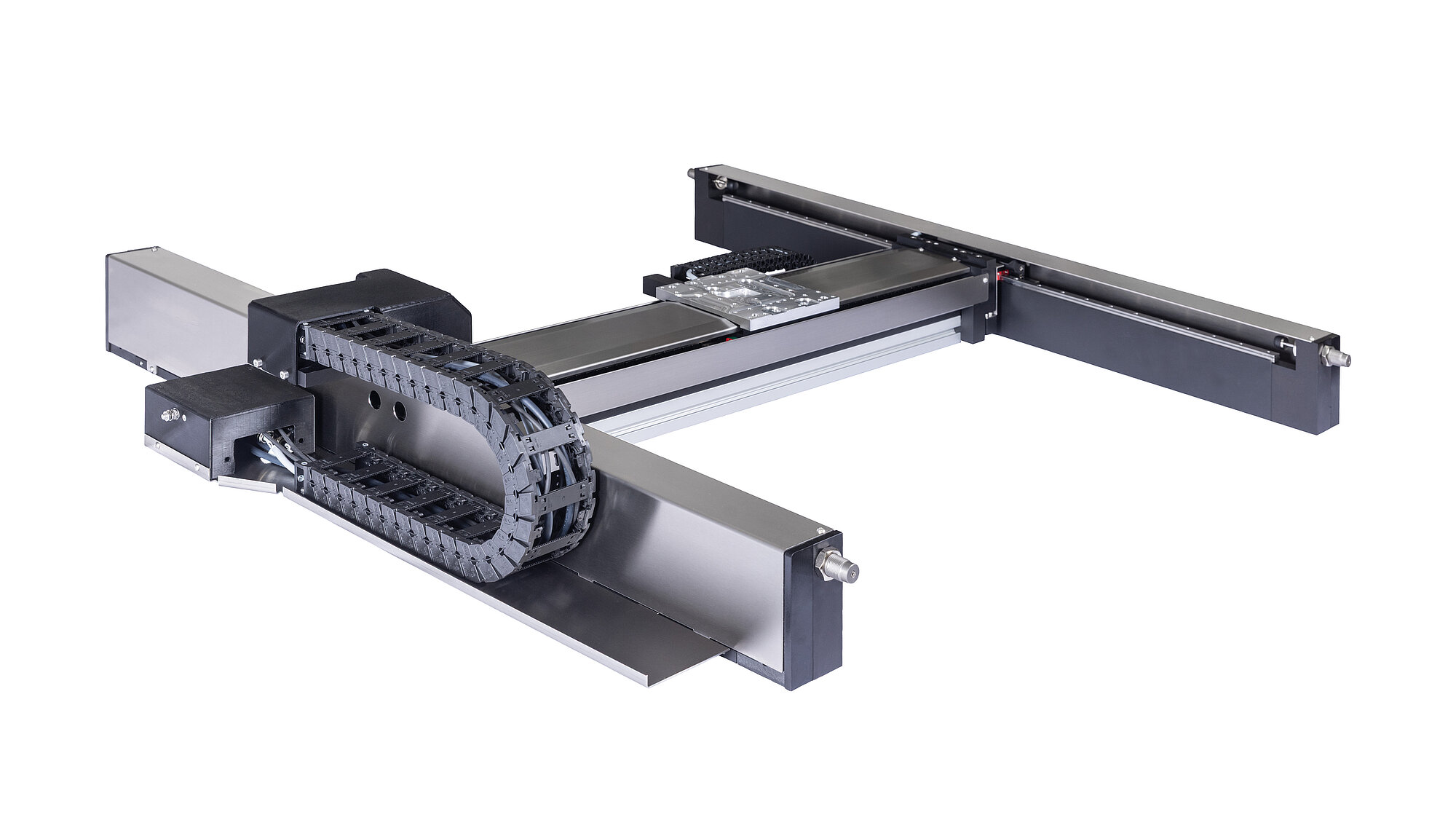

The X-365 precision XY gantry system is a modular linear-motor gantry platform designed for advanced manufacturing, robotics, and laser processing. It delivers precise, repeatable motion with broad integration capabilities and a standardized, configurable architecture, bridging the gap between custom high-end systems and off-the-shelf automation solutions.
Technology
Based on standardized industry-proven components, the X-365 gantry system offers various travel ranges and configurations to meet specific application requirements, thus ensuring adaptability and precision. Equipped with high-performance ironless linear motors, the system offers cogging-free motion, while absolute measuring encoders provide accurate position feedback without the need for referencing. The gantry system features precision recirculating ball bearing guides for superior stiffness and flatness, along with thermally decoupled components for enhanced performance stability. Additionally, the modular XY gantry system is supported by PI's comprehensive service offering to minimize installation effort and get started quickly.
Controller
The platform is compatible with a variety of control electronics. Depending on the requirements, it can be used in conjunction with the G-901.RA5486B high-end ACS controller, the G-901.RA5197 standard ACS controller, the ECMma cost-optimized controller, or discrete ACS components. If ordered along with the XY system, the control electronics ship preconfigured and ready for operation.
Application fields
Available options
| Motion and positioning | X-365 | Note |
|---|---|---|
| Payload | 10 kg to 15 kg | |
| Travel range in X | 200 mm, 400 mm, 600 mm, 800 mm | X: Gantry axis |
| Travel range in Y | 200 mm, 400 mm, 600 mm | Y: Bridge axis |
| Minimum incremental motion in X, Y | 0.1 µm | |
| Bidirectional repeatability | ±0.5 µm | Per axis, ≥ 2 σ |
| Positioning accuracy, calibrated | ±1 µm | Per axis, achieved with 1D mapping of X and Y axis |
| Orthogonality X to Y | < 35 µrad | |
| Straightness in X | 20 µm | Straightness error E_YX |
| Straightness in Y | 10 µm | Straightness error E_XY |
| Flatness in X | 10 µm | Straightness error E_ZX |
| Flatness in Y | 20 µm | Straightness error E_ZY |
| Sensor | Absolute encoder | No risk of collision at startup |
| Sensor resolution | 1 nm | |
| Drive properties | X-365 | Note |
| Max. velocity in X, unloaded ǀ loaded* |
unloaded : 2 m/s loaded*: 1.4 m/s | With G-901.RA5486B |
| Velocity in continuous operation in X |
unloaded : 1.25 m/s loaded*: 0.65 m/s | |
| Max. velocity in Y |
unloaded : 2.5 m/s loaded*: 1.2 m/s | With G-901.RA5486B |
| Velocity in continuous operation in Y |
unloaded : 2.5 m/s loaded*: 0.75 m/s | |
| Max. acceleration in X |
unloaded : 15 m/s2 loaded*: 10 m/s2 | |
| Acceleration in continuous operation in X |
unloaded : 12.5 m/s2 loaded*: 6.5 m/s2 | |
| Max. acceleration in Y |
unloaded : 25 m/s2 loaded*: 12 m/s2 | |
| Acceleration in continuous operation in Y |
unloaded : 25 m/s2 loaded*: 7.5 m/s2 | |
| Max. drive force in X |
unloaded : 430 N loaded*: 430 N | |
| Drive force in continuous operation in X |
unloaded : 135 N loaded*: 135 N | |
| Max. drive force in Y |
unloaded : 70 N loaded*: 260 N | |
| Drive force in continuous operation in Y |
unloaded : 35 N loaded*: 85 N | |
| Environment | X-365 | Note |
| Environment | Default | Ambient pressure at 22 ±0.5 °C |
| Lifetime | 2 years | In 24/7 operation, at full duty cycle |
| Controller | X-365 | Note |
| High-end | G-901.RA5486B | To achieve all specification values |
| Default | G-901.RA5197 | To achieve most specification values |
| Cost-optimized | ECMma | ACS integrated motion controller |
* Values valid for maximum load (15 kg)
The available motion platform is directly compatible with L-509, L-511, V-611, and L-611 positioners and includes space for managing cables for additional sensors, encoders, and other positioners from PI or third-party providers.
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Configuration options for the XY gantry platform:

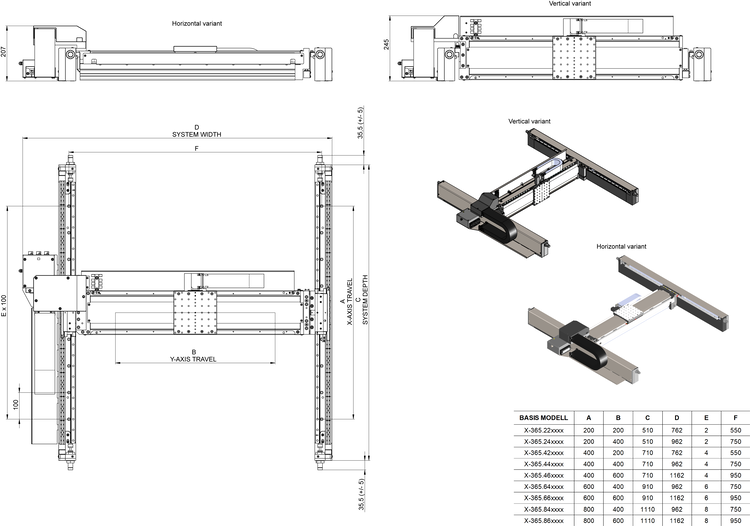

- Travel range of the X axis (gantry): 200 mm | 400 mm | 600 mm | 800 mm
- Travel range of the Y axis (bridge): 200 mm | 400 mm | 600 mm
- Material: aluminum, black anodized | aluminum
- Orientation of the motion platform: horizontal | vertical
Additional options:
- Axis debris protection
- Granite base with spacing elements
The desired controller for the XY gantry system must be ordered separately.
The following controllers are available:
- G-901.RA5486B for high-end XY gantry systems
- G-901.RA5197 for standard XY gantry systems
- ECMma ACS integrated motion controller for cost-optimized XY gantry systems
Suitable cables for the XY gantry system must be ordered separately.
