PL088.30
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 10 mm × 10 mm × 2 mm

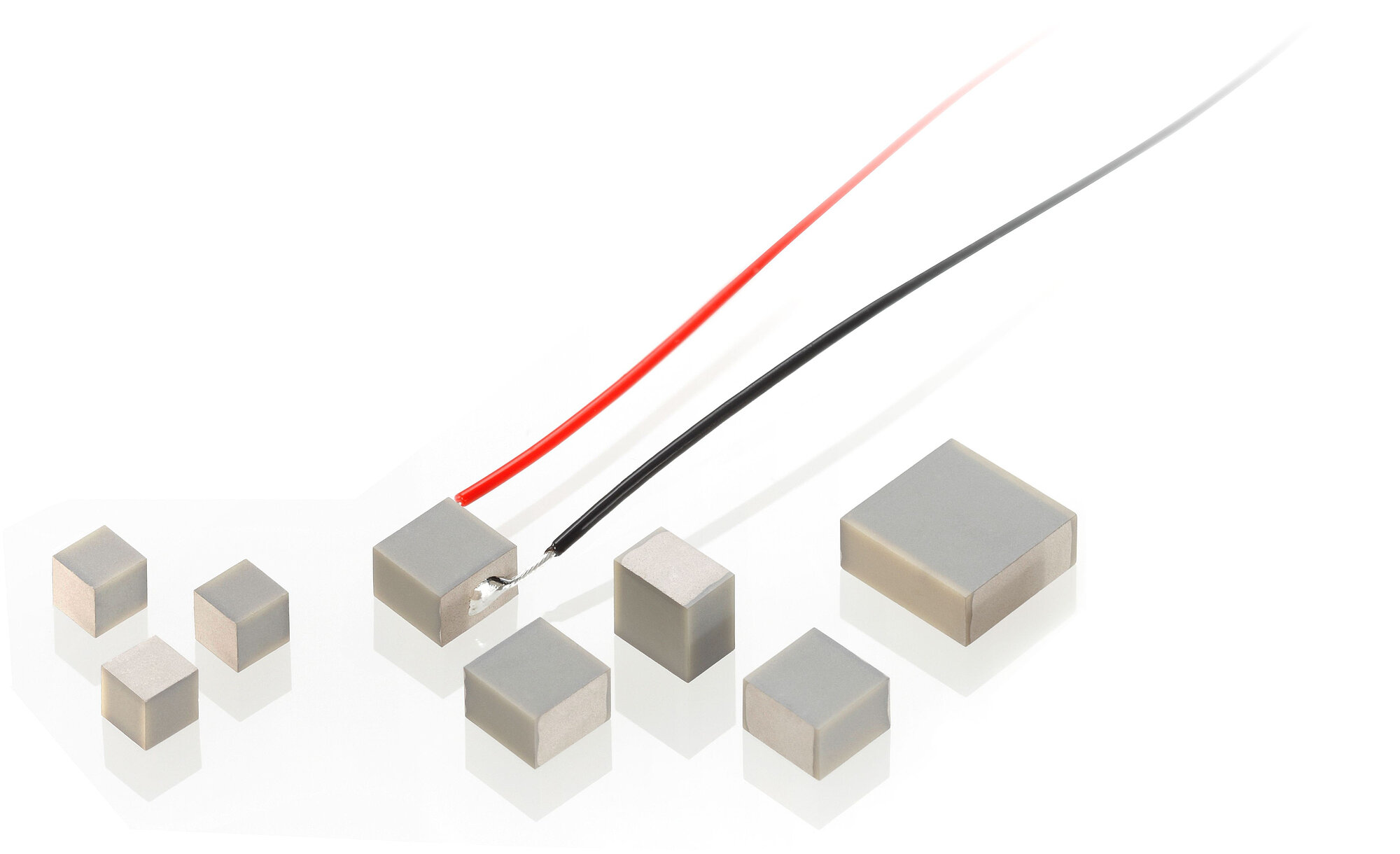

PICMA® Chip Multilayer Actuators
Miniature Multilayer Piezo Actuators
- Superior lifetime
- Ultracompact: from 2 mm × 2 mm × 2 mm
- Ideal for dynamic operation
- Microsecond response time
- Subnanometer resolution
- UHV-compatible to 10-9 hPa

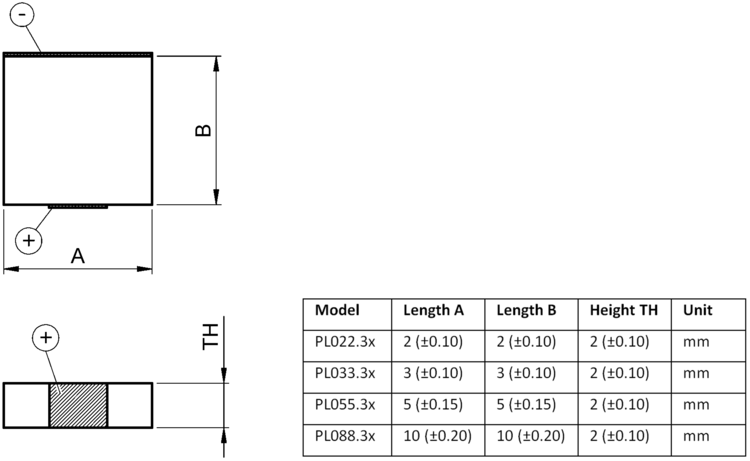

PL0xx: Dimensions

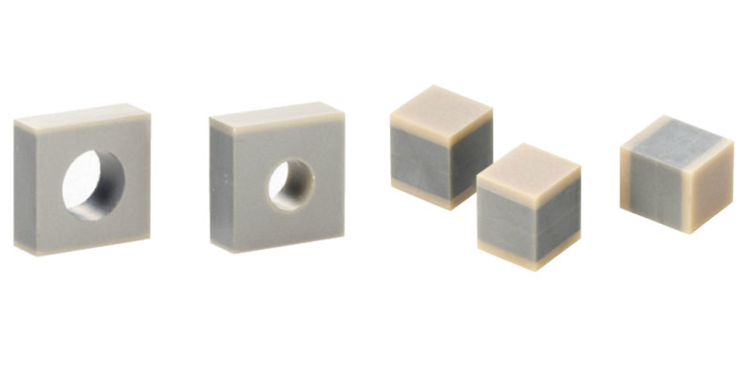

On request, PICMA® Chip piezo actuators can be manufactured with an all-ceramic-insulated inner hole (left) or with precision-ground ceramic end plates (right).
PICMA® Chip Multilayer Actuators
製品の解説
仕様
ダウンロード
見積 / 発注
Piezo linear actuator with PICMA
Operating voltage -20 to 100 V. Ceramic insulation, polymer-free. Insensitive to humidity. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Flexible thanks to numerous designs. Versions with square, round, or annular cross section.
Possible modifications
PTFE-insulated connecting wires. Various geometric shapes, inner hole. Precision-ground ceramic end plates.
Application fields
Industry and research. For laser tuning, microdispensing, life sciences.
Specifications
Specifications
| PL022.3x | PL033.3x | PL055.3x | PL088.3x | Unit | Tolerance | |
|---|---|---|---|---|---|---|
| Side length (A) | 2 ±0.10 | 3 ±0.10 | 5 ±0.15 | 10 ±0.20 | mm | |
| Side length (B) | 2 ±0.10 | 3 ±0.10 | 5 ±0.15 | 10 ±0.20 | mm | |
| Height (TH) | 2 ±0.10 | 2 ±0.10 | 2 ±0.10 | 2 ±0.10 | mm | |
| Travel range* | 2.2 | 2.2 | 2.2 | 2.2 | µm | ±20 % |
| Blocking force** | >120 | >300 | >500 | >2000 | N | |
| Electrical capacitance*** | 25 | 75 | 250 | 1100 | nF | ±20 % |
| Axial resonant frequency**** | >600 | >600 | >600 | >600 | kHz | |
| Piezoceramics | PIC252 | PIC252 | PIC252 | PIC252 | ||
| Operating voltage range | -20 to 100 | -20 to 100 | -20 to 100 | -20 to 100 | V | |
| Operating temperature range | -40 to 150 | -40 to 150 | -40 to 150 | -40 to 150 | °C | |
| Recommended preload for dynamic operation | 15 | 15 | 15 | 15 | MPa | |
| Maximum preload for constant force | 30 | 30 | 30 | 30 | MPa | |
| Recommended electronics | E-610, E-617, E-831 | E-610, E-617, E-831 | E-610, E-617, E-831 | E-610, E-617, E-831 |
Standard connections: PL0xx.31: PTFE-insulated connecting wires, UHV-compatible, 100 mm, AWG 32, Ø 0.49 mm; PL0xx.30: solderable contacts
* At 0 to 100 V. The values refer to the unattached component and may be lower when glued on.
** At 0 to 100 V
*** Measured at 1 V, 1 kHz, RT
**** Measured at 1 V, unloaded, unclamped. The value is halved for unilateral clamping. Depending on the installation situation, the lateral resonant frequencies can be lower than the axial resonant frequencies.
Custom versions are available on request.
Downloads
データシート
ドキュメント
ドキュメント
User Manual PZ265
PL022 / PL033 / PL055 / PL088 PICMA® Chip miniature multilayer piezo actuators; PD161 Round PICMA® Chip miniature multilayer piezo actuators; PD050 / PD080 / PD120 / PD150 / PD160 Round PICMA® Chip miniature multilayer piezo actuators with inner hole
日付 / バージョン
1.1.0 2021-09-27
pdf - 2 MB
日付 / バージョン
1.1.0 2021-09-27
pdf - 2 MB
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
PL055.30
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 5 mm × 5 mm × 2 mm
PL033.30
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 3 mm × 3 mm × 2 mm
PL022.30
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 2 mm × 2 mm × 2 mm
PL088.31
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 10 mm × 10 mm × 2 mm, connecting wires
PL055.31
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 5 mm × 5 mm × 2 mm, connecting wires
PL033.31
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 3 mm × 3 mm × 2 mm, connecting wires
PL022.31
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 2 mm × 2 mm × 2 mm, connecting wires
