C-815.VF
Vacuum feedthrough, D-sub 15 (m/f), suitable for high vacuum (to 10-6 hPa)
C-815.VFxx Vacuum Feedthroughs
Interfaces Between Air Side and High Vacuum (HV) or Ultrahigh Vacuum (UHV)
- Accessories for positioning stages suitable for vacuum
- Closure and port for vacuum chambers
- Vacuum compatible to 10-9 hPa

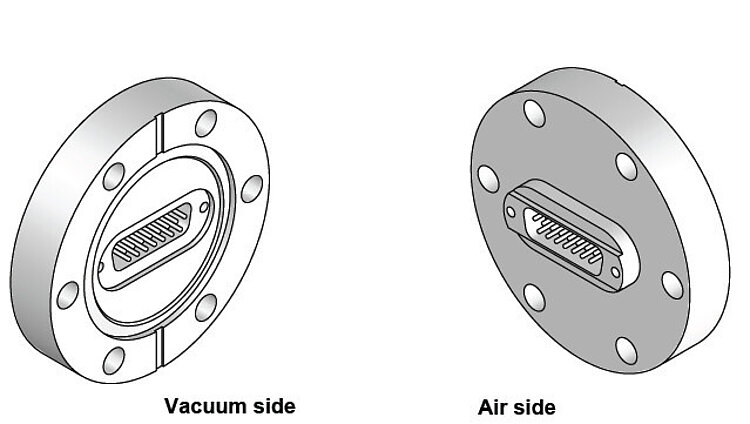

C-815.VFU1

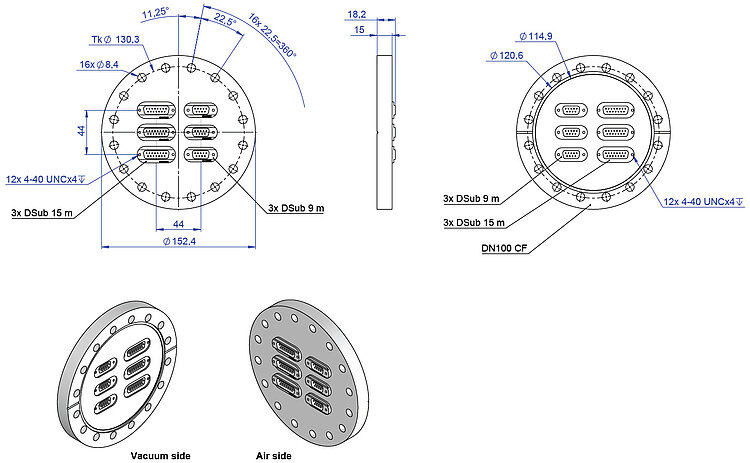

C-815.VFU33, dimensions in mm
C-815.VFU11, dimensions in mm

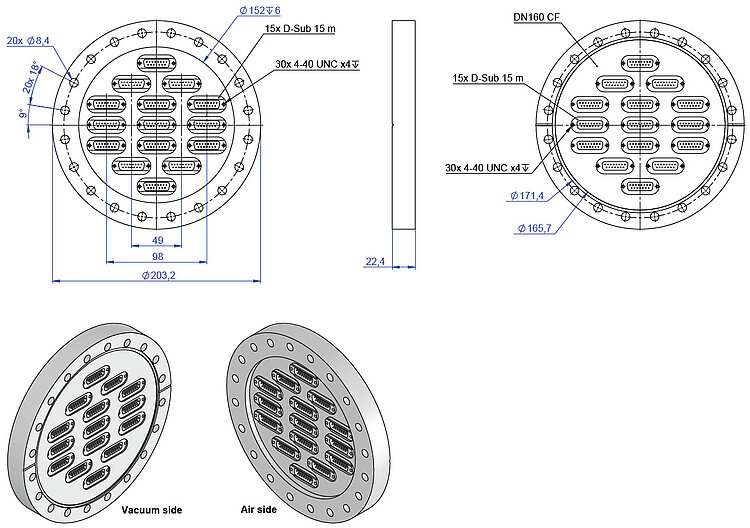

C-815.VFU15, dimensions in mm

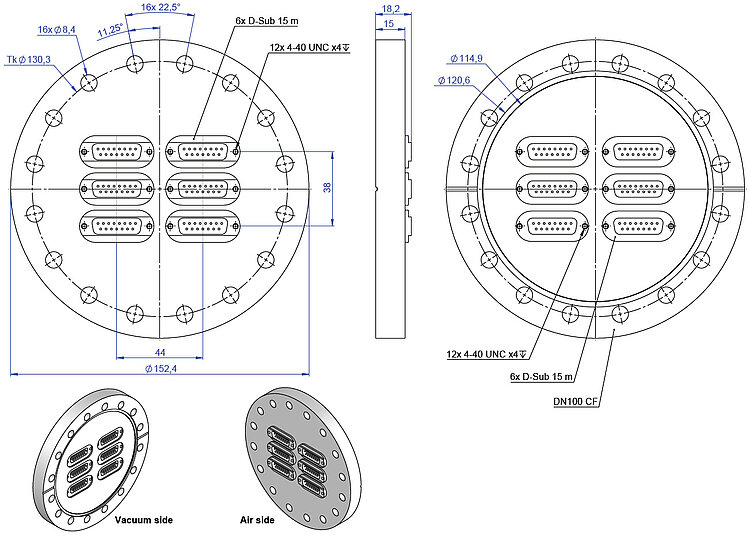

C-815.VFU6, dimensions in mm

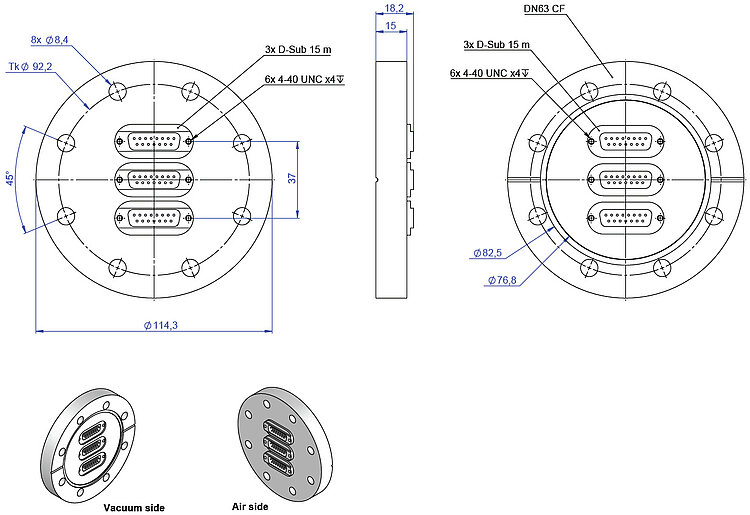

C-815.VFU3, dimensions in mm

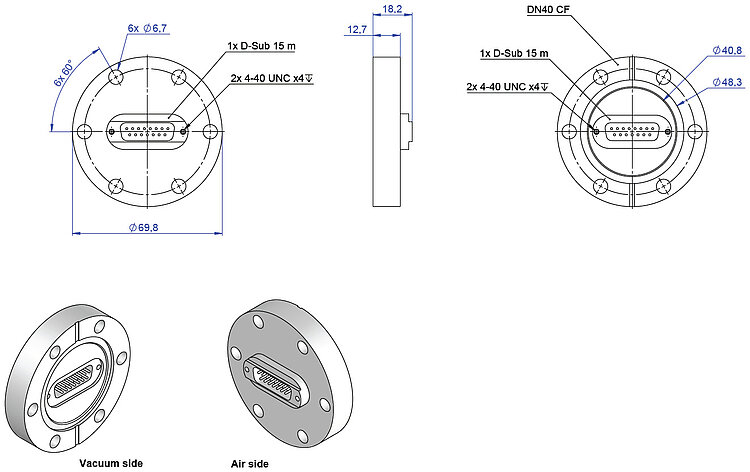

C-815.VFU1, dimensions in mm
C-815.VF9, dimensions in mm

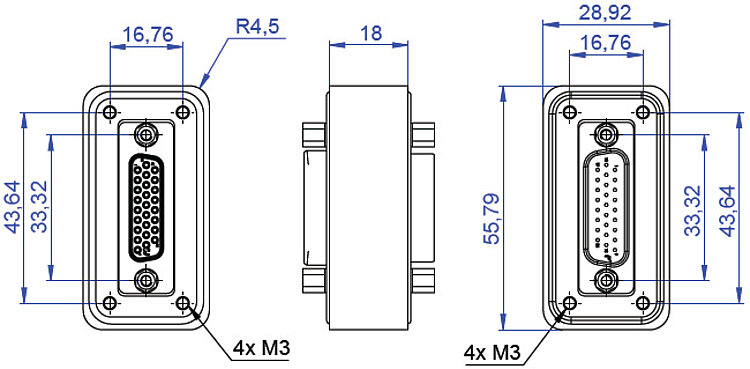

C-815.VF26, dimensions in mm
C-815.VF, dimensions in mm
C-815.VFU66, dimensions in mm
C-815.VFxx Vacuum Feedthroughs
製品の解説
仕様
ダウンロード
見積 / 発注
Connection of standard controllers to vacuum applications
Vacuum feedthroughs are the interface between the positioner within the vacuum enclosure and the controller on the air side. With their help, vacuum applications can be connected to standard controllers. Vacuum feedthroughs are available for a variety of connectors and for a different number of cables. The cables are not part of the scope of delivery for the feedthroughs.
Specifications
Specifications
Characteristics | V6 feedthroughs | V7 and V9 feedthroughs | Unit |
|---|---|---|---|
Seal | Fluoroelastomer | Glass ceramics | |
Flange | Aluminum alloy, gold iridite | Stainless steel 316L | |
Test voltage | 1000 | 500 | V |
Max. current per pin | 5 | 5 | A |
Temperature range | -40 to 125 | -200 to 300 | °C |
Leak rate | < 5 × 10-9 | < 5 × 10-10 | mbar l/s He |
Total mass loss (TML) | < 1 | % | |
Collected volatile condensable materials (CVCM) | < 0.1 | % |
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
C-815.VF26
Vacuum feedthrough, HD D-sub 26 (m/f), suitable for high vacuum (to 10-6 hPa)
C-815.VF9
Vacuum feedthrough, D-sub 9 (m/f), suitable for high vacuum (to 10-6 hPa)
C-815.VFU1
Vacuum feedthrough, CF40 flange, 1 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
C-815.VFU3
Vacuum feedthrough, CF63 flange, 3 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
C-815.VFU6
Vacuum feedthrough, CF100 flange, 6 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
C-815.VFU15
Vacuum feedthrough, CF160 flange, 15 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
C-815.VFU11
Vacuum feedthrough, CF63 flange, 1 × D-sub 9 (m/m) und 1 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
C-815.VFU33
Vacuum feedthrough, CF100 flange, 3 × D-sub 9 (m/m) und 3 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
C-815.VFU66
Vacuum feedthrough, CF160 flange, 6 × D-sub 9 (m/m) und 6 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
