E-713.DxxPxL • DxxPxM Amplifiers for E-713 Motion Controller

新製品

For Piezo-Based Drives With or Without Sensors

For modular E-713 Motion Controllers
Maximum flexibility for high-precision motions
Highly stable 20-bit D/A converters
For PICMA piezo actuators, PICMAWalk drives, and NEXLINE® drives
Encoder input via BiSS C interface

見積 / 発注

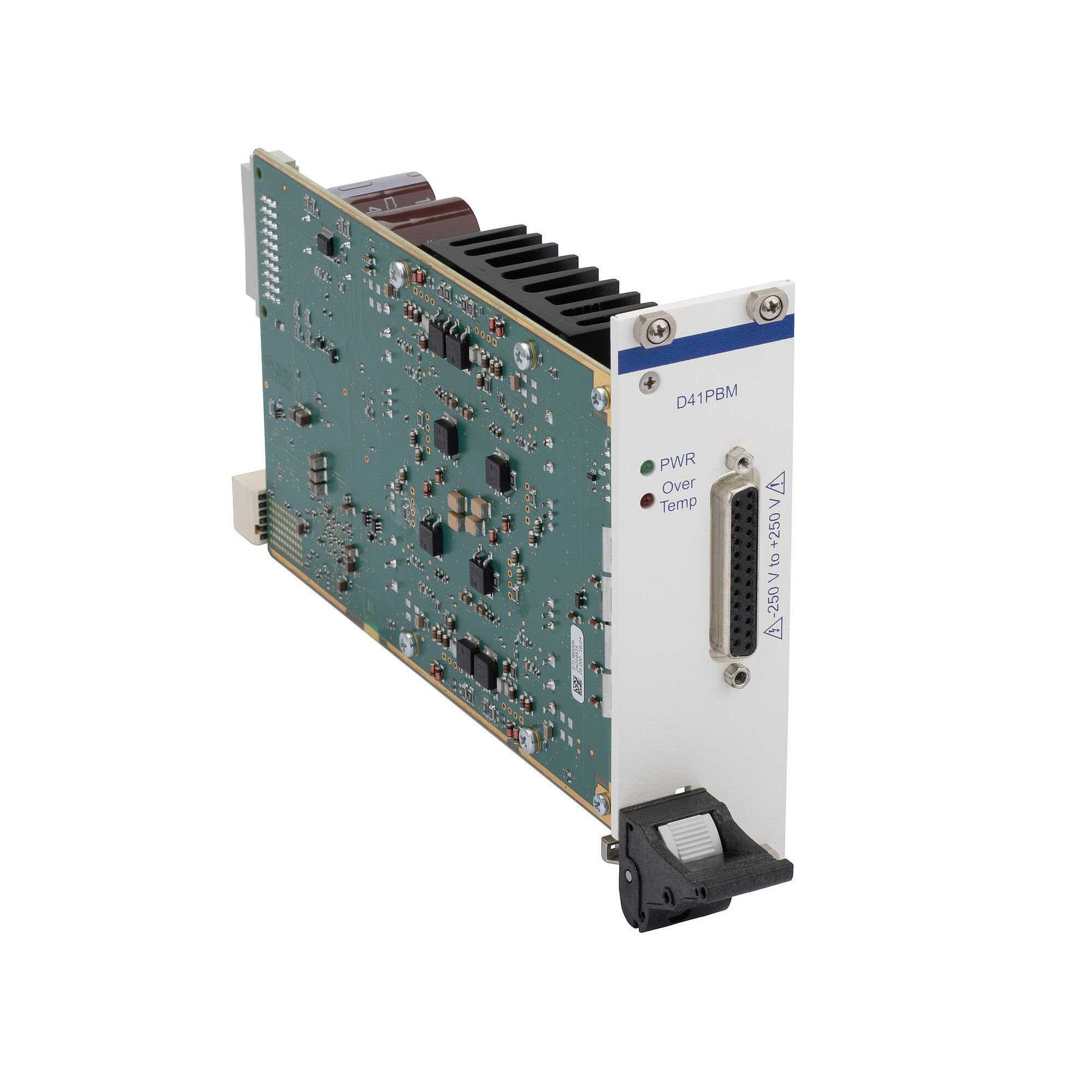

E-713.D41PBM amplifier module for NEXLINE®

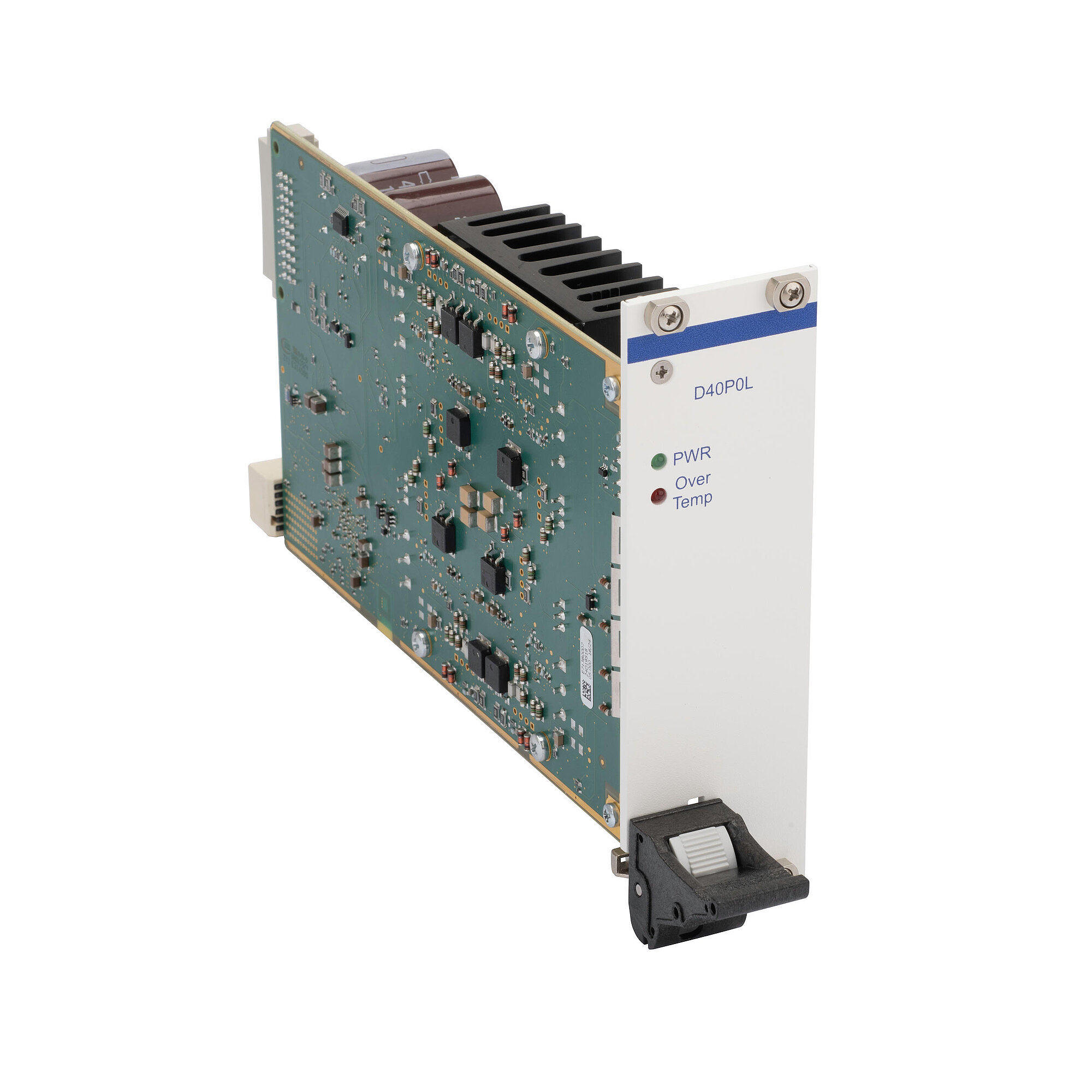

E-713.D40P0L amplifier module for piezo actuators

Amplifier for piezo-based drives

Motion control of PI positioning systems with piezo-based drive: depending on the model, up to 4 PICMA piezo actuators, 1 PICMAWalk drive, or 1 NEXLINE® drive.

Sensor types

1 position sensor per PICMAWalk drive and NEXLINE® drive. Input via BiSS Choice of the sensor type used via a parameter.

Modular design

The amplifier modules are intended for use in the modular E-713 Motion Controller. The modular concept makes it possible to assemble E-713 Motion Controllers exactly according to customer requirements. An E-713 Motion Controller controls in a coordinated manner up to 16 axes with various drive types. This involves the use of state-of-the-art control and linearization algorithms. Optional digital and analog interfaces support motion automation.

データシートのダウンロード画面へ仕様へ見積 / 発注

データシート

Datasheet E-713.DxxPxL • DxxPxM

日付 / バージョン

2025-02-11

pdf - 1 MB

日付 / バージョン

2025-02-11

pdf - 1 MB

ダウンロード

Basics	E-713.D40P0L	E-713.D41PBL	E-713.D41PBM
Housing type	Module without housing, 8 HP	Module without housing, 8 HP	Module without housing, 8 HP
Drive type	PICMA®	PICMAWalk	NEXLINE® piezo walking drive
Output channels	4	1	1
Input channels	—	1	1
Protective functions	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating	Deactivation of the voltage output in case of internal overheating
Supported ID chip	ID chip 2.0	ID chip 2.0	ID chip 2.0
Motion and Control	E-713.D40P0L	E-713.D41PBL	E-713.D41PBM
Supported sensor signal	—	BiSS-C	BiSS-C
Interfaces and Operation	E-713.D40P0L	E-713.D41PBL	E-713.D41PBM
Display and indicators	Power LED ǀ Overtemp LED	Power LED ǀ Overtemp LED	Power LED ǀ Overtemp LED
Amplifier	E-713.D40P0L	E-713.D41PBL	E-713.D41PBM
Resolution DAC/voltage resolution	20 bit	20 bit	20 bit
Sensor	E-713.D40P0L	E-713.D41PBL	E-713.D41PBM
Maximum sensor interpolation factor	—	65536	65536
Electrical Properties	E-713.D40P0L	E-713.D41PBL	E-713.D41PBM
Output voltage	-30 to +135 V	-30 to +135 V	-250 to +250 V
Short-circuit proof	Yes	Yes	Yes
Average output power per channel	8 W	8 W	15 W
Peak output power per channel	25 W	25 W	45 W
Peak output power per channel, time limit	5 ms	5 ms	5 ms
Average output current per channel	150 mA	150 mA	60 mA
Peak output current per channel	250 mA	250 mA	180 mA
Peak output current per channel, time limit	5 ms	5 ms	5 ms
Miscellaneous	E-713.D40P0L	E-713.D41PBL	E-713.D41PBM
Motor/actuator connector	—	D-sub 37 (f)	D-sub 25 (f)
Sensor connector	—	D-sub 37 (f)	D-sub 25 (f)
Operating temperature range	5 to 40 °C	5 to 40 °C	5 to 40 °C
Overall mass	515 g	515 g	515 g

With the amplifier modules for PICMAWalk drives and NEXLINE® drives, the output channel corresponds to what is known as a PiezoWalk channel. Internally, up to 4 amplifier channels of the module may be involved in controlling the drive through the PiezoWalk channel.

The E-713.D40P0L amplifier module does not have a connector for positioning systems, but rather the voltage output for the piezo actuators is effected via the connector of a module for capacitive sensors or strain gauge sensors. For this reason, the E-713 Motion Controller must contain a corresponding sensor processing module for each E-713.D40P0L amplifier module.
